GN 228
Handwheels
Steel Sheet Metal / Stainless Steel Sheet Metal
GN 228-ST-B
Handwheels
Steel, without keyway
GN 228-ST-K
Handwheels
Steel, with keyway DIN 6885-1 P9
GN 228-ST-V
Handwheels
Steel, with square
GN 228-A4-B
Handwheels
Stainless steel, without keyway
GN 228-A4-K
Handwheels
Stainless steel, with keyway DIN 6885-1 P9
GN 228-A4-V
Handwheels
Stainless steel, with square
Description
Specification
Bore codes
- Version B: Without keyway
- Version K: With keyway DIN 6885-1 P9
- Version V: With square
Types

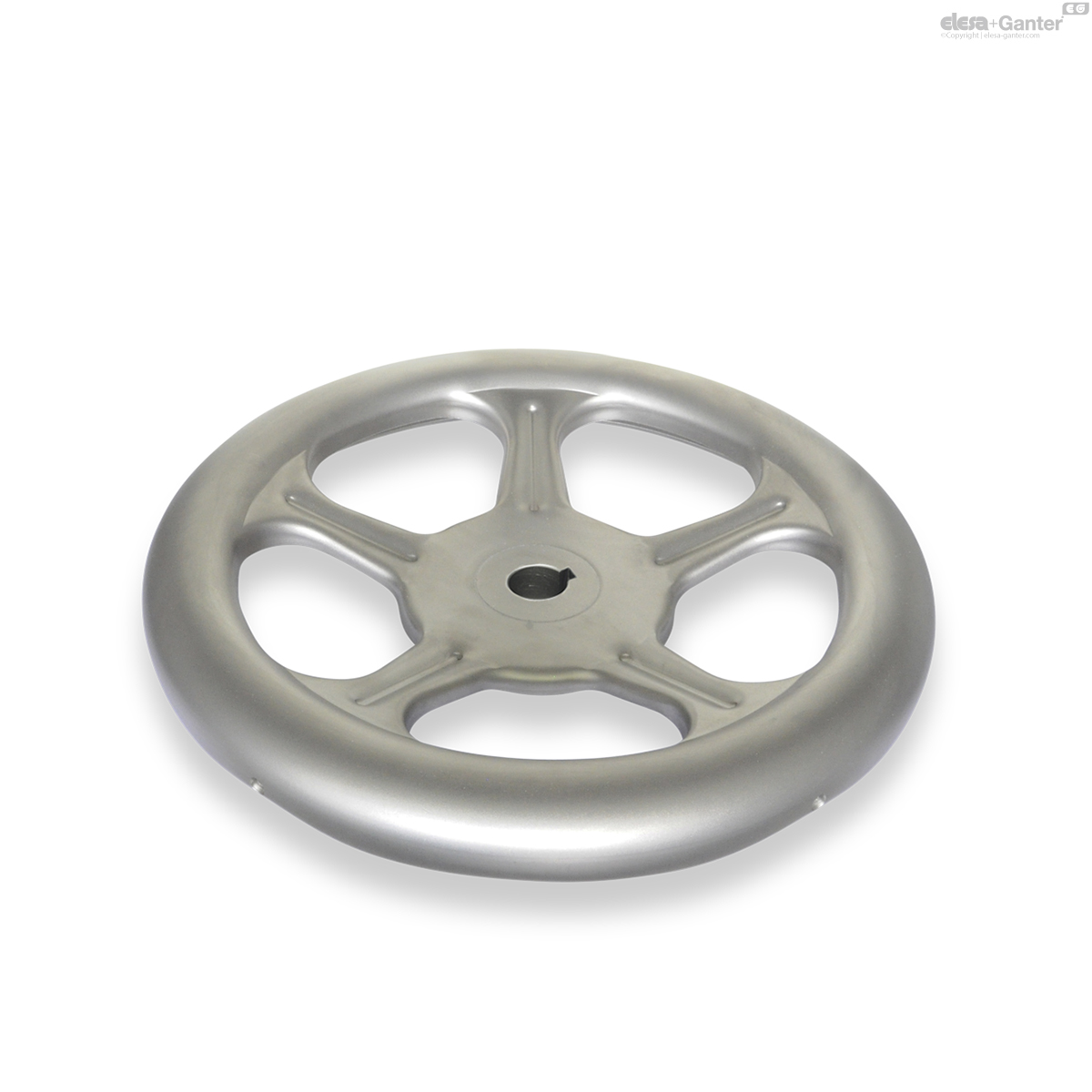

- Type A: Without handle

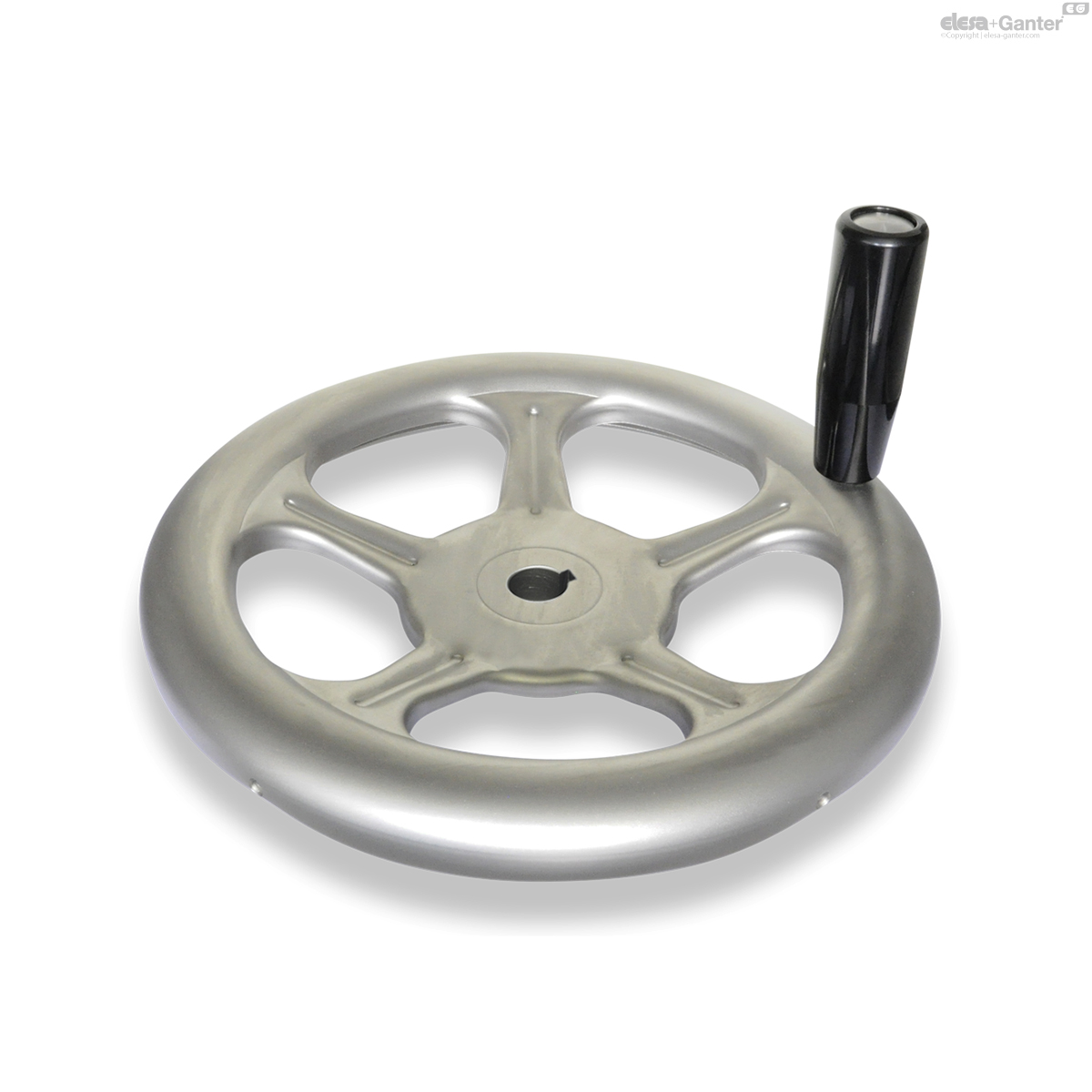

- Type D: With revolving handle (only for stainless steel A4)
Wheel body
- Steel ST
- Powder coated
- Black, RAL 9005, textured finish SW
- Wheel body of sheet steel
- Hub welded
- Stainless steel AISI 316L A4
- Matte shot-blasted finish GS
- Wheel body of stainless sheet steel
- Hub welded
Revolving handle similar to I.281
Plastic, phenolic resin (PF)
- Black, shiny finish
- Spindle
- Stainless Steel AISI 316 L
- O-ring
- Acrylonitrile butadiene rubber (NBR)
Information
Handwheels GN 228 of sheet steel or stainless sheet steel are robust and unaffected by shocks and knocks. The hub lengths l1 and the diameter d3 correspond to DIN 950.
The stainless steel design is suitable for applications in highly corrosive environments thanks to the A4 materials used.
On the revolving handles of type D, the O-rings minimize the radial play, protect the handle bearing from penetrating dirt and prevent noises resulting from vibration.
Accessory
- GN 184Â Countersunk Washers (for Axial Fixing)
Technical information
- Keyway P9 DIN 6885-1Â
- Squares DIN 79
- Cross Holes GN 110
- ISO-Fundamental TolerancesÂ
- Plastic CharacteristicsÂ
- Stainless Steel CharacteristicsÂ
GN 228-A4-K
| Color | d1 | d2 H9 Bore |
s H11 Square | b | d3 | l1 | l2 ≈ | l3 | r | Ø Handle | Spokes no. | Thickness of sheet metal |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||||
| GN 228-A4-125-K11-A-GS | A | 125 | 11 | V 11 | 18 | 30 | 18 | 29 | - | - | - | 3 | 1.5 | 287 |
|
| GN 228-A4-160-K12-A-GS | A | 160 | 12 | V 12 | 22 | 30 | 20 | 37 | - | 68 | 26 | 4 | 1.5 | 433 |
|
| GN 228-A4-160-K12-D-GS | D | 160 | 12 | V 12 | 22 | 30 | 20 | 37 | 80 | 68 | 26 | 4 | 1.5 | 558 |
|
| GN 228-A4-200-K14-A-GS | A | 200 | 14 | V 14 | 22 | 40 | 24 | 46 | - | 88 | 26 | 4 | 2 | 799 |
|
| GN 228-A4-200-K14-D-GS | D | 200 | 14 | V 14 | 22 | 40 | 24 | 46 | 80 | 88 | 26 | 4 | 2 | 924 |
|
| GN 228-A4-250-K17-A-GS | A | 250 | 17 | V 17 | 30 | 45 | 28 | 52 | - | 108 | 28 | 5 | 2.5 | 1535 |
|
| GN 228-A4-250-K17-D-GS | D | 250 | 17 | V 17 | 30 | 45 | 28 | 52 | 90 | 108 | 28 | 5 | 2.5 | 1705 |
|
| GN 228-A4-315-K19-A-GS | A | 315 | 19 | V 19 | 35 | 55 | 33 | 64 | - | 138 | 28 | 5 | 2.5 | 2425 |
|
| GN 228-A4-315-K19-D-GS | D | 315 | 19 | V 19 | 35 | 55 | 33 | 64 | 90 | 138 | 28 | 5 | 2.5 | 2595 |
|
| GN 228-A4-400-K24-A-GS | A | 400 | 24 | V 24 | 40 | 65 | 38 | 82 | - | 179 | 28 | 5 | 3 | 4230 |
|
| GN 228-A4-400-K24-D-GS | D | 400 | 24 | V 24 | 40 | 65 | 38 | 82 | 90 | 179 | 28 | 5 | 3 | 4400 |
|
