Home Operating Elements Spoked handwheels GN 227.7

GN 227.7

Pressed steel handwheels

for valves

Enquire Now

Description

Specification

Pressed steel

cathodic dip coated (KTL)

black, RAL 9005 SWK

red, RAL 3000, matte RTK

Hub

Steel, welded

Information

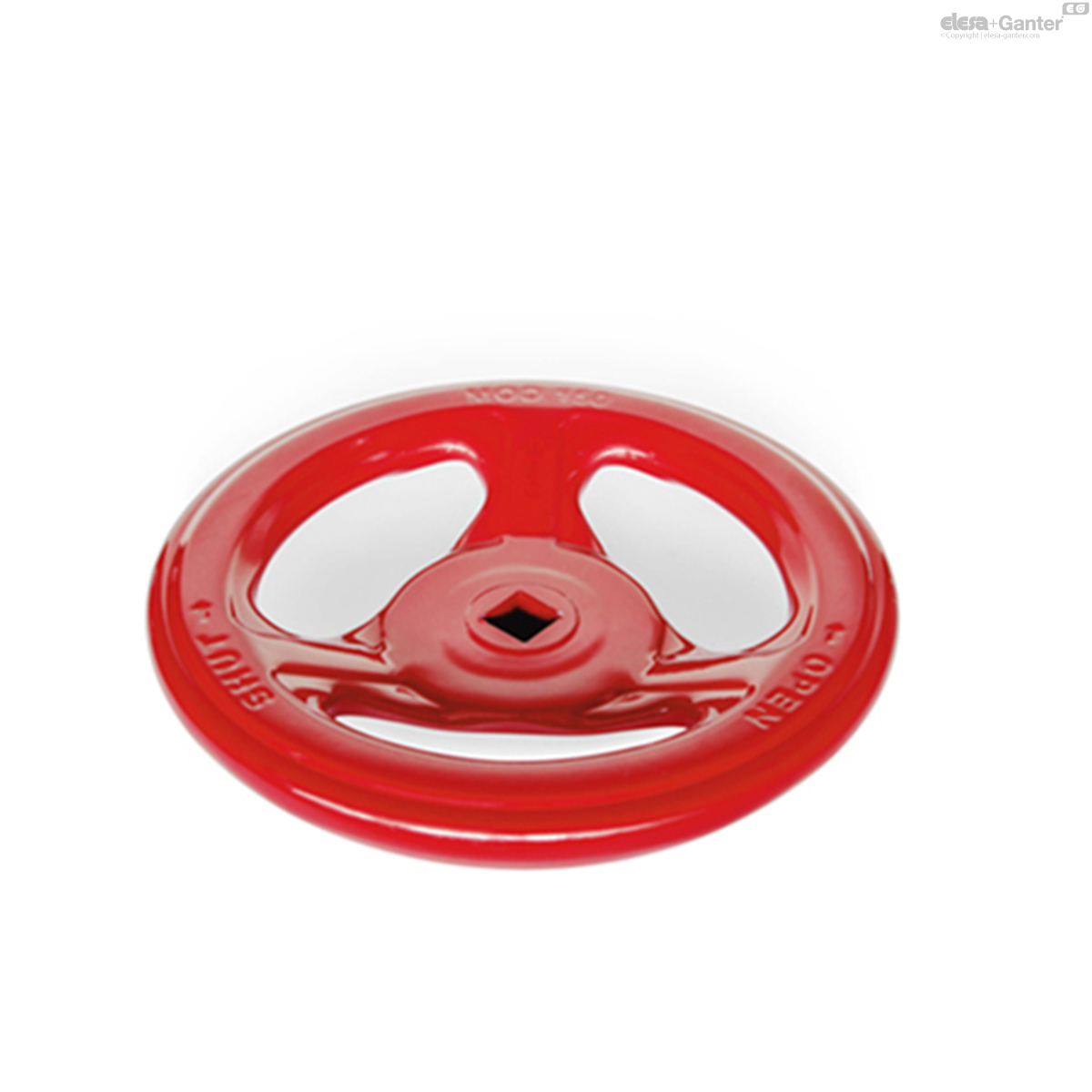

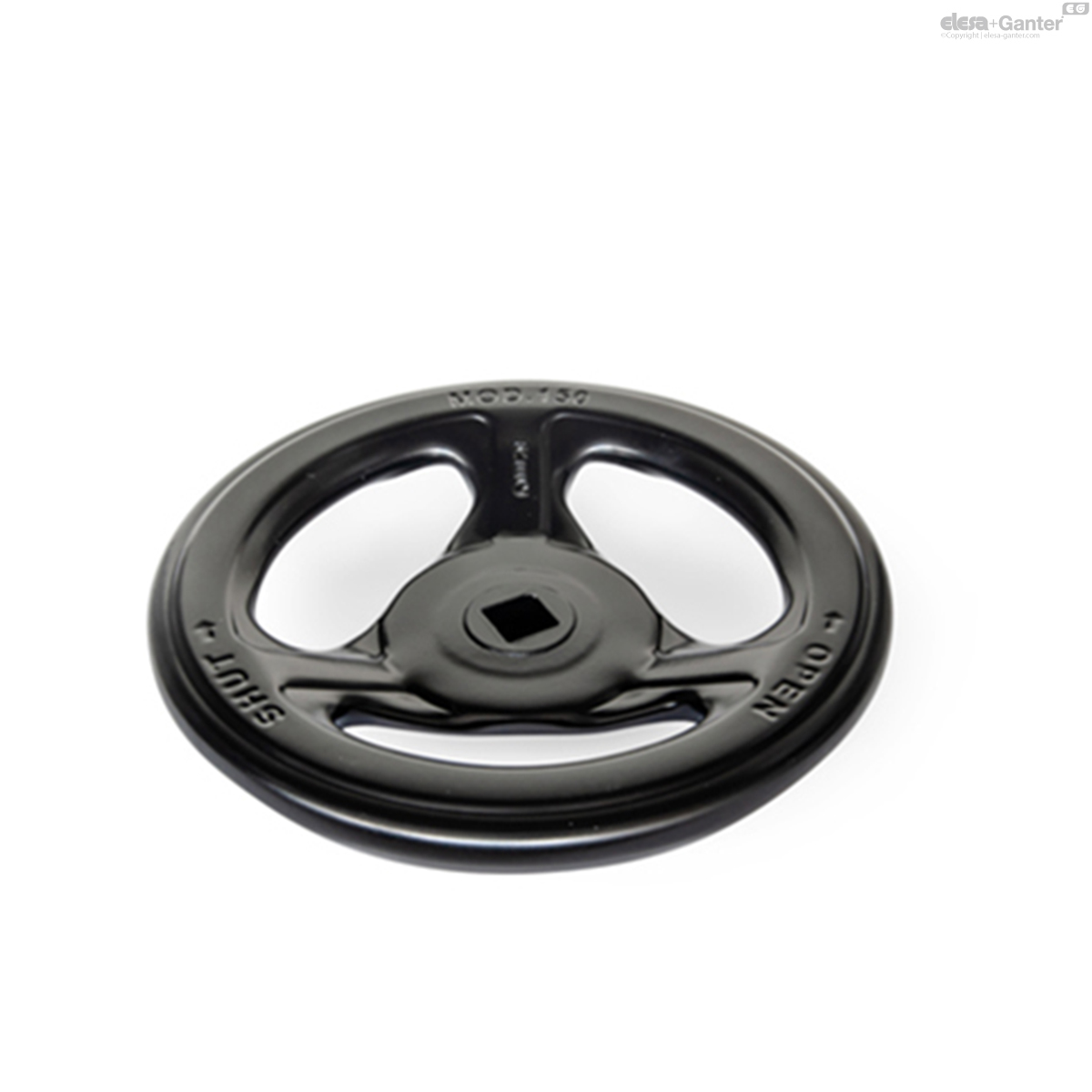

Pressed steel handwheels GN 227.7 feature high mechanical strength and a coating for increased corrosion resistance.They are also not affected by shock and knocks.

The conical square hole allows easy installation and firm seating on a spindle.The cast shape prevents injuries from sharp edges during handling.The engraved labels “SHUT” and “OPEN” help with safe and correct operation of the valves.

On request

with bore B

with square V

neutral, no labeling

GN 227.7

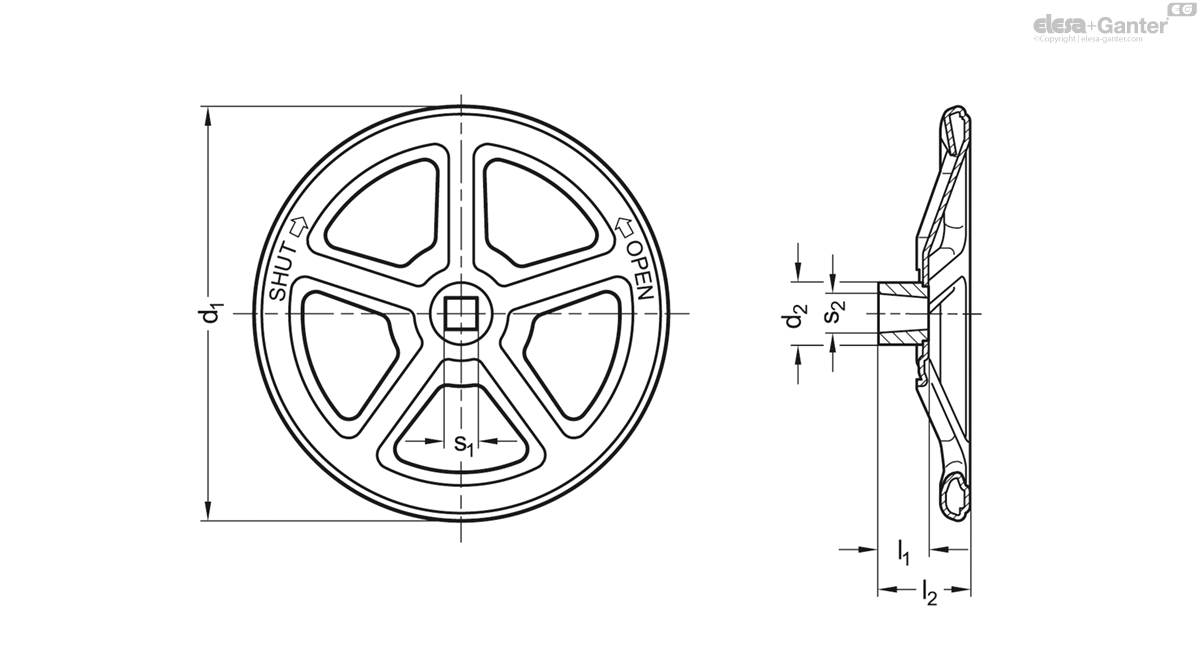

	Color	d₁	s₁	s₂	d₂	l₁	l₂ ±1	Spokes no.	Thickness of pressed steel
Code											Actions
GN 227.7-125-VK11-RTK	RTK - RAL 3000	125	VK 11	12.7	28	17	31	3	1.2	240
GN 227.7-125-VK11-SWK	SWK - RAL 9005	125	VK 11	12.7	28	17	31	3	1.2	240
GN 227.7-150-VK12-RTK	RTK - RAL 3000	150	VK 12	13.8	30	18	33.5	3	1.5	360
GN 227.7-150-VK12-SWK	SWK - RAL 9005	150	VK 12	13.8	30	18	33.5	3	1.5	360
GN 227.7-200-VK14-RTK	RTK - RAL 3000	200	VK 14	16	35	20	40.5	3	2	750
GN 227.7-200-VK14-SWK	SWK - RAL 9005	200	VK 14	16	35	20	40.5	3	2	750
GN 227.7-250-VK17-RTK	RTK - RAL 3000	250	VK 17	19.25	36	23	47	4	2	1100
GN 227.7-250-VK17-SWK	SWK - RAL 9005	250	VK 17	19.25	36	23	47	4	2	1100
GN 227.7-300-VK19-RTK	RTK - RAL 3000	300	VK 19	21.8	42	28	59	5	2	1600
GN 227.7-300-VK19-SWK	SWK - RAL 9005	300	VK 19	21.8	42	28	59	5	2	1600
GN 227.7-400-VK24-RTK	RTK - RAL 3000	400	VK 24	27	48	30	66	5	2.5	3100
GN 227.7-400-VK24-SWK	SWK - RAL 9005	400	VK 24	27	48	30	66	5	2.5	3100
