Description

Specification

Pressed steel ST

plastic coated

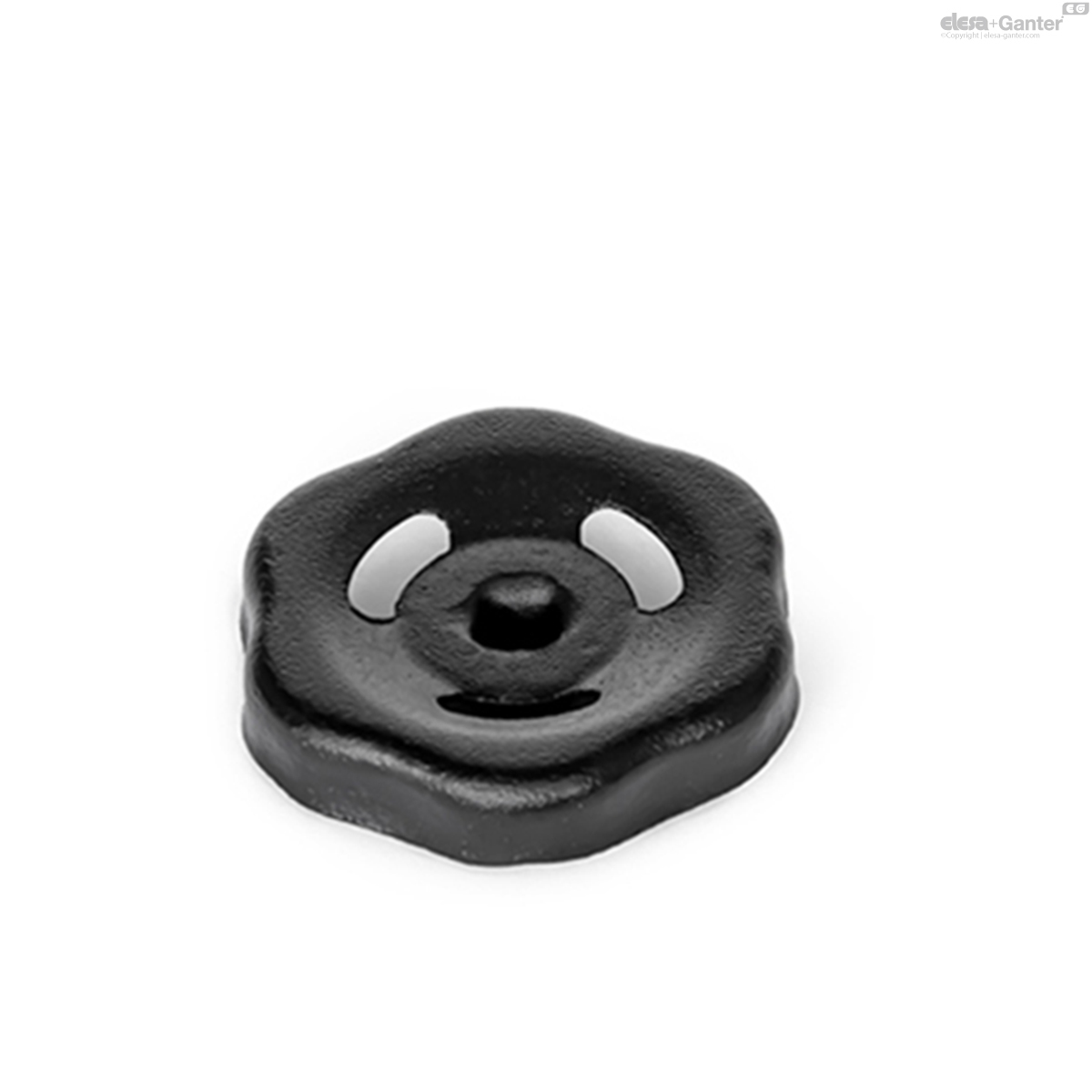

black, RAL 9005, matte SW

red, RAL 3000, matte RT

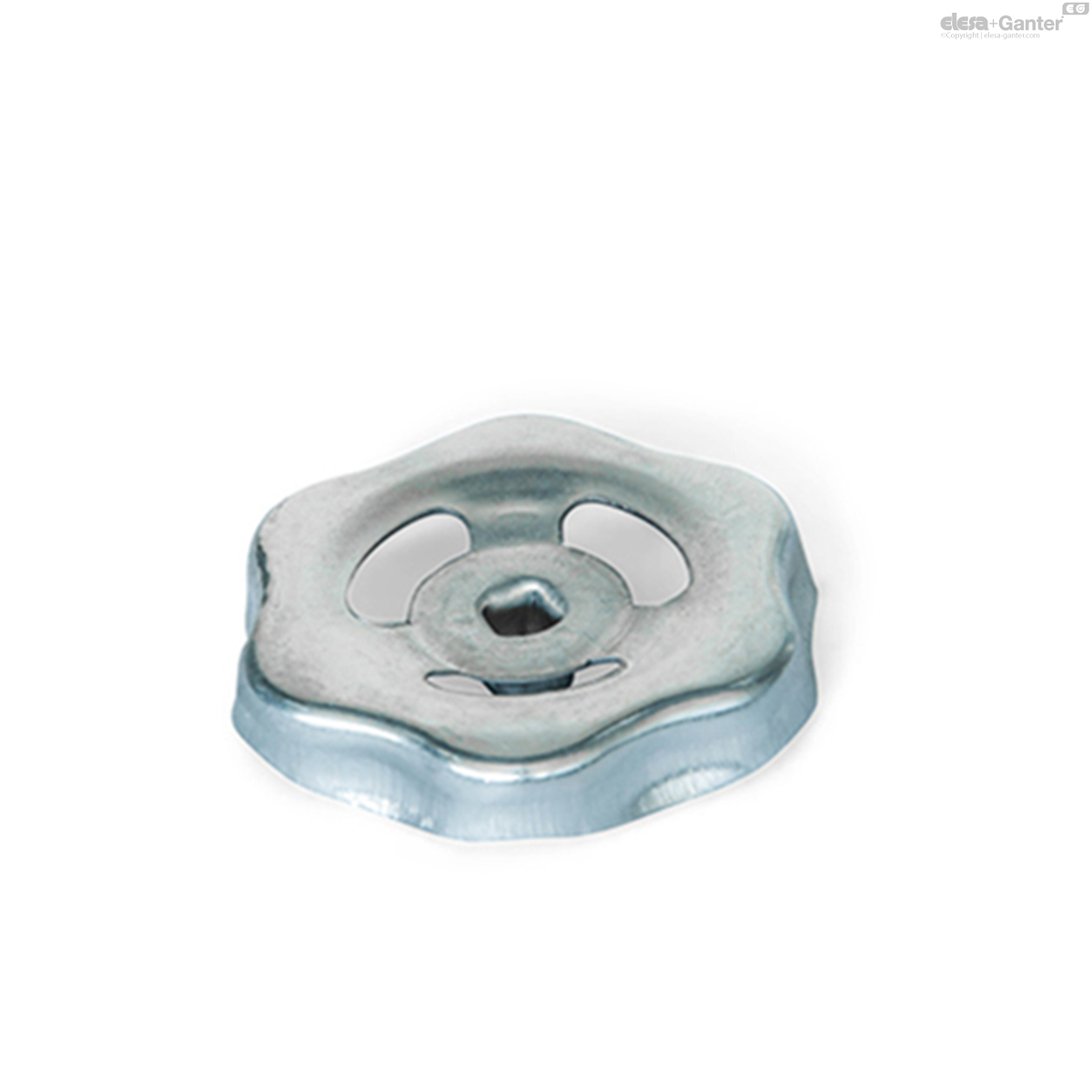

zinc plated, blue passivated ZB

Information

Pressed steel handwheels GN 227.6 have been specially developed for valves and consists of a single unwelded piece of pressed sheet metal manufactured by a special process.

They offer high mechanical strength and are not affected by shocks and knocks.

Technical information

ISO-Fundamental Tolerances

GN 227.6

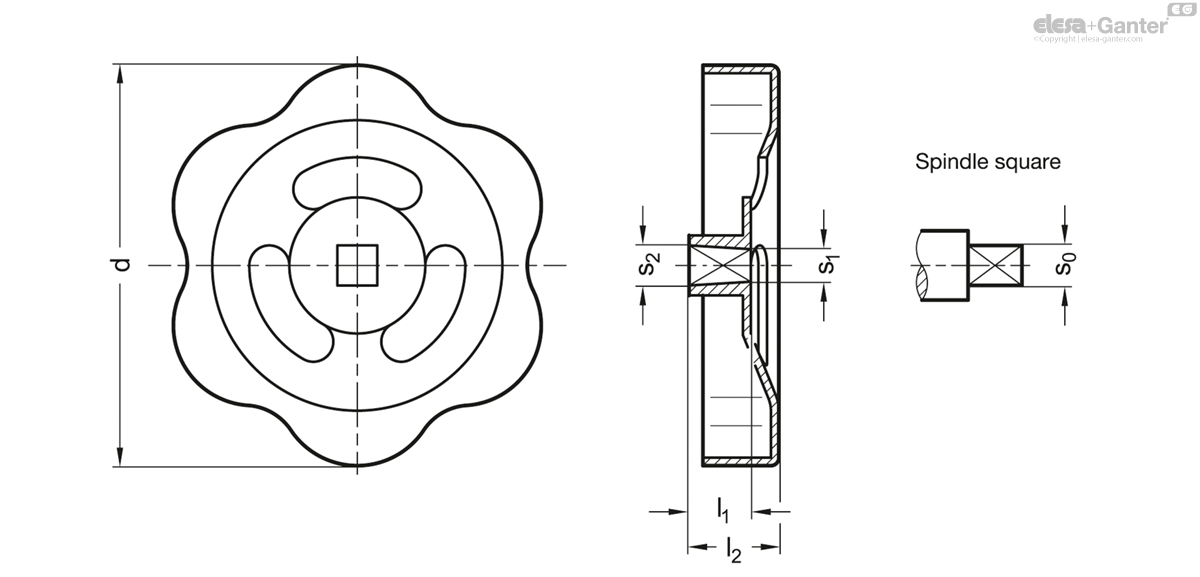

	Color	d	s₀	s₁	s₂ ±0.1	l₁ ±0.5	l₂	Spokes no.
Code										Actions
GN 227.6-ST-50-V6-RT	RS - RAL 3000	50	V 6	5.9	6.15	8.5	12	3	20
GN 227.6-ST-50-V6-SW	SW - RAL 9004	50	V 6	5.9	6.15	8.5	12	3	20
GN 227.6-ST-50-V6-ZB	ZB - Zinc plated	50	V 6	5.9	6.15	8.5	12	3	20
GN 227.6-ST-50-V7-RT	RS - RAL 3000	50	V 7	6.9	7.15	8.5	12	3	24
GN 227.6-ST-50-V7-SW	SW - RAL 9004	50	V 7	6.9	7.15	8.5	12	3	24
GN 227.6-ST-50-V7-ZB	ZB - Zinc plated	50	V 7	6.9	7.15	8.5	12	3	24
GN 227.6-ST-60-V6-RT	RS - RAL 3000	60	V 6	5.9	6.15	8.5	12	3	29
GN 227.6-ST-60-V6-SW	SW - RAL 9004	60	V 6	5.9	6.15	8.5	12	3	29
GN 227.6-ST-60-V6-ZB	ZB - Zinc plated	60	V 6	5.9	6.15	8.5	12	3	29
GN 227.6-ST-60-V7-RT	RS - RAL 3000	60	V 7	6.9	7.15	8.5	12	3	30
GN 227.6-ST-60-V7-SW	SW - RAL 9004	60	V 7	6.9	7.15	8.5	12	3	30
GN 227.6-ST-60-V7-ZB	ZB - Zinc plated	60	V 7	6.9	7.15	8.5	12	3	30
GN 227.6-ST-70-V7-RT	RS - RAL 3000	70	V 7	6.9	7.15	10	15	3	44
GN 227.6-ST-70-V7-SW	SW - RAL 9004	70	V 7	6.9	7.15	10	15	3	44
GN 227.6-ST-70-V7-ZB	ZB - Zinc plated	70	V 7	6.9	7.15	10	15	3	44
GN 227.6-ST-70-V8-RT	RS - RAL 3000	70	V 8	7.9	8.15	10	15	3	46
GN 227.6-ST-70-V8-SW	SW - RAL 9004	70	V 8	7.9	8.15	10	15	3	46
GN 227.6-ST-70-V8-ZB	ZB - Zinc plated	70	V 8	7.9	8.15	10	15	3	46
GN 227.6-ST-80-V8-RT	RS - RAL 3000	80	V 8	7.9	8.15	11	16	3	58
GN 227.6-ST-80-V8-SW	SW - RAL 9004	80	V 8	7.9	8.15	11	16	3	58
GN 227.6-ST-80-V8-ZB	ZB - Zinc plated	80	V 8	7.9	8.15	11	16	3	58
GN 227.6-ST-80-V9-RT	RS - RAL 3000	80	V 9	8.9	9.15	11	16	3	60
GN 227.6-ST-80-V9-SW	SW - RAL 9004	80	V 9	8.9	9.15	11	16	3	60
GN 227.6-ST-80-V9-ZB	ZB - Zinc plated	80	V 9	8.9	9.15	11	16	3	60
GN 227.6-ST-90-V9-RT	RS - RAL 3000	90	V 9	8.9	9.15	11	16	3	76
GN 227.6-ST-90-V9-SW	SW - RAL 9004	90	V 9	8.9	9.15	11	16	3	76
GN 227.6-ST-90-V9-ZB	ZB - Zinc plated	90	V 9	8.9	9.15	11	16	3	76
GN 227.6-ST-100-V9-RT	RS - RAL 3000	100	V 9	8.9	9.15	13	20	3	100
GN 227.6-ST-100-V9-SW	SW - RAL 9004	100	V 9	8.9	9.15	13	20	3	100
GN 227.6-ST-100-V9-ZB	ZB - Zinc plated	100	V 9	8.9	9.15	13	20	3	100
GN 227.6-ST-100-V10-RT	RS - RAL 3000	100	V 10	9.9	10.15	13	22	3	101
GN 227.6-ST-100-V10-SW	SW - RAL 9004	100	V 10	9.9	10.15	13	20	3	101
GN 227.6-ST-100-V10-ZB	ZB - Zinc plated	100	V 10	9.9	10.15	13	22	3	101
GN 227.6-ST-130-V12-RT	RS - RAL 3000	130	V 12	11.9	12.15	15	23	3	178
GN 227.6-ST-130-V12-SW	SW - RAL 9004	130	V 12	11.9	12.15	15	23	3	178
GN 227.6-ST-130-V12-ZB	ZB - Zinc plated	130	V 12	11.9	12.15	15	23	3	178
