GN 2240.1
Coupling spiders
for GN 2240 / GN 2241
Description
Specification
Polyurethane (TPU)
temperature resistant up to 60 °C
Hardness

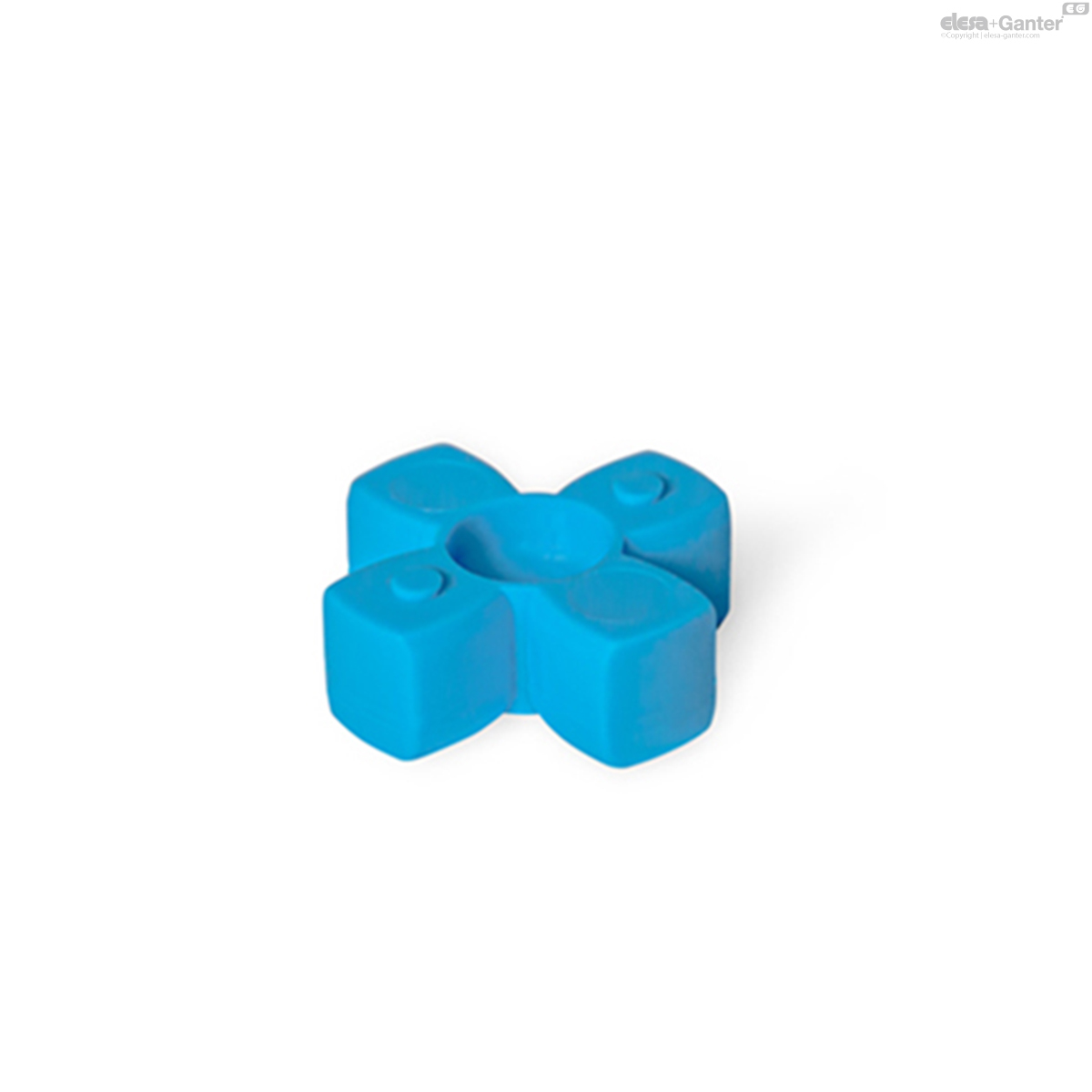

80 Shore A, blue BS

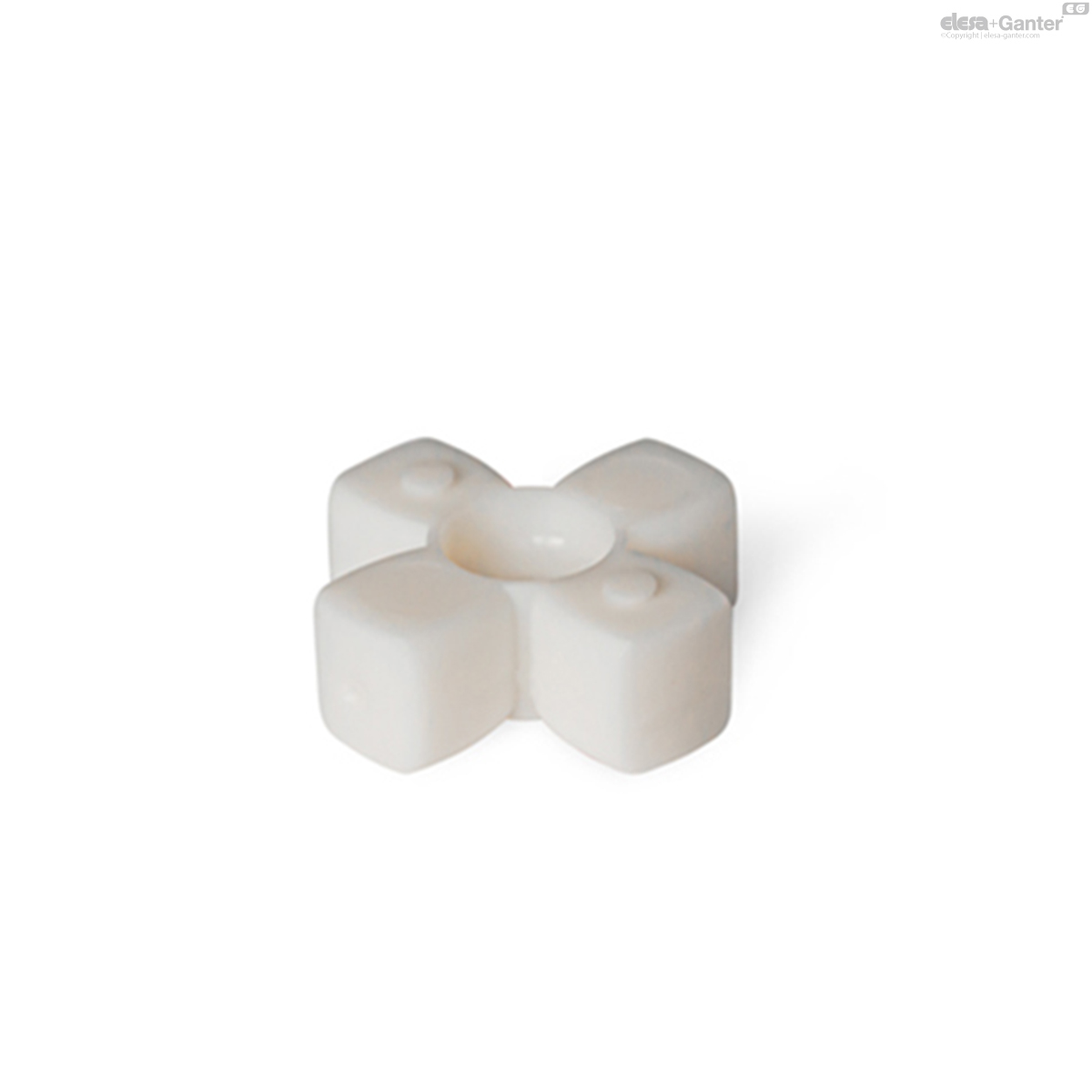

92 Shore A, white WS

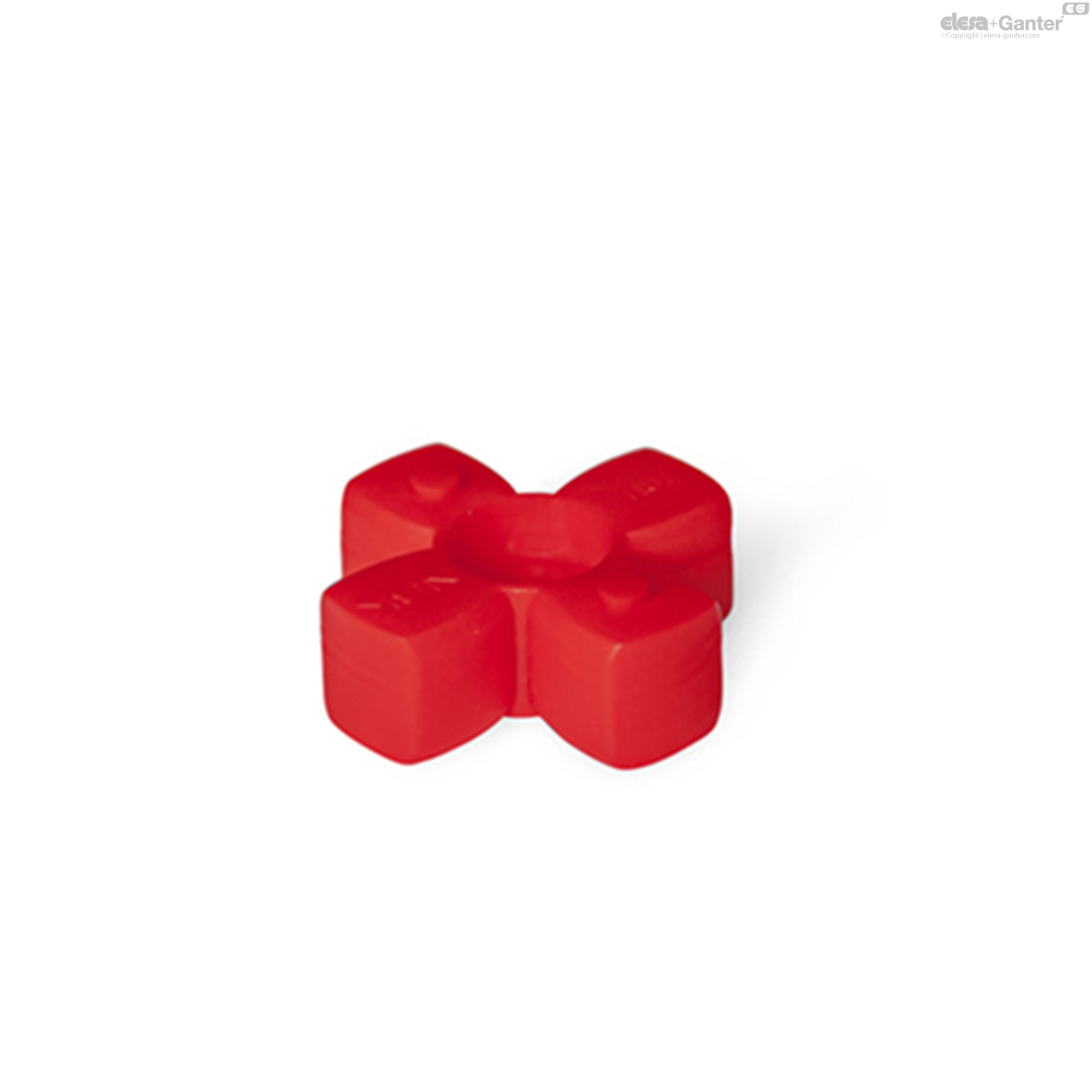

98 Shore A, red RS
Information
Coupling spiders GN 2240.1 are intended as replacement parts or for adjusting elastomer jaw couplings GN 2240/GN 2241.Â
The choice of three coupling spiders with different hardness values allows the properties of the coupling to be optimally matched to the specific requirements.
Technical information
- Elastomer characteristicsÂ
GN 2240.1

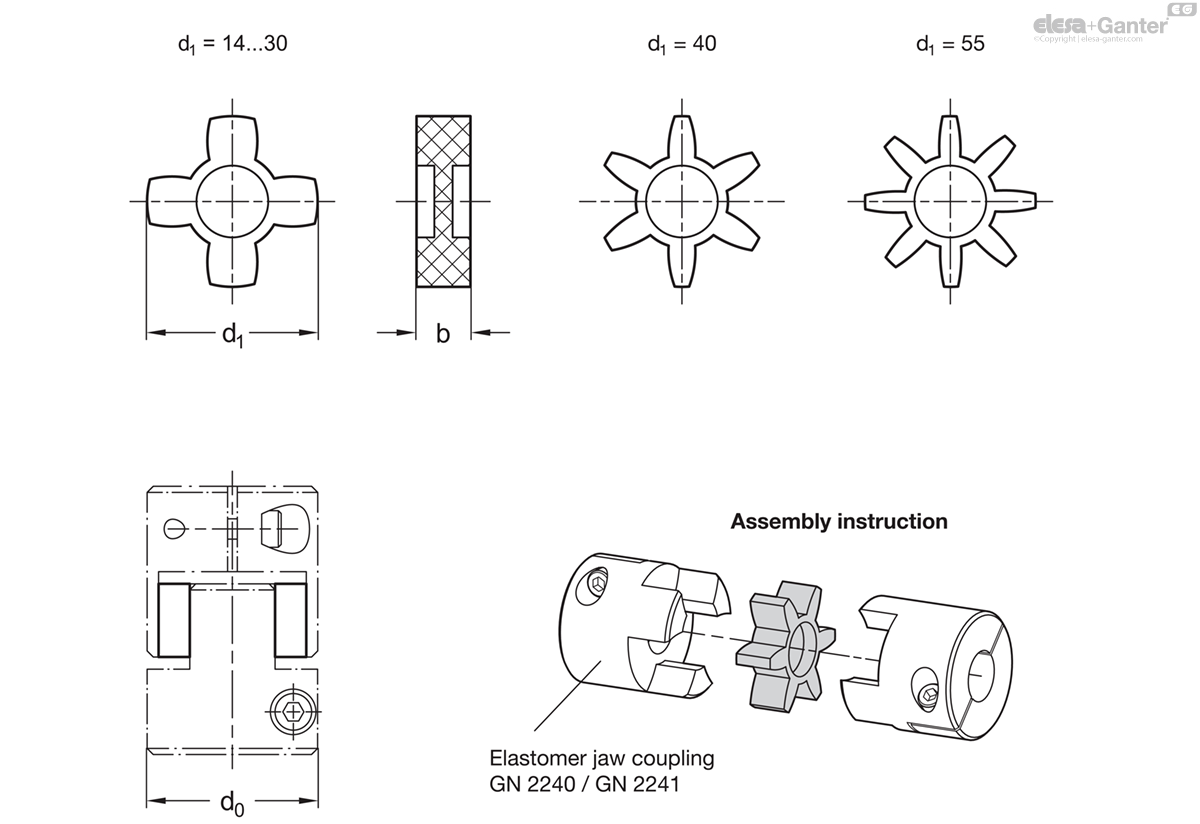

| Color | d0 Coupling_Ø | d1 | b | Number of teeth |  |
||
|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||
| GN 2240.1-14-BS | BS - 80 Shore A | 14 | 14 | 6 | 4 | 1 |
|
| GN 2240.1-14-RS | RS - 98 Shore A | 14 | 14 | 6 | 4 | 1 |
|
| GN 2240.1-14-WS | WS - 92 Shore A | 14 | 14 | 6 | 4 | 1 |
|
| GN 2240.1-20-BS | BS - 80 Shore A | 20 | 20 | 8 | 4 | 2 |
|
| GN 2240.1-20-RS | RS - 98 Shore A | 20 | 20 | 8 | 4 | 2 |
|
| GN 2240.1-20-WS | WS - 92 Shore A | 20 | 20 | 8 | 4 | 2 |
|
| GN 2240.1-30-BS | BS - 80 Shore A | 30 | 30 | 10 | 4 | 6 |
|
| GN 2240.1-30-RS | RS - 98 Shore A | 30 | 30 | 10 | 4 | 6 |
|
| GN 2240.1-30-WS | WS - 92 Shore A | 30 | 30 | 10 | 4 | 6 |
|
| GN 2240.1-40-BS | BS - 80 Shore A | 40 | 40 | 12 | 6 | 8 |
|
| GN 2240.1-40-RS | RS - 98 Shore A | 40 | 40 | 12 | 6 | 8 |
|
| GN 2240.1-40-WS | WS - 92 Shore A | 40 | 40 | 12 | 6 | 8 |
|
| GN 2240.1-55-BS | BS - 80 Shore A | 55 | 55 | 14 | 8 | 18 |
|
| GN 2240.1-55-RS | RS - 98 Shore A | 55 | 55 | 14 | 8 | 18 |
|
| GN 2240.1-55-WS | WS - 92 Shore A | 55 | 55 | 14 | 8 | 18 |
|
