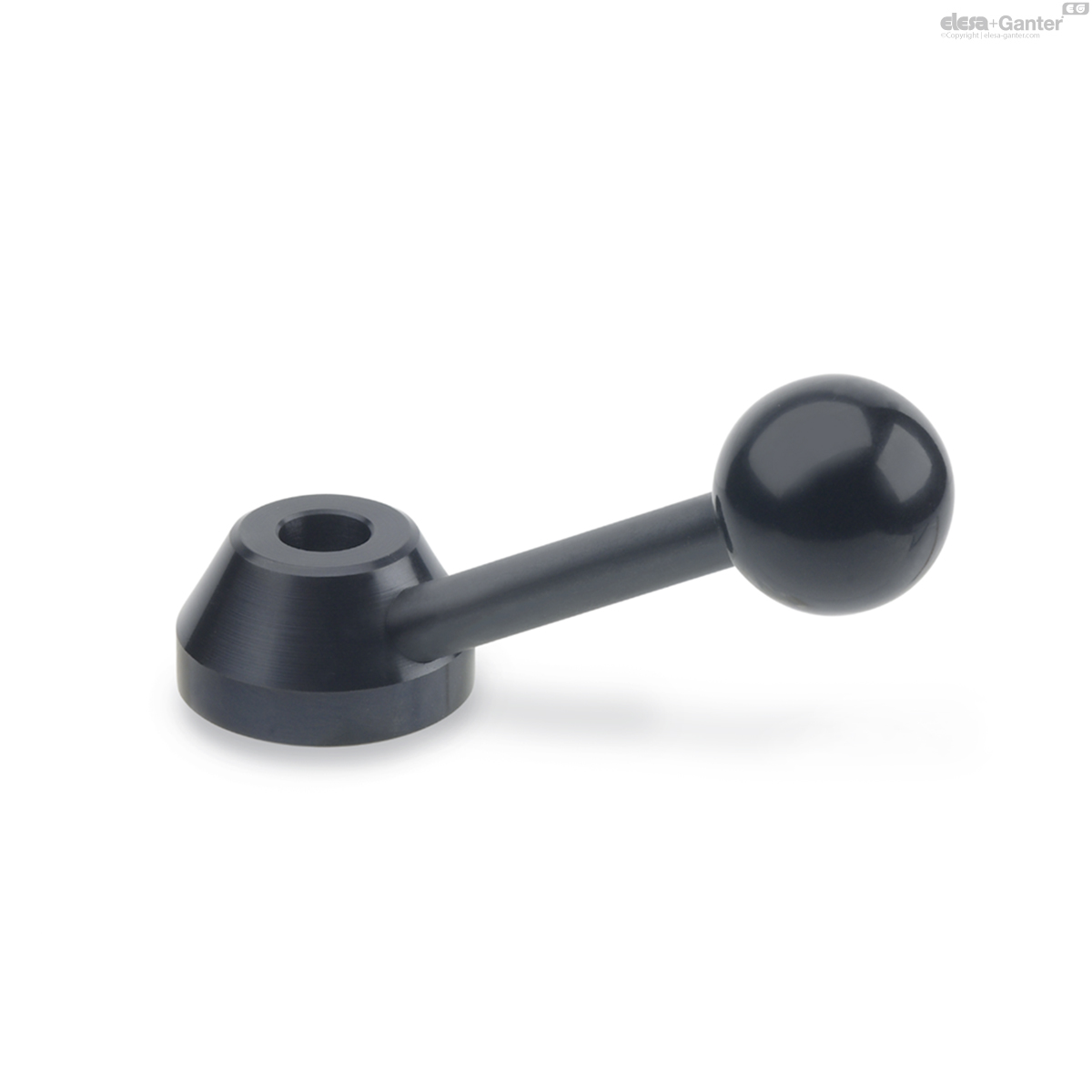

GN 223
Control levers
Steel, blackened
Description
Specification
Steel
blackened
Ball knobs DIN 319 -
Plastic, Duroplast
black, shiny finish
Information
Control levers GN 223 can also be supplied as standard with:
Square DIN 79 |b bb| + Bore-Ø
Keyway DIN 6885 K + Bore-Ø
Technical information
- Keyway P9 DIN 6885Â -
- ISO-Fundamental TolerancesÂ

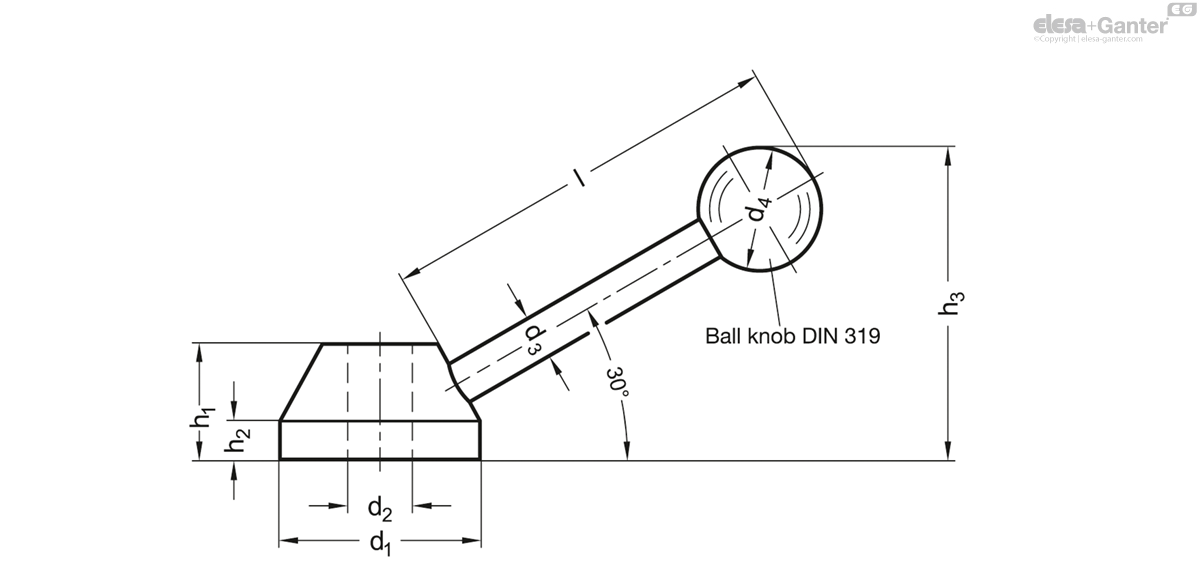

GN 223
| d1 | d2 H7 | d3 | d4 | h1 | h2 | h3 ≈ | l ≈ |  |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| GN 223-25-B8 | 25 | B 8 | 6 | 16 | 14 | 5 | 35 | 45 | 45 |
|
| GN 223-32-B10 | 32 | B 10 | 8 | 20 | 18 | 6.5 | 48 | 62 | 103 |
|
| GN 223-40-B12 | 40 | B 12 | 10 | 30 | 22 | 8.5 | 77 | 95 | 214 |
|
| GN 223-52-B16 | 52 | B 16 | 14 | 40 | 28 | 11 | 96 | 136 | 500 |
|
