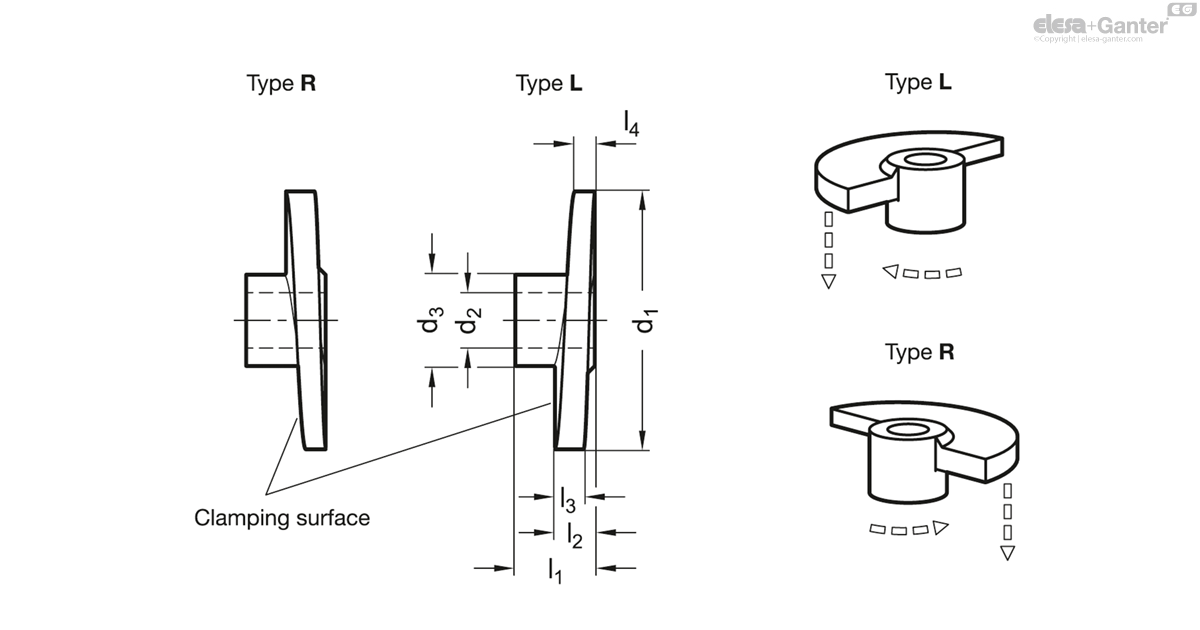

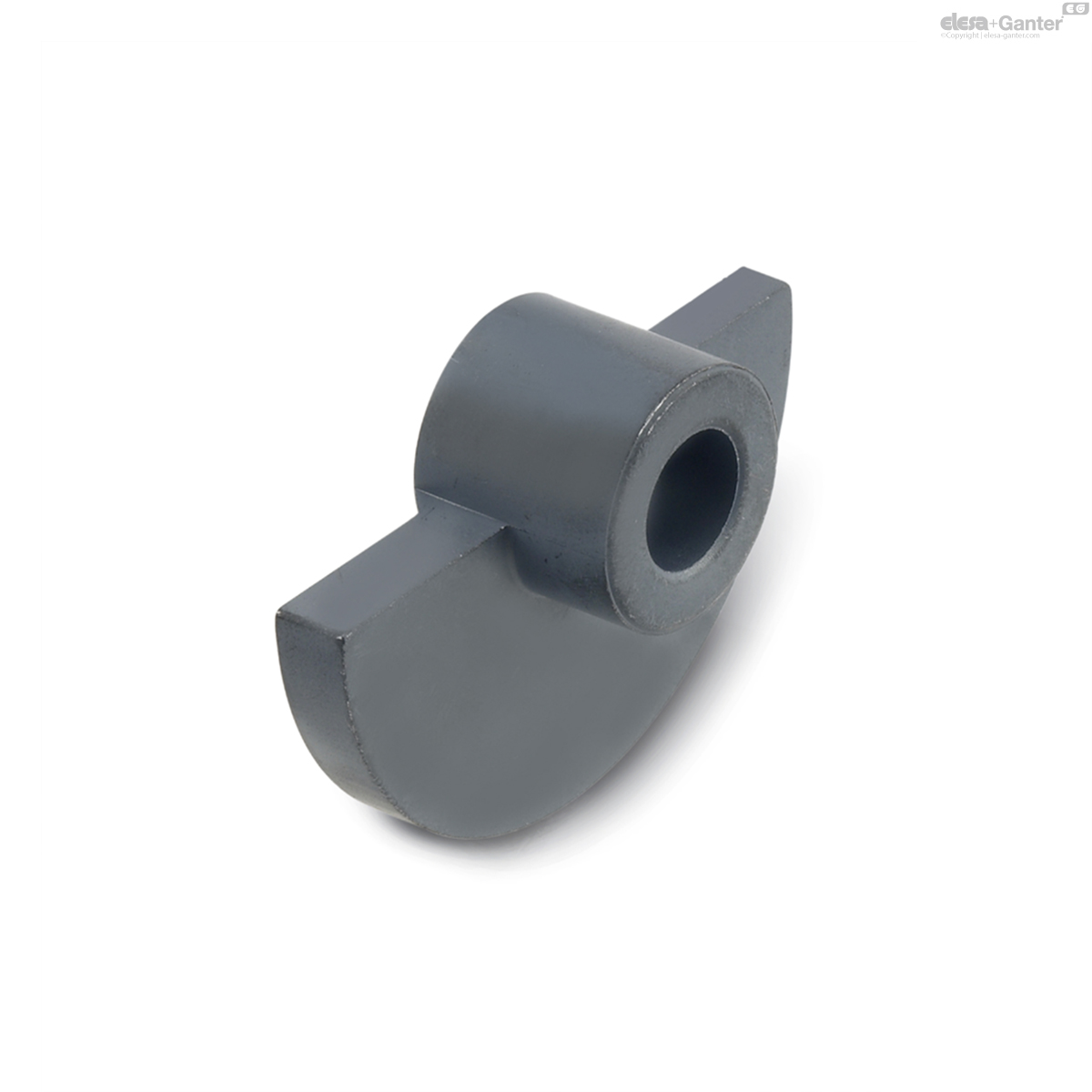

GN 218
Cam latches
Sintered Steel
Description
Specification
Types
- Type L: clamping direction left turn
- Type R: clamping direction right turn
Sintered Steel SM
black, steam oxidized
Technical Information
- ISO-Fundamental TolerancesÂ
GN 218
| d1 | d2 H8 | d3 | l1 ≈ | l2 | l3 | l4 |  |
||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| GN 218-SM-35-B8-L | 35 | B 8 | 18 | 15 | 7 | 7 | 3 | 34 |
|
| GN 218-SM-35-B8-R | 35 | B 8 | 18 | 15 | 7 | 7 | 3 | 34 |
|
| GN 218-SM-35-B10-L | 35 | B 10 | 18 | 15 | 7 | 7 | 3 | 31 |
|
| GN 218-SM-35-B10-R | 35 | B 10 | 18 | 15 | 7 | 7 | 3 | 31 |
|
| GN 218-SM-65-B12-L | 65 | B 12 | 23 | 20 | 10 | 7 | 5 | 95 |
|
| GN 218-SM-65-B12-R | 65 | B 12 | 23 | 20 | 10 | 7 | 5 | 95 |
|
| GN 218-SM-80-B16-L | 80 | B 16 | 27 | 24 | 12 | 9 | 6 | 170 |
|
| GN 218-SM-80-B16-R | 80 | B 16 | 27 | 24 | 12 | 9 | 6 | 170 |
|
