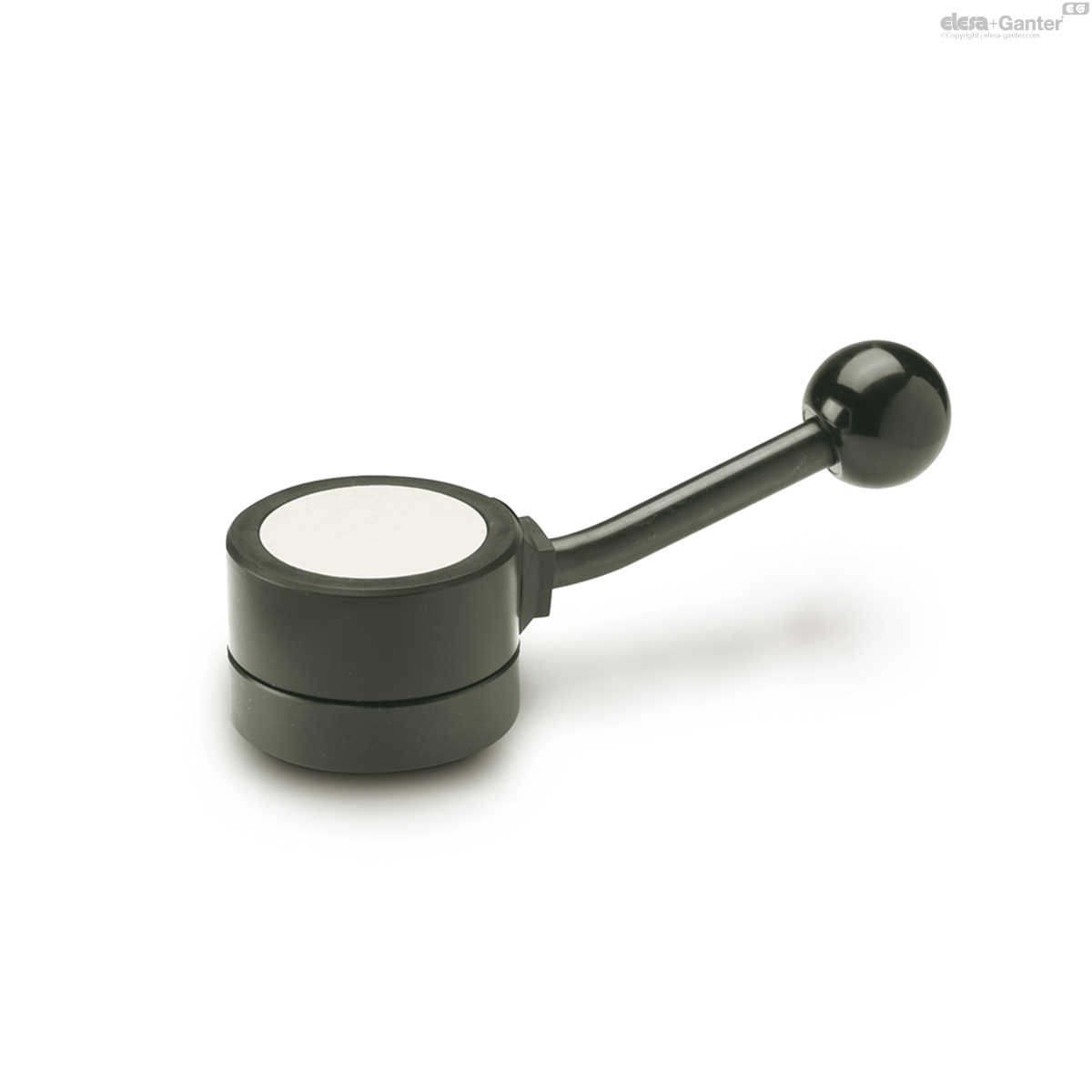

Indexing Levers

Enquire Now

Description

Specification

Types

Type A: Without serrations

Type B: With 30 serrations

Steel

Blackened

Cover

Plastic

Black, with affixed PVC cover disk in light grey

Keyway for bore

K10: 3 P9 x 1.1

K12 ... K16: DIN 6885/2

Ball knob DIN 319

Plastic, Duroplast

Black, shiny finish

Information

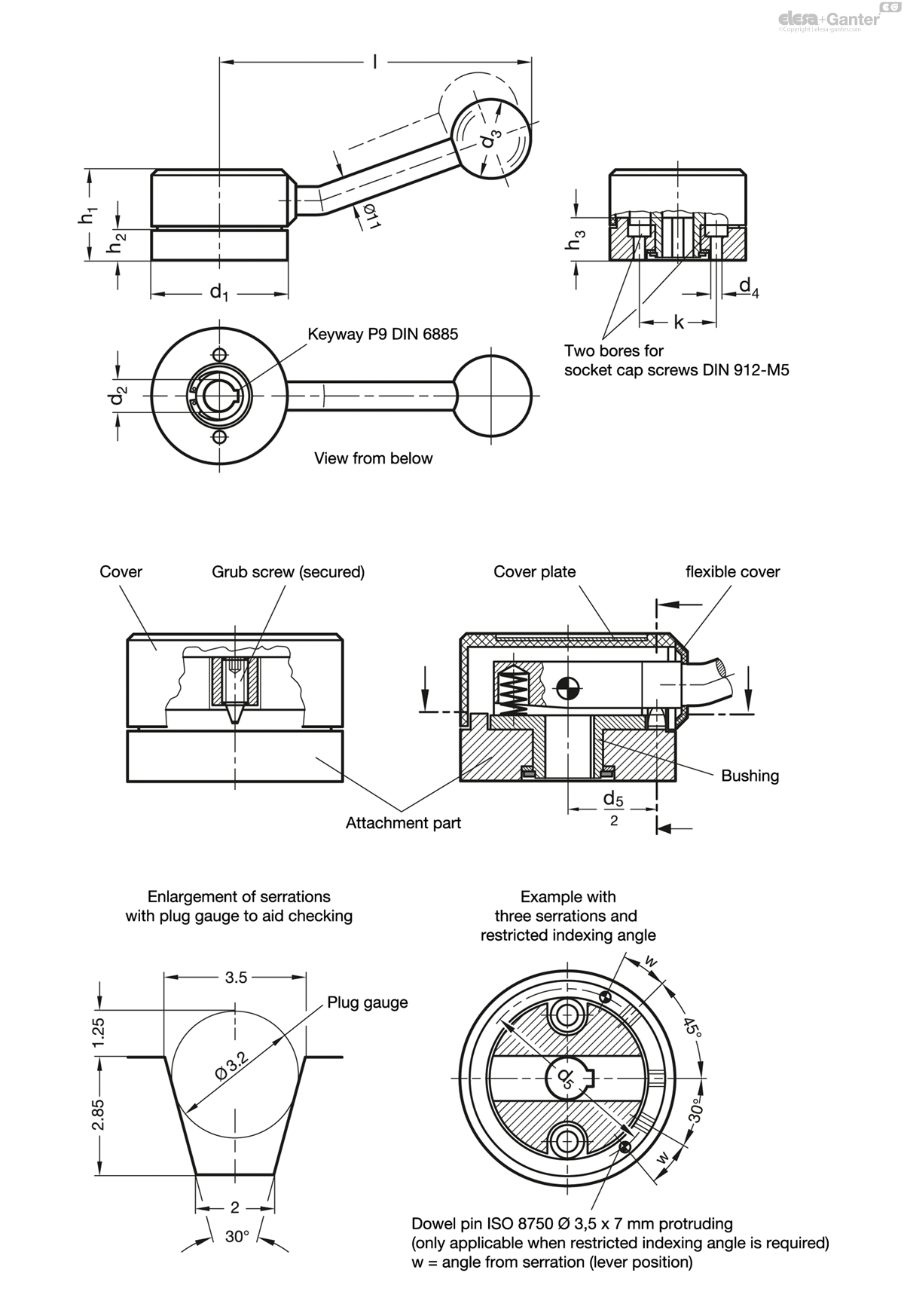

With indexing levers GN 215 shafts can be turned through a predetermined angle and positively locked. To index, lift the lever against spring pressure from serrations (one hand control).

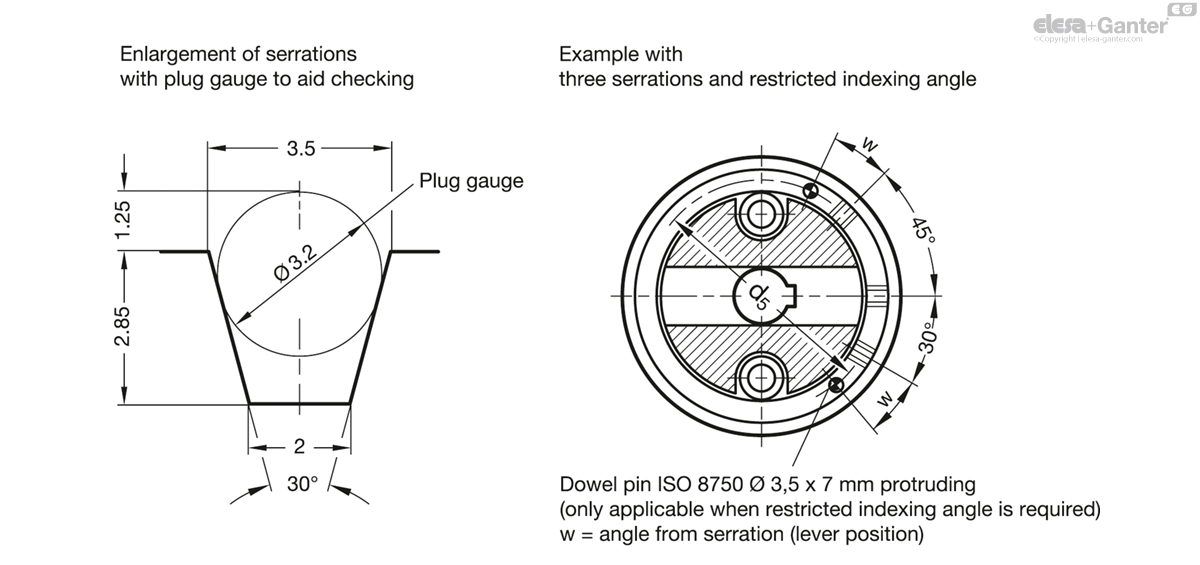

Limiting the indexing angle can be achieved with two dowels (see sketch).

The bushing is connected to the shaft via parallel key / keyway.

The location flange is bolted to the machine with two screws (M 5).

The lever, via the location pin, provides the connection between shaft and location flange.

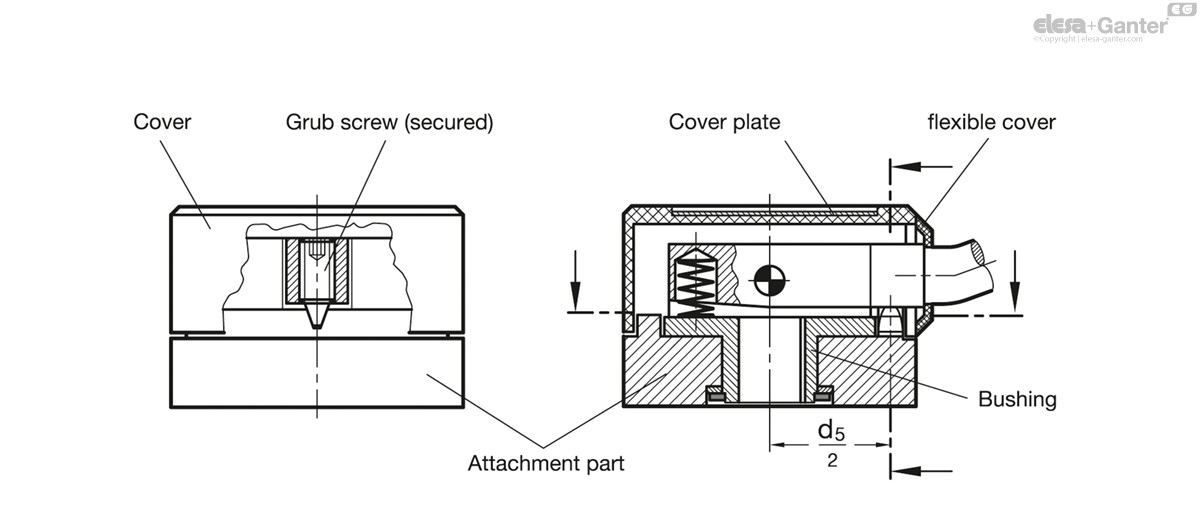

The serrations are protected from swarf and similar particles by the cover. This cover can be inserted by hand (elastic segments engage into a groove) and removed with a screw driver.

On request

Serrations, restricted angle to drawing

Technical information

ISO-Fundamental Tolerances

Keyway DIN 6885 )

Technical and assembly instructions

The location pin is a wedge-type as standard, which guarantees backlash-free positioning and also achieving easy engagement and disengagement.

If backlash-free positioning is not required, a dowel pin (made from a grub screw DIN 915-M6x14) can be used. The serrations can be made square or with dowels and suitable holes. Such holes have to be made large enough to ensure that the dowel is not restricted on engagement (lever swivel radius).

Smallest available angle for special serrations:

11° for size 54

9° for size 60

Smaller angles can be acheived with suitable serrations and dowels.

GN 215

	d₁	d₂ H7	d₃	d₄	d₅	h₁	h₂	h₃ max.	k	l	w +0.5°
Code													Actions
GN 215-54-K10-A	54	K 10	32	5.2	44.5	37	13	16.5	30	122	22°	460
GN 215-54-K10-B	54	K 10	32	5.2	44.5	37	13	16.5	30	122	22°	461
GN 215-54-K12-A	54	K 12	32	5.2	44.5	37	13	16.5	30	122	22°	466
GN 215-54-K12-B	54	K 12	32	5.2	44.5	37	13	16.5	30	122	22°	440
GN 215-60-K14-A	60	K 14	32	5.2	50	39	15	18.5	36	125	19°	619
GN 215-60-K14-B	60	K 14	32	5.2	50	39	15	18.5	36	125	19°	580
GN 215-60-K16-A	60	K 16	32	5.2	50	39	15	18.5	36	125	19°	597
GN 215-60-K16-B	60	K 16	32	5.2	50	39	15	18.5	36	125	19°	580
