GN 214.6

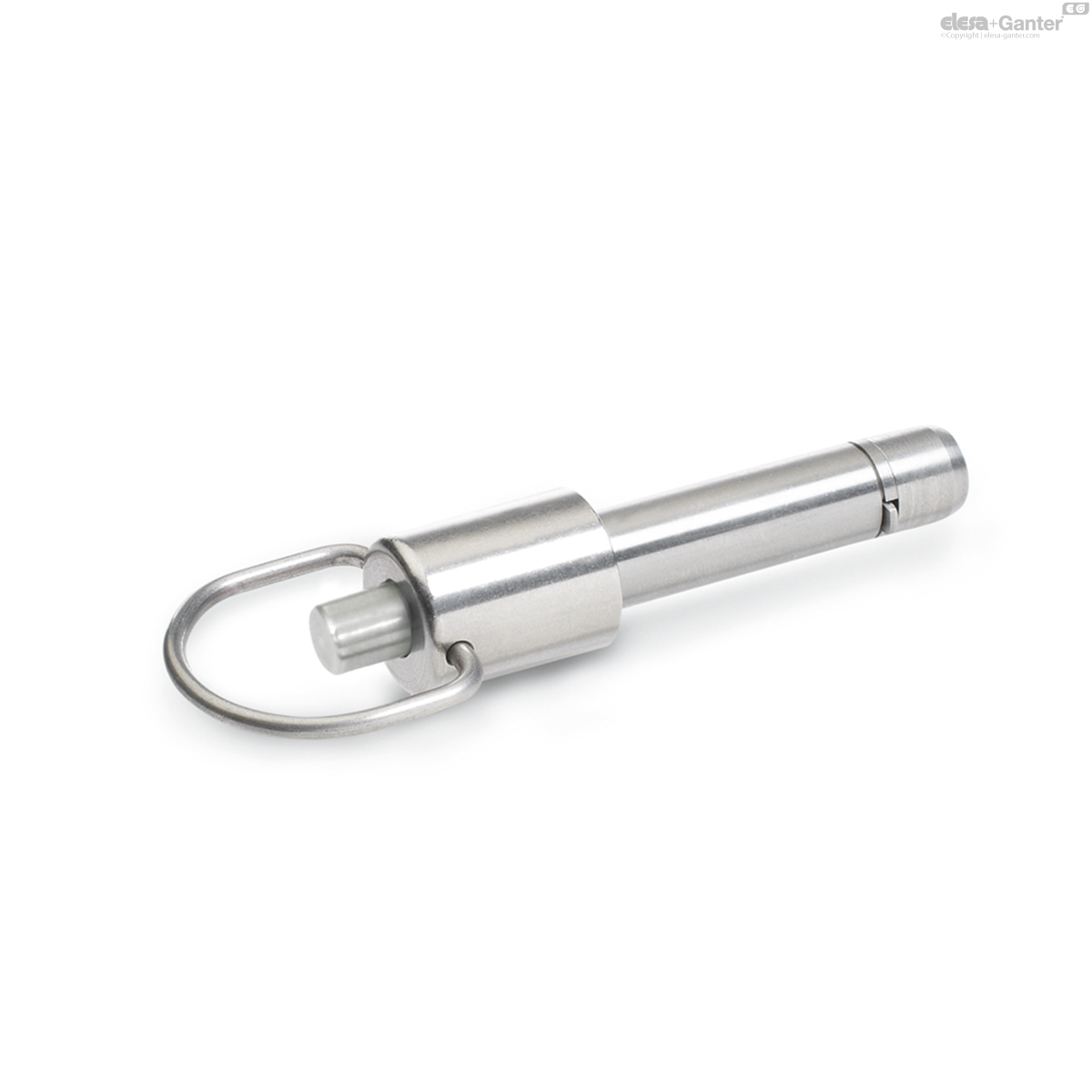

Stainless Steel-Locking pins

Stainless Steel-Slide, with axial lock (Pawl)

Enquire Now

Description

Specification

Stainless Steel AISI 303

Slide / Push button

Stainless Steel AISI 303

Pawl

Stainless Steel sheet metal AISI 304

Lifting ring

Stainless Steel AISI 301

Spring

Stainless Steel AISI 301

Information

Stainless Steel-Locking pins with axial lock GN 214.6 are used for quick fixing, connecting and locking of various jig and fixture systems. A typical application is location pins which have to be often removed and re-placed again.

The rectangular pawls made of Stainless Steel sheet metal keep the locking pin in an axial position in the bore. It can be retracted by pressing the button, once released it returns the pressure spring into its locking position.

The version with swivelling lifting ring is ideal for the use in confined spaces.

The load values given in the above table at shear stress are theoretically obtained and indicative only. They are non-binding recommended values and rule our any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.

Accessory

Ball chains GN 111

Stainless Steel-Ball chains GN 111.5

Retaining cables GN 111.2

Spiral retaining cables GN 111.4

Technical information

List of Lock Pin Types
Load Capacity
Stainless Steel characteristics

GN 214.6

	d₁ -0.1	l₁ +0.4	a	b	d₂	d₃	d₄	d₅	l₂	l₃	Load in kN ≈ (Double sided shear force) see information
Code													Actions
GN 214.6-6-16	6	16	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	17	20
GN 214.6-6-20	6	20	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	17	21
GN 214.6-6-25	6	25	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	17	23
GN 214.6-6-30	6	30	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	17	24
GN 214.6-6-35	6	35	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	17	25
GN 214.6-6-40	6	40	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	17	26
GN 214.6-6-45	6	45	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	17	27
GN 214.6-6-50	6	50	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	17	28
GN 214.6-6-60	6	60	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	17	30
GN 214.6-6-70	6	70	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	17	34
GN 214.6-6-80	6	80	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	17	37
GN 214.6-8-16	8	16	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	35	24
GN 214.6-8-20	8	20	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	35	25
GN 214.6-8-25	8	25	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	35	27
GN 214.6-8-30	8	30	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	35	29
GN 214.6-8-35	8	35	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	35	31
GN 214.6-8-40	8	40	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	35	33
GN 214.6-8-45	8	45	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	35	35
GN 214.6-8-50	8	50	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	35	37
GN 214.6-8-60	8	60	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	35	43
GN 214.6-8-70	8	70	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	35	45
GN 214.6-8-80	8	80	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	35	50
GN 214.6-8-90	8	90	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	35	55
GN 214.6-8-100	8	100	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	35	56
GN 214.6-10-15	10	15	3.3	1	12 +1	9.9	16	28	9.8	42	47	49
GN 214.6-10-20	10	20	3.3	1	12 +1	9.9	16	28	9.8	42	47	49
GN 214.6-10-25	10	25	3.3	1	12 +1	9.9	16	28	9.8	42	47	52
GN 214.6-10-30	10	30	3.3	1	12 +1	9.9	16	28	9.8	42	47	55
GN 214.6-10-35	10	35	3.3	1	12 +1	9.9	16	28	9.8	42	47	58
GN 214.6-10-40	10	40	3.3	1	12 +1	9.9	16	28	9.8	42	47	61
GN 214.6-10-45	10	45	3.3	1	12 +1	9.9	16	28	9.8	42	47	64
GN 214.6-10-50	10	50	3.3	1	12 +1	9.9	16	28	9.8	42	47	67
GN 214.6-10-60	10	60	3.3	1	12 +1	9.9	16	28	9.8	42	47	74
GN 214.6-10-70	10	70	3.3	1	12 +1	9.9	16	28	9.8	42	47	78
GN 214.6-10-80	10	80	3.3	1	12 +1	9.9	16	28	9.8	42	47	84
GN 214.6-10-90	10	90	3.3	1	12 +1	9.9	16	28	9.8	42	47	90
GN 214.6-10-100	10	100	3.3	1	12 +1	9.9	16	28	9.8	42	47	96
GN 214.6-10-110	10	110	3.3	1	12 +1	9.9	16	28	9.8	42	47	102
GN 214.6-10-120	10	120	3.3	1	12 +1	9.9	16	28	9.8	42	47	108
GN 214.6-12-20	12	20	3.8	1	14 +1	11.9	16	28	11.3	42	75	58
GN 214.6-12-25	12	25	3.8	1	14 +1	11.9	16	28	11.3	42	75	61
GN 214.6-12-30	12	30	3.8	1	14 +1	11.9	16	28	11.3	42	75	65
GN 214.6-12-35	12	35	3.8	1	14 +1	11.9	16	28	11.3	42	75	70
GN 214.6-12-40	12	40	3.8	1	14 +1	11.9	16	28	11.3	42	75	73
GN 214.6-12-45	12	45	3.8	1	14 +1	11.9	16	28	11.3	42	75	79
GN 214.6-12-50	12	50	3.8	1	14 +1	11.9	16	28	11.3	42	75	82
GN 214.6-12-60	12	60	3.8	1	14 +1	11.9	16	28	11.3	42	75	91
GN 214.6-12-70	12	70	3.8	1	14 +1	11.9	16	28	11.3	42	75	99
GN 214.6-12-80	12	80	3.8	1	14 +1	11.9	16	28	11.3	42	75	108
GN 214.6-12-90	12	90	3.8	1	14 +1	11.9	16	28	11.3	42	75	116
GN 214.6-12-100	12	100	3.8	1	14 +1	11.9	16	28	11.3	42	75	125
GN 214.6-12-110	12	110	3.8	1	14 +1	11.9	16	28	11.3	42	75	134
GN 214.6-12-120	12	120	3.8	1	14 +1	11.9	16	28	11.3	42	138	142
GN 214.6-16-30	16	30	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	138	119
GN 214.6-16-35	16	35	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	138	128
GN 214.6-16-40	16	40	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	138	135
GN 214.6-16-45	16	45	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	138	143
GN 214.6-16-50	16	50	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	138	151
GN 214.6-16-60	16	60	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	138	166
GN 214.6-16-70	16	70	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	138	183
GN 214.6-16-80	16	80	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	138	197
GN 214.6-16-90	16	90	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	138	213
GN 214.6-16-100	16	100	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	138	228
GN 214.6-16-110	16	110	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	138	244
GN 214.6-16-120	16	120	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	138	259
GN 214.6-16-130	16	130	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	138	274
GN 214.6-16-140	16	140	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	138	290
GN 214.6-16-150	16	150	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	138	305
