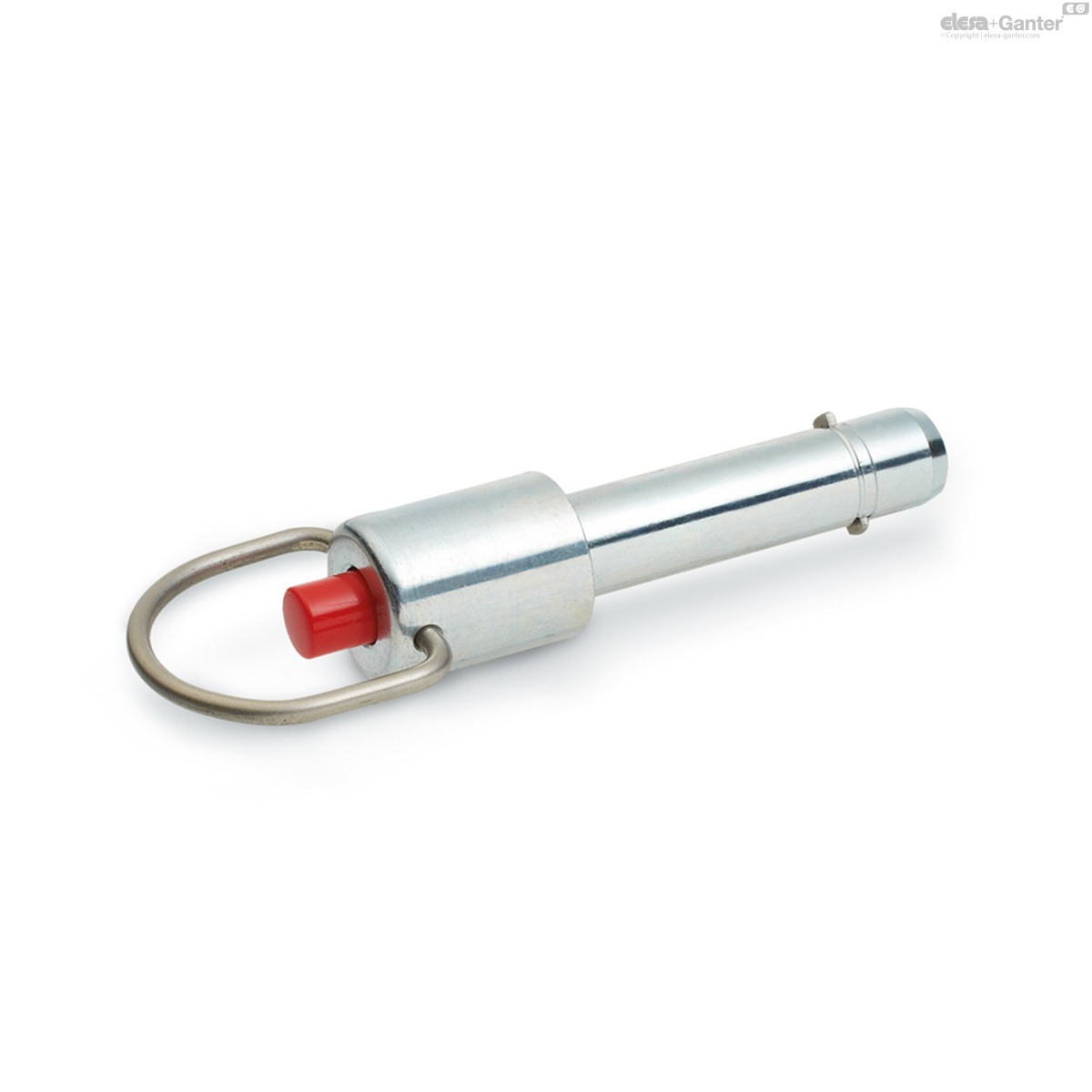

Home Indexing and Positioning Elements Lock pins GN 214.2

GN 214.2

Locking pins

with axial lock (Pawl)

Enquire Now

Description

Specification

Steel

zinc plated, blue passivated

Pawl

Stainless Steel sheet metal AISI 304

Lifting ring

Stainless Steel AISI 301

Push button / Slide

Plastic

temperature resistant up to 80 °C

Push button red

Spring

Stainless Steel AISI 301

Information

Locking pins with axial lock GN 214.2 are used for quick fixing, connecting and locking of various jig and fixture systems. A typical application is location pins which have to be often removed and replaced again.

The rectangular pawls made of Stainless Steel sheet metal keep the locking pin in an axial position in the bore. It can be retracted by pressing the button, once released it returns the pressure spring into its locking position.

The version with swivelling lifting ring is ideal for the use in confined spaces.

The load values given in the above table at shear stress are theoretically obtained and indicative only. They are non-binding recommended values and rule our any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.

Accessory

Ball chains GN 111

Stainless Steel-Ball chains GN 111.5

Retaining cables GN 111.2

Spiral retaining cables GN 111.4

Technical information

List of Lock Pin Types
Load Capacity
Plastic Characteristics
Stainless Steel Characteristics

GN 214.2

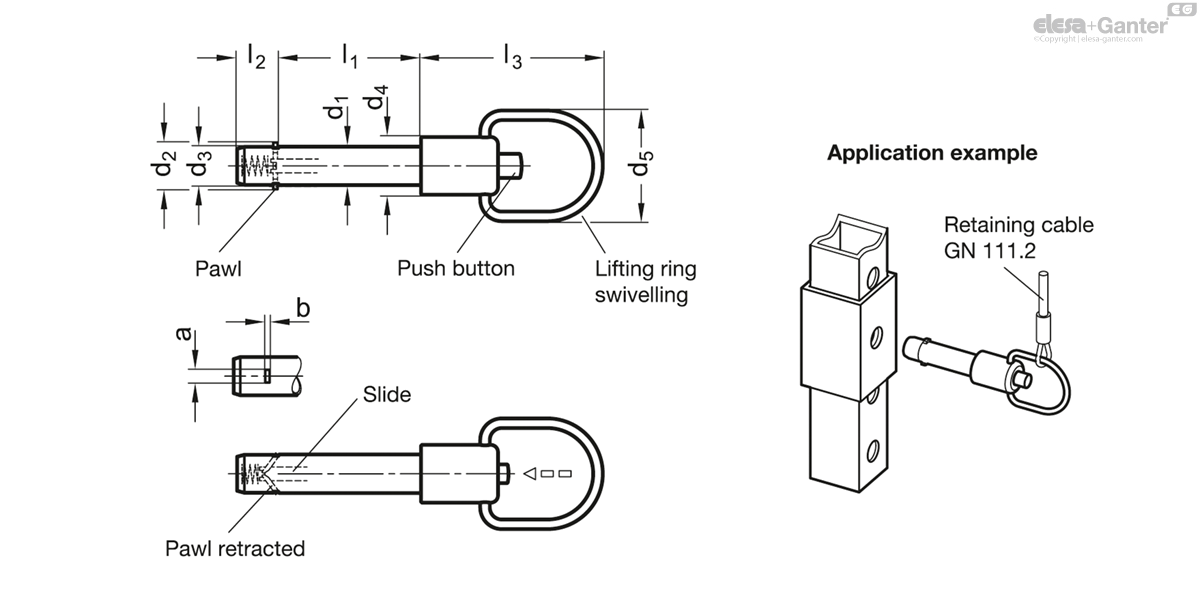

	d₁ -0.1	l₁ +0.4	a	b	d₂	d₃	d₄	d₅	l₂	l₃	Load in kN ≈ (Double sided shear force) see information
Code													Actions
GN 214.2-6-10	6	10	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	14	18
GN 214.2-6-12	6	12	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	14	18
GN 214.2-6-16	6	16	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	14	19
GN 214.2-6-20	6	20	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	14	20
GN 214.2-6-25	6	25	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	14	20
GN 214.2-6-30	6	30	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	14	21
GN 214.2-6-35	6	35	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	14	22
GN 214.2-6-40	6	40	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	14	23
GN 214.2-6-45	6	45	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	14	24
GN 214.2-6-50	6	50	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	14	24
GN 214.2-6-60	6	60	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	14	29
GN 214.2-6-70	6	70	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	14	29
GN 214.2-6-80	6	80	2.3	0.5	7.5 +0.5	5.9	12	23	7	38	14	33
GN 214.2-8-10	8	10	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	28	30
GN 214.2-8-16	8	16	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	28	33
GN 214.2-8-20	8	20	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	28	29
GN 214.2-8-25	8	25	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	28	31
GN 214.2-8-30	8	30	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	28	33
GN 214.2-8-35	8	35	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	28	33
GN 214.2-8-40	8	40	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	28	36
GN 214.2-8-45	8	45	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	28	38
GN 214.2-8-50	8	50	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	28	39
GN 214.2-8-60	8	60	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	28	45
GN 214.2-8-70	8	70	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	28	38
GN 214.2-8-80	8	80	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	28	54
GN 214.2-8-90	8	90	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	28	56
GN 214.2-8-100	8	100	2.8	0.6	10 +0.5	7.9	12	23	8.4	38	28	58
GN 214.2-10-15	10	15	3.3	1	12 +1	9.9	16	28	9.8	42	38	39
GN 214.2-10-20	10	20	3.3	1	12 +1	9.9	16	28	9.8	42	38	41
GN 214.2-10-25	10	25	3.3	1	12 +1	9.9	16	28	9.8	42	38	43
GN 214.2-10-30	10	30	3.3	1	12 +1	9.9	16	28	9.8	42	38	45
GN 214.2-10-35	10	35	3.3	1	12 +1	9.9	16	28	9.8	42	38	47
GN 214.2-10-40	10	40	3.3	1	12 +1	9.9	16	28	9.8	42	38	49
GN 214.2-10-45	10	45	3.3	1	12 +1	9.9	16	28	9.8	42	38	51
GN 214.2-10-50	10	50	3.3	1	12 +1	9.9	16	28	9.8	42	38	54
GN 214.2-10-60	10	60	3.3	1	12 +1	9.9	16	28	9.8	42	38	58
GN 214.2-10-70	10	70	3.3	1	12 +1	9.9	16	28	9.8	42	38	63
GN 214.2-10-80	10	80	3.3	1	12 +1	9.9	16	28	9.8	42	38	69
GN 214.2-10-90	10	90	3.3	1	12 +1	9.9	16	28	9.8	42	38	74
GN 214.2-10-100	10	100	3.3	1	12 +1	9.9	16	28	9.8	42	38	77
GN 214.2-10-110	10	110	3.3	1	12 +1	9.9	16	28	9.8	42	38	81
GN 214.2-10-120	10	120	3.3	1	12 +1	9.9	16	28	9.8	42	38	87
GN 214.2-12-20	12	20	3.8	1	14 +1	11.9	16	28	11.3	42	61	48
GN 214.2-12-25	12	25	3.8	1	14 +1	11.9	16	28	11.3	42	61	51
GN 214.2-12-30	12	30	3.8	1	14 +1	11.9	16	28	11.3	42	61	55
GN 214.2-12-35	12	35	3.8	1	14 +1	11.9	16	28	11.3	42	61	58
GN 214.2-12-40	12	40	3.8	1	14 +1	11.9	16	28	11.3	42	61	62
GN 214.2-12-45	12	45	3.8	1	14 +1	11.9	16	28	11.3	42	61	66
GN 214.2-12-50	12	50	3.8	1	14 +1	11.9	16	28	11.3	42	61	69
GN 214.2-12-60	12	60	3.8	1	14 +1	11.9	16	28	11.3	42	61	76
GN 214.2-12-70	12	70	3.8	1	14 +1	11.9	16	28	11.3	42	61	83
GN 214.2-12-80	12	80	3.8	1	14 +1	11.9	16	28	11.3	42	61	91
GN 214.2-12-90	12	90	3.8	1	14 +1	11.9	16	28	11.3	42	61	105
GN 214.2-12-100	12	100	3.8	1	14 +1	11.9	16	28	11.3	42	61	109
GN 214.2-12-110	12	110	3.8	1	14 +1	11.9	16	28	11.3	42	61	117
GN 214.2-12-120	12	120	3.8	1	14 +1	11.9	16	28	11.3	42	113	126
GN 214.2-16-30	16	30	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	113	101
GN 214.2-16-35	16	35	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	113	108
GN 214.2-16-40	16	40	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	113	115
GN 214.2-16-45	16	45	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	113	108
GN 214.2-16-50	16	50	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	113	128
GN 214.2-16-60	16	60	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	113	141
GN 214.2-16-70	16	70	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	113	156
GN 214.2-16-80	16	80	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	113	167
GN 214.2-16-90	16	90	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	113	171
GN 214.2-16-100	16	100	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	113	197
GN 214.2-16-110	16	110	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	113	209
GN 214.2-16-120	16	120	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	113	222
GN 214.2-16-130	16	130	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	113	236
GN 214.2-16-140	16	140	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	113	249
GN 214.2-16-150	16	150	4.8	1.2	19 +1	15.9	20	32	14.2	46.5	113	263
