GN 21

Leveling Feet

Stainless Steel, with Turned Base Plate, without Mounting Holes

Enquire Now

GN 21-S/SK

Leveling Feet

With / without nut, external hex at the bottom

GN 21-T/TK

Leveling Feet

With / without nut, wrench flat at the bottom

GN 21-U/UK

Leveling Feet

With / without nut, hex socket at the top and wrench flat at the bottom

GN 21-V/VK

Leveling Feet

With / without nut, external hex at the top and wrench flat at the bottom

GN 21-W

Leveling Feet

With adjustable sleeve, covered thread and wrench flat at the bottom

GN 21-X

Leveling Feet

External hex with internal thread

Description

Specification

Type (Foot plate)

Type D0: Fine turned, without rubber underlay

Type D1: Fine turned, with rubber underlay, inlaid, black

Version of the screw

Version S: Without nut, external hex at the bottom

Version SK: With nut, external hex at the bottom

Version T: Without nut, wrench flat at the bottom

Version TK: With nut, wrench flat at the bottom

Version U: Without nut, hex socket at the top and wrench flat at the bottom

Version UK: With nut, hex socket at the top and wrench flat at the bottom

Version V : Without nut, external hex at the top and wrench flat at the bottom

Version VK: With nut, external hex at the top and wrench flat at the bottom

Version W: With adjustable sleeve, covered thread and wrench flat at the bottom

Version X: External hex with internal thread

Base plate

Stainless Steel AISI 304

Threaded stem

Stainless Steel AISI 303

Hex nut ISO 4032

Stainless Steel AISI 304

Rubber underlay, inlaid

NBR (Perbunan^®), 70 Shore A

Information

Leveling feet GN 21 will be delivered mounted and are not removable.

Technical information

Plastic Characteristics

Stainless Steel Characteristics

Load Rating of Leveling Feet

d1	d2	Static load in kN	-	-	-	-
-	-	Versions of threaded stem	-	-	-	-
-	-	S / SK	T / TK and U / UK	V / VK	W	X
80	M 8	6	-	-	-	17
80	M 10	11	-	-	-	17
80	M 12	16	-	-	-	17
80	M 16	-	17	21	25	17
80	M 20	-	28	35	35	28
80	M 24	-	46	52	52	-
100	M 8	6	-	-	-	17
100	M 10	11	-	-	-	17
100	M 12	16	-	-	-	17
100	M 16	-	17	21	25	17
100	M 20	-	28	35	35	28
100	M 24	-	46	52	52	-
120	M 20	-	28	-	-	28
120	M 24	-	46	-	-	-
120	M 30	-	43	-	-	-

At a spindle thread size M 10 and higher, the static load of the leveling feet GN 21 is limited owing to the permissible contact pressure of the adjustment spindle acting on the base plate (at a spindle strength ≥ 500 N/mm²). The values given in the table (valid for type D0 without rubber underlay) assume a clean pressure load perpendicular to the base plate. Bending and buckling stress which often occurs in practice results in a lower load-bearing capacity of the adjustment spindle and may have to be taken into account.

The details given on strength are non-binding guide values without any liability. In general, they do not constitute a warranty or quality.

The user must determine from case to case if a product is suitable for the intended purpose or use. Environmental factors may influence the stated values.

Versions of threaded stem

Versions of threaded stem

S / SK: External hex at the bottom at d₂ M 8, M 10, M 12	T / TK: Wrench flat at the bottom at d₂ M 16, M 20, M 24, M 30	U / UK: Hex socket at the top and wrench flat at the bottom at d₂ M 16, M 20, M 24, M 30

V / VK: External hex at the top and wrench flat at the bottom at d₂ M 16, M 20, M 24	W: Covered thread and wrench flat at the bottom at d₂ M 16, M 20, M 24	X: External hex with internal thread at d₂ M 8, M 10, M 12, M 16, M 20

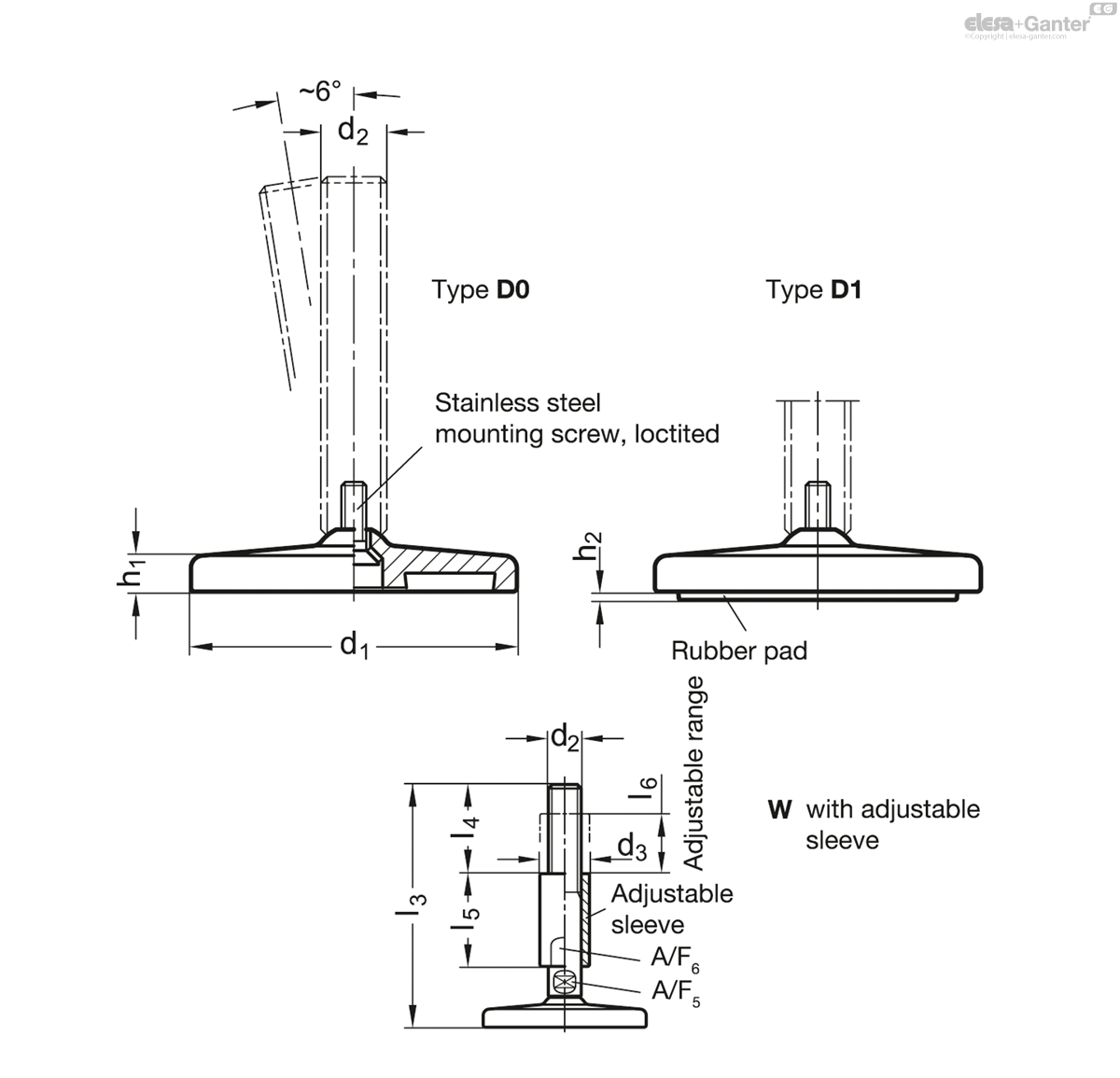

GN 21-W

	d₁	d₂	l₃ ≈	d₃	h₁	h₂	l₄	l₅	l₆	A/F ₅	A/F ₆	Static load in kN
Code														Actions
GN 21-80-M16-118-D0-W	80	M 16	118	24	8.5	-	45	45	29	12	20	25	511
GN 21-80-M16-118-D1-W	80	M 16	118	24	-	2	45	45	29	12	20	25	533
GN 21-80-M16-143-D0-W	80	M 16	143	24	8.5	-	45	45	29	12	20	25	548
GN 21-80-M16-143-D1-W	80	M 16	143	24	-	2	45	45	29	12	20	25	570
GN 21-80-M16-168-D0-W	80	M 16	168	24	8.5	-	45	45	29	12	20	25	589
GN 21-80-M16-168-D1-W	80	M 16	168	24	-	2	45	45	29	12	20	25	611
GN 21-80-M16-193-D0-W	80	M 16	193	24	8.5	-	45	45	29	12	20	25	629
GN 21-80-M16-193-D1-W	80	M 16	193	24	-	2	45	45	29	12	20	25	651
GN 21-80-M20-143-D0-W	80	M 20	143	30	8.5	-	56	56	36	16	24	35	735
GN 21-80-M20-143-D1-W	80	M 20	143	30	-	2	56	56	36	16	24	35	757
GN 21-80-M20-168-D0-W	80	M 20	168	30	8.5	-	56	56	36	16	24	35	798
GN 21-80-M20-168-D1-W	80	M 20	168	30	-	2	56	56	36	16	24	35	820
GN 21-80-M20-193-D0-W	80	M 20	193	30	8.5	-	56	56	36	16	24	35	861
GN 21-80-M20-193-D1-W	80	M 20	193	30	-	2	56	56	36	16	24	35	883
GN 21-80-M20-243-D0-W	80	M 20	243	30	8.5	-	56	56	36	16	24	35	985
GN 21-80-M20-243-D1-W	80	M 20	243	30	-	2	56	56	36	16	24	35	1007
GN 21-80-M24-168-D0-W	80	M 24	168	35	8.5	-	67	67	42	20	30	52	1045
GN 21-80-M24-168-D1-W	80	M 24	168	35	-	2	67	67	42	20	30	52	1067
GN 21-80-M24-218-D0-W	80	M 24	218	35	8.5	-	67	67	42	20	30	52	1223
GN 21-80-M24-218-D1-W	80	M 24	218	35	-	2	67	67	42	20	30	52	1245
GN 21-80-M24-268-D0-W	80	M 24	268	35	8.5	-	67	67	42	20	30	52	1402
GN 21-80-M24-268-D1-W	80	M 24	268	35	-	2	67	67	42	20	30	52	1424
GN 21-100-M16-119-D0-W	100	M 16	119	24	9	-	45	45	32	12	20	25	700
GN 21-100-M16-119-D1-W	100	M 16	119	24	-	3	45	45	32	12	20	25	743
GN 21-100-M16-144-D0-W	100	M 16	144	24	9	-	45	45	32	12	20	25	737
GN 21-100-M16-144-D1-W	100	M 16	144	24	-	3	45	45	32	12	20	25	780
GN 21-100-M16-169-D0-W	100	M 16	169	24	9	-	45	45	32	12	20	25	778
GN 21-100-M16-169-D1-W	100	M 16	169	24	-	3	45	45	32	12	20	25	821
GN 21-100-M16-194-D0-W	100	M 16	194	24	9	-	45	45	32	12	20	25	818
GN 21-100-M16-194-D1-W	100	M 16	194	24	-	3	45	45	32	12	20	25	861
GN 21-100-M20-144-D0-W	100	M 20	144	30	9	-	56	56	40	16	24	35	916
GN 21-100-M20-144-D1-W	100	M 20	144	30	-	3	56	56	40	16	24	35	959
GN 21-100-M20-169-D0-W	100	M 20	169	30	9	-	56	56	40	16	24	35	979
GN 21-100-M20-169-D1-W	100	M 20	169	30	-	3	56	56	40	16	24	35	1022
GN 21-100-M20-194-D0-W	100	M 20	194	30	9	-	56	56	40	16	24	35	1042
GN 21-100-M20-194-D1-W	100	M 20	194	30	-	3	56	56	40	16	24	35	1085
GN 21-100-M20-244-D0-W	100	M 20	244	30	9	-	56	56	40	16	24	35	1166
GN 21-100-M20-244-D1-W	100	M 20	244	30	-	3	56	56	40	16	24	35	1209
GN 21-100-M24-169-D0-W	100	M 24	169	35	9	-	67	67	48	20	30	52	1230
GN 21-100-M24-169-D1-W	100	M 24	169	35	-	3	67	67	48	20	30	52	1273
GN 21-100-M24-219-D0-W	100	M 24	219	35	9	-	67	67	48	20	30	52	1408
GN 21-100-M24-219-D1-W	100	M 24	219	35	-	3	67	67	48	20	30	52	1451
GN 21-100-M24-269-D0-W	100	M 24	269	35	9	-	67	67	48	20	30	52	1587
GN 21-100-M24-269-D1-W	100	M 24	269	35	-	3	67	67	48	20	30	52	1630
