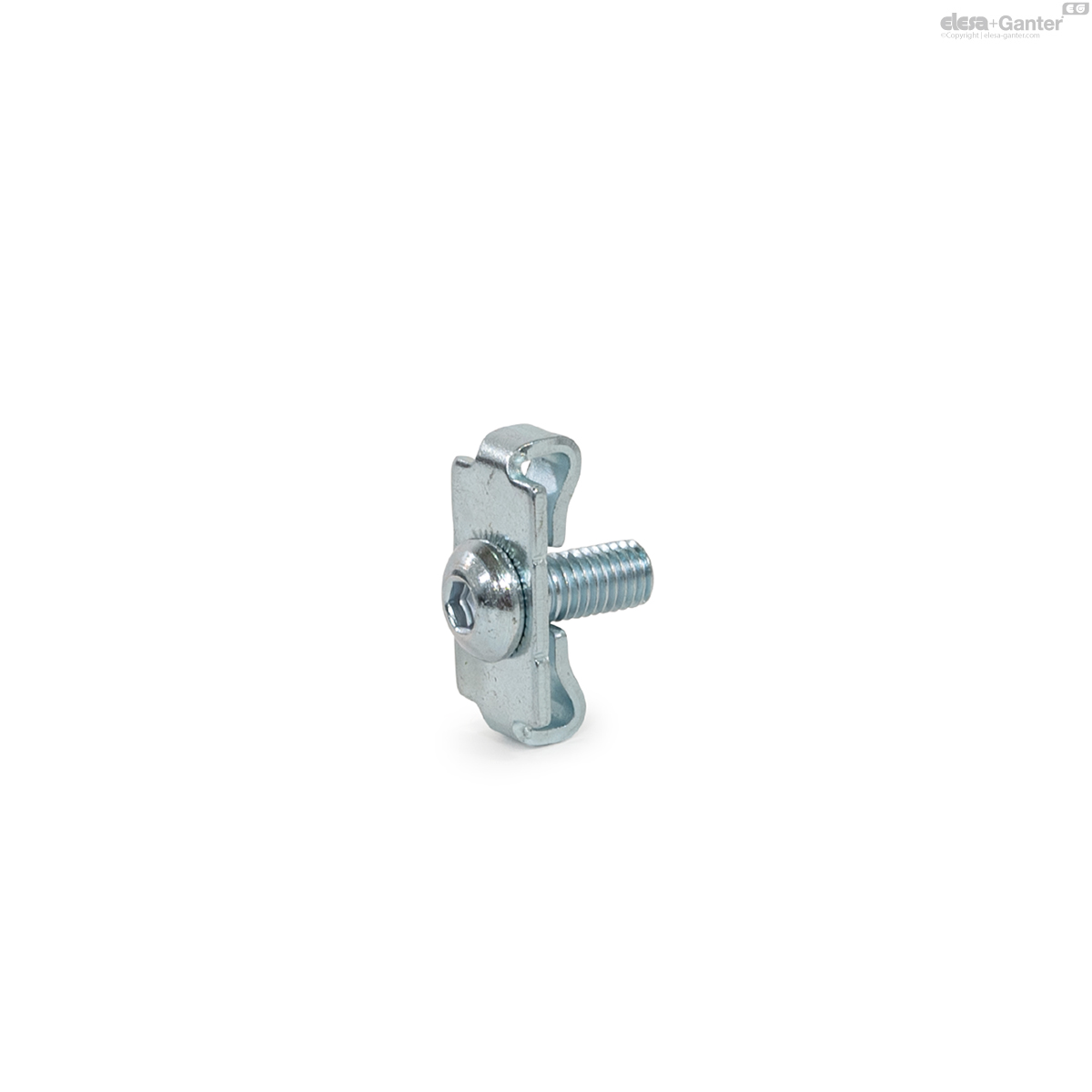

GN 20i
Standard Connectors
Steel, for Aluminum Profiles (i-Modular System)
Description
Specification
Type
- Type D: Doubled
Coding
- C: With screw
Steel, zinc plated, blue passivated SZ
Information
Standard connectors GN 20i fasten aluminum profiles at right angles and secure them against twisting. This requires machining of both profiles. The internal thread can be cut directly into the end face profile holes.
If panels are used in the slot, they must be suitably pocketed.
Standard connectors are supplied in bundles. The table shows the quantity included in each bundle.

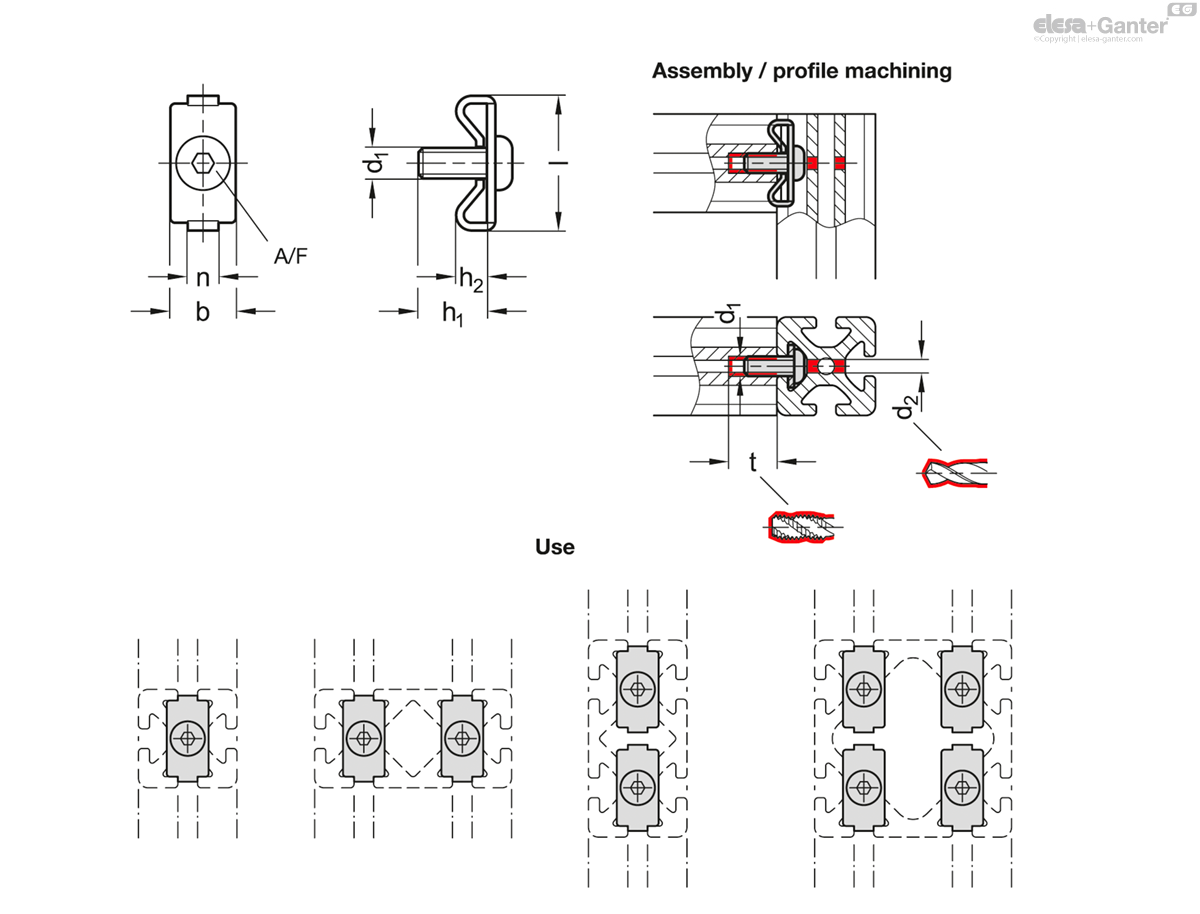

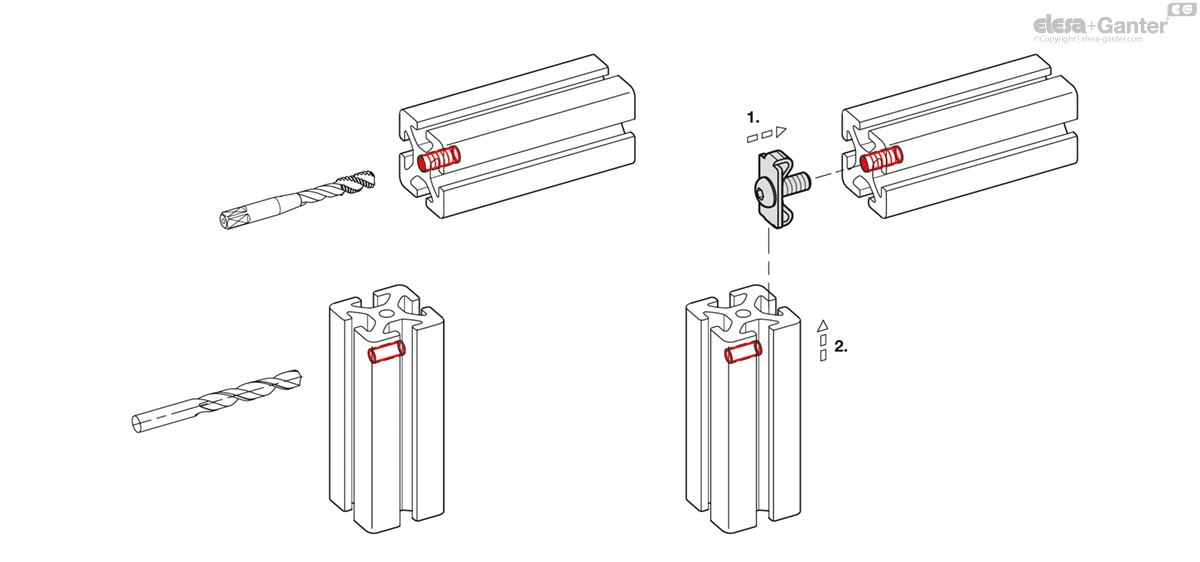

Assembly Instructions / Profile Machining
 GN 20i
| n | Bundle Pieces |
b | d1 | d2 | h1 ≈ | h2 ≈ | Length l ≈ | A/F | t | Tightening torque in Nm |
 |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| GN 20i-6-D-C-SZ-4 | 6 | 4 | 13 | M 6 | 5.5 | 12 | 7.5 | 28.5 | 4 | 15 | 10 | 36 |
|
| GN 20i-8-D-C-SZ-4 | 8 | 4 | 17 | M 8 | 7 | 18 | 10 | 35 | 5 | 18 | 25 | 72 |
|
