GN 196
Angle Connector Clamps
Aluminum
Description
Specification
Identification No.
No. 2: With 2 stainless steel socket cap screws DIN 912
Aluminum
- Powder coated

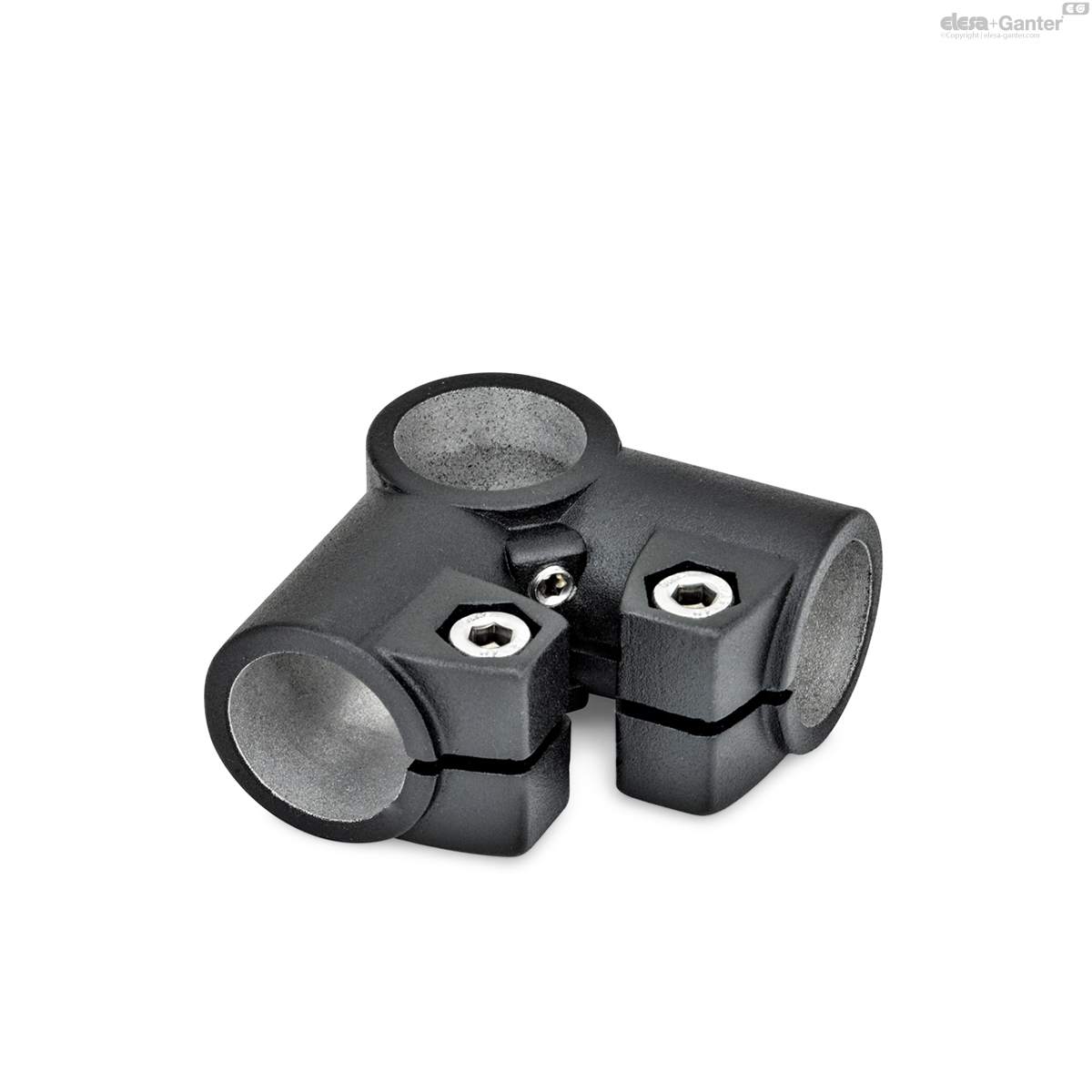

Black, RAL 9005, textured finish SW

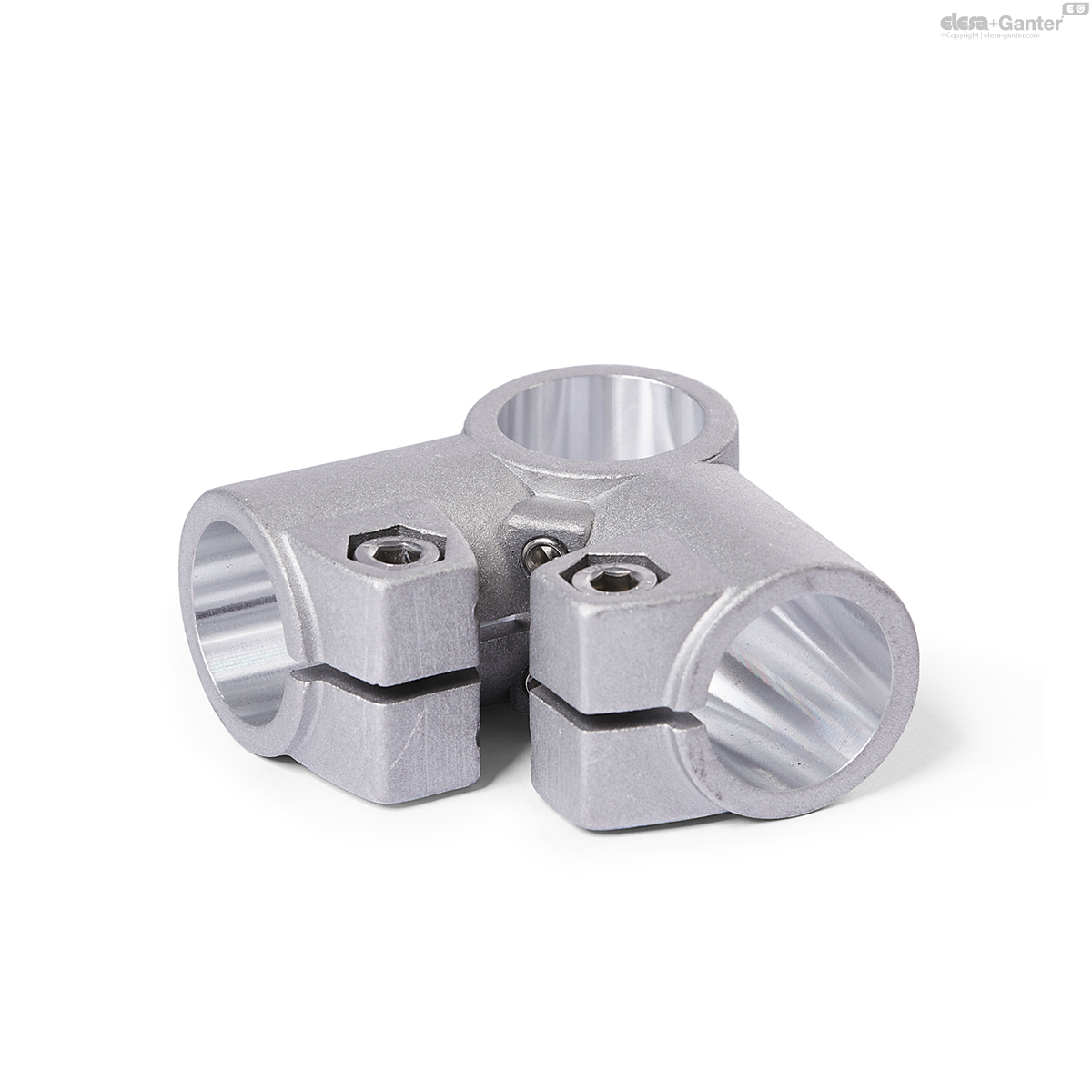

- Plain, matte shot-blasted BL
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
Grub screws DIN 913
Stainless steel AISI 304
Information
The clamping bores of angle connector clamps GN 196 are designed for construction tubes GN 990  or DIN 2391, DIN 2395 and DIN 2462.

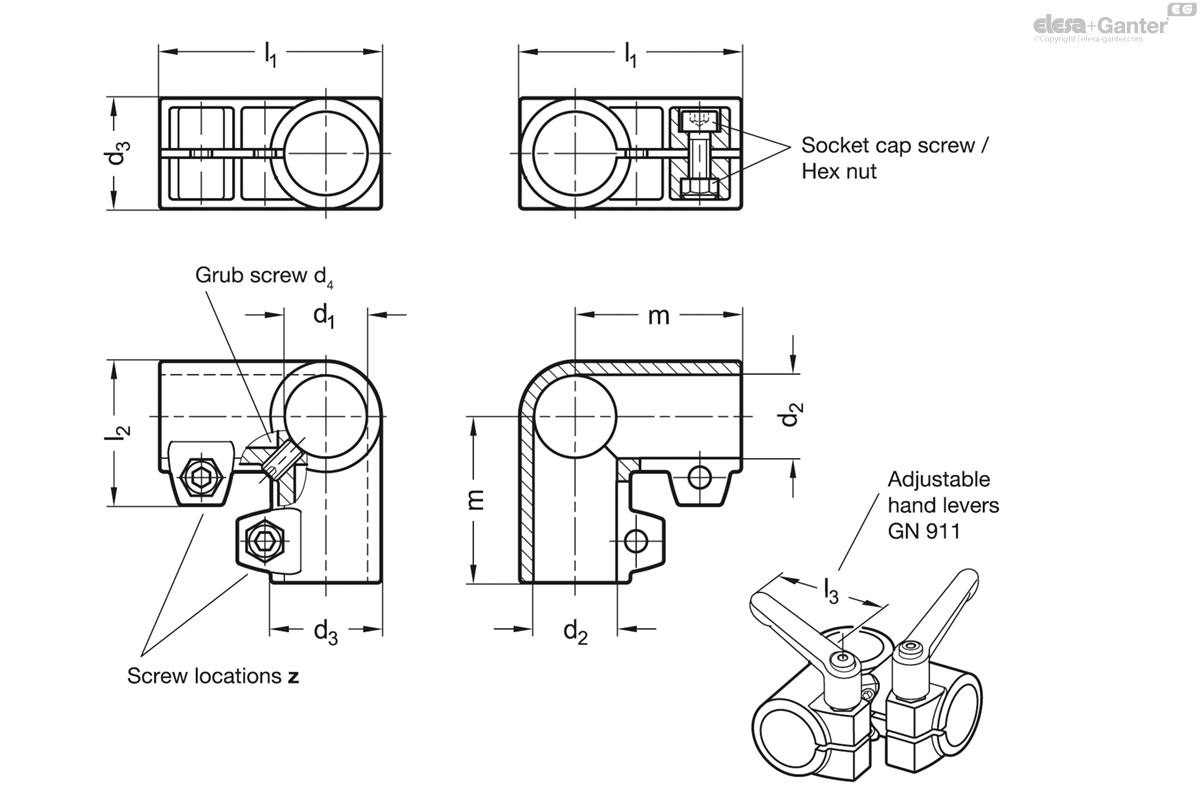

At the screw locations z, the socket cap screws reduce the bore cross-section for clamping.
For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
Accessory
- Adjustable Hand Levers GN 911Â
Technical information
- Stainless Steel CharacteristicsÂ
GN 196
| Color | d1 Bore |
d2 Bore |
d3 | d4 Clamping thread | l1 | l2 | m | z Screw locations |
Accessory Recom. hand lever GN 911 for z l3 |
 |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| GN 196-B20-B20-2-BL | BL - Plain finish | B 20 | B 20 | 40 | M 8 | 80 | 52 | 60 | M8-25 | - | 345 |
|
| GN 196-B20-B20-2-SW | SW - RAL 9005 | B 20 | B 20 | 40 | M 8 | 80 | 52 | 60 | M8-25 | - | 345 |
|
| GN 196-B25-B25-2-BL | BL - Plain finish | B 25 | B 25 | 40 | M 8 | 80 | 52 | 60 | M8-25 | 78 | - | 287 |
|
| GN 196-B25-B25-2-SW | SW - RAL 9005 | B 25 | B 25 | 40 | M 8 | 80 | 52 | 60 | M8-25 | 78 | - | 287 |
|
| GN 196-B30-B30-2-BL | BL - Plain finish | B 30 | B 30 | 40 | M 8 | 80 | 52 | 60 | M8-25 | 63 | 78 | 216 |
|
| GN 196-B30-B30-2-SW | SW - RAL 9005 | B 30 | B 30 | 40 | M 8 | 80 | 52 | 60 | M8-25 | 63 | 78 | 216 |
|
| GN 196-B40-B40-2-BL | BL - Plain finish | B 40 | B 40 | 65 | M 10 | 135.5 | 77.5 | 103 | M10-50 | - | 1188 |
|
| GN 196-B40-B40-2-SW | SW - RAL 9005 | B 40 | B 40 | 65 | M 10 | 135.5 | 77.5 | 103 | M10-50 | - | 1188 |
|
| GN 196-B42-B42-2-BL | BL - Plain finish | B 42 | B 42 | 65 | M 10 | 135.5 | 77.5 | 103 | M10-50 | - | 1115 |
|
| GN 196-B42-B42-2-SW | SW - RAL 9005 | B 42 | B 42 | 65 | M 10 | 135.5 | 77.5 | 103 | M10-50 | - | 1115 |
|
| GN 196-B45-B45-2-BL | BL - Plain finish | B 45 | B 45 | 65 | M 10 | 135.5 | 77.5 | 103 | M10-50 | 92 | - | 1001 |
|
| GN 196-B45-B45-2-SW | SW - RAL 9005 | B 45 | B 45 | 65 | M 10 | 135.5 | 77.5 | 103 | M10-50 | 92 | - | 1001 |
|
| GN 196-B48-B48-2-BL | BL - Plain finish | B 48 | B 48 | 65 | M 10 | 135.5 | 77.5 | 103 | M10-50 | 78 | 92 | 880 |
|
| GN 196-B48-B48-2-SW | SW - RAL 9005 | B 48 | B 48 | 65 | M 10 | 135.5 | 77.5 | 103 | M10-50 | 78 | 92 | 880 |
|
| GN 196-B50-B50-2-BL | BL - Plain finish | B 50 | B 50 | 65 | M 10 | 135.5 | 77.5 | 103 | M10-50 | 78 | 92 | 797 |
|
| GN 196-B50-B50-2-SW | SW - RAL 9005 | B 50 | B 50 | 65 | M 10 | 135.5 | 77.5 | 103 | M10-50 | 78 | 92 | 797 |
|
