GN 195

T-Angle Connector Clamps

Aluminum, Multi Part Assembly

Enquire Now

Description

Specification

No. 2: With 6 stainless steel socket cap screws DIN 912

Aluminum

Powder coated

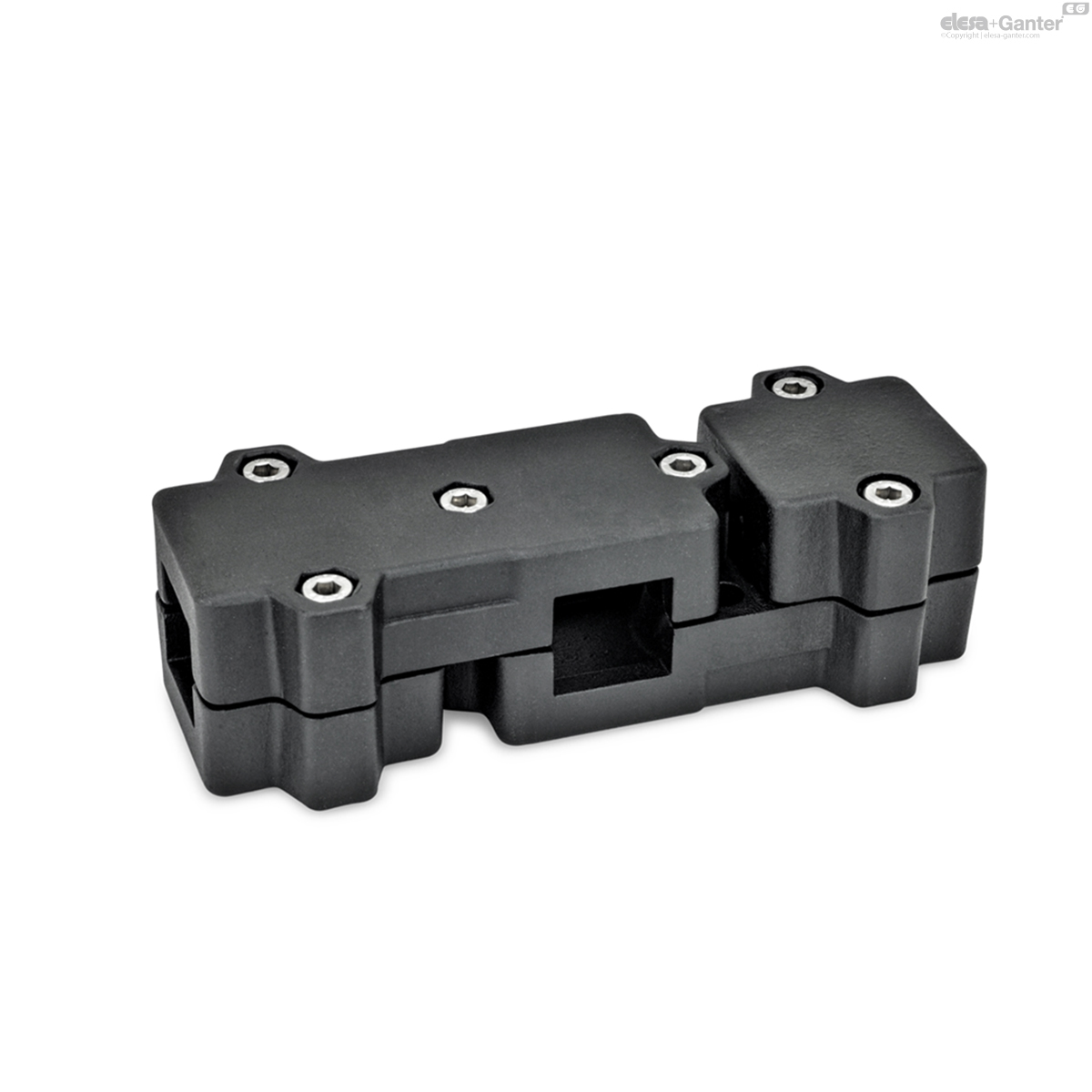

Black, RAL 9005, textured finish SW

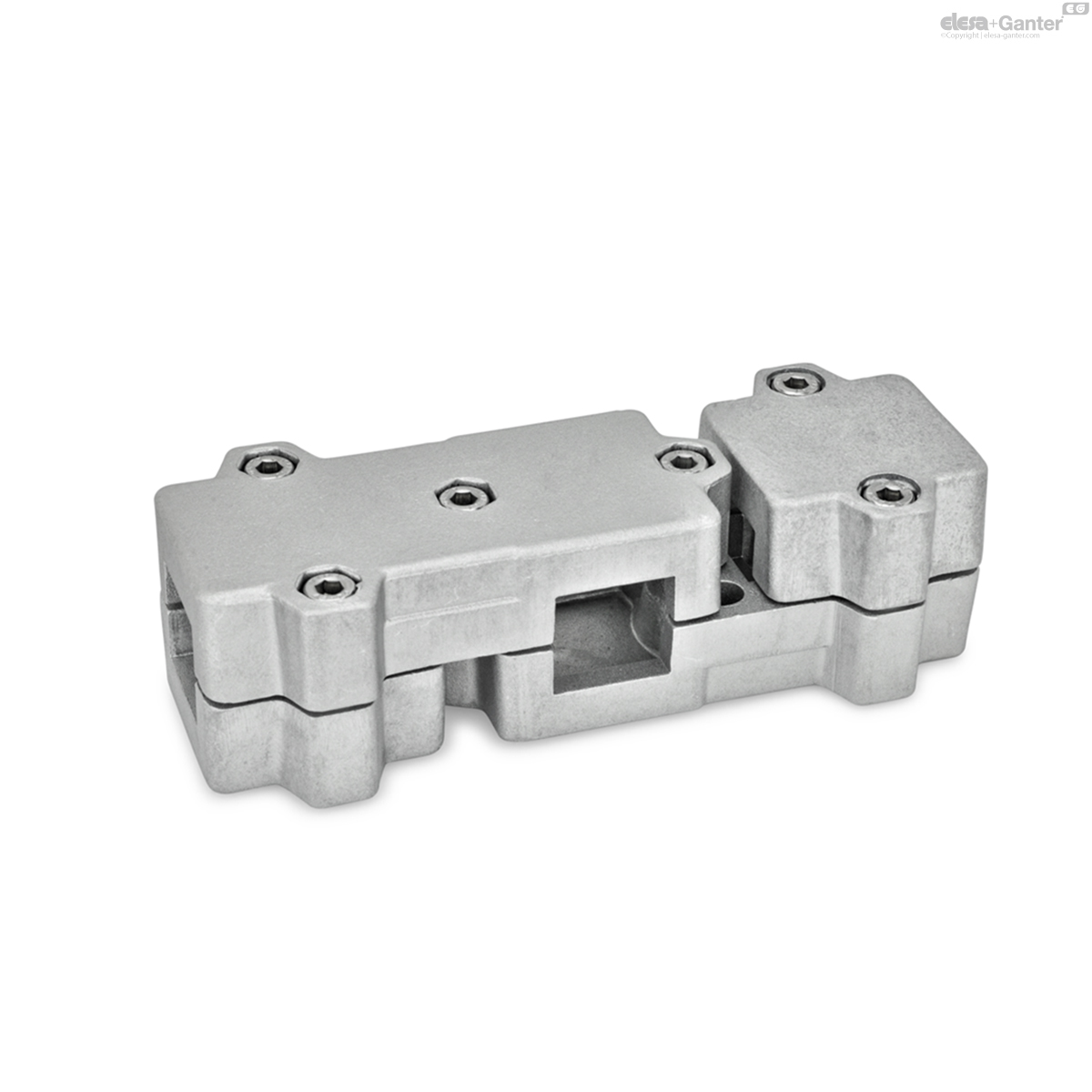

Plain finish, matte shot-blasted BL

Socket cap screws DIN 912

Stainless steel AISI 304

Hex nuts DIN 985

Stainless steel AISI 304

Self-locking via polyamide ring

Information

The clamping bores of T-angle connector clamps GN 195 are not machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

The versions with square bores are also suitable for use with profile systems.

At the screw locations z, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.

Accessory

Technical information

	Color	s Square	k Clamping length	l₁	l₂	l₃	m	z Screw locations	Accessory Recom. hand lever GN 911 for z l₄
Code											Actions
GN 195-V20-50-2-BL	BL - Plain finish	V 20	50	172	68	46	86	M8-35	63 \| 78	600
GN 195-V20-50-2-SW	SW - RAL 9005	V 20	50	172	68	46	86	M8-35	63 \| 78	580
GN 195-V25-50-2-BL	BL - Plain finish	V 25	50	172	68	46	86	M8-35	63 \| 78	565
GN 195-V25-50-2-SW	SW - RAL 9005	V 25	50	172	68	46	86	M8-35	63 \| 78	565
GN 195-V30-50-2-BL	BL - Plain finish	V 30	50	172	68	46	86	M8-35	63 \| 78	530
GN 195-V30-50-2-SW	SW - RAL 9005	V 30	50	172	68	46	86	M8-35	63 \| 78	530
GN 195-V30-60-2-BL	BL - Plain finish	V 30	60	203	79	59	101.5	M8-50	63 \| 78	1145
GN 195-V30-60-2-SW	SW - RAL 9005	V 30	60	203	79	59	101.5	M8-50	63 \| 78	1145
GN 195-V35-60-2-BL	BL - Plain finish	V 35	60	203	79	59	101.5	M8-50	63 \| 78	1070
GN 195-V35-60-2-SW	SW - RAL 9005	V 35	60	203	79	59	101.5	M8-50	63 \| 78	1071
GN 195-V40-60-2-BL	BL - Plain finish	V 40	60	203	79	59	101.5	M8-50	63 \| 78	975
GN 195-V40-60-2-SW	SW - RAL 9005	V 40	60	203	79	59	101.5	M8-50	63 \| 78	975
GN 195-V40-76-2-BL	BL - Plain finish	V 40	76	254	98	70	127	M10-60	78 \| 92	1550
GN 195-V40-76-2-SW	SW - RAL 9005	V 40	76	254	98	70	127	M10-60	78 \| 92	1550
GN 195-V45-76-2-BL	BL - Plain finish	V 45	76	254	98	70	127	M10-60	78 \| 92	1480
GN 195-V45-76-2-SW	SW - RAL 9005	V 45	76	254	98	70	127	M10-60	78 \| 92	1480
GN 195-V50-76-2-BL	BL - Plain finish	V 50	76	254	98	70	127	M10-60	78 \| 92	1390
GN 195-V50-76-2-SW	SW - RAL 9005	V 50	76	254	98	70	127	M10-60	78 \| 92	1390
