GN 192.5
T-Angle Connector Clamps
Stainless Steel
Description
Specification
Types

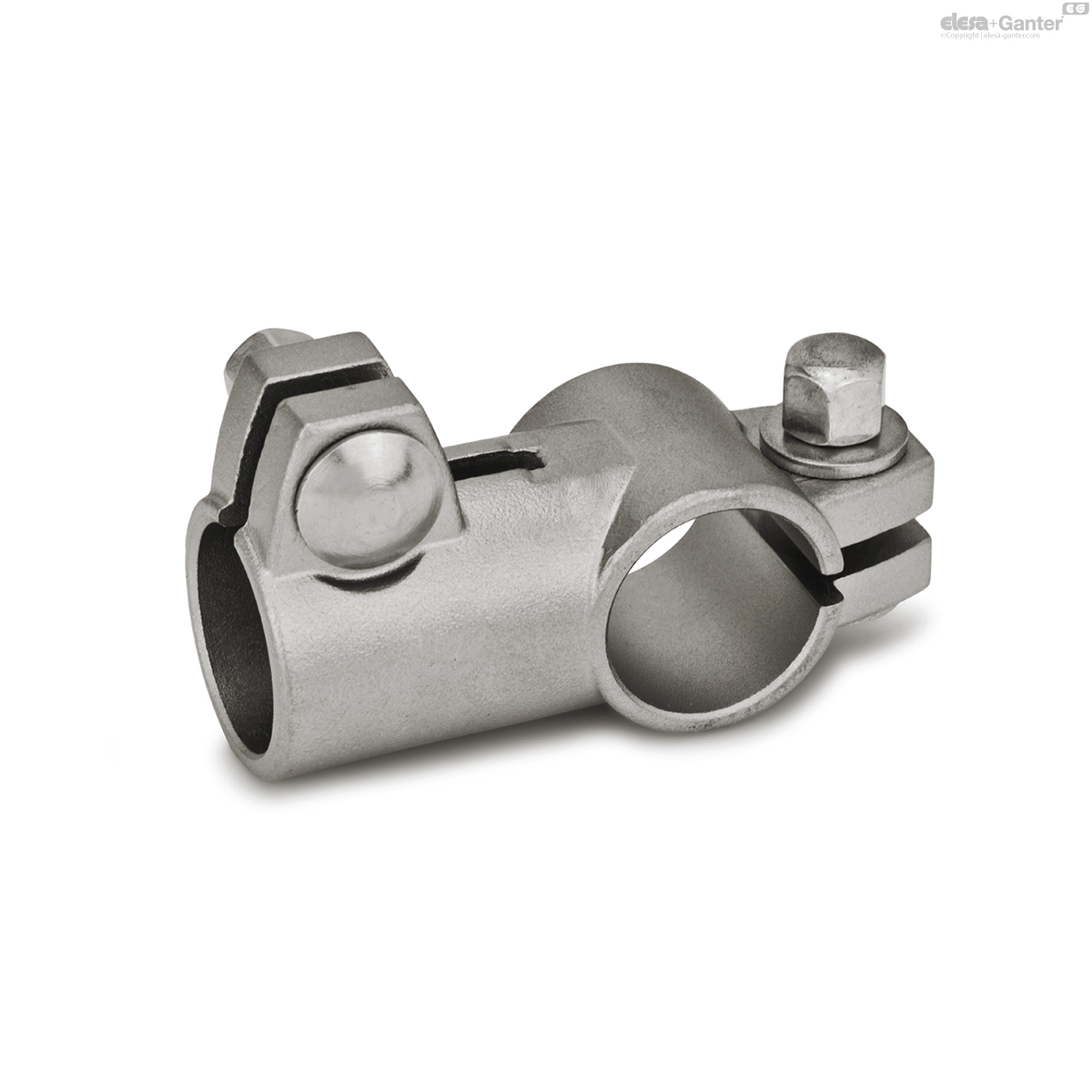

- Type A: Without seals

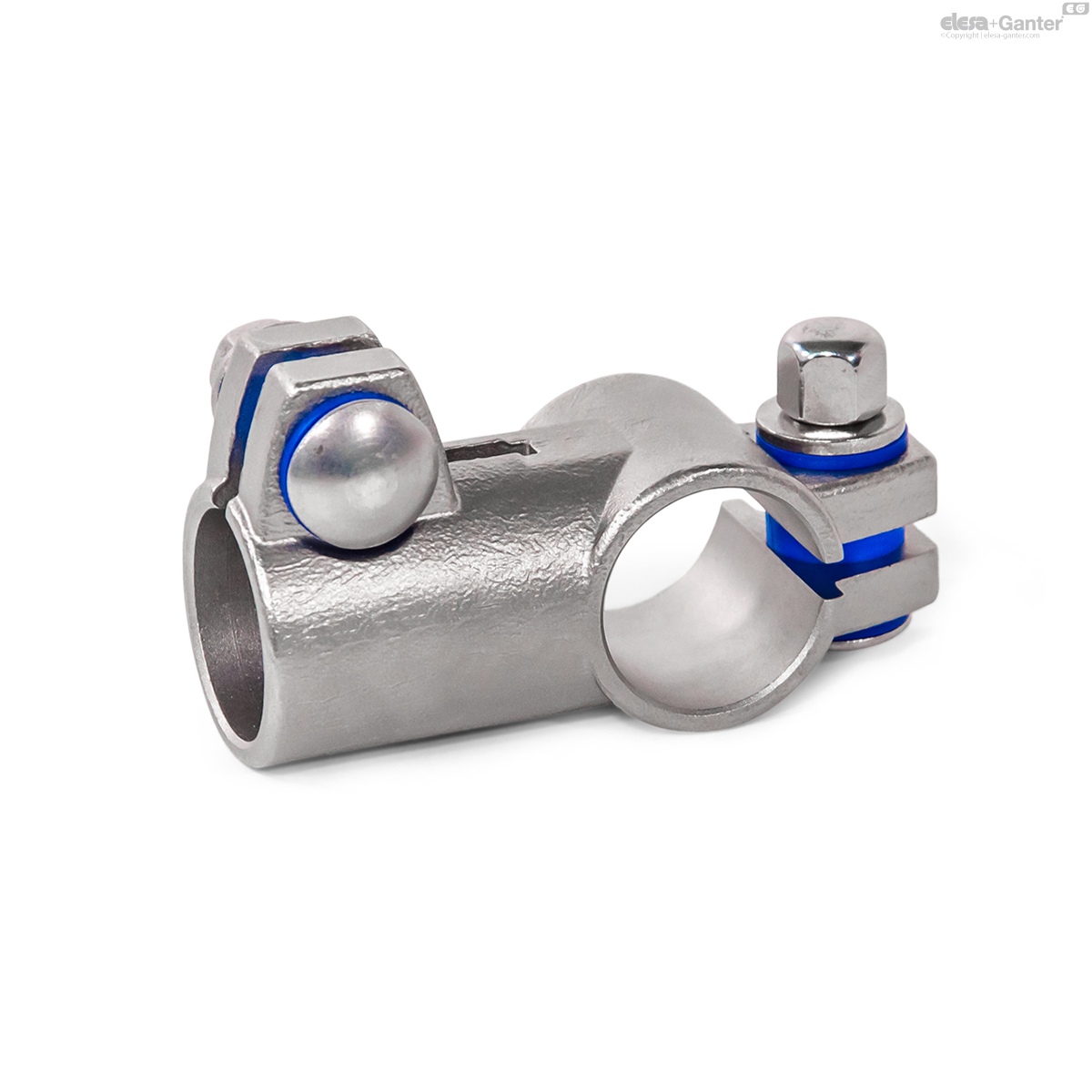

- Type B: With seals
Stainless steel AISI CF-8
Matte shot-blasted
Identification No.
No. 4: With 2 stainless steel cap nuts DIN 917
Carriage bolt DIN 603
Stainless steel
Cap nuts DIN 917 / washers
Stainless steel
Seals
- Sealing disks
Plastic (Polyacetal POM)
- Spacer ring
Silicon, 40 ... 60 Shore A
Information
The clamping bores of T-angle connector clamps 192.5 are mechanically machined and designed for construction tubes GN 990  or DIN 2391, DIN 2395 and DIN 2462.
At the screw locations z1 / z2, carriage bolts and cap nuts reduce the bore cross-section for clamping. Type B is equipped with seals at the screw locations.
For clamping without tools, the cap nuts can be replaced by adjustable hand levers GN 911.3 listed in the table as accessories.
Technical information
- Stainless Steel CharacteristicsÂ
- Plastic CharacteristicsÂ
Accessory
- Adjustable Hand Levers GN 911.3Â
GN 192.5-A

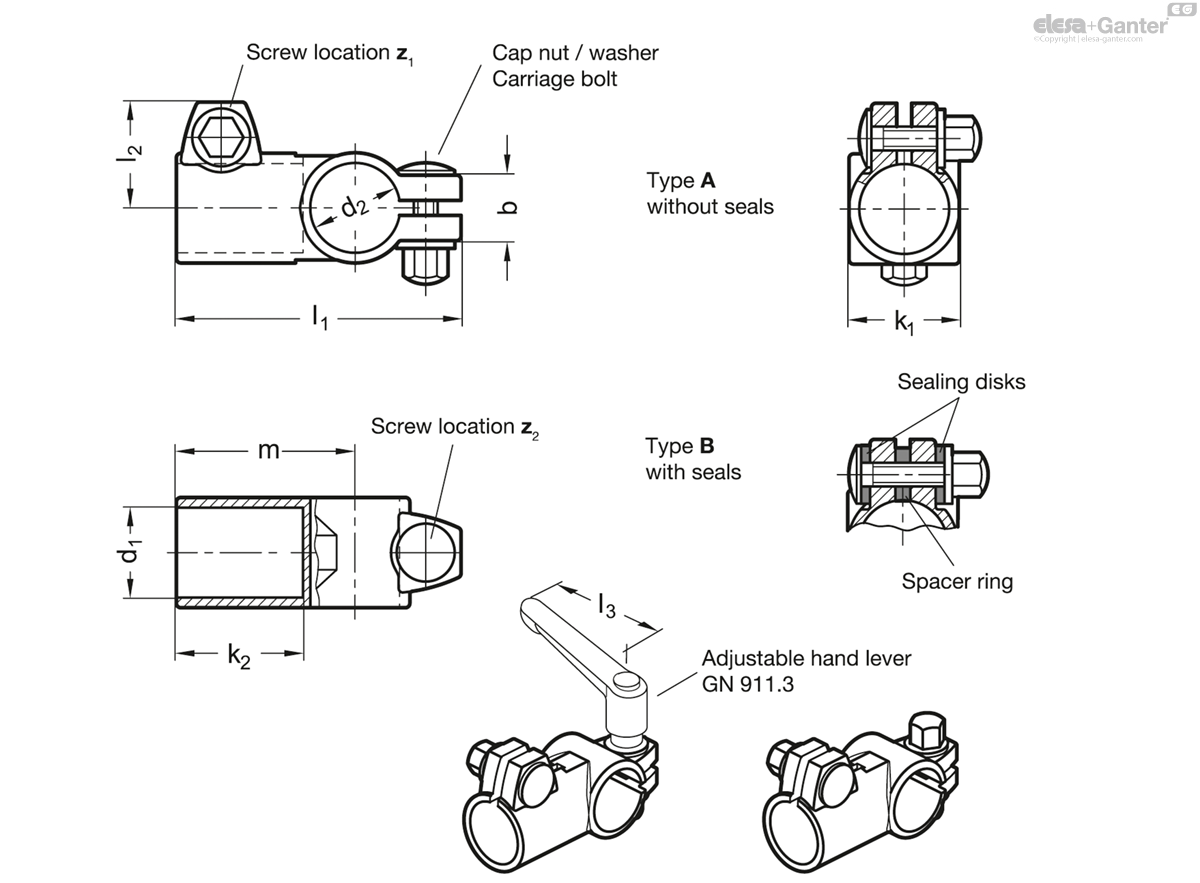

| d1 | d2 | b | k1 | k2 | l1 | l2 | m | z1 Screw location |
z2 Screw location |
Accessory Recom. hand lever GN 911.3 for z1 l3 |
Accessory Recom. hand lever GN 911.3 for z2 l3 |
 |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| GN 192.5-B30-B30-A-4 | B 30 | B 30 | 22 | 37 | 42 | 96 | 35 | 60 | M 8 | M 8 | 63 | 78 | 63 | 78 | 320 |
|
| GN 192.5-B50-B50-A-4 | B 50 | B 50 | 30 | 65 | 75 | 151.5 | 48.5 | 103 | M 10 | M 10 | 78 | 92 | 78 | 92 | 1023 |
|
