GN 192

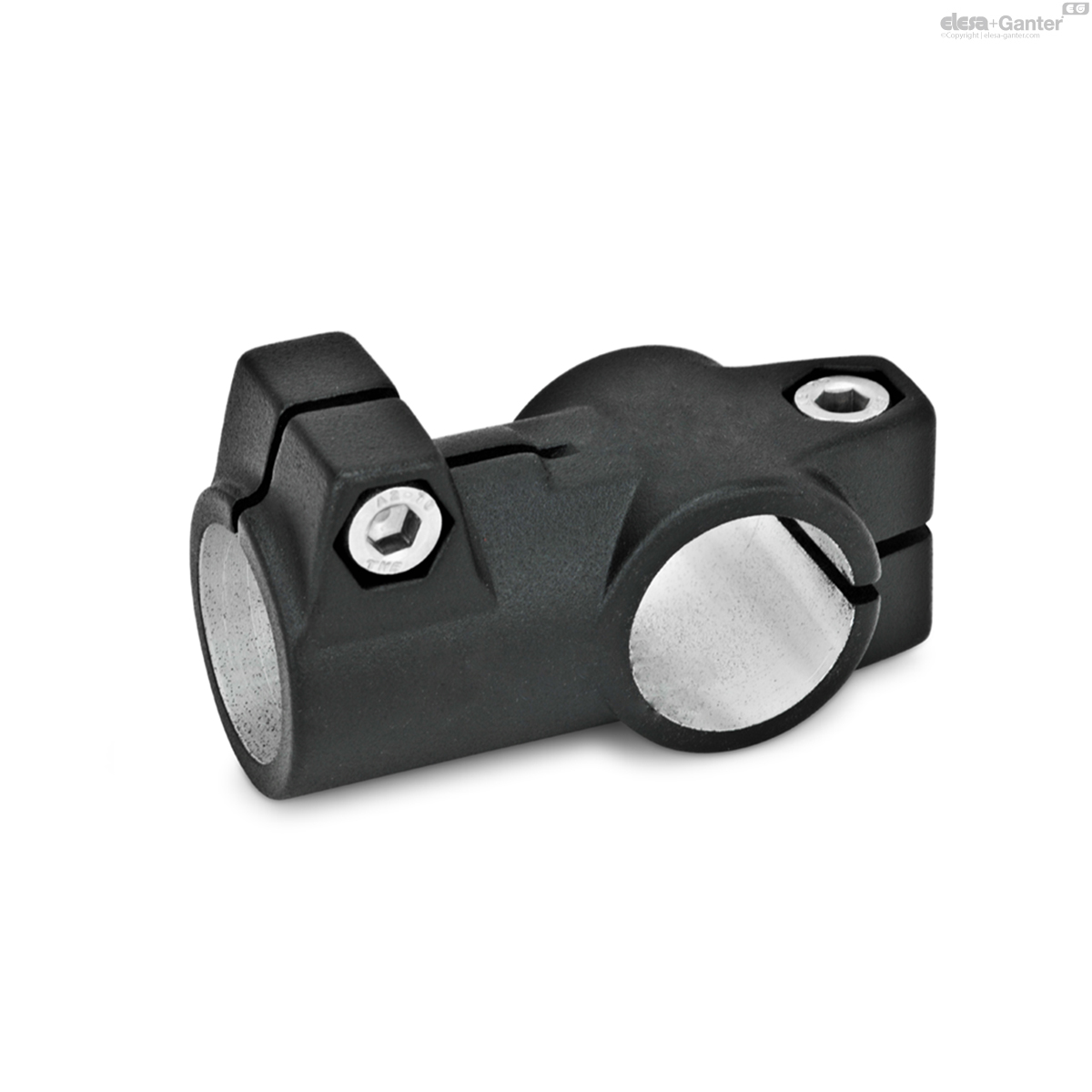

T-Angle Connector Clamps

Aluminum

Enquire Now

Description

Specification

Identification No.

No. 2: With 2 stainless steel socket cap screws DIN 912

Aluminum

Powder coated

Black, RAL 9005, textured finish SW

Plain finish, matte shot-blasted BL

Socket cap screws DIN 912

Stainless steel AISI 304

Hex nuts DIN 985

Stainless steel AISI 304

Self-locking via polyamide ring

Information

The clamping bores of T-angle connector clamps GN 192 are mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

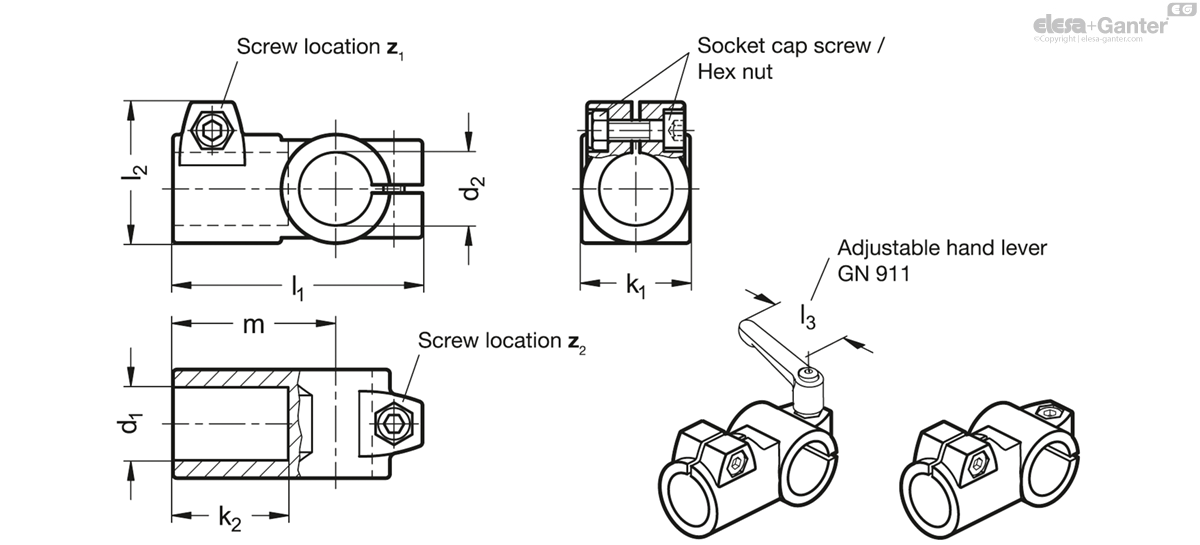

At the screw locations z₁ / z₂, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.

Accessory

Adjustable Hand Levers GN 911

On request

d₁ / d₂ with unequal bores

With inch bores

Technical information

Stainless Steel Characteristics

GN 192

	Color	d₁ Bore	d₂ Bore	k₁ Clamping length	k₂ Clamping length	l₁	l₂	m	z₁ Screw location	z₂ Screw location	Accessory Recom. hand lever GN 911 for z1 l₃	Accessory Recom. hand lever GN 911 for z2 l₃
Code														Actions
GN 192-B20-B20-40-2-BL	BL - Plain finish	B 20	B 20	40	42.5	92	52	60	M8-25	M8-25	-	-	267
GN 192-B20-B20-40-2-SW	SW - RAL 9005	B 20	B 20	40	42.5	92	52	60	M8-25	M8-25	-	-	267
GN 192-B25-B25-40-2-BL	BL - Plain finish	B 25	B 25	40	42.5	92	52	60	M8-25	M8-25	63 \| 78	78	220
GN 192-B25-B25-40-2-SW	SW - RAL 9005	B 25	B 25	40	42.5	92	52	60	M8-25	M8-25	63 \| 78	78	220
GN 192-B30-B30-40-2-BL	BL - Plain finish	B 30	B 30	40	42.5	92	52	60	M8-25	M8-25	63 \| 78	63 \| 78	186
GN 192-B30-B30-40-2-SW	SW - RAL 9005	B 30	B 30	40	42.5	92	52	60	M8-25	M8-25	63 \| 78	63 \| 78	186
GN 192-B30-B30-56-2-BL	BL - Plain finish	B 30	B 30	56	62	130	68	90	M10-35	M10-35	-	-	661
GN 192-B30-B30-56-2-SW	SW - RAL 9005	B 30	B 30	56	62	130	68	90	M10-35	M10-35	-	-	661
GN 192-B32-B32-56-2-BL	BL - Plain finish	B 32	B 32	56	62	130	68	90	M10-35	M10-35	-	-	645
GN 192-B32-B32-56-2-SW	SW - RAL 9005	B 32	B 32	56	62	130	68	90	M10-35	M10-35	-	-	645
GN 192-B35-B35-56-2-BL	BL - Plain finish	B 35	B 35	56	62	130	68	90	M10-35	M10-35	92	-	630
GN 192-B35-B35-56-2-SW	SW - RAL 9005	B 35	B 35	56	62	130	68	90	M10-35	M10-35	92	-	630
GN 192-B40-B40-56-2-BL	BL - Plain finish	B 40	B 40	56	62	130	68	90	M10-35	M10-35	78 \| 92	92	481
GN 192-B40-B40-56-2-SW	SW - RAL 9005	B 40	B 40	56	62	130	68	90	M10-35	M10-35	78 \| 92	92	481
GN 192-B40-B40-65-2-BL	BL - Plain finish	B 40	B 40	65	75	148	77.5	103	M10-50	M10-50	92	-	922
GN 192-B40-B40-65-2-SW	SW - RAL 9005	B 40	B 40	65	75	148	77.5	103	M10-50	M10-50	92	-	922
GN 192-B42-B42-65-2-BL	BL - Plain finish	B 42	B 42	65	75	148	77.5	103	M10-50	M10-50	78 \| 92	-	889
GN 192-B42-B42-65-2-SW	SW - RAL 9005	B 42	B 42	65	75	148	77.5	103	M10-50	M10-50	78 \| 92	-	889
GN 192-B45-B45-65-2-BL	BL - Plain finish	B 45	B 45	65	75	148	77.5	103	M10-50	M10-50	78 \| 92	92	869
GN 192-B45-B45-65-2-SW	SW - RAL 9005	B 45	B 45	65	75	148	77.5	103	M10-50	M10-50	78 \| 92	92	869
GN 192-B48-B48-65-2-BL	BL - Plain finish	B 48	B 48	65	75	148	77.5	103	M10-50	M10-50	78 \| 92	78 \| 92	732
GN 192-B48-B48-65-2-SW	SW - RAL 9005	B 48	B 48	65	75	148	77.5	103	M10-50	M10-50	78 \| 92	78 \| 92	732
GN 192-B50-B50-65-2-BL	BL - Plain finish	B 50	B 50	65	75	148	77.5	103	M10-50	M10-50	78 \| 92	78 \| 92	676
GN 192-B50-B50-65-2-SW	SW - RAL 9005	B 50	B 50	65	75	148	77.5	103	M10-50	M10-50	78 \| 92	78 \| 92	676
GN 192-B50-B50-80-2-BL	BL - Plain finish	B 50	B 50	80	80	177	92	125	M10-50	M10-50	-	-	1660
GN 192-B50-B50-80-2-SW	SW - RAL 9005	B 50	B 50	80	80	177	92	125	M10-50	M10-50	-	-	1660
GN 192-B60-B60-80-2-BL	BL - Plain finish	B 60	B 60	80	80	177	92	125	M10-50	M10-50	78 \| 92	-	1260
GN 192-B60-B60-80-2-SW	SW - RAL 9005	B 60	B 60	80	80	177	92	125	M10-50	M10-50	78 \| 92	-	1260
