GN 187.6

Locking joint sets

for locking plates GN 187.5

Enquire Now

Description

Specification

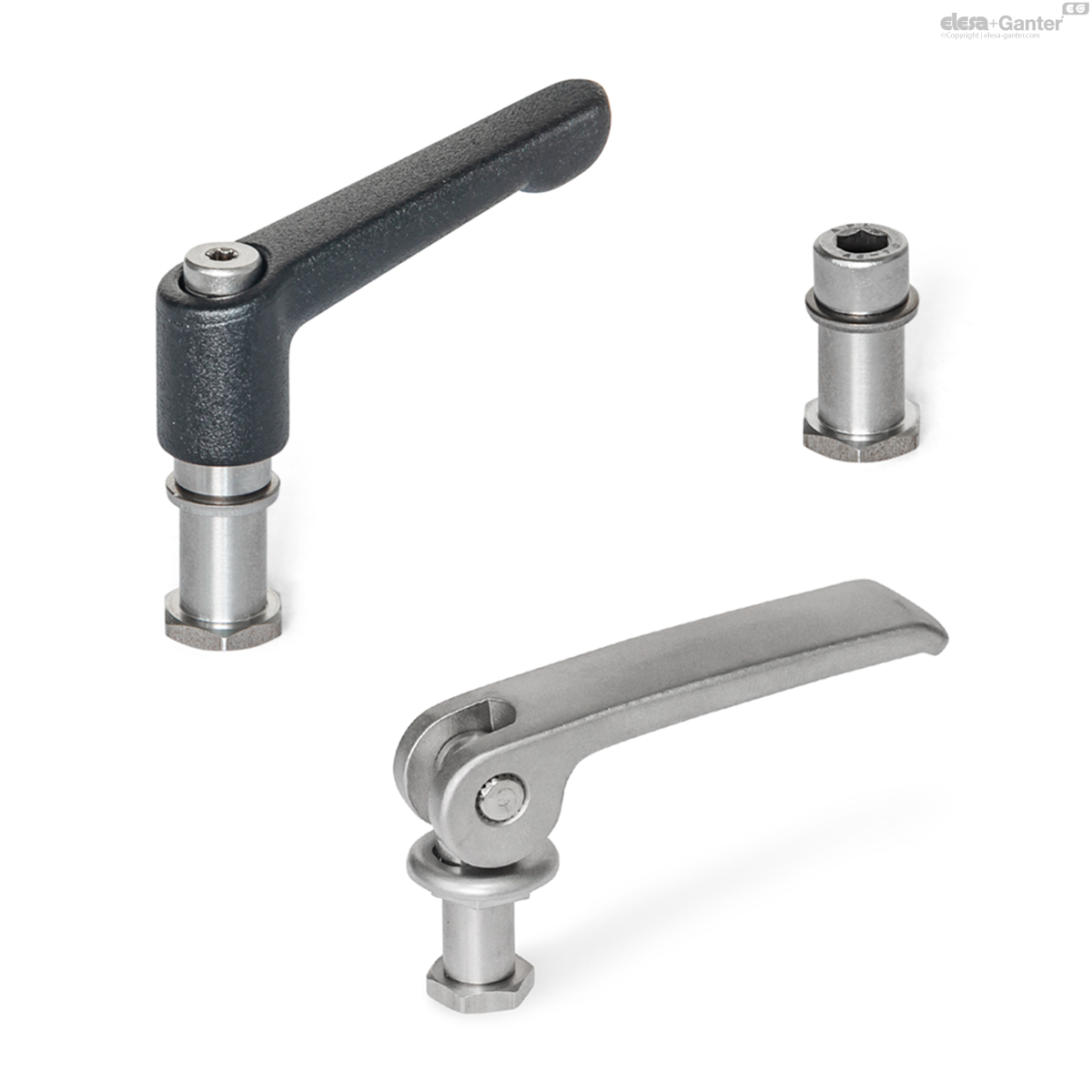

Types

Type E: with clamping levers with eccentric lever

Type K: with hand lever

Type S: with socket cap screw DIN 912

Type E

Eccentric lever, Stainless Steel AISI CF-8

Contact surface, Stainless Steel AISI 431

Type K

Hand lever

Zinc die casting, plastic coated

black, RAL 9005, textured finish

Type S

Socket cap screw DIN 912

Stainless Steel A2

Countersunk screw DIN 7991 /

Washer Stainless Steel A2

Other parts

Stainless Steel AISI 303

Information

Locking joint sets GN 187.6 can be used to combine Stainless Steel-Locking heads GN 187.5 to form locking joints. Thanks to the hexagonal shoulder, which creates a form-locking connection that prevents the part from also turning, the centering bushing allows fast and easy mounting. In the unlocked state, the bushing or draw nut forms the axis that positions the locking heads center to center.

The use of Stainless Steel-Thrust springs GN 187.2 allows the locking heads to be cleanly separated from each other.

The types E and K are used in applications requiring frequent and tool-free adjustment of the locking joints.

Technical information

Stainless Steel characteristics

GN 187.6

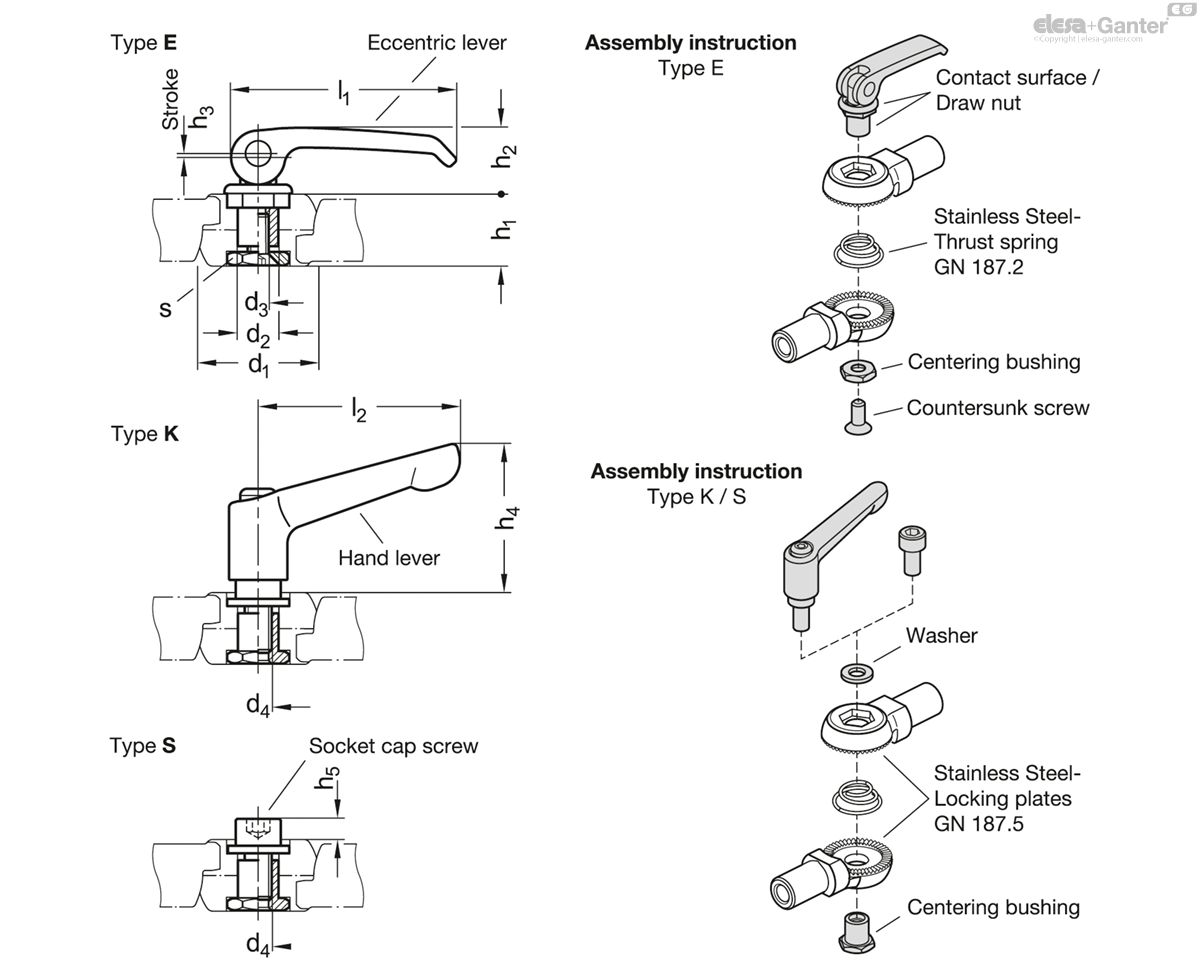

	d₁ Locking plates GN 187.5	d₂	d₃	d₄	h₁	h₂	h₃	h₄	h₅	l₁	l₂	s
Code														Actions
GN 187.6-27-E	27	9	M 5	-	16	15	0.9	-	-	44	-	12	37
GN 187.6-27-K	27	9	-	M 6	16	-	-	33	-	-	45	12	43
GN 187.6-27-S	27	9	-	M 6	16	-	-	-	4.6	-	-	12	12
GN 187.6-32-E	32	9	M 5	-	19	19.3	1.1	-	-	63	-	12	71
GN 187.6-32-K	32	9	-	M 6	19	-	-	33	-	-	45	12	45
GN 187.6-32-S	32	9	-	M 6	19	-	-	-	4.6	-	-	12	14
GN 187.6-40-E	40	11	M 6	-	24	25.5	1.3	-	-	82	-	14	143
GN 187.6-40-K	40	11	-	M 8	24	-	-	42.5	-	-	63	14	97
GN 187.6-40-S	40	11	-	M 8	24	-	-	-	5.6	-	-	14	27
