GN 187.5

Stainless Steel-Locking plates

Enquire Now

Description

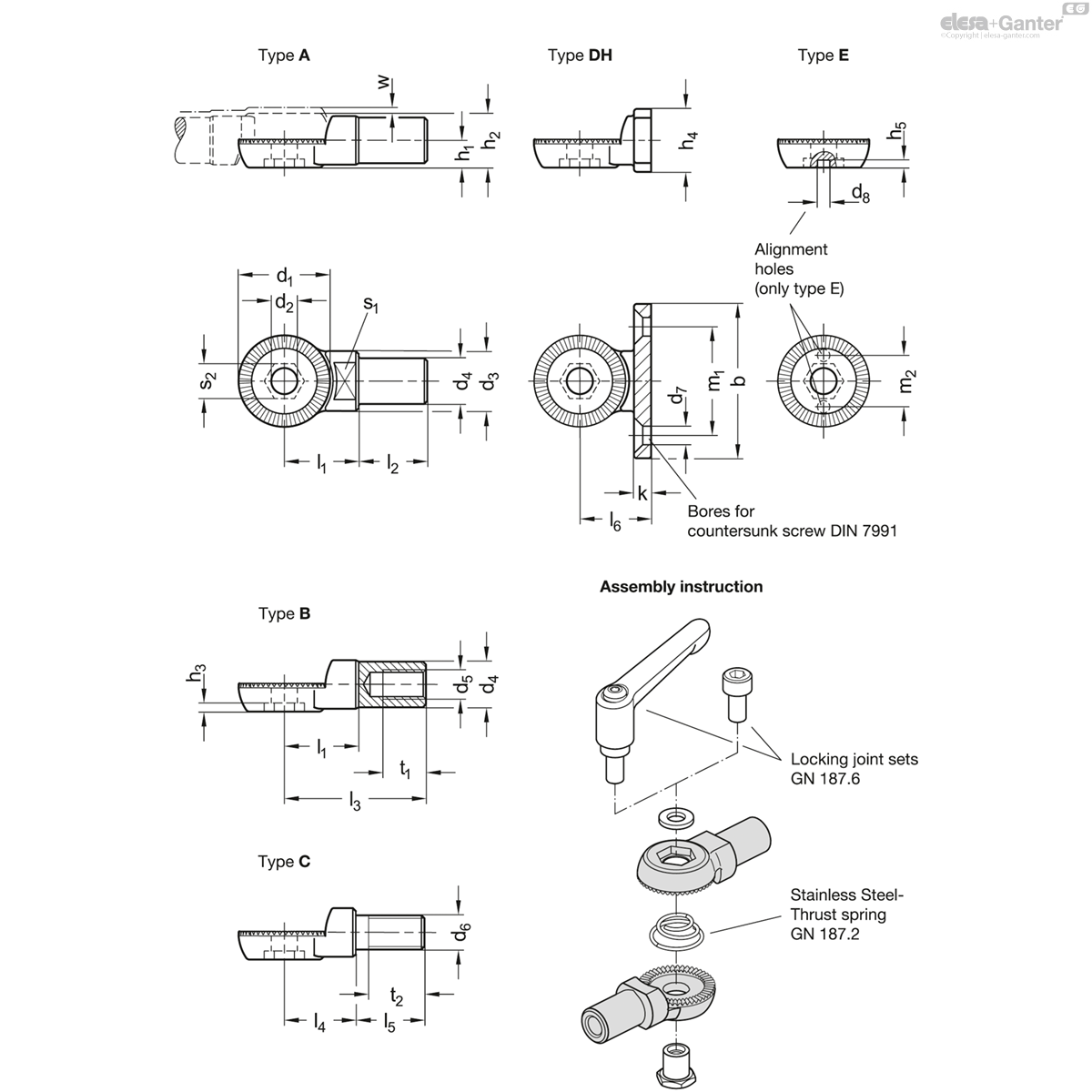

Specification

Types

Type A: Stud, unthreaded (for welding on)

Type B: Stud, with female thread

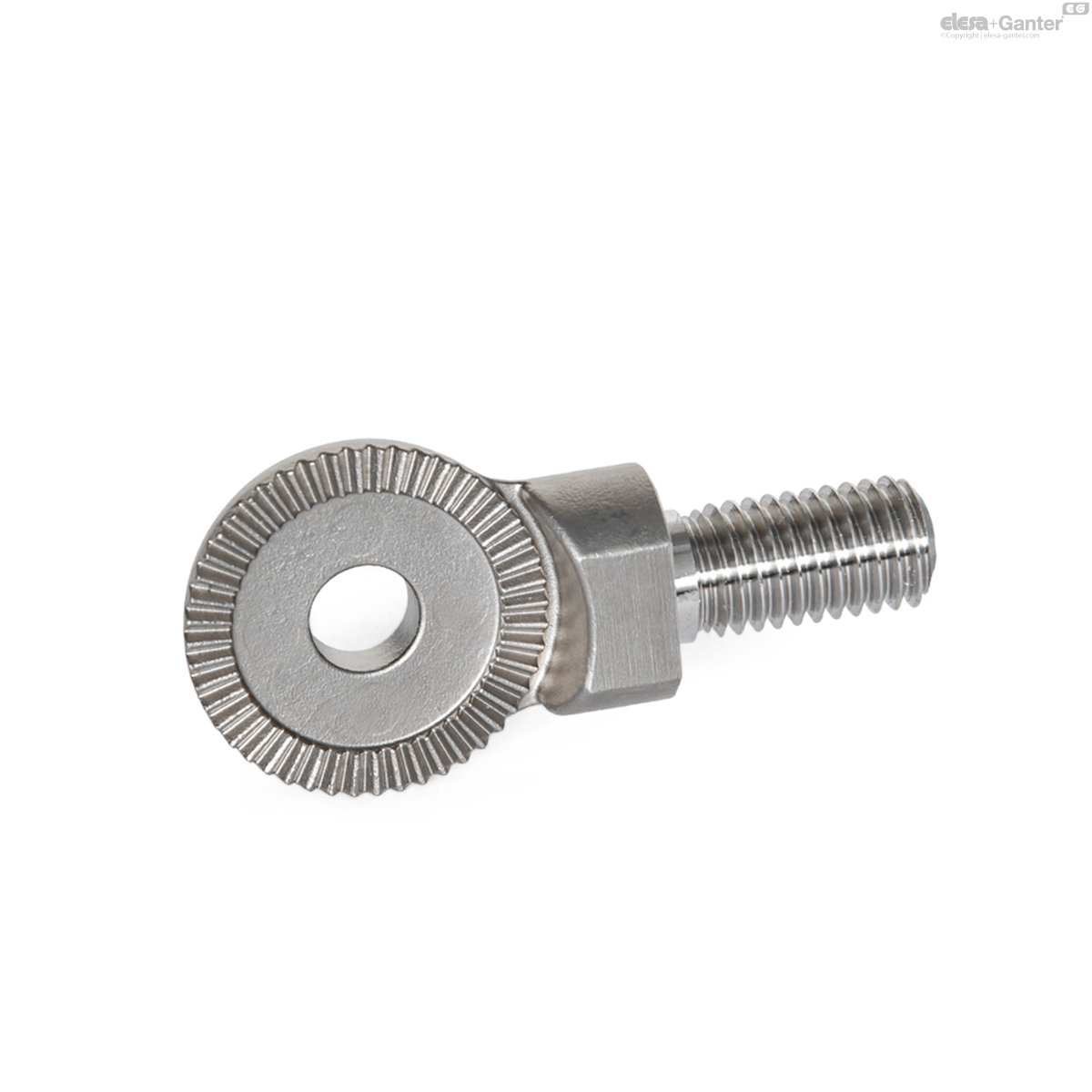

Type C: Stud, with male thread

Type DH: Fastening flange, horizontal

Type E: Plate (for welding on)

Stainless Steel precision casting NI

AISI CF-8

matte shot-blasted

Information

Stainless Steel-Locking plates GN 187.5 can be installed in combination with locking joint sets GN 187.6 to create locking joints. This allows gear lever handles and retaining tubes or trays and mounts to be adjusted relative to each other at defined angles with a form-locking connection. The angle orientation of the teeth is adapted to the connecting elements, permitting an axis-parallel or right-angled arrangement.

Held together and centered by locking joint sets, the various types can be combined together arbitrarily with identical the nominal sizes d₁. Stainless Steel-Thrust springs GN 187.2 GN 187.4 can be placed between the locking heads during mounting, allowing a clean separation upon removal. Additional design possibilities arise from the compatibility of the locking heads with the locking plates GN 187.2 GN 187.4 .

When welding on, type E be easily positioned on the opposing part and fastened by means of the mounting holes d₈ (which are aligned with the teeth) using dowel pins or positioning pins.

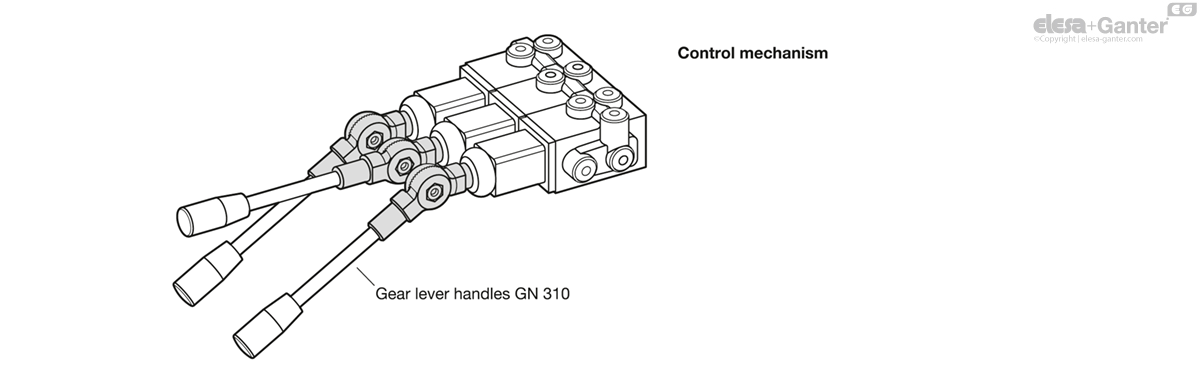

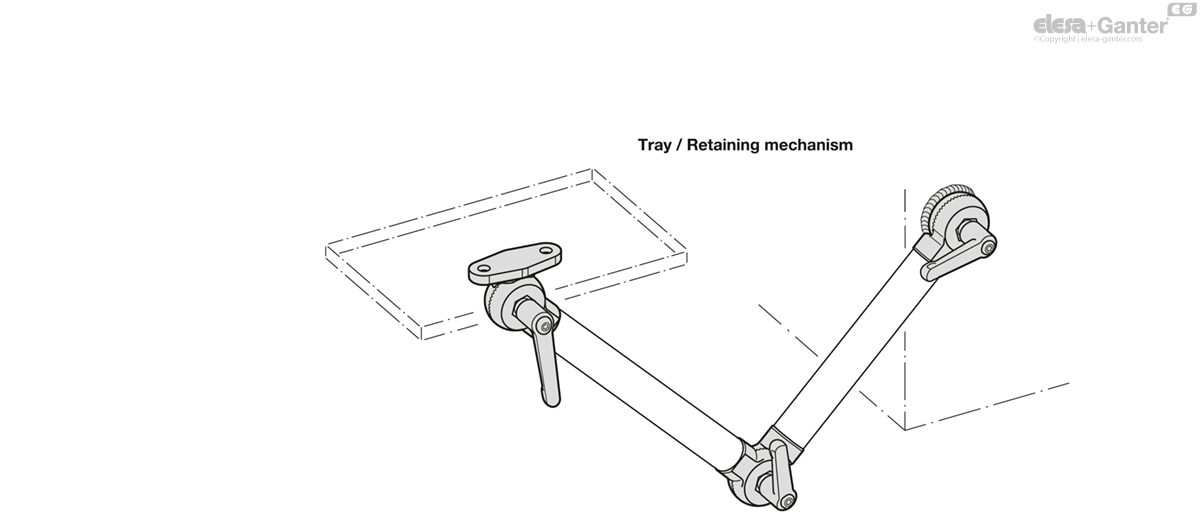

Application examples

Technical information

Stainless Steel characteristics

Accessory

Locking joint sets GN 187.6

Serrated locking plates GN 187.4 (Steel / Stainless Steel)

Stainless Steel-Thrust springs GN 187.2

GN 187.5

	d₁	z	b	d₂	d₃	d₄	d₅	d₆	d₇	d₈	h₁	h₂	h₃	h₄	h₅	k	l₁	l₂	l₃	l₄	l₅	l₆	m₁	m₂	s₁	s₂	t₁	t₂	w min.
Code																															Actions
GN 187.5-27-48-A-NI	27	48	-	9	18	13	-	-	-	-	8	16	3	-	-	-	21	20	-	-	-	-	-	-	14	12	-	-	0.8	69
GN 187.5-27-48-B-NI	27	48	-	9	18	13	M8	-	-	-	8	16	3	-	-	-	21	-	40.5	-	-	-	-	-	14	12	12	-	0.8	51
GN 187.5-27-48-C-NI	27	48	-	9	18	-	-	M10	-	-	8	16	3	-	-	-	-	-	-	21	20	-	-	-	14	12	-	17	0.8	47
GN 187.5-27-48-DH-NI	27	48	46	9	-	-	-	-	5.3	-	8	16	3	20	-	5	-	-	-	-	-	21	32	-	-	12	-	-	0.8	52
GN 187.5-27-48-E-NI	27	48	-	9	-	-	-	-	-	2.5	8	16	3	-	1.5	-	-	-	-	-	-	-	-	17	-	12	-	-	0.8	24
GN 187.5-27-60-A-NI	27	60	-	9	18	13	-	-	-	-	8	16	3	-	-	-	21	20	-	-	-	-	-	-	14	12	-	-	0.8	58
GN 187.5-27-60-B-NI	27	60	-	9	18	13	M8	-	-	-	8	16	3	-	-	-	21	-	40.5	-	-	-	-	-	14	12	12	-	0.8	51
GN 187.5-27-60-C-NI	27	60	-	9	18	-	-	M10	-	-	8	16	3	-	-	-	-	-	-	21	20	-	-	-	14	12	-	17	0.8	46
GN 187.5-27-60-DH-NI	27	60	46	9	-	-	-	-	5.3	-	8	16	3	20	-	5	-	-	-	-	-	21	32	-	-	12	-	-	0.8	52
GN 187.5-27-60-E-NI	27	60	-	9	-	-	-	-	-	2.5	8	16	3	-	1.5	-	-	-	-	-	-	-	-	17	-	12	-	-	0.8	22
GN 187.5-32-48-A-NI	32	48	-	9	21	16	-	-	-	-	9.5	19	3	-	-	-	26	24	-	-	-	-	-	-	17	12	-	-	0.8	103
GN 187.5-32-48-B-NI	32	48	-	9	21	16	M10	-	-	-	9.5	19	3	-	-	-	26	-	49.5	-	-	-	-	-	17	12	15	-	0.8	93
GN 187.5-32-48-C-NI	32	48	-	9	21	-	-	M12	-	-	9.5	19	3	-	-	-	-	-	-	25	24	-	-	-	17	12	-	20	0.8	83
GN 187.5-32-48-DH-NI	32	48	54	9	-	-	-	-	6.5	-	9.5	19	3	22	-	6	-	-	-	-	-	25	38	-	-	12	-	-	0.8	88
GN 187.5-32-48-E-NI	32	48	-	9	-	-	-	-	-	3	9.5	19	3	-	2	-	-	-	-	-	-	-	-	20	-	12	-	-	0.8	46
GN 187.5-32-60-A-NI	32	60	-	9	21	16	-	-	-	-	9.5	19	3	-	-	-	26	24	-	-	-	-	-	-	17	12	-	-	0.8	104
GN 187.5-32-60-B-NI	32	60	-	9	21	16	M10	-	-	-	9.5	19	3	-	-	-	26	-	49.5	-	-	-	-	-	17	12	15	-	0.8	94
GN 187.5-32-60-C-NI	32	60	-	9	21	-	-	M12	-	-	9.5	19	3	-	-	-	-	-	-	25	24	-	-	-	17	12	-	20	0.8	83
GN 187.5-32-60-DH-NI	32	60	54	9	-	-	-	-	6.5	-	9.5	19	3	22	-	6	-	-	-	-	-	25	38	-	-	12	-	-	0.8	88
GN 187.5-32-60-E-NI	32	60	-	9	-	-	-	-	-	3	9.5	19	3	-	2	-	-	-	-	-	-	-	-	20	-	12	-	-	0.8	42
GN 187.5-40-48-A-NI	40	48	-	11	27	20	-	-	-	-	12	24	4	-	-	-	31.5	32	-	-	-	-	-	-	22	14	-	-	1	207
GN 187.5-40-48-B-NI	40	48	-	11	27	20	M12	-	-	-	12	24	4	-	-	-	31.5	-	63	-	-	-	-	-	22	14	18	-	1	186
GN 187.5-40-48-C-NI	40	48	-	11	27	-	-	M16	-	-	12	24	4	-	-	-	-	-	-	31	32	-	-	-	22	14	-	26	1	181
GN 187.5-40-48-DH-NI	40	48	70	11	-	-	-	-	8.5	-	12	24	4	30	-	7	-	-	-	-	-	30.5	48	-	-	14	-	-	1	140
GN 187.5-40-48-E-NI	40	48	-	11	-	-	-	-	-	4	12	24	4	-	2.5	-	-	-	-	-	-	-	-	24	-	14	-	-	1	82
GN 187.5-40-60-A-NI	40	60	-	11	27	20	-	-	-	-	12	24	4	-	-	-	31.5	32	-	-	-	-	-	-	22	14	-	-	1	207
GN 187.5-40-60-B-NI	40	60	-	11	27	20	M12	-	-	-	12	24	4	-	-	-	31.5	-	63	-	-	-	-	-	22	14	18	-	1	188
GN 187.5-40-60-C-NI	40	60	-	11	27	-	-	M16	-	-	12	24	4	-	-	-	-	-	-	31	32	-	-	-	22	14	-	26	1	181
GN 187.5-40-60-DH-NI	40	60	70	11	-	-	-	-	8.5	-	12	24	4	30	-	7	-	-	-	-	-	30.5	48	-	-	14	-	-	1	175
GN 187.5-40-60-E-NI	40	60	-	11	-	-	-	-	-	4	12	24	4	-	2.5	-	-	-	-	-	-	-	-	24	-	14	-	-	1	82
