GN 187.1
Guide pots
Steel / Stainelss Steel, Accessories for serrated locking plates
Description
Specification

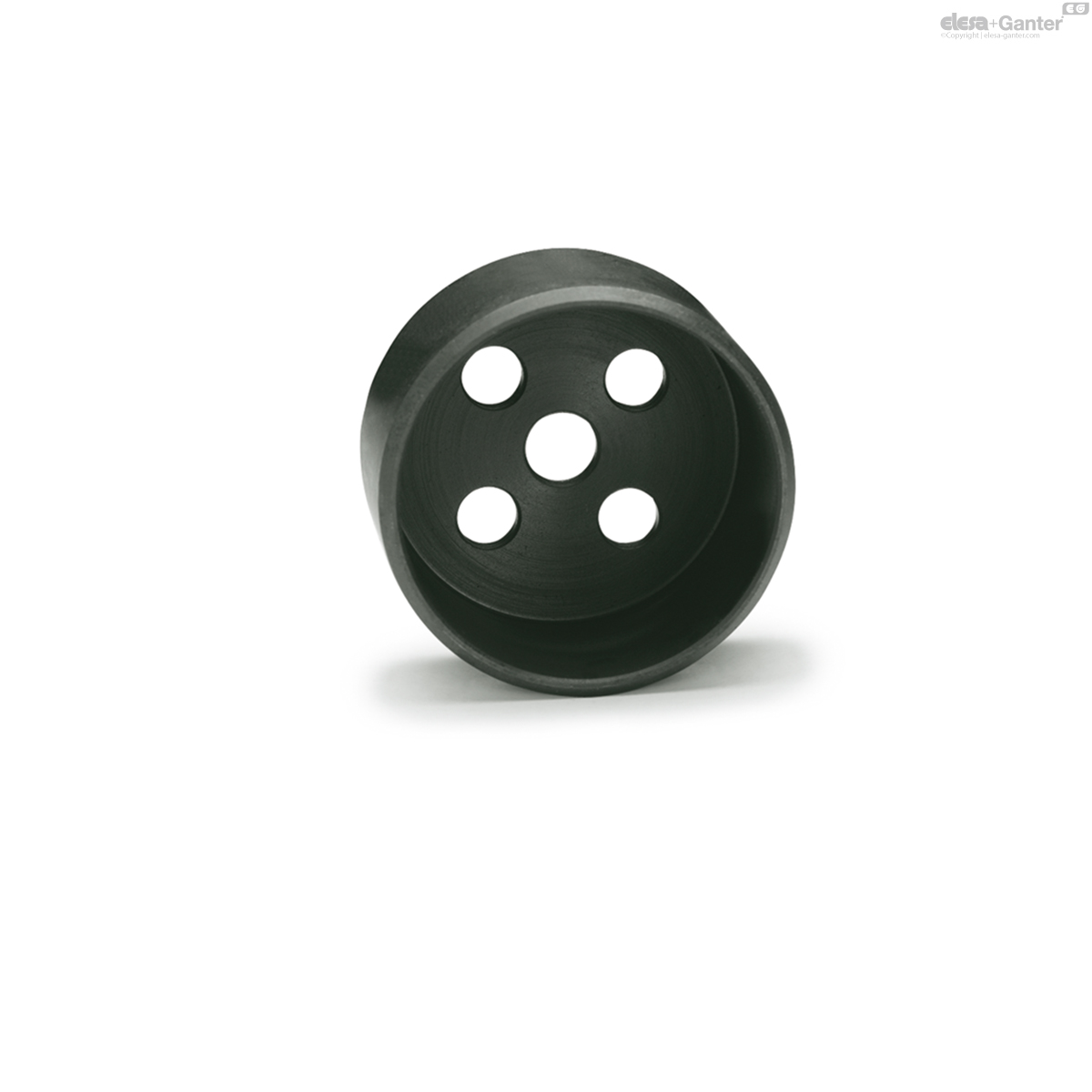

Version in Steel ST
blackened

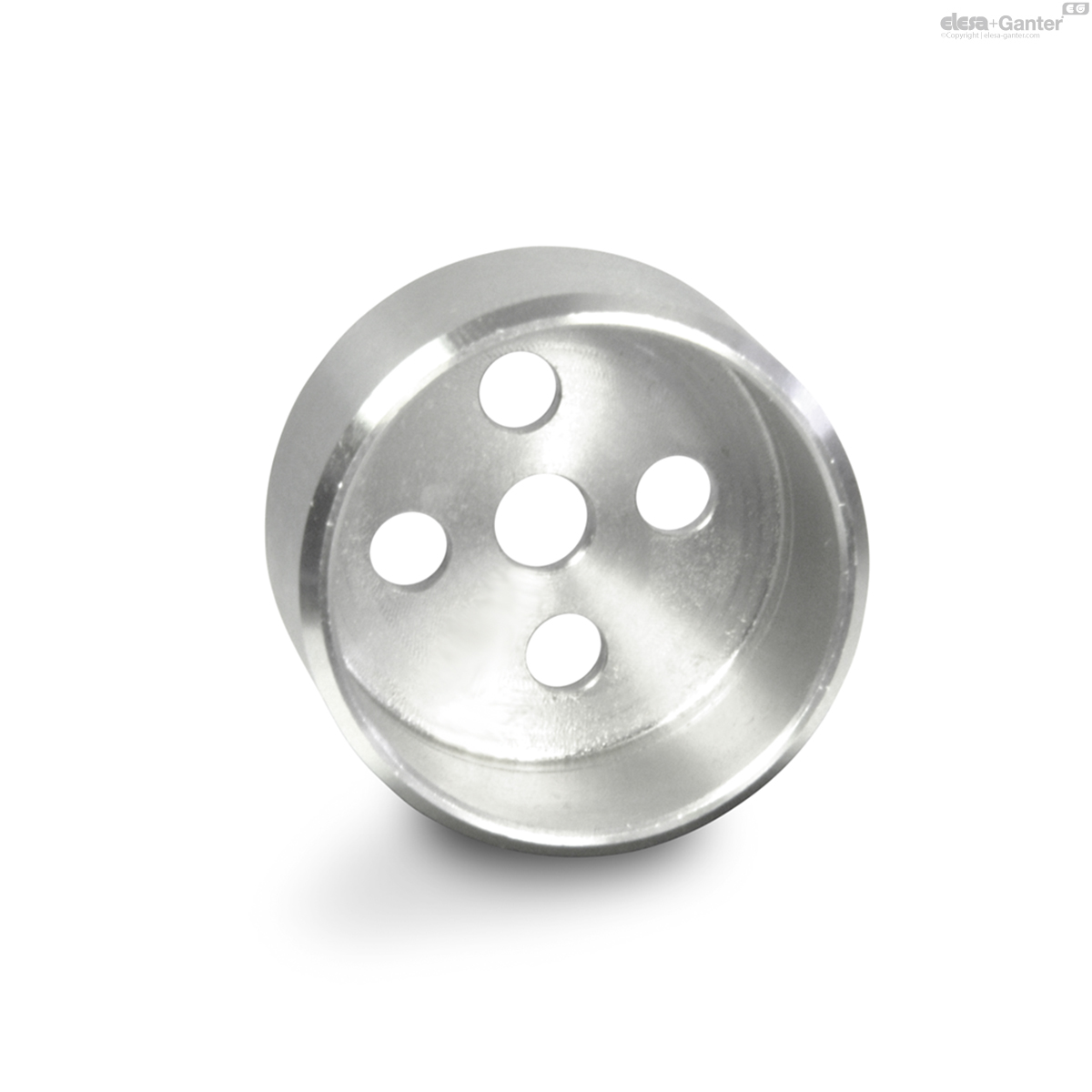

Version in Stainless Steel AISI 303 NI
Information
Serrated locking plates GN 187.4
GN 187.1
| d1 +0.2/+0.3 | d2 -0.5 | h | t | For serrated locking plates GN 187.4 - d1 |
 |
||
|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||
| GN 187.1-22-ST | 22 | 26 | 14.5 | 12.5 | 22 | 20 |
|
| GN 187.1-27-ST | 27 | 31 | 16.5 | 14.5 | 27 | 28 |
|
| GN 187.1-32-ST | 32 | 36 | 19.5 | 17.5 | 32 | 39 |
|
| GN 187.1-40-ST | 40 | 44 | 24.5 | 22.5 | 40 | 64 |
|
