GN 185
Stainless Steel-Bezel discs
Description
Specification
Stainless Steel AISI 303 NI
- matt shot-blasted
Plastic disc (Polyamide PA)
white
Information
Stainless Steel-Bezel discs GN 185 are used for shrouding screw joints when a visually nice finish is required.
The purpose of the plastic discs supplied as a standard item on delivery is merely to avoid damage to improved surfaces.
Technical information
- Stainless Steel characteristicsÂ
- Plastic characteristicsÂ

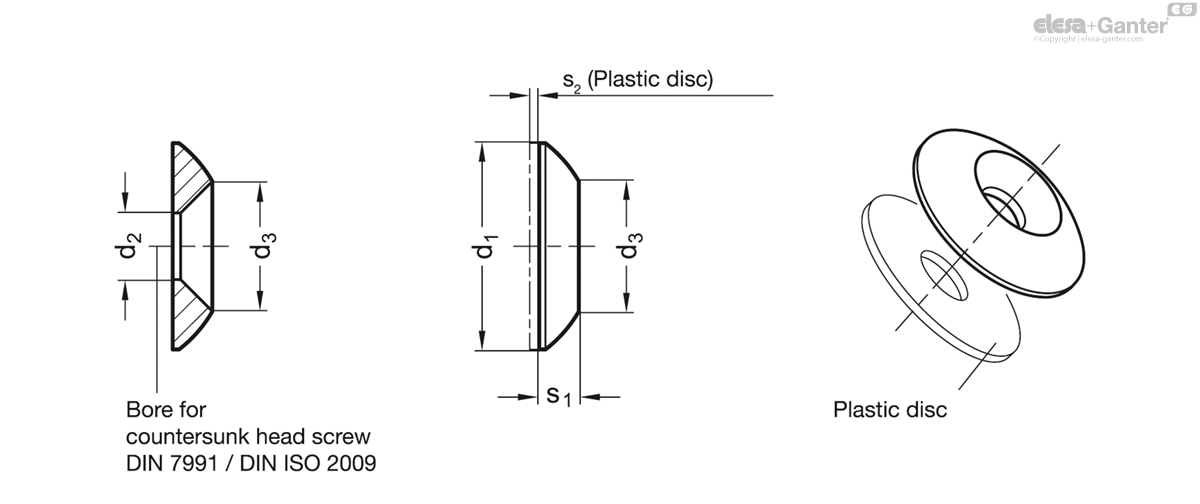

GN 185
| d1 | d2 | d3 | s1 | s2 | For countersunk screws DIN 7991 DIN ISO 2009 |
 |
||
|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||
| GN 185-18-NI | 18 | 4.3 | 8.5 | 3 | 0.8 | M 4 | 4 |
|
| GN 185-20-NI | 20 | 5.3 | 10.5 | 3.5 | 1 | M 5 | 6 |
|
| GN 185-22-NI | 22 | 6.4 | 12.6 | 4 | 1 | M 6 | 7 |
|
| GN 185-26-NI | 26 | 8.4 | 16.8 | 5 | 1 | M 8 | 11 |
|
