GN 184.5

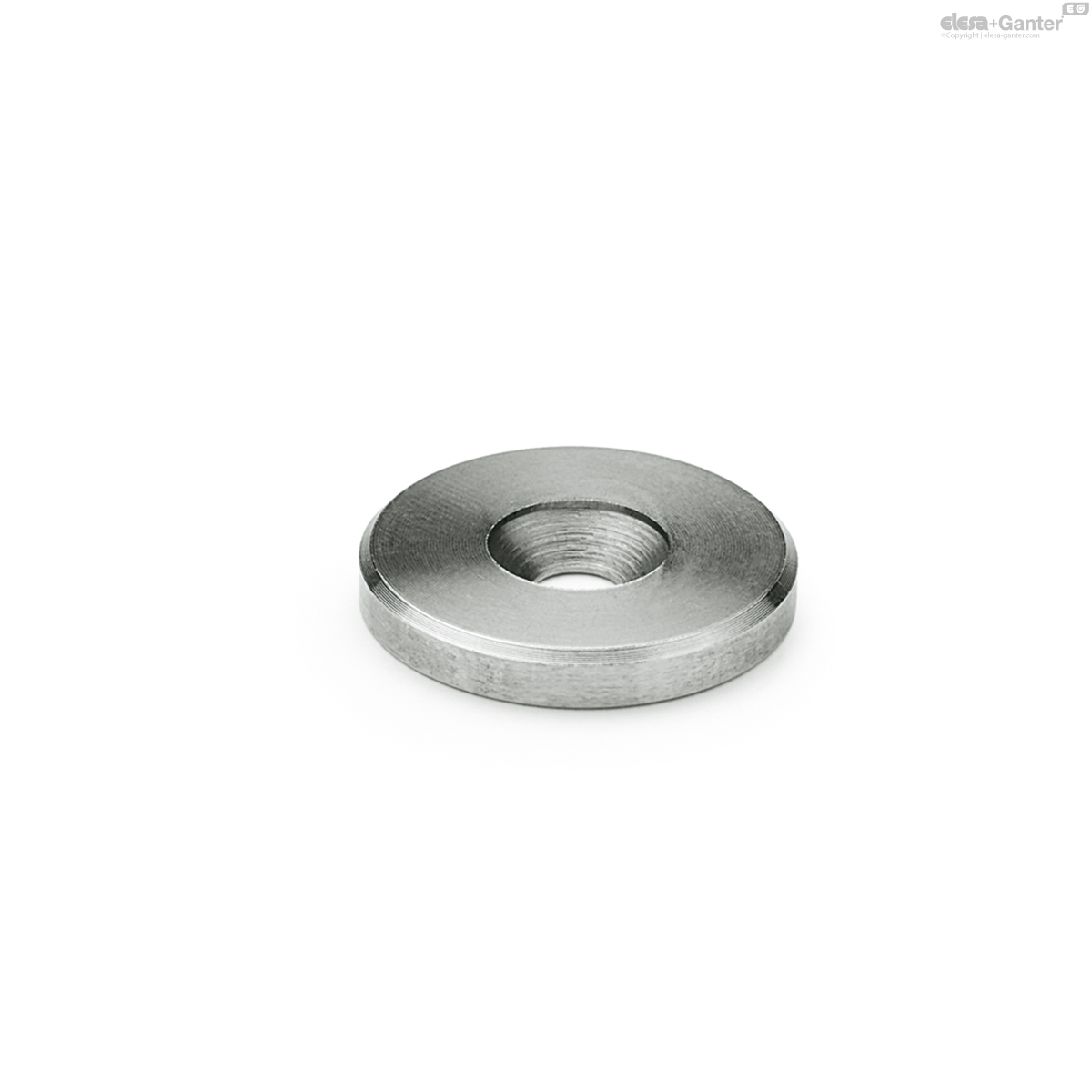

Countersunk Washers
Stainless Steel
Description
Specification
Stainless steel AISI 303
- Turned
- Matte shot-blasted
Information

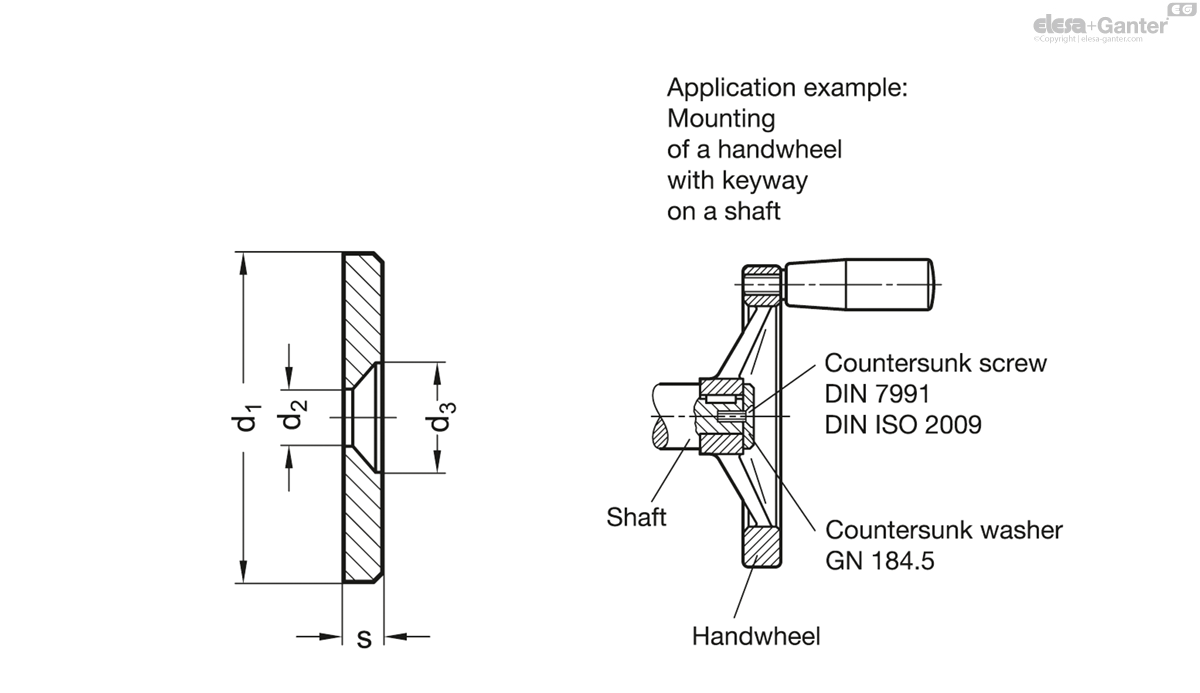

Countersunk washers GN 184.5 are retained to the face of the shaft end with a countersunk head screw DIN ISO 2009 or DIN 7991 forming a clean-look end cap.
A typical application is the retention of handwheels with hub keyed to the shaft.
Technical information
- Stainless Steel CharacteristicsÂ
GN 184.5
| d1 | d2 | d3 | s | For countersunk screws DIN 7991 DIN ISO 2009 |
 |
||
|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||
| GN 184.5-12 | 12 | 3.2 | 6.5 | 2.5 | M 3 | 2 |
|
| GN 184.5-16 | 16 | 4.3 | 8.5 | 3 | M 4 | 4 |
|
| GN 184.5-20 | 20 | 4.3 | 8.5 | 3 | M 4 | 7 |
|
| GN 184.5-22 | 22 | 5.3 | 10.3 | 3.5 | M 5 | 9 |
|
| GN 184.5-25 | 25 | 5.3 | 10.3 | 3.5 | M 5 | 12 |
|
| GN 184.5-28 | 28 | 5.3 | 10.3 | 3.5 | M 5 | 15 |
|
| GN 184.5-32 | 32 | 6.4 | 12.3 | 4 | M 6 | 23 |
|
| GN 184.5-36 | 36 | 6.4 | 12.3 | 4 | M 6 | 29 |
|
| GN 184.5-40 | 40 | 6.4 | 12.3 | 5 | M 6 | 46 |
|
| GN 184.5-45 | 45 | 6.4 | 12.3 | 6 | M 6 | 71 |
|
| GN 184.5-52 | 52 | 6.4 | 12.3 | 6 | M 6 | 95 |
|
