GN 184
Countersunk Washers
Steel
Description
Specification
Steel
- Turned

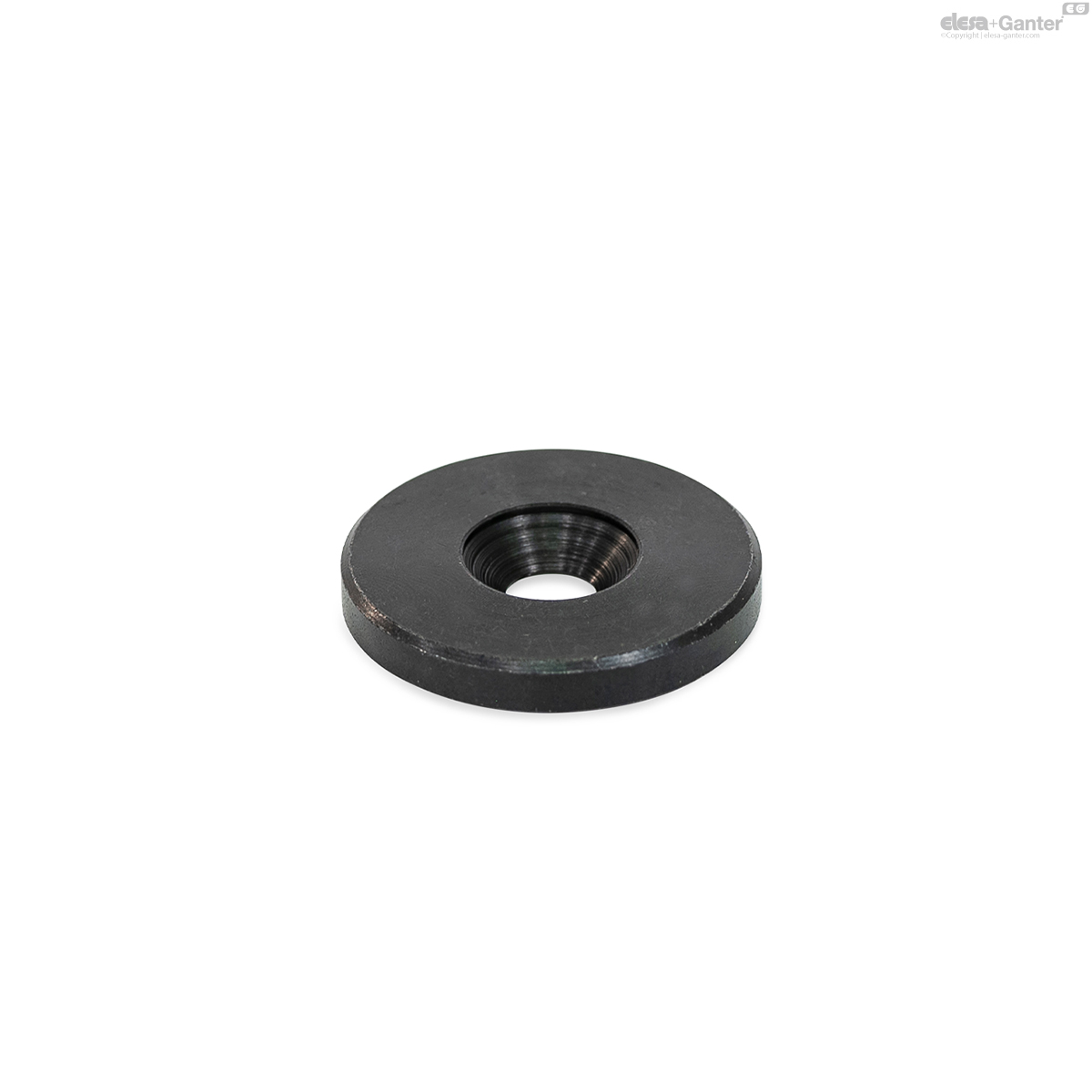

- Blackened

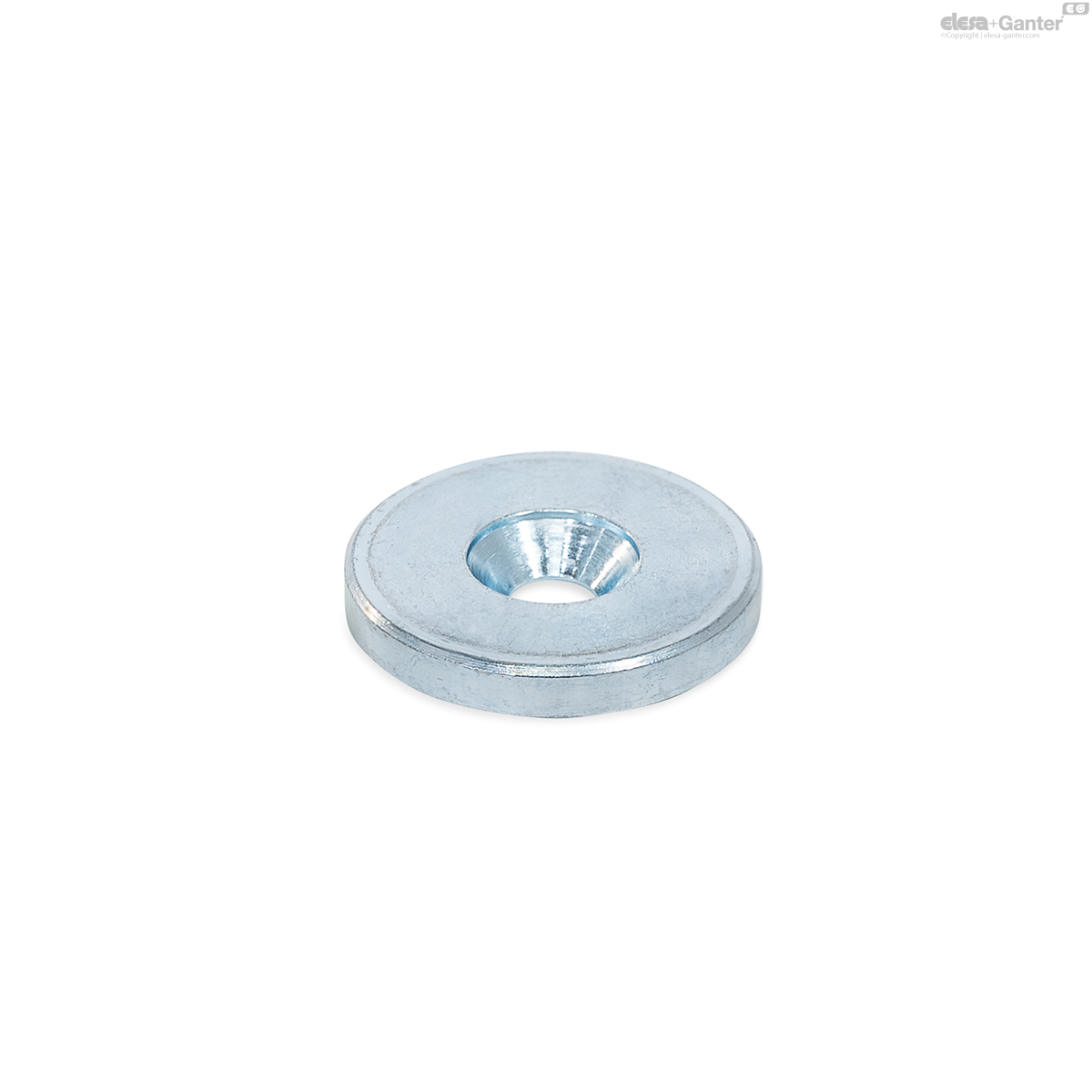

- Zinc plated, blue passivated ZB
Information

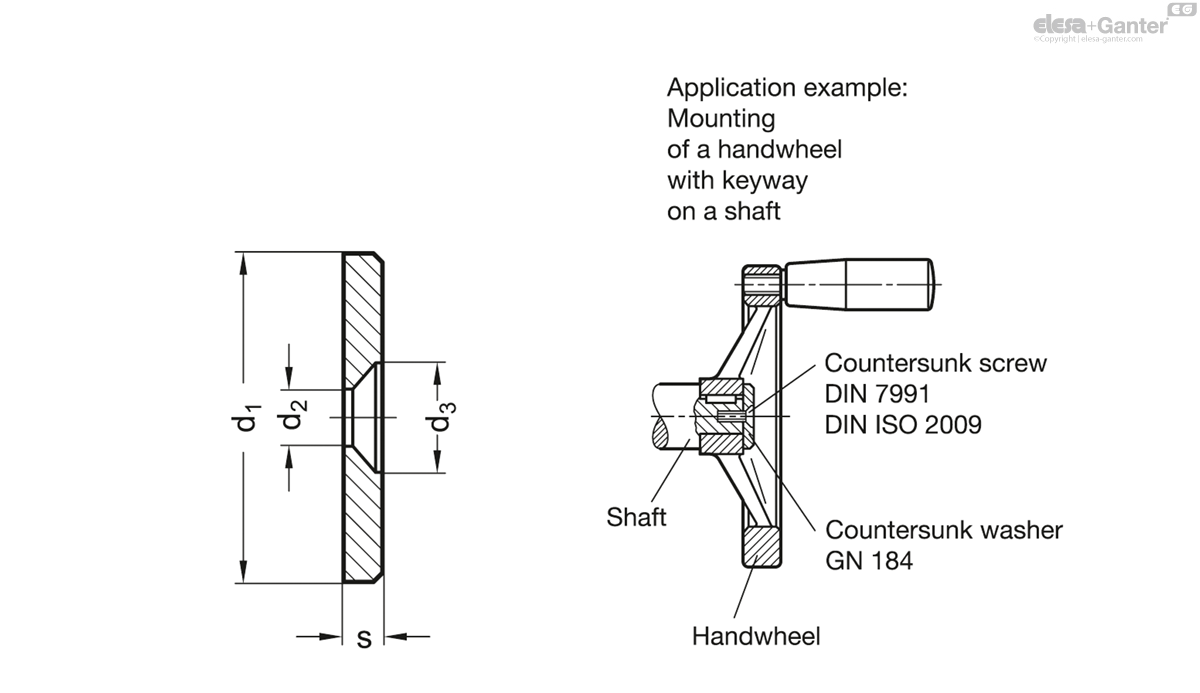

Countersunk washers GN 184 are retained to the face of the shaft end with a countersunk head screw DIN ISO 2009 or DIN 7991 forming a clean-look end cap.
A typical application is the retention of handwheels with hub keyed to the shaft.
GN 184
| Color | d1 | d2 | d3 | s | For countersunk screws DIN 7991 DIN ISO 2009 |
 |
||
|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||
| GN 184-12 | BT - Blackened | 12 | 3.2 | 6.5 | 2.5 | M 3 | 2 |
|
| GN 184-12-ZB | ZB - Zinc plated | 12 | 3.2 | 6.5 | 2.5 | M 3 | 2 |
|
| GN 184-16 | BT - Blackened | 16 | 4.3 | 8.5 | 3 | M 4 | 4 |
|
| GN 184-16-ZB | ZB - Zinc plated | 16 | 4.3 | 8.5 | 3 | M 4 | 4 |
|
| GN 184-20 | BT - Blackened | 20 | 4.3 | 8.5 | 3 | M 4 | 6 |
|
| GN 184-20-ZB | ZB - Zinc plated | 20 | 4.3 | 8.5 | 3 | M 4 | 6 |
|
| GN 184-22 | BT - Blackened | 22 | 5.3 | 10.3 | 3.5 | M 5 | 8 |
|
| GN 184-22-ZB | ZB - Zinc plated | 22 | 5.3 | 10.3 | 3.5 | M 5 | 8 |
|
| GN 184-25 | BT - Blackened | 25 | 5.3 | 10.3 | 3.5 | M 5 | 12 |
|
| GN 184-25-ZB | ZB - Zinc plated | 25 | 5.3 | 10.3 | 3.5 | M 5 | 12 |
|
| GN 184-28 | BT - Blackened | 28 | 5.3 | 10.3 | 3.5 | M 5 | 15 |
|
| GN 184-28-ZB | ZB - Zinc plated | 28 | 5.3 | 10.3 | 3.5 | M 5 | 15 |
|
| GN 184-32 | BT - Blackened | 32 | 6.4 | 12.3 | 4 | M 6 | 22 |
|
| GN 184-32-ZB | ZB - Zinc plated | 32 | 6.4 | 12.3 | 4 | M 6 | 22 |
|
| GN 184-36 | BT - Blackened | 36 | 6.4 | 12.3 | 4 | M 6 | 29 |
|
| GN 184-36-ZB | ZB - Zinc plated | 36 | 6.4 | 12.3 | 4 | M 6 | 29 |
|
| GN 184-40 | BT - Blackened | 40 | 6.4 | 12.3 | 5 | M 6 | 45 |
|
| GN 184-40-ZB | ZB - Zinc plated | 40 | 6.4 | 12.3 | 5 | M 6 | 45 |
|
| GN 184-45 | BT - Blackened | 45 | 6.4 | 12.3 | 6 | M 6 | 71 |
|
| GN 184-45-ZB | ZB - Zinc plated | 45 | 6.4 | 12.3 | 6 | M 6 | 71 |
|
| GN 184-52 | BT - Blackened | 52 | 6.4 | 12.3 | 6 | M 6 | 94 |
|
| GN 184-52-ZB | ZB - Zinc plated | 52 | 6.4 | 12.3 | 6 | M 6 | 94 |
|
