GN 1804.1

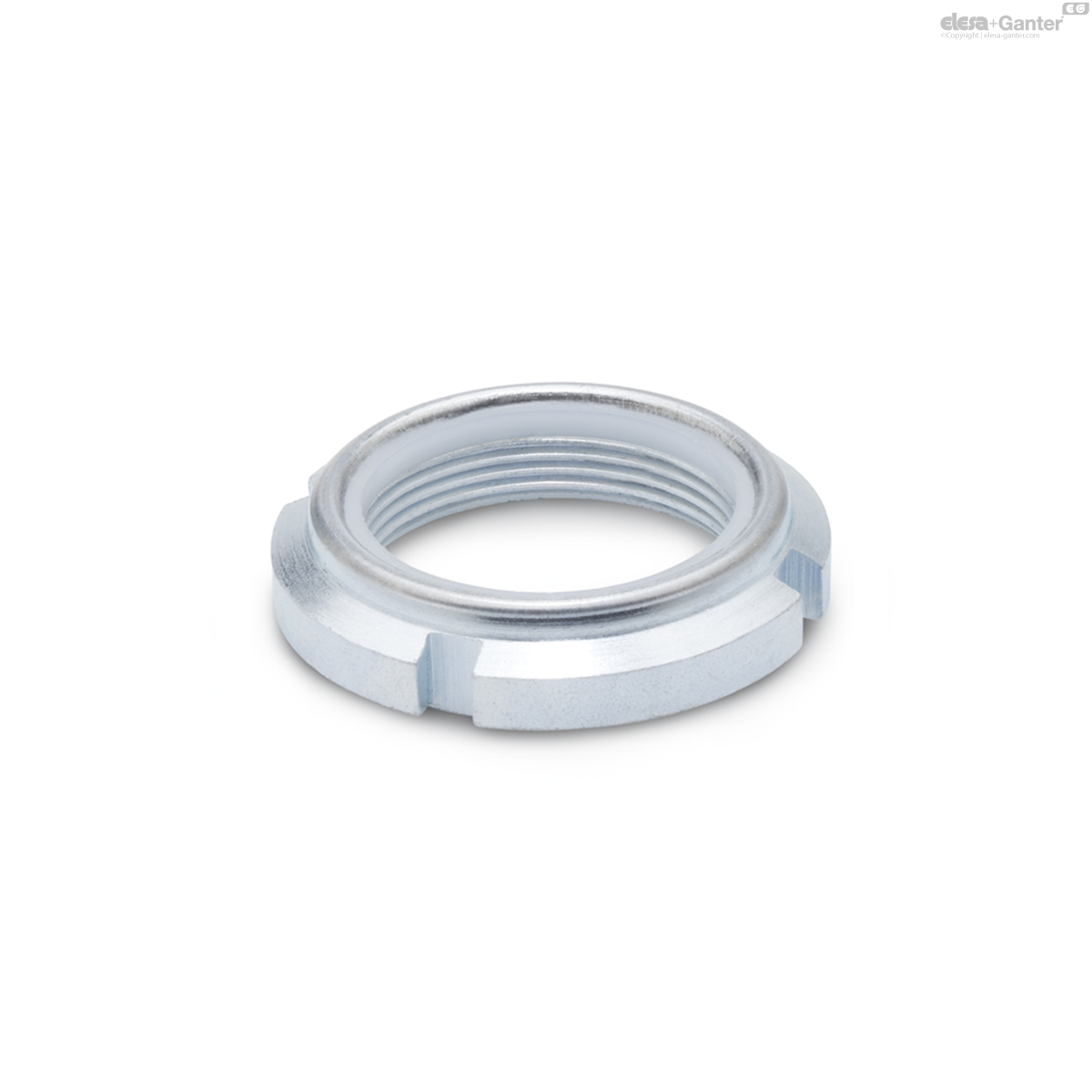

Slotted locknuts
self-locking, with polyamide insert
Description
Specification
Steel
- Tensile strength class 5
- zinc plated, blue passivated
Polyamide (PA) insert
temperature resistant up to 90 °C
Information
Slotted locknuts GN 1804.1 are self-locking owing to their polymaide insert. They can therefore also be used as a setting nut and may be used more than once.
The thread series largely corresponds to roller bearing slotted locknuts according to DIN 981.The additionally available dimensions listed above cover typical thread sizes used in machine and device construction.
Accessory
- C-Spanner DIN 1810 (Code no. see table)-
Technical information
- Metric ISO fine threadÂ
- Plastic characteristicsÂ
- Strength values of screwsÂ
GN 1804.1

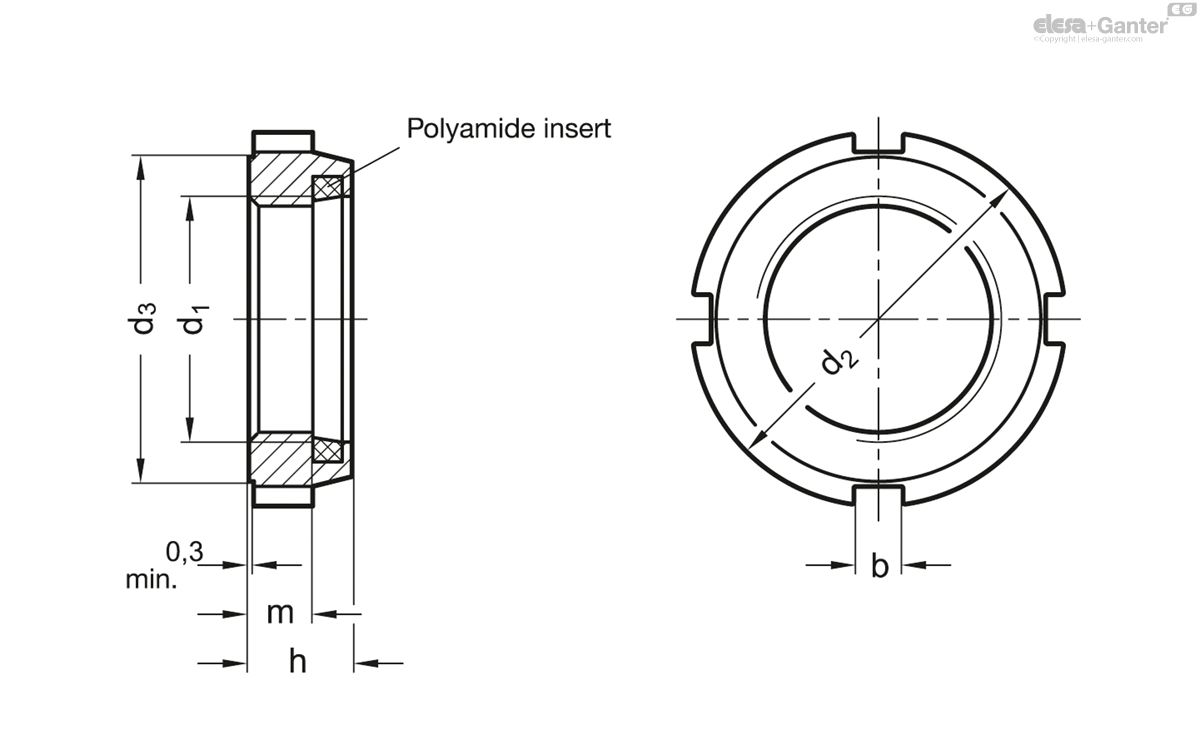

| d1 6H | d2 | d3 | b | h | m | Number of slots | Code no. for C-Spanner |
 |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| GN 1804.1-M10x0,75 | M 10 x 0.75 | 18 | 15 | 3 | 7.5 | 4.5 | 4 | DIN 1810-A16-20 | 6 |
|
| GN 1804.1-M10x1 | M 10 x 1 | 18 | 15 | 3 | 7.6 | 4.4 | 4 | DIN 1810-A16-20 | 7 |
|
| GN 1804.1-M12x1 | M 12 x 1 | 21 | 18 | 3 | 7.5 | 4.5 | 4 | DIN 1810-A16-20 | 10 |
|
| GN 1804.1-M12x1,5 | M 12 x 1.5 | 21 | 18 | 3 | 9.2 | 5.7 | 4 | DIN 1810-A16-20 | 8 |
|
| GN 1804.1-M14x1,5 | M 14 x 1.5 | 24 | 21 | 4 | 10.7 | 6 | 4 | DIN 1810-A25-28 | 28 |
|
| GN 1804.1-M15x1 | M 15 x 1 | 24 | 21 | 4 | 8.5 | 5.5 | 4 | DIN 1810-A25-28 | 13 |
|
| GN 1804.1-M16x1,5 | M 16 x 1.5 | 28 | 24 | 4 | 10.7 | 7.3 | 4 | DIN 1810-A25-28 | 29 |
|
| GN 1804.1-M17x1 | M 17 x 1 | 28 | 24 | 4 | 8.5 | 5.5 | 4 | DIN 1810-A25-28 | 16 |
|
| GN 1804.1-M18x1,5 | M 18 x 1.5 | 28 | 24 | 4 | 10.7 | 7.3 | 4 | DIN 1810-A25-28 | 30 |
|
| GN 1804.1-M20x1 | M 20 x 1 | 32 | 27 | 4 | 9.5 | 6.5 | 4 | DIN 1810-A30-32 | 24 |
|
| GN 1804.1-M20x1,5 | M 20 x 1.5 | 32 | 27 | 4 | 9.6 | 6 | 4 | DIN 1810-A30-32 | 31 |
|
| GN 1804.1-M22x1,5 | M 22 x 1.5 | 38 | 33 | 5 | 12.7 | 7 | 4 | DIN 1810-A40-42 | 44 |
|
| GN 1804.1-M24x1,5 | M 24 x 1.5 | 38 | 33 | 5 | 10.7 | 6.2 | 4 | DIN 1810-A40-42 | 37 |
|
| GN 1804.1-M25x1,5 | M 25 x 1.5 | 38 | 33 | 5 | 10.5 | 6.5 | 4 | DIN 1810-A40-42 | 33 |
|
| GN 1804.1-M28x1,5 | M 28 x 1.5 | 44 | 38 | 5 | 11.2 | 6.9 | 4 | DIN 1810-A45-50 | 52 |
|
| GN 1804.1-M30x1,5 | M 30 x 1.5 | 44 | 38 | 5 | 11 | 6.5 | 4 | DIN 1810-A45-50 | 46 |
|
| GN 1804.1-M32x1,5 | M 32 x 1.5 | 50 | 44 | 5 | 11.2 | 6.6 | 4 | DIN 1810-A45-50 | 68 |
|
| GN 1804.1-M35x1,5 | M 35 x 1.5 | 50 | 44 | 5 | 11 | 7 | 4 | DIN 1810-A45-50 | 58 |
|
| GN 1804.1-M38x1,5 | M 38 x 1.5 | 53 | 47 | 5 | 12.2 | 6.6 | 4 | DIN 1810-A52-55 | 68 |
|
| GN 1804.1-M40x1,5 | M 40 x 1.5 | 56 | 50 | 6 | 12 | 8.2 | 4 | DIN 1810-A58-62 | 78 |
|
| GN 1804.1-M42x1,5 | M 42 x 1.5 | 62 | 55 | 6 | 15.2 | 10.6 | 4 | DIN 1810-A58-62 | 150 |
|
| GN 1804.1-M45x1,5 | M 45 x 1.5 | 62 | 55 | 6 | 12 | 8.2 | 4 | DIN 1810-A58-62 | 74 |
|
| GN 1804.1-M50x1,5 | M 50 x 1.5 | 68 | 61 | 6 | 13 | 8.5 | 4 | DIN 1810-A68-75 | 102 |
|
| GN 1804.1-M55x2 | M 55 x 2 | 75 | 68 | 7 | 13.5 | 8.5 | 6 | DIN 1810-A68-75 | 141 |
|
| GN 1804.1-M60x2 | M 60 x 2 | 80 | 73 | 7 | 13.5 | 8.5 | 6 | DIN 1810-A80-90 | 148 |
|
