GN 167

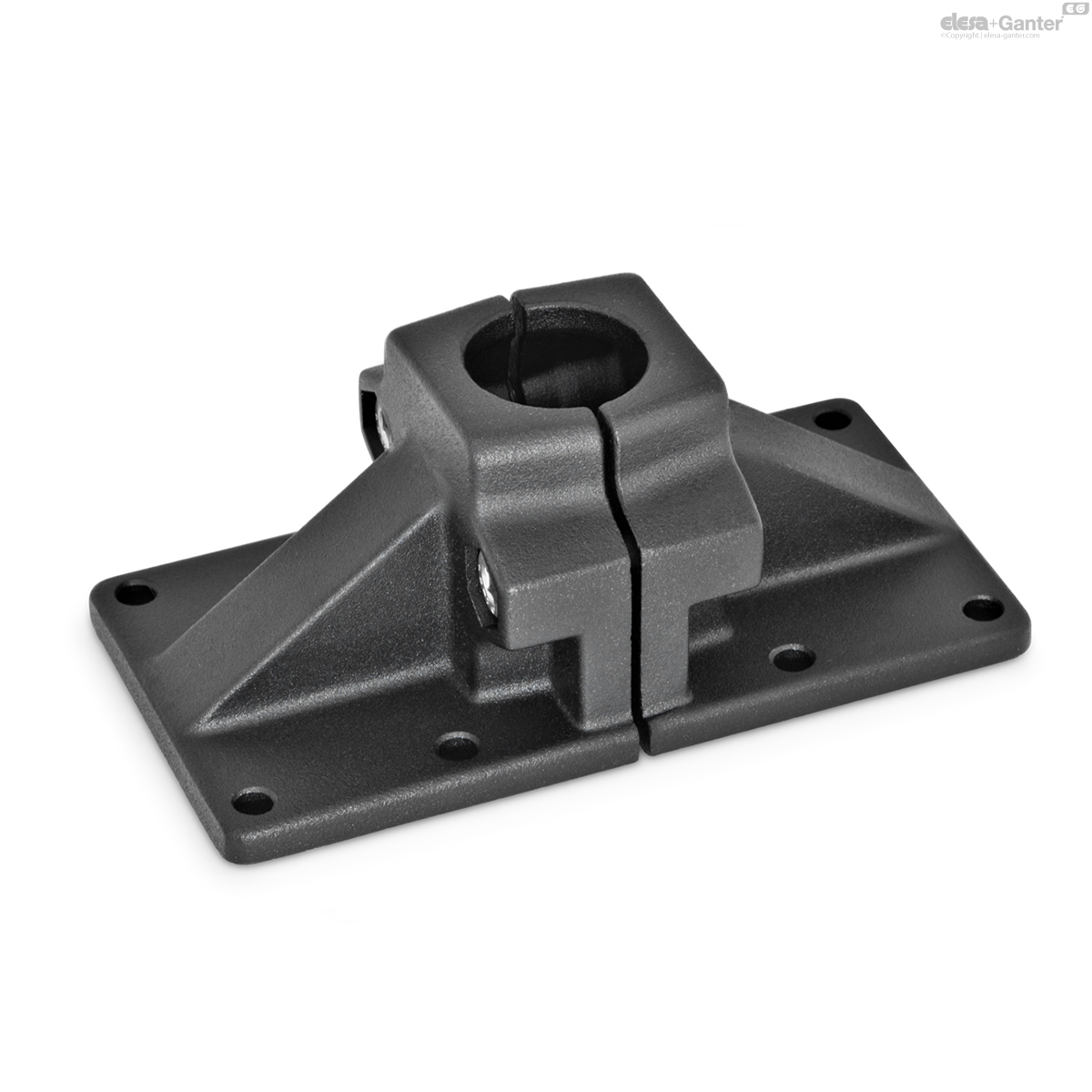

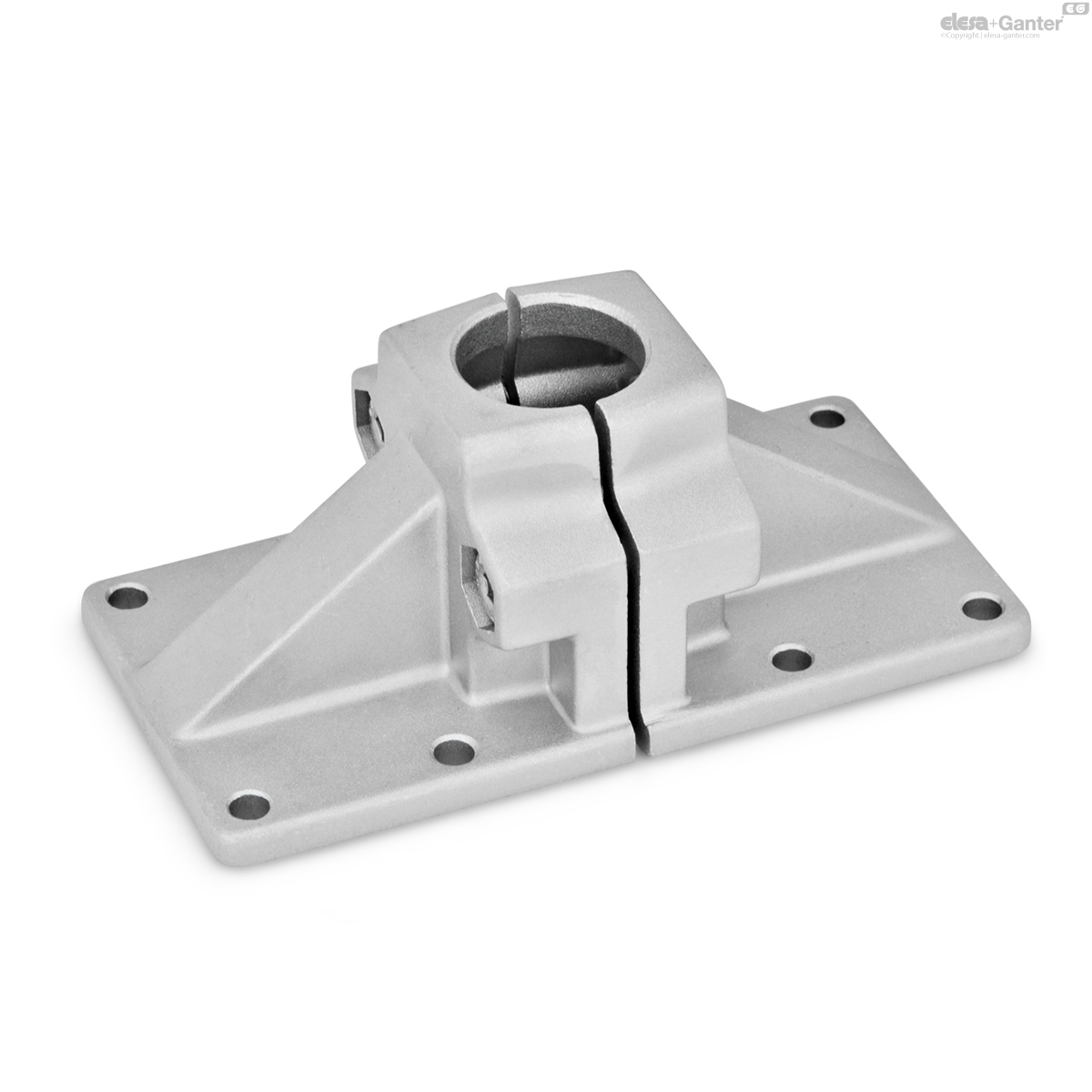

Wide Base Plate Connector Clamps

Aluminum, Split Assembly

Enquire Now

GN 167-B

Wide Base Plate Connector Clamps

Bore

GN 167-S

Wide Base Plate Connector Clamps

Square

Description

Specification

Identification no.

No. 2: With 2 stainless steel socket cap screws DIN 912

Aluminum

Powder coated

Black, RAL 9005, textured finish SW

Plain finish, matte shot-blasted BL

Socket cap screws DIN 912

Stainless steel AISI 304

Hex nuts DIN 985

Stainless steel AISI 304

Self-locking via polyamide ring

Information

The clamping bore of wide base plate connector clamps GN 167 is not machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

The versions with square bores are also suitable for use with profile systems.

At the screw locations z the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.

Accessory

Construction Tubes GN 990

Adjustable Hand Levers GN 911

Technical information

Stainless Steel Characteristics

GN 167-B

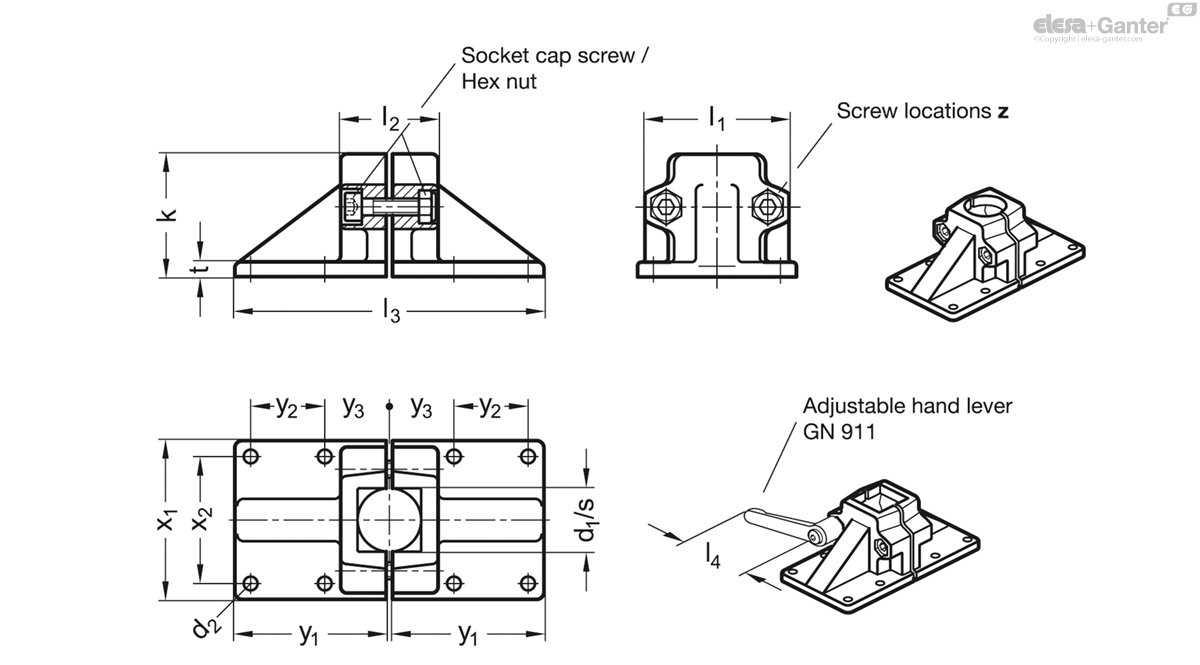

	Color	d₁ Bore	d₂	k Clamping length	l₁	l₂	l₃	t	x₁	x₂	y₁	y₂	y₃	z Screw locations	Accessory Recom. hand lever GN 911 for z l₄
Code																	Actions
GN 167-B20-2-BL	BL - Plain finish	B 20	7	58	69	46	146	7	75	60	72	35	30	M8-35	63 \| 78	394
GN 167-B20-2-SW	SW - RAL 9005	B 20	7	58	69	46	146	7	75	60	72	35	30	M8-35	63 \| 78	394
GN 167-B25-2-BL	BL - Plain finish	B 25	7	58	69	46	146	7	75	60	72	35	30	M8-35	63 \| 78	388
GN 167-B25-2-SW	SW - RAL 9005	B 25	7	58	69	46	146	7	75	60	72	35	30	M8-35	63 \| 78	388
GN 167-B30-2-BL	BL - Plain finish	B 30	7	58	69	46	146	7	75	60	72	35	30	M8-35	63 \| 78	384
GN 167-B30-2-SW	SW - RAL 9005	B 30	7	58	69	46	146	7	75	60	72	35	30	M8-35	63 \| 78	384
GN 167-B40-2-BL	BL - Plain finish	B 40	11	91	98	70	219	14	115	90	108	50	45	M10-60	78 \| 92	1222
GN 167-B40-2-SW	SW - RAL 9005	B 40	11	91	98	70	219	14	115	90	108	50	45	M10-60	78 \| 92	1222
GN 167-B42-2-BL	BL - Plain finish	B 42	11	91	98	70	219	14	115	90	108	50	45	M10-60	78 \| 92	1194
GN 167-B42-2-SW	SW - RAL 9005	B 42	11	91	98	70	219	14	115	90	108	50	45	M10-60	78 \| 92	1194
GN 167-B45-2-BL	BL - Plain finish	B 45	11	91	98	70	219	14	115	90	108	50	45	M10-60	78 \| 92	1182
GN 167-B45-2-SW	SW - RAL 9005	B 45	11	91	98	70	219	14	115	90	108	50	45	M10-60	78 \| 92	1214
GN 167-B48-2-BL	BL - Plain finish	B 48	11	91	98	70	219	14	115	90	108	50	45	M10-60	78 \| 92	1172
GN 167-B48-2-SW	SW - RAL 9005	B 48	11	91	98	70	219	14	115	90	108	50	45	M10-60	78 \| 92	1172
GN 167-B50-2-BL	BL - Plain finish	B 50	11	91	98	70	219	14	115	90	108	50	45	M10-60	78 \| 92	1200
GN 167-B50-2-SW	SW - RAL 9005	B 50	11	91	98	70	219	14	115	90	108	50	45	M10-60	78 \| 92	1154
GN 167-B60-2-BL	BL - Plain finish	B 60	11	100	108.5	82	260	14	125	100	128	52	65.5	M10-70	-	1750
GN 167-B60-2-SW	SW - RAL 9005	B 60	11	100	108.5	82	260	14	125	100	128	52	65.5	M10-70	-	1750
