GN 163

Base Plate Connector Clamps

Aluminum

Enquire Now

Description

Specification

Identification No.

No. 2: With stainless steel socket cap screw DIN 912

Aluminum

Powder coated

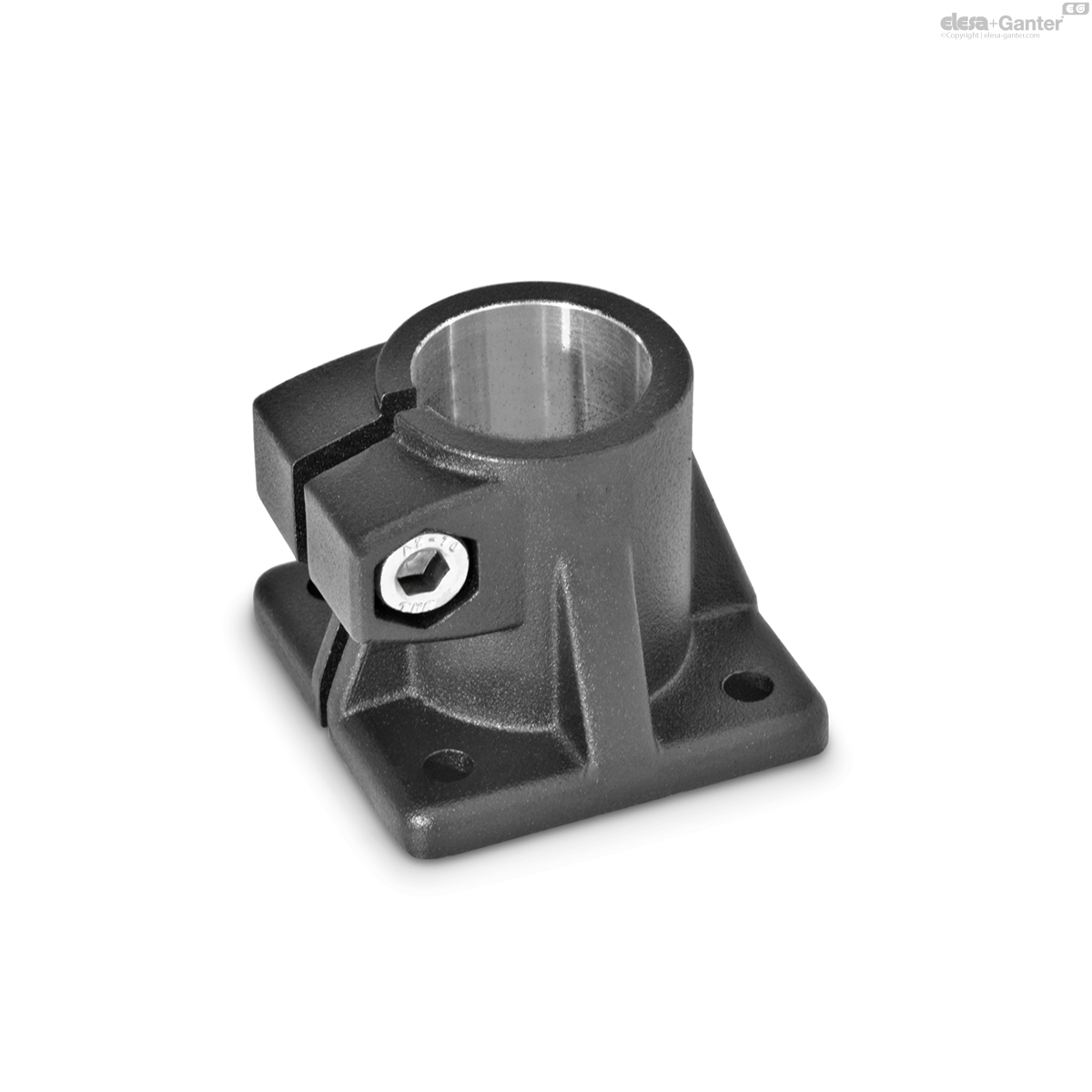

Black, RAL 9005, textured finish SW

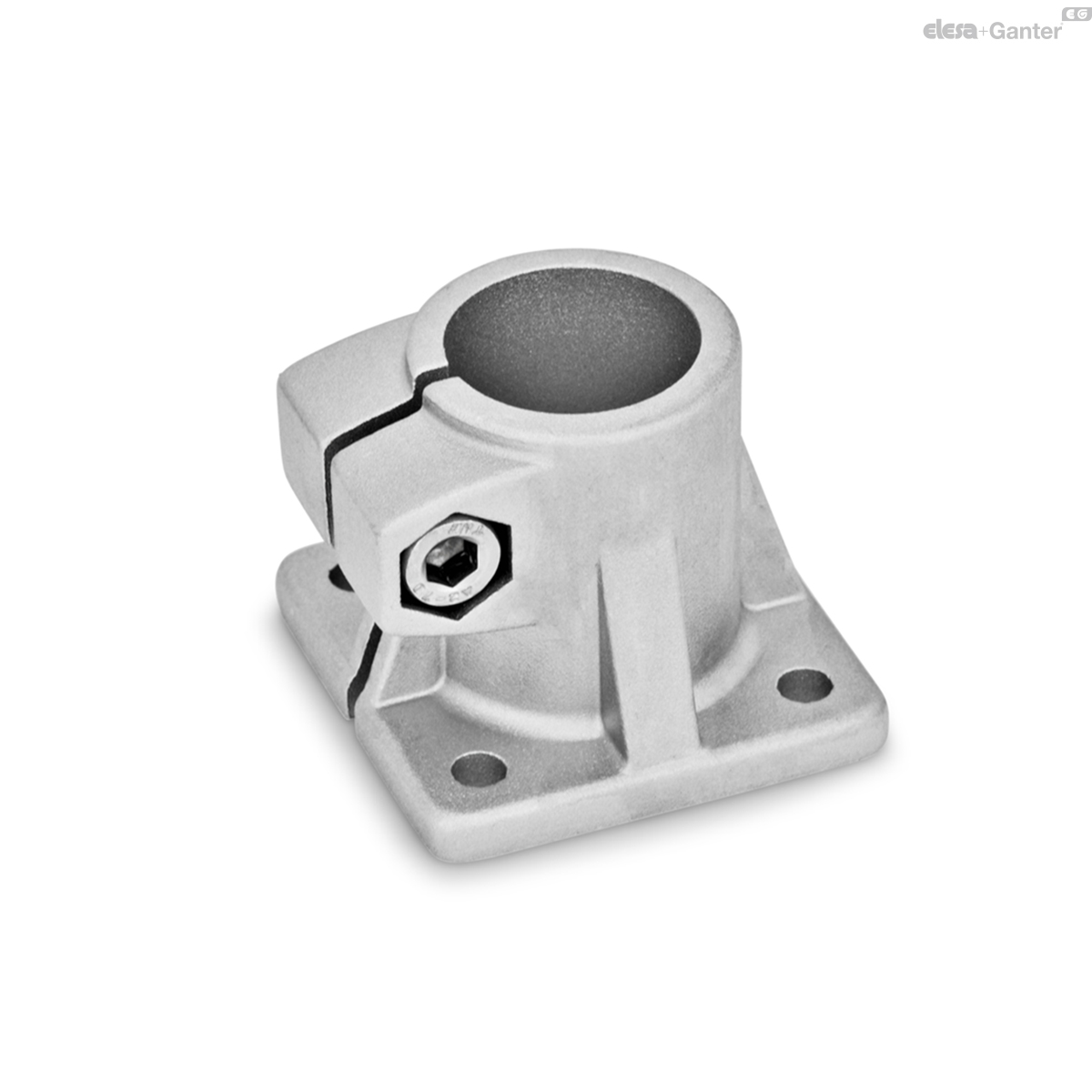

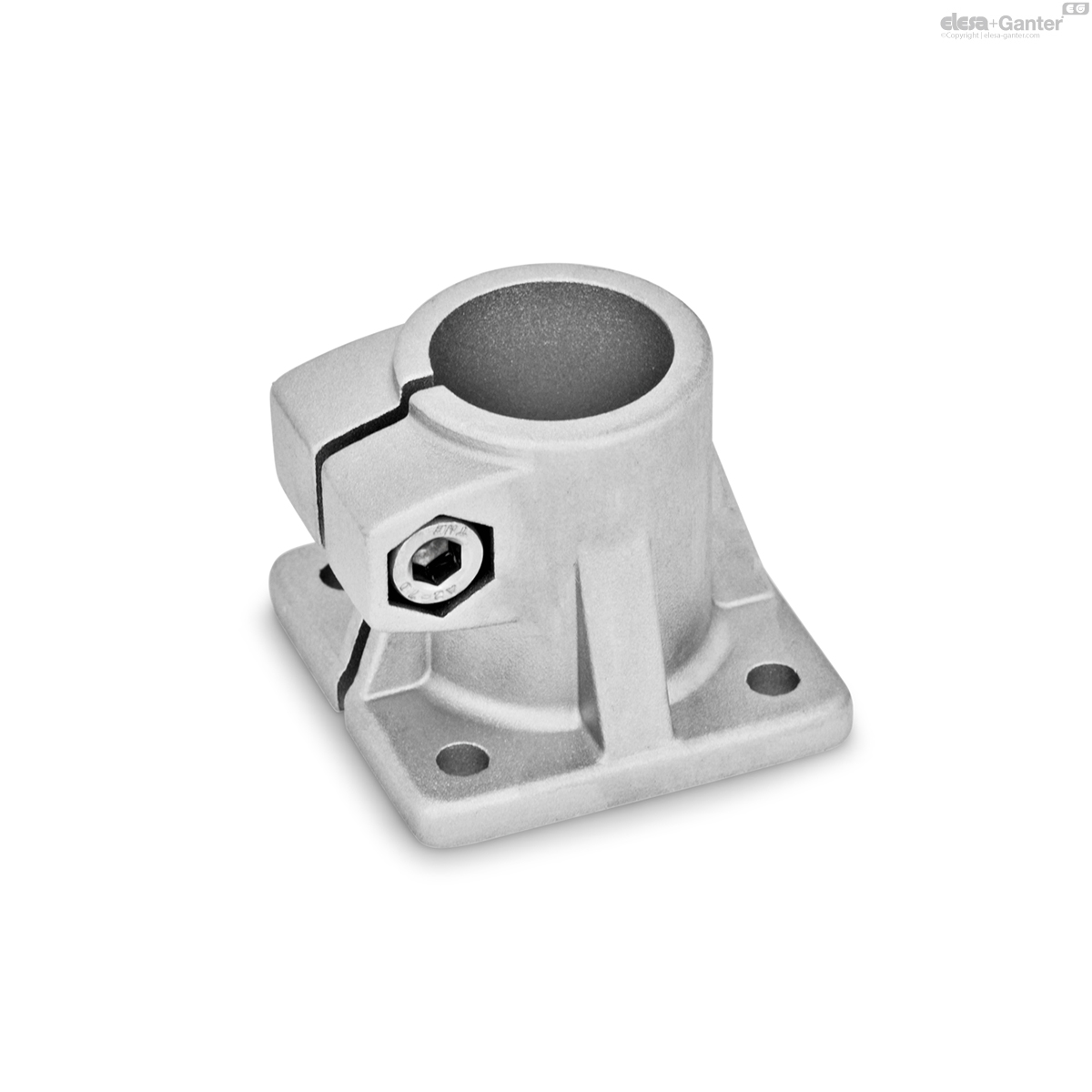

Plain, matte shot-blasted BL

Socket cap screws DIN 912

Stainless Steel AISI 304

Hex nuts DIN 985

Stainless Steel AISI 304

Self-locking via polyamide ring

Information

The clamping bore of base plate connector clamps GN 163 is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

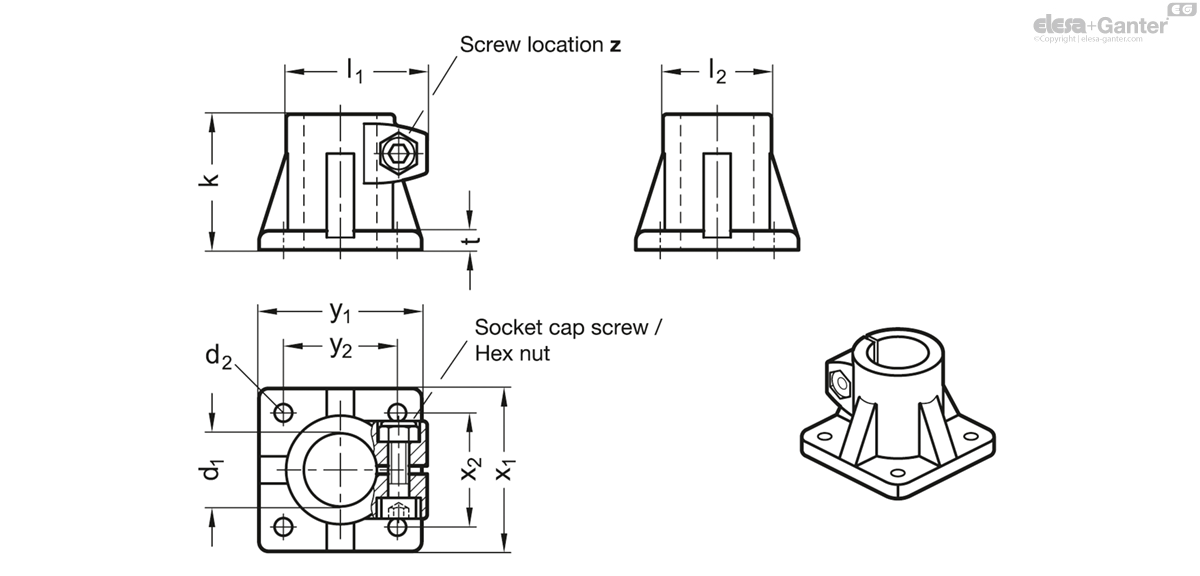

At the screw location z, the socket cap screw reduces the bore cross-section for clamping.

Technical information

Stainless Steel Characteristics

GN 163

	Color	d₁ Bore	k Clamping length	d₂	l₁	l₂	t	x₁	x₂	y₁	y₂	z Screw location
Code														Actions
GN 163-B20-50-2-BL	BL - Plain finish	B 20	50	6.5	52	40	7	60	42	60	42	M8-25	193
GN 163-B20-50-2-SW	SW - RAL 9005	B 20	50	6.5	52	40	7	60	42	60	42	M8-25	193
GN 163-B25-50-2-BL	BL - Plain finish	B 25	50	6.5	52	40	7	60	42	60	42	M8-25	176
GN 163-B25-50-2-SW	SW - RAL 9005	B 25	50	6.5	52	40	7	60	42	60	42	M8-25	176
GN 163-B30-50-2-BL	BL - Plain finish	B 30	50	6.5	52	40	7	60	42	60	42	M8-25	144
GN 163-B30-50-2-SW	SW - RAL 9005	B 30	50	6.5	52	40	7	60	42	60	42	M8-25	144
GN 163-B30-70-2-BL	BL - Plain finish	B 30	70	8.5	68	56	10	90	64	90	64	M10-35	520
GN 163-B30-70-2-SW	SW - RAL 9005	B 30	70	8.5	68	56	10	90	64	90	64	M10-35	520
GN 163-B32-70-2-BL	BL - Plain finish	B 32	70	8.5	68	56	10	90	64	90	64	M10-35	505
GN 163-B32-70-2-SW	SW - RAL 9005	B 32	70	8.5	68	56	10	90	64	90	64	M10-35	505
GN 163-B35-70-2-BL	BL - Plain finish	B 35	70	8.5	68	56	10	90	64	90	64	M10-35	485
GN 163-B35-70-2-SW	SW - RAL 9005	B 35	70	8.5	68	56	10	90	64	90	64	M10-35	485
GN 163-B40-70-2-BL	BL - Plain finish	B 40	70	8.5	68	56	10	90	64	90	64	M10-35	419
GN 163-B40-70-2-SW	SW - RAL 9005	B 40	70	8.5	68	56	10	90	64	90	64	M10-35	419
GN 163-B40-85-2-BL	BL - Plain finish	B 40	85	11	77.5	65	14	105	74	105	74	M10-50	860
GN 163-B40-85-2-SW	SW - RAL 9005	B 40	85	11	77.5	65	14	105	74	105	74	M10-50	860
GN 163-B42-85-2-BL	BL - Plain finish	B 42	85	11	77.5	65	14	105	74	105	74	M10-50	829
GN 163-B42-85-2-SW	SW - RAL 9005	B 42	85	11	77.5	65	14	105	74	105	74	M10-50	829
GN 163-B45-85-2-BL	BL - Plain finish	B 45	85	11	77.5	65	14	105	74	105	74	M10-50	777
GN 163-B45-85-2-SW	SW - RAL 9005	B 45	85	11	77.5	65	14	105	74	105	74	M10-50	777
GN 163-B48-85-2-BL	BL - Plain finish	B 48	85	11	77.5	65	14	105	74	105	74	M10-50	690
GN 163-B48-85-2-SW	SW - RAL 9005	B 48	85	11	77.5	65	14	105	74	105	74	M10-50	690
GN 163-B50-85-2-BL	BL - Plain finish	B 50	85	11	77.5	65	14	105	74	105	74	M10-50	610
GN 163-B50-85-2-SW	SW - RAL 9005	B 50	85	11	77.5	65	14	105	74	105	74	M10-50	610
GN 163-B60-100-2-BL	BL - Plain finish	B 60	100	11	92	80	14	125	89	125	89	M10-50	975
GN 163-B60-100-2-SW	SW - RAL 9005	B 60	100	11	92	80	14	125	89	125	89	M10-50	975
