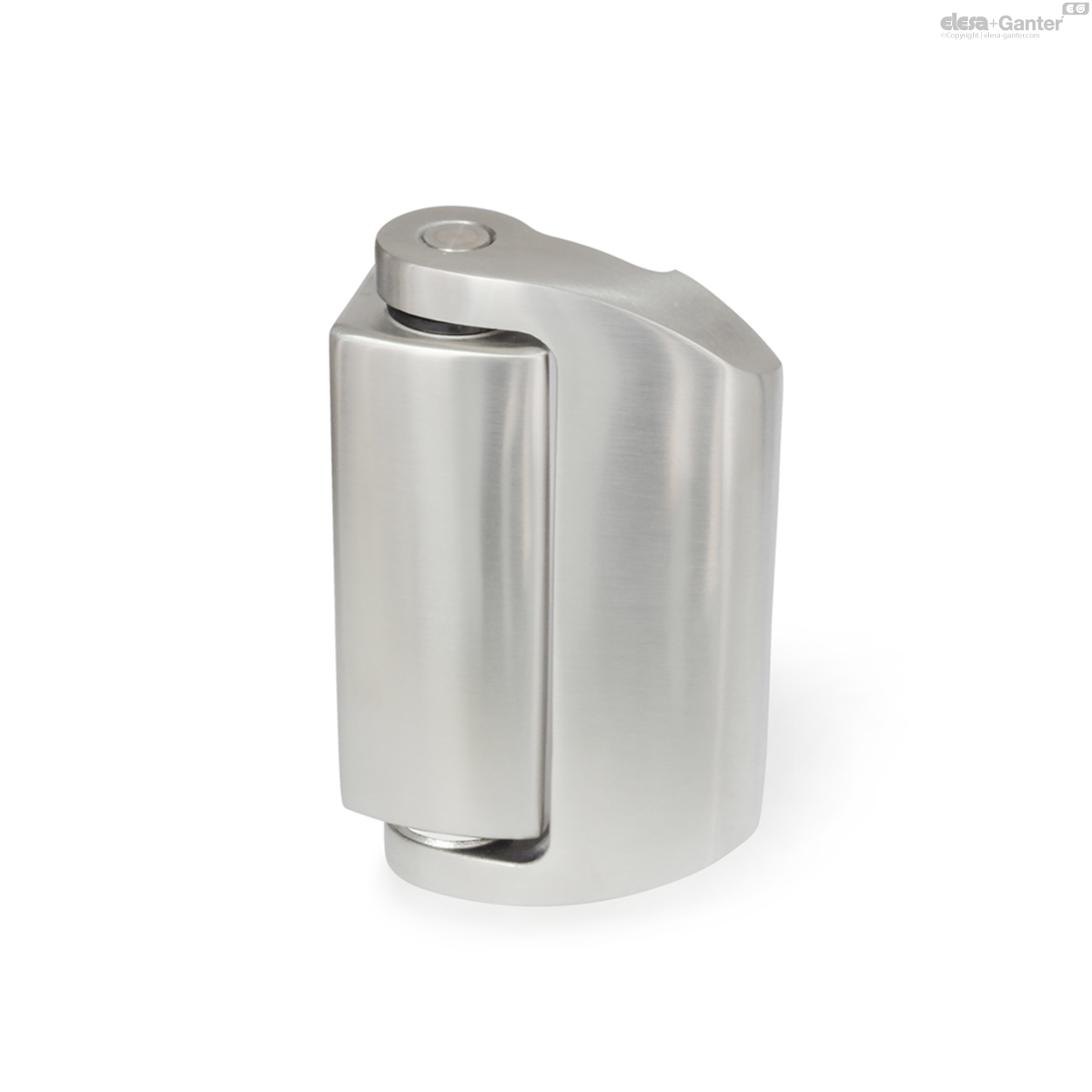

GN 139.6
Hinges without safety switch
Stainless Steel
Description
Specification
Stainless Steel precision casting
- AISI 316L
- polished, Ra < 0.8 µm
Pin
Stainless Steel AISI 316L
Information
With the exception of the connector plug, the hinge without safety switch GN 139.6 do not differ in their external appearance from hinges with safety switch GN 139.5 .With the concealed screw connection at the back, the hinge is also tamper-proof.
The compact design combines safety and attractive appearance.
The design with broad hinge halves is intended for mounting to glass or polycarbonate doors.
Technical information
- Stainless Steel characteristicsÂ
- Load rating information of hingesÂ
Mechanical features
| Mechanical features | ||||
| Maximum load | Information with safety factor | Examples of calculation | Load direction |  |  |  |
| - | F max. | 2000 N | 2000 N | 2000 N |
| - | ||||
| Fixing | from the back, 10 x threads M6, 8 mm deep | |||
| Recommended torque | 10 Nm (Screws M6) | |||

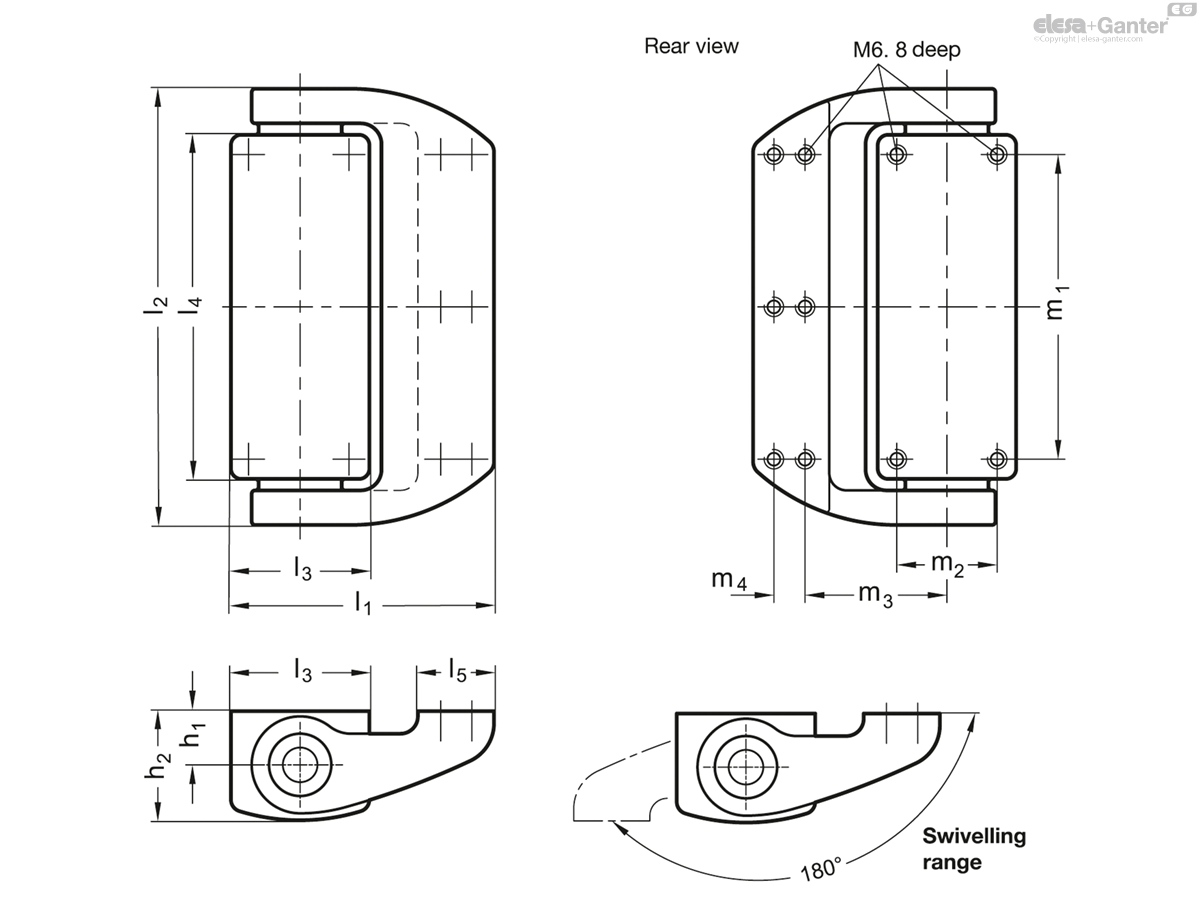

GN 139.6
| l1 | l2 | l3 | l4 | l5 | h1 | h2 | m1 | m2 | m3 | m4 |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| GN 139.6-76-126 | 76 | 126 | 40 | 99.4 | 22 | 15.5 | 31.5 | 88 | 29 | 41 | 9 | 909 |
|
