GN 139.2

Hinges without safety switch

Zinc die casting

Enquire Now

Description

Specification

Zinc die casting

plastic coated

silver metallic

Stainless Steel AISI 303

Information

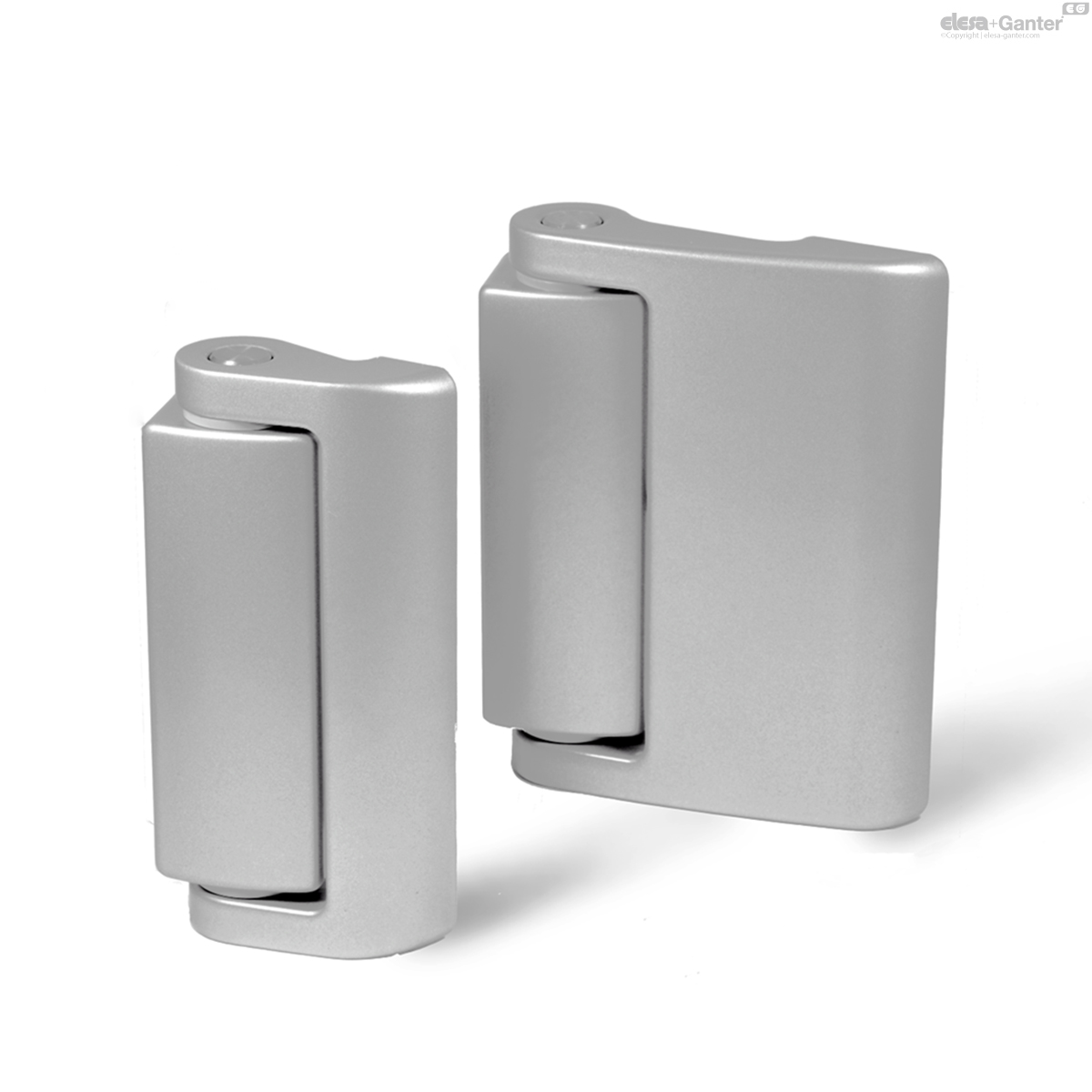

With the exception of the connector plug, hinges without safety switch GN 139.2 do not differ in their external appearance from hinges with safety switch GN 139.1. With the concealed screw connection at the back, the hinge is also tamper-proof.

The compact design combines safety and attractive appearance.

The design with broad hinge halves is intended for mounting to glass or polycarbonate doors.

Technical information

Load rating information of hinges

Mechanical features

Mechanical features
Maximum load \| Information with safety factor \| Examples of calculation	Load direction
-	l₁ = 49	1500 N	1000 N	1000 N
-	l₁ = 79	750 N	500 N	500 N
Fixing	from the back, 7 x threads M5, 6 mm deep
Recommended torque	5 Nm (Screws M5)

GN 139.2

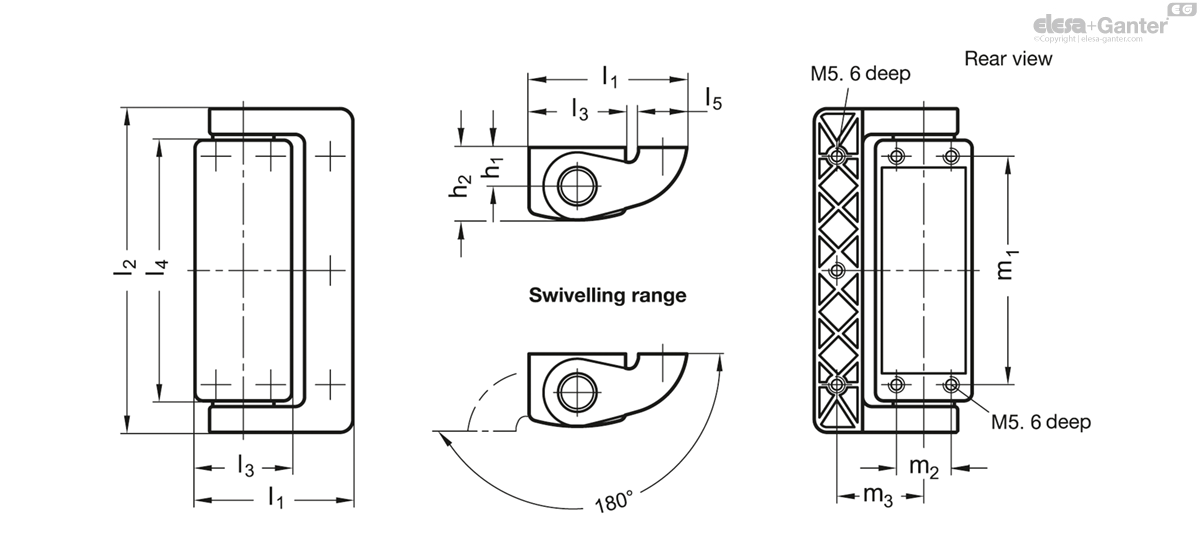

	l₁	l₂	l₃	l₄	l₅	h₁	h₂	m₁	m₂	m₃
Code												Actions
GN 139.2-49-101	49	101	30	81	15	12	22.5	71	17	27	267
GN 139.2-79-101	79	101	30	81	30	12	22.5	71	17	50	366
