Stainless Steel-Sheet metal hinges

pointed

Enquire Now

Description

Specification

Type

Type B: with through-holes

Stainless Steel NI

AISI 304

blank BL

Stainless Steel AISI 304

riveted

Information

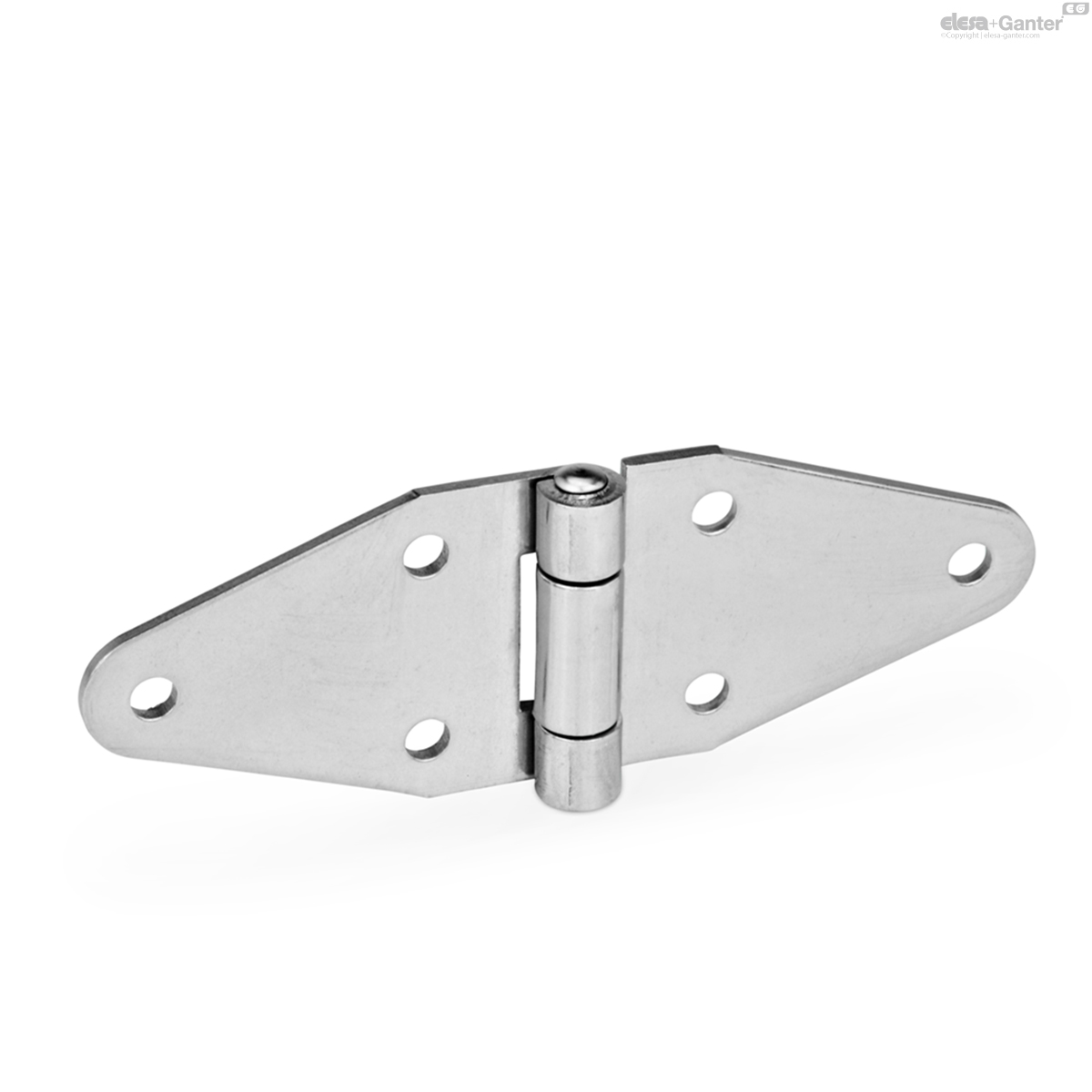

Pointed Stainless Steel-Sheet metal hinges GN 1364 are characterized by their compact and universal dimensioning as well as their attractively shaped design. The materials used also permit applications in aggressive environments.

Type B is fastened via the existing through-holes using screws or rivets.

Technical information

Stainless Steel characteristics

Load rating information of hinges

On request

without bores

with countersunk holes

other surface types

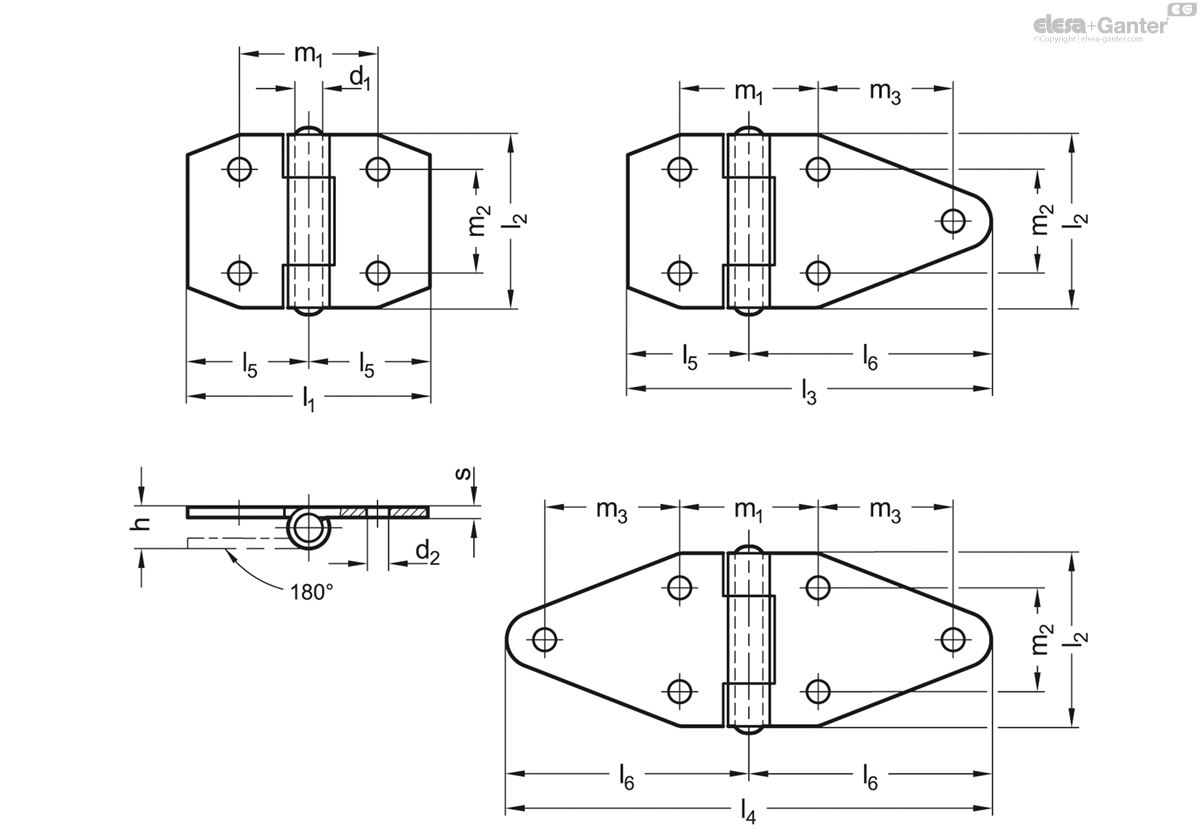

GN 1364

	l₁	l₃	l₄	l₂	d₁	d₂	h	l₅	l₆	m₁	m₂	m₃	s
Code															Actions
GN 1364-NI-70-50-B-BL	70	-	-	50	6	6.5	12	35	-	42	30	-	3	105
GN 1364-NI-105-50-B-BL	-	105	-	50	6	6.5	12	35	70	42	30	39	3	128
GN 1364-NI-140-50-B-BL	-	-	140	50	6	6.5	12	-	70	42	30	39	3	133
