GN 136
Sheet Metal Hinges
Stainless Steel / Steel, Square or Vertically Elongated, Horizontally Elongated

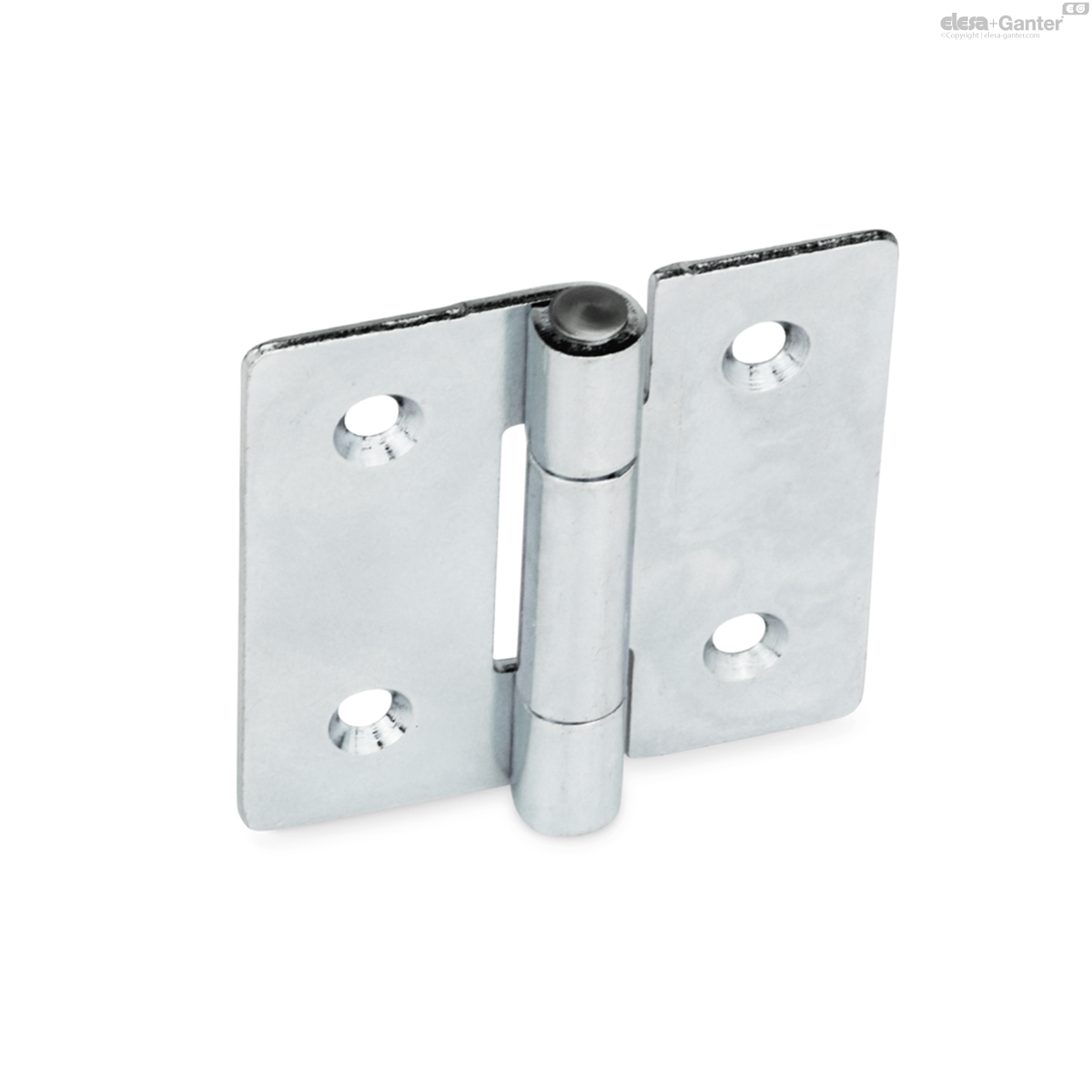

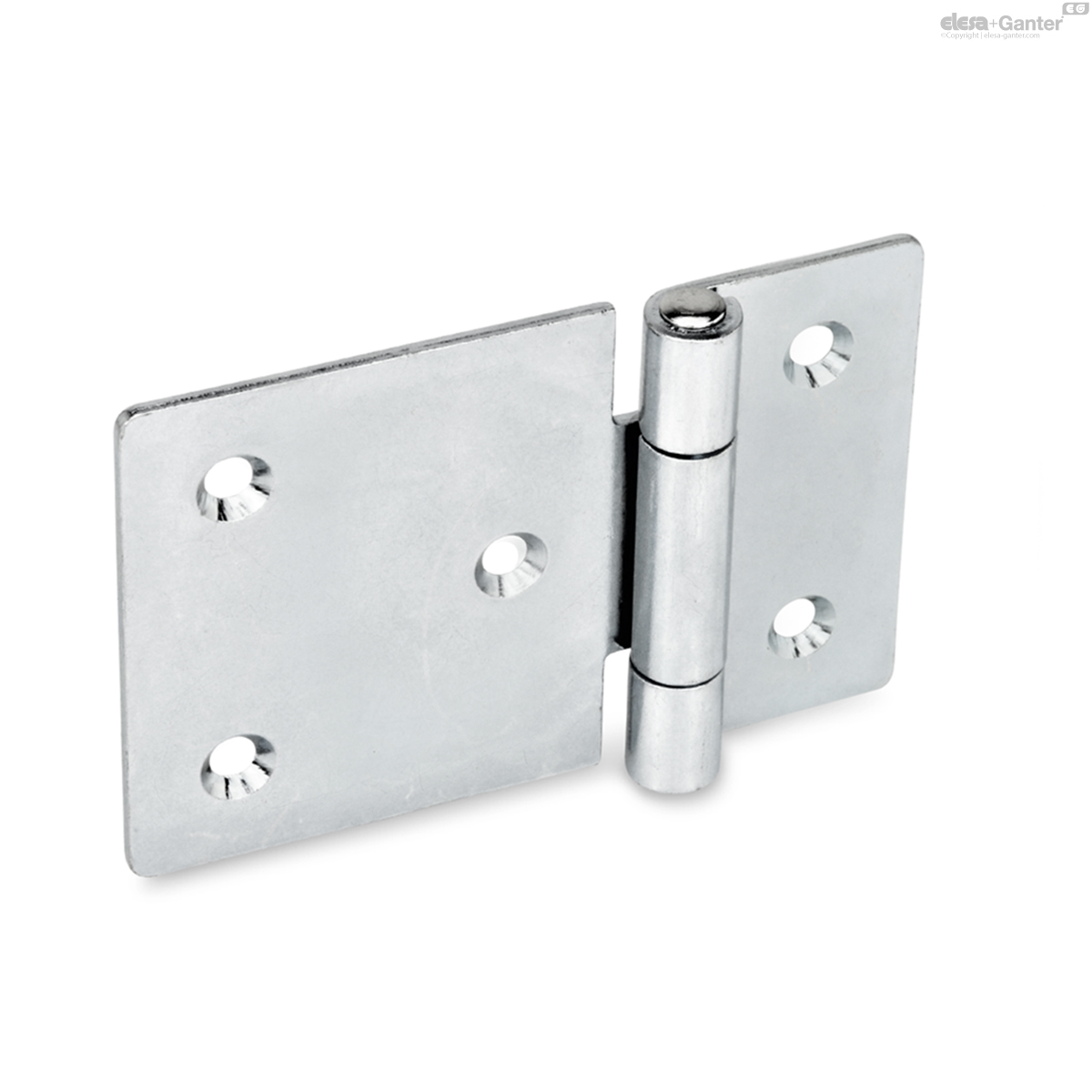

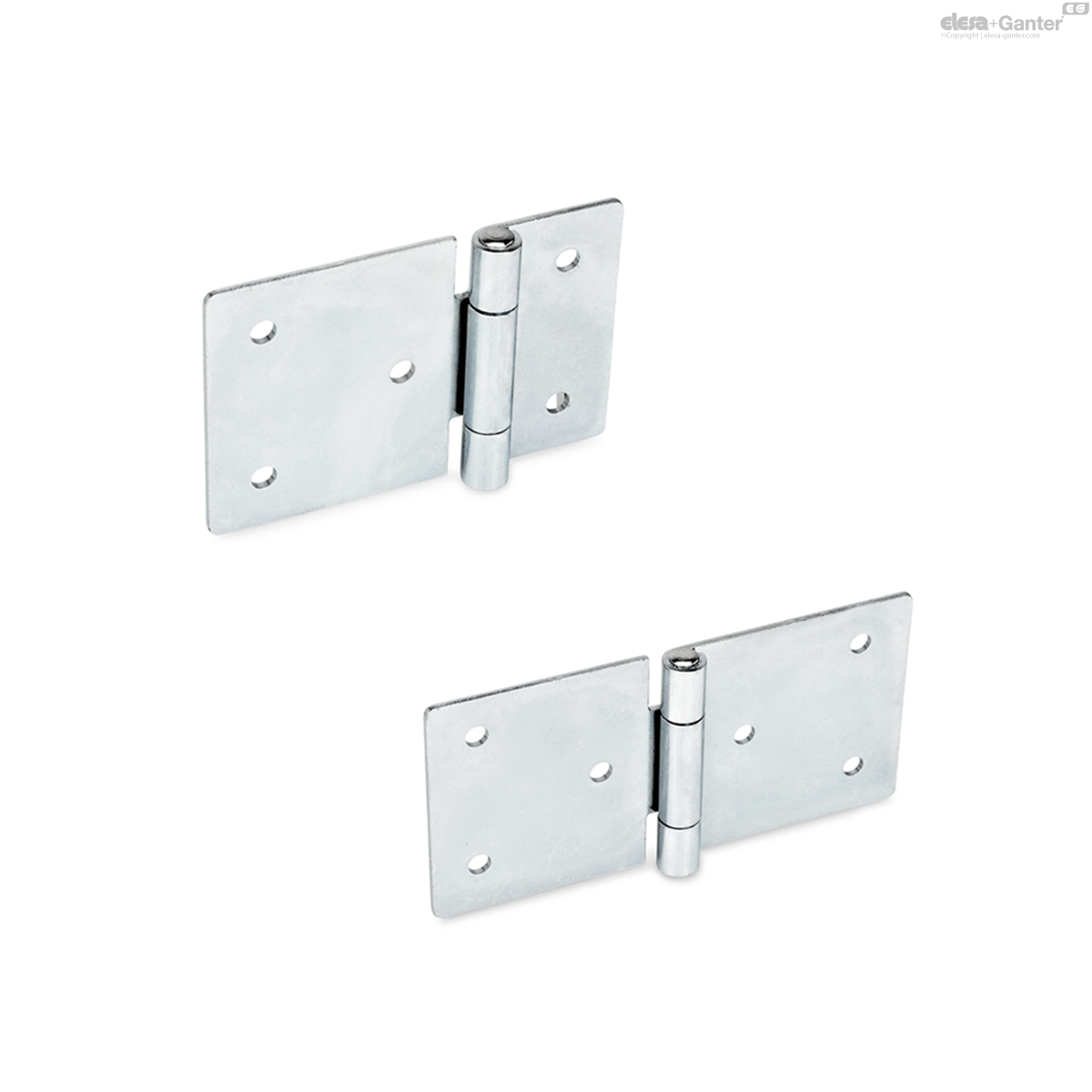

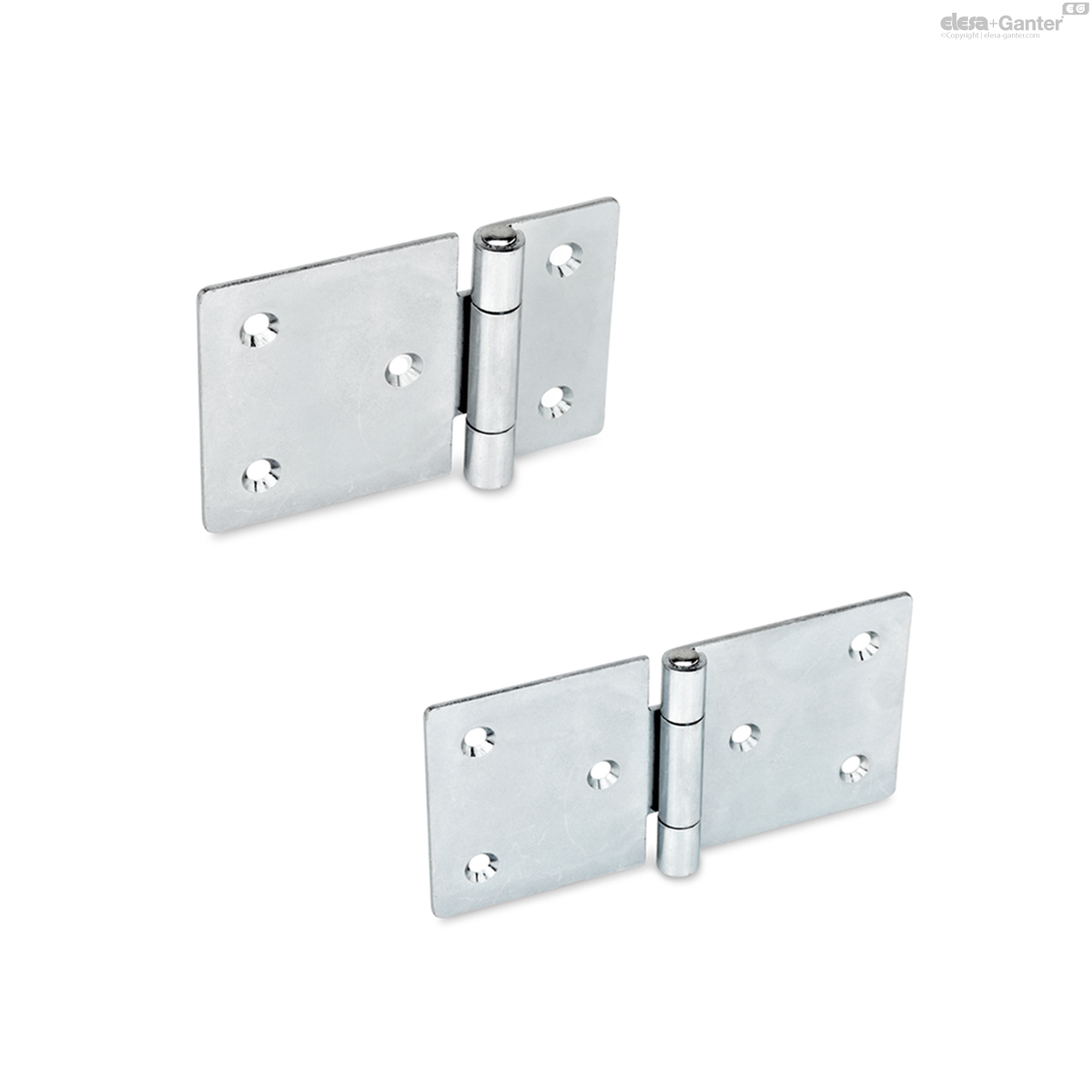

GN 136-ST-HE
Sheet Metal Hinges
Steel, Horizontally Elongated

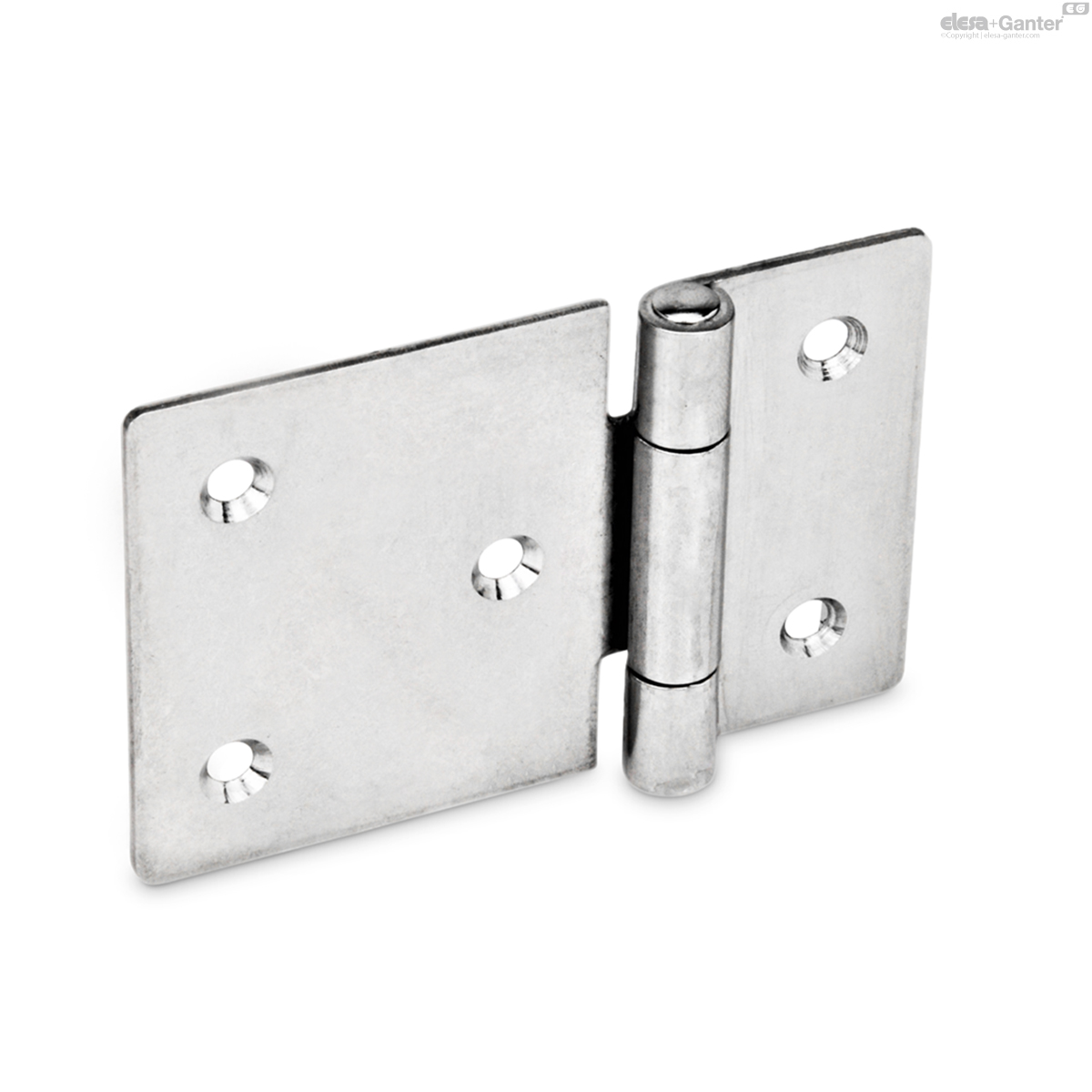

GN 136-NI-HE
Sheet Metal Hinges
Stainless Steel NI, Horizontally Elongated

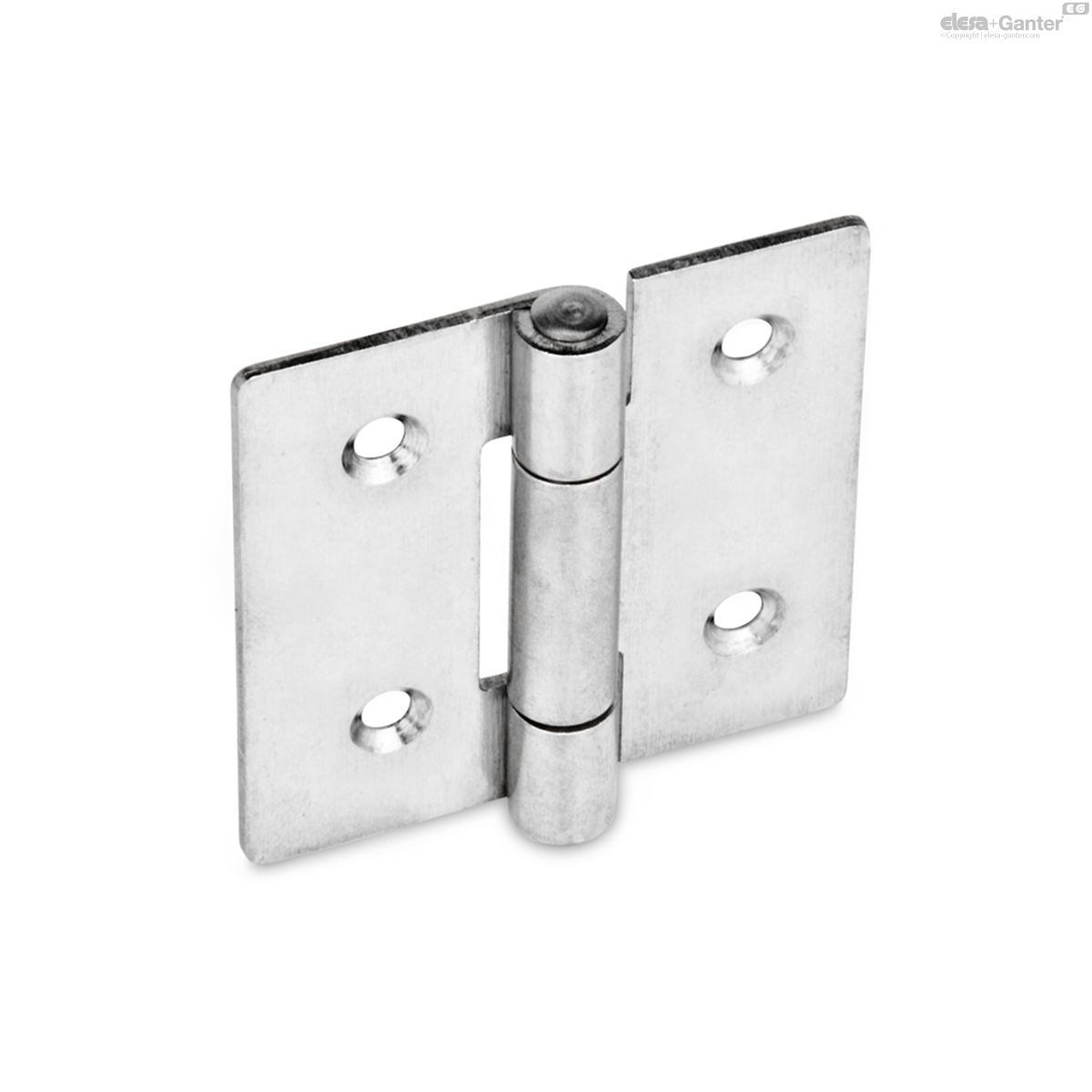

GN 136-A4-HE
Sheet Metal Hinges
Stainless Steel A4, Horizontally Elongated
GN 136-NISW-HE
Sheet Metal Hinges
Stainless Steel NISW, Horizontally Elongated
GN 136-ST-SVE
Sheet Metal Hinges
Steel, Square or Vertically Elongated
GN 136-NI-SVE
Sheet Metal Hinges
Stainless Steel NI, Square or Vertically Elongated
GN 136-A4-SVE
Sheet Metal Hinges
Stainless Steel A4, Square or Vertically Elongated
GN 136-NISW-SVE
Sheet Metal Hinges
Stainless Steel NISW, Square or Vertically Elongated
Description
Specification
Types
- Type A: Without bores (only in stainless steel NI)
- Type B: With through-holes
- Type C: With countersunk holes
Hinge leafs
- Steel ST
- Zinc plated, blue passivated
- Only type B / C
- Stainless steel AISI 304 NI
- Plain finish
- All types
- Powder coated

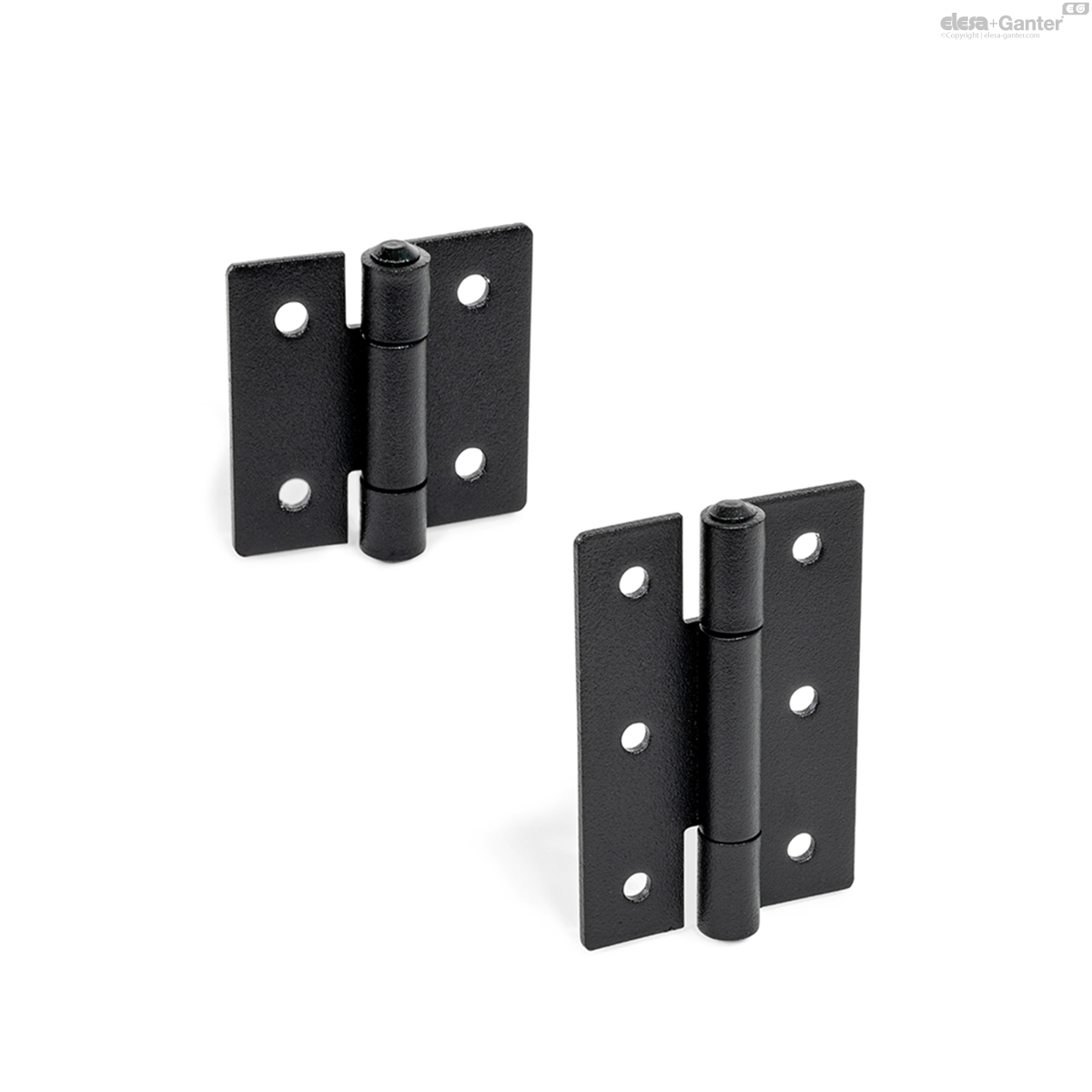

- Black, RAL 9005, textured finish NISW
- Only type B
- Stainless steel AISI 316 A4
- Only type B / C
Pin
Stainless Steel
- AISI 304 for ST / NI / NISW
- AISI 316 for A4
- Riveted
Information
Sheet metal hinges GN 136 are available in many different versions and are suitable for light to medium-duty applications.
Type A can be fixed in place by welding or by using holes made by the customer.
The stainless steel versions are particularly suited for applications in highly aggressive conditions.
Technical information
- List of Hinge Types
- Load Rating Information of Hinges
- Stainless Steel Characteristics
GN 136-ST-HE
| Color | l1 on one side elongated |
l1 on both sides elongated |
l2 | d1 | d2 | d3 | d4 | m1 on one side elongated |
m1 on both sides elongated |
m2 | m4 | m5 | s |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||||
| GN 136-ST-45-30-B | B | 45 | - | 30 | 3 | 3.2 | - | - | 33 | - | 18 | 9 | 24 | 1.5 | 19 |
|
| GN 136-ST-45-30-C | C | 45 | - | 30 | 3 | - | 4 | 6.4 | 33 | - | 18 | 9 | 24 | 1.5 | 19 |
|
| GN 136-ST-60-30-B | B | - | 60 | 30 | 3 | 3.2 | - | - | - | 48 | 18 | 9 | 24 | 1.5 | 24 |
|
| GN 136-ST-60-30-C | C | - | 60 | 30 | 3 | - | 4 | 6.4 | - | 48 | 18 | 9 | 24 | 1.5 | 24 |
|
| GN 136-ST-60-40-B | B | 60 | - | 40 | 4 | 4.2 | - | - | 45 | - | 25 | 12.5 | 32.5 | 2 | 45 |
|
| GN 136-ST-60-40-C | C | 60 | - | 40 | 4 | - | 5 | 8.3 | 45 | - | 25 | 12.5 | 32.5 | 2 | 45 |
|
| GN 136-ST-75-50-B | B | 75 | - | 50 | 6 | 5.2 | - | - | 55 | - | 30 | 15 | 40 | 2 | 79 |
|
| GN 136-ST-75-50-C | C | 75 | - | 50 | 6 | - | 5 | 8.3 | 55 | - | 30 | 15 | 40 | 2 | 79 |
|
| GN 136-ST-80-40-B | B | - | 80 | 40 | 4 | 4.2 | - | - | - | 65 | 25 | 12.5 | 32.5 | 2 | 58 |
|
| GN 136-ST-80-40-C | C | - | 80 | 40 | 4 | - | 5 | 8.3 | - | 65 | 25 | 12.5 | 32.5 | 2 | 58 |
|
| GN 136-ST-90-60-B | B | 90 | - | 60 | 6 | 5.2 | - | - | 66 | - | 36 | 18 | 48 | 2 | 108 |
|
| GN 136-ST-90-60-C | C | 90 | - | 60 | 6 | - | 5 | 8.3 | 66 | - | 36 | 18 | 48 | 2 | 108 |
|
| GN 136-ST-100-50-B | B | - | 100 | 50 | 6 | 5.2 | - | - | - | 80 | 30 | 15 | 40 | 2 | 98 |
|
| GN 136-ST-100-50-C | C | - | 100 | 50 | 6 | - | 5 | 8.3 | - | 80 | 30 | 15 | 40 | 2 | 98 |
|
| GN 136-ST-120-60-B | B | - | 120 | 60 | 6 | 5.2 | - | - | - | 96 | 36 | 18 | 48 | 2 | 136 |
|
| GN 136-ST-120-60-C | C | - | 120 | 60 | 6 | - | 5 | 8.3 | - | 96 | 36 | 18 | 48 | 2 | 136 |
|
