GN 135

Two-Way Connector Clamps

Aluminum, Multi Part Assembly, Unequal Bore Dimensions d₁ / s₁ and d₂ / s₂

Enquire Now

Description

Specification

Identification No.

No. 2: With 4 stainless steel socket cap screws DIN 912

Aluminum

Powder coated

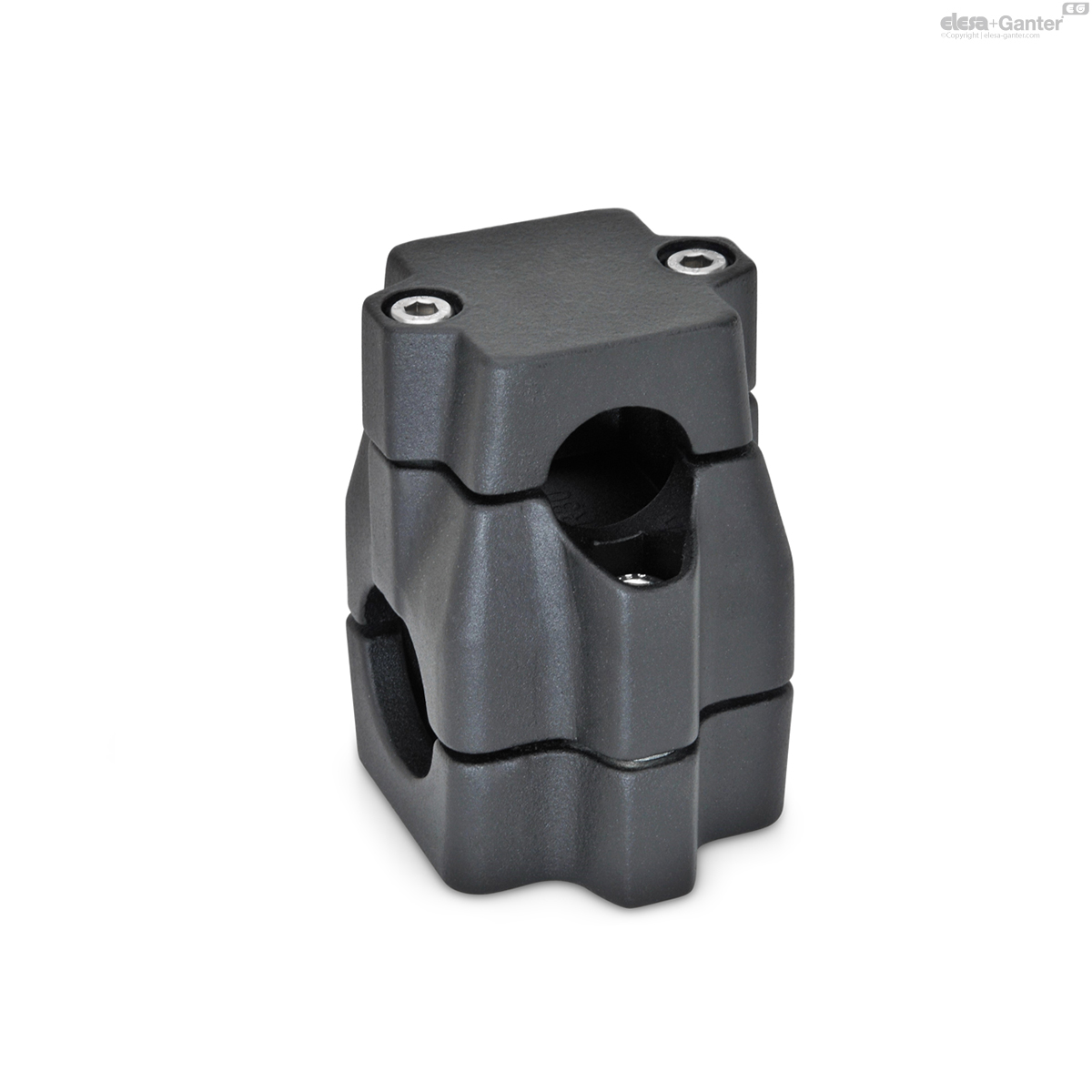

Black, RAL 9005, textured finish SW

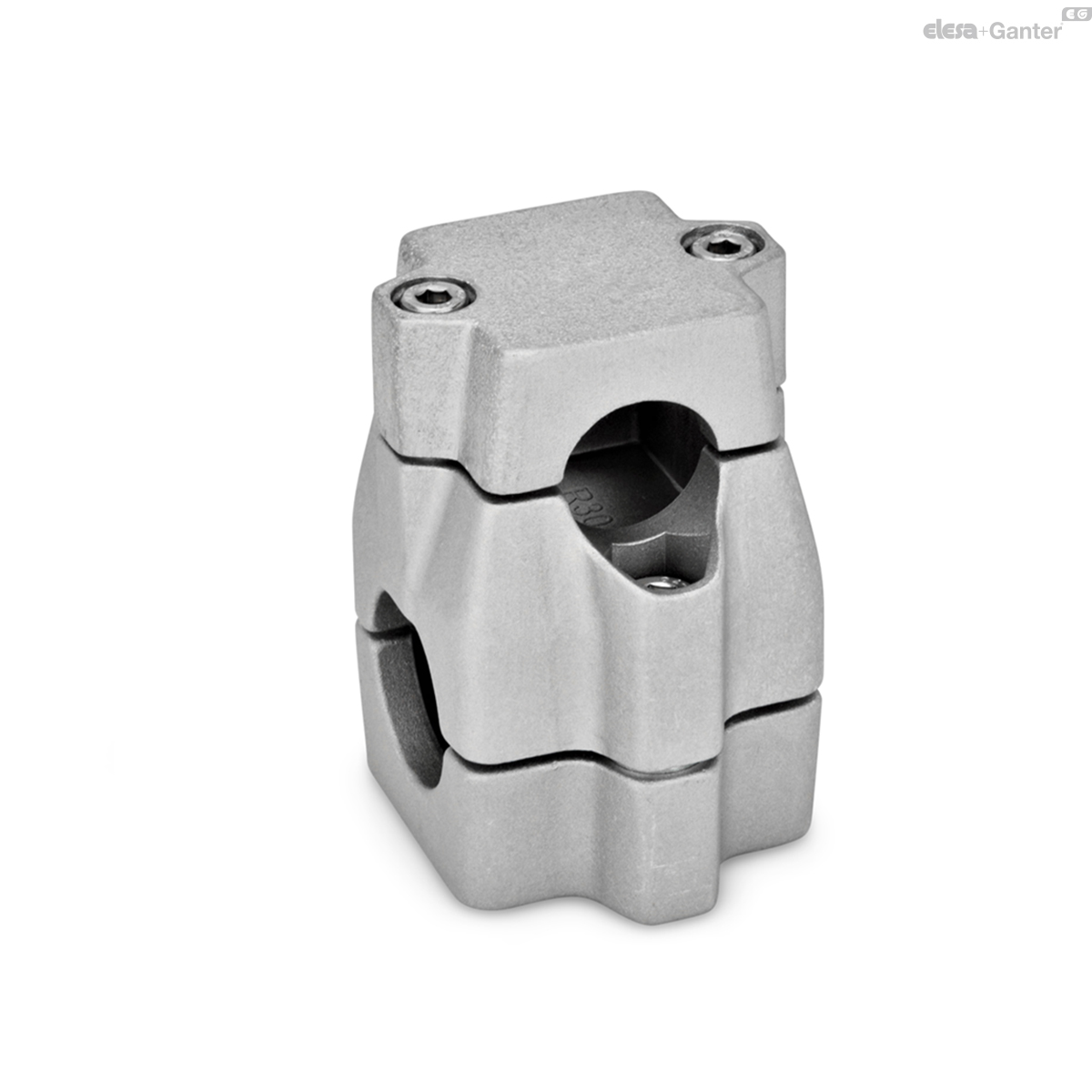

Plain, matte shot-blasted BL

Socket cap screws DIN 912

Stainless Steel AISI 304

Hex nuts DIN 985

Stainless Steel AISI 304

Self-locking via polyamide ring

Information

The clamping bores of two-way connector clamps GN 135 are designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

The square designs are also suitable for use with profile systems.

The bores and squares are arranged in such a way that an adaptation between between different tube cross-sections is possible.

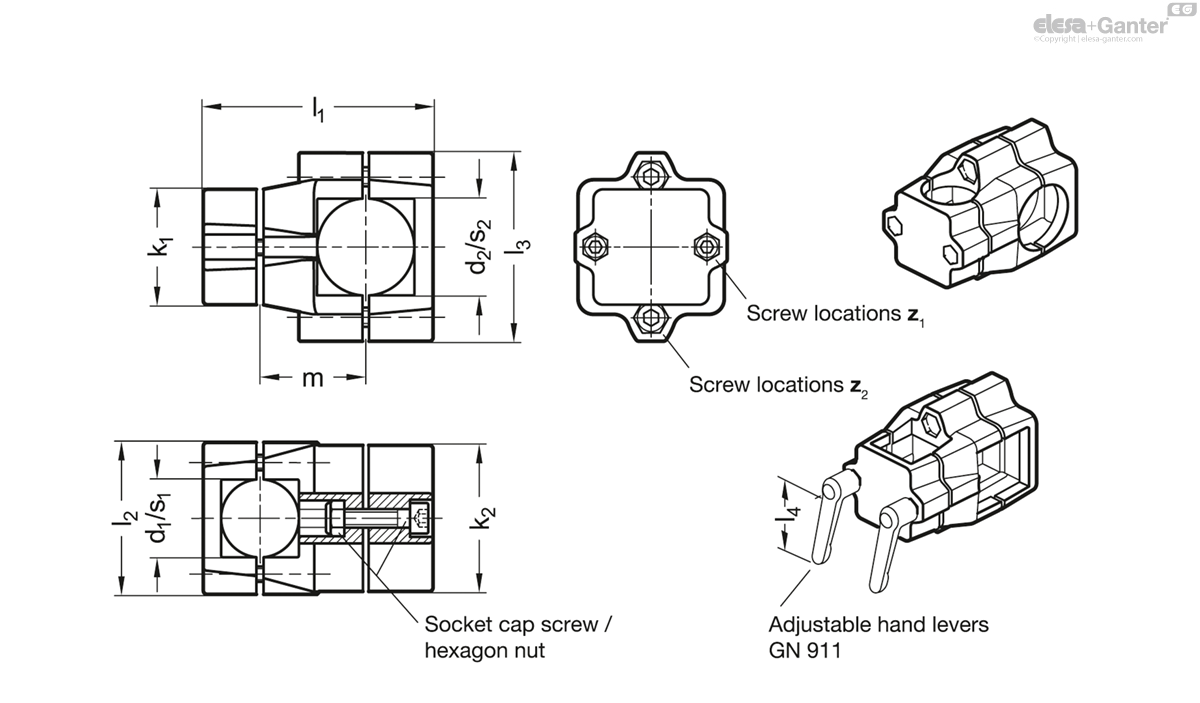

At the screw locations z₁ / z₂, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.

Accessory

Adjustable Hand Levers GN 911

On request

Other bore and square combinations d₁ / s₁ and d₂ / s₂

Technical information

Stainless Steel Characteristics

GN 135

	Color	d₁	s₁	d₂	s₂	k₁ Clamping length	k₂ Clamping length	l₁	l₂	l₃	m	z₁ Screw locations	z₂ Screw locations	Accessory Recom. hand lever GN 911 for z1 l₄	Accessory Recom. hand lever GN 911 for z2 l₄
Code																	Actions
GN 135-B30-B40-60-2-BL	BL - Plain finish	B 30	-	B 40	-	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	920
GN 135-B30-B40-60-2-SW	SW - RAL 9005	B 30	-	B 40	-	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	920
GN 135-B30-B50-60-2-BL	BL - Plain finish	B 30	-	B 50	-	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	860
GN 135-B30-B50-60-2-SW	SW - RAL 9005	B 30	-	B 50	-	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	860
GN 135-B30-V40-60-2-BL	BL - Plain finish	B 30	-	-	V 40	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	910
GN 135-B30-V40-60-2-SW	SW - RAL 9005	B 30	-	-	V 40	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	910
GN 135-B30-V50-60-2-BL	BL - Plain finish	B 30	-	-	V 50	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	880
GN 135-B30-V50-60-2-SW	SW - RAL 9005	B 30	-	-	V 50	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	880
GN 135-B40-B50-60-2-BL	BL - Plain finish	B 40	-	B 50	-	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	454
GN 135-B40-B50-60-2-SW	SW - RAL 9005	B 40	-	B 50	-	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	454
GN 135-B40-V50-60-2-BL	BL - Plain finish	B 40	-	-	V 50	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	776
GN 135-B40-V50-60-2-SW	SW - RAL 9005	B 40	-	-	V 50	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	776
GN 135-V30-B40-60-2-BL	BL - Plain finish	-	V 30	B 40	-	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	747
GN 135-V30-B40-60-2-SW	SW - RAL 9005	-	V 30	B 40	-	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	747
GN 135-V30-B50-60-2-BL	BL - Plain finish	-	V 30	B 50	-	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	450
GN 135-V30-B50-60-2-SW	SW - RAL 9005	-	V 30	B 50	-	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	450
GN 135-V30-V40-60-2-BL	BL - Plain finish	-	V 30	-	V 40	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	900
GN 135-V30-V40-60-2-SW	SW - RAL 9005	-	V 30	-	V 40	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	900
GN 135-V30-V50-60-2-BL	BL - Plain finish	-	V 30	-	V 50	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	750
GN 135-V30-V50-60-2-SW	SW - RAL 9005	-	V 30	-	V 50	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	750
GN 135-V40-B50-60-2-BL	BL - Plain finish	-	V 40	B 50	-	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	830
GN 135-V40-B50-60-2-SW	SW - RAL 9005	-	V 40	B 50	-	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	830
GN 135-V40-V50-60-2-BL	BL - Plain finish	-	V 40	-	V 50	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	760
GN 135-V40-V50-60-2-SW	SW - RAL 9005	-	V 40	-	V 50	60	76	120	79	98	55	M8-50	M10-55	63 \| 78	78 \| 92	760
