GN 134

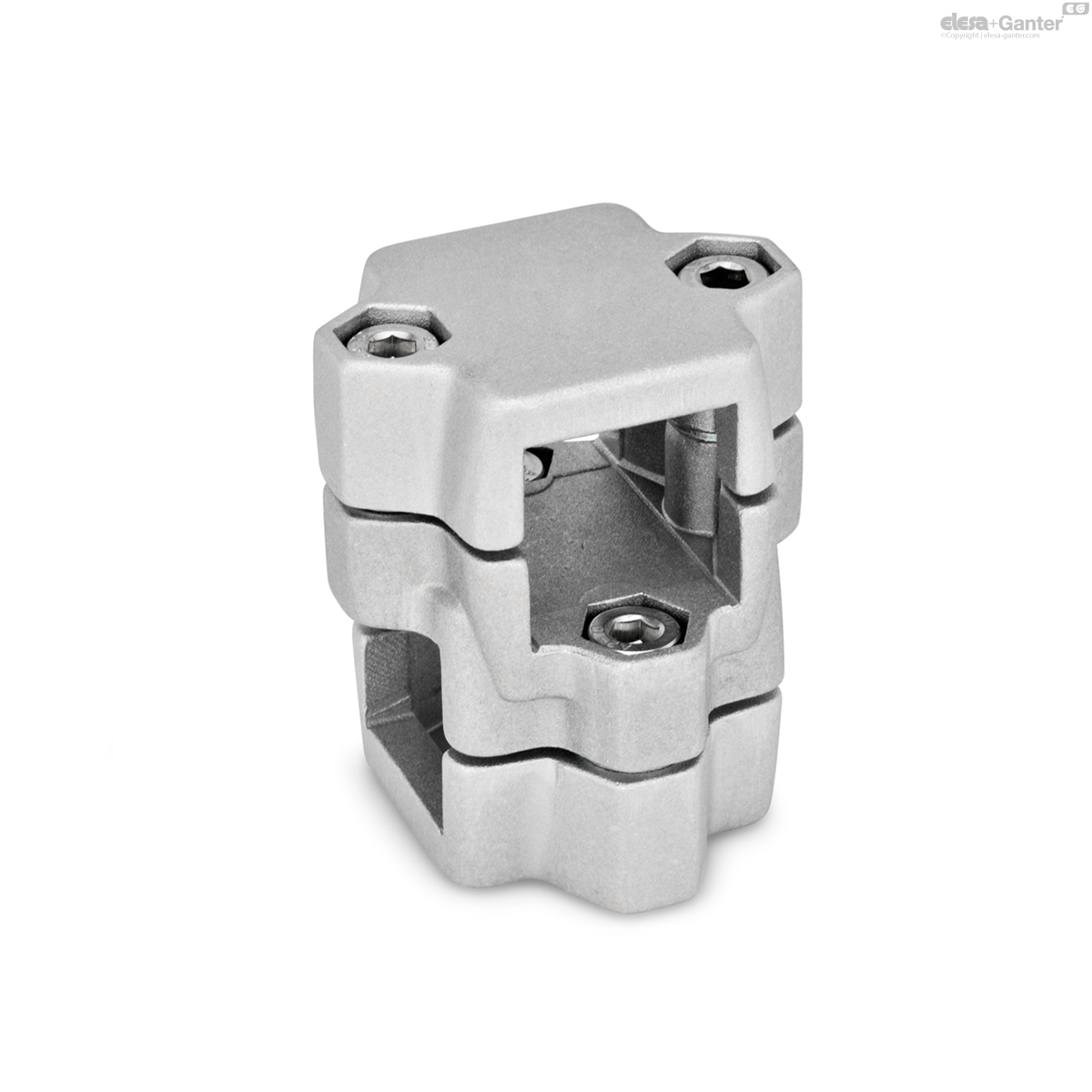

Two-Way Connector Clamps

Aluminum, Multi Part Assembly

Enquire Now

Description

Specification

No. 2: With 4 stainless steel socket cap screws DIN 912

Aluminum

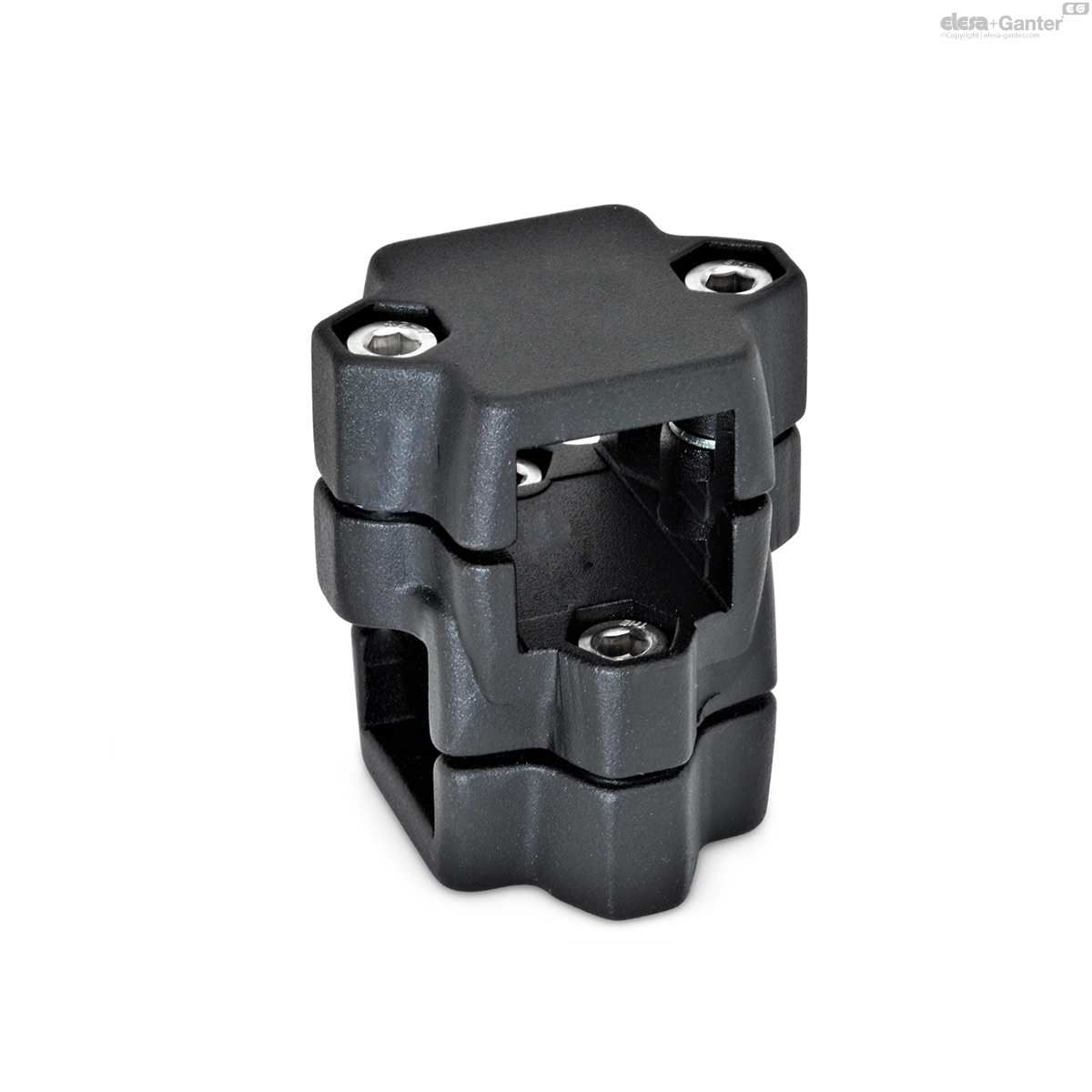

Black, RAL 9005, textured finish SW

Socket cap screws DIN 912

Stainless Steel AISI 304

Hex nuts DIN 985

Stainless Steel AISI 304

Self-locking via polyamide ring

Information

The clamping bores of two-way connector clamps GN 134 are not machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

The versions with square bores are also suitable for use with profile systems.

At the screw locations z, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.

Accessory

Technical information

	Color	s₁	k Clamping length	l₁	l₂	m	z Screw locations	Accessory Recom. hand lever GN 911 for z l₃
Code										Actions
GN 134-V20-V20-50-2-BL	BL - Plain finish	V20-V20	50	79.5	68	33.5	M8-30	63 \| 78	350
GN 134-V20-V20-50-2-SW	SW - RAL 9005	V20-V20	50	79.5	68	33.5	M8-30	63 \| 78	350
GN 134-V25-V25-50-2-BL	BL - Plain finish	V25-V25	50	79.5	68	33.5	M8-30	63 \| 78	325
GN 134-V25-V25-50-2-SW	SW - RAL 9005	V25-V25	50	79.5	68	33.5	M8-30	63 \| 78	325
GN 134-V30-V30-50-2-BL	BL - Plain finish	V30-V30	50	79.5	68	33.5	M8-30	63 \| 78	250
GN 134-V30-V30-50-2-SW	SW - RAL 9005	V30-V30	50	79.5	68	33.5	M8-30	63 \| 78	250
GN 134-V30-V30-60-2-BL	BL - Plain finish	V30-V30	60	109	79	50	M8-50	63 \| 78	660
GN 134-V30-V30-60-2-SW	SW - RAL 9005	V30-V30	60	109	79	50	M8-50	63 \| 78	660
GN 134-V35-V35-60-2-BL	BL - Plain finish	V35-V35	60	109	79	50	M8-50	63 \| 78	620
GN 134-V35-V35-60-2-SW	SW - RAL 9005	V35-V35	60	109	79	50	M8-50	63 \| 78	620
GN 134-V40-V40-60-2-BL	BL - Plain finish	V40-V40	60	109	79	50	M8-50	63 \| 78	560
GN 134-V40-V40-60-2-SW	SW - RAL 9005	V40-V40	60	109	79	50	M8-50	63 \| 78	560
GN 134-V40-V40-76-2-BL	BL - Plain finish	V40-V40	76	125	98	55	M10-50	78 \| 92	945
GN 134-V40-V40-76-2-SW	SW - RAL 9005	V40-V40	76	125	98	55	M10-50	78 \| 92	995
GN 134-V45-V45-76-2-BL	BL - Plain finish	V45-V45	76	125	98	55	M10-50	78 \| 92	825
GN 134-V45-V45-76-2-SW	SW - RAL 9005	V45-V45	76	125	98	55	M10-50	78 \| 92	825
GN 134-V50-V50-76-2-BL	BL - Plain finish	V50-V50	76	125	98	55	M10-50	78 \| 92	880
GN 134-V50-V50-76-2-SW	SW - RAL 9005	V50-V50	76	125	98	55	M10-50	78 \| 92	950
