GN 134

Two-Way Connector Clamps

Aluminum, Multi Part Assembly

Enquire Now

GN 134-B-B

Two-Way Connector Clamps

Bore-Bore

GN 134-B-S

Two-Way Connector Clamps

Bore-Square

GN 134-S-S

Two-Way Connector Clamps

Square-Square

Description

Specification

Identification No.

No. 2: With 4 stainless steel socket cap screws DIN 912

Aluminum

Powder coated

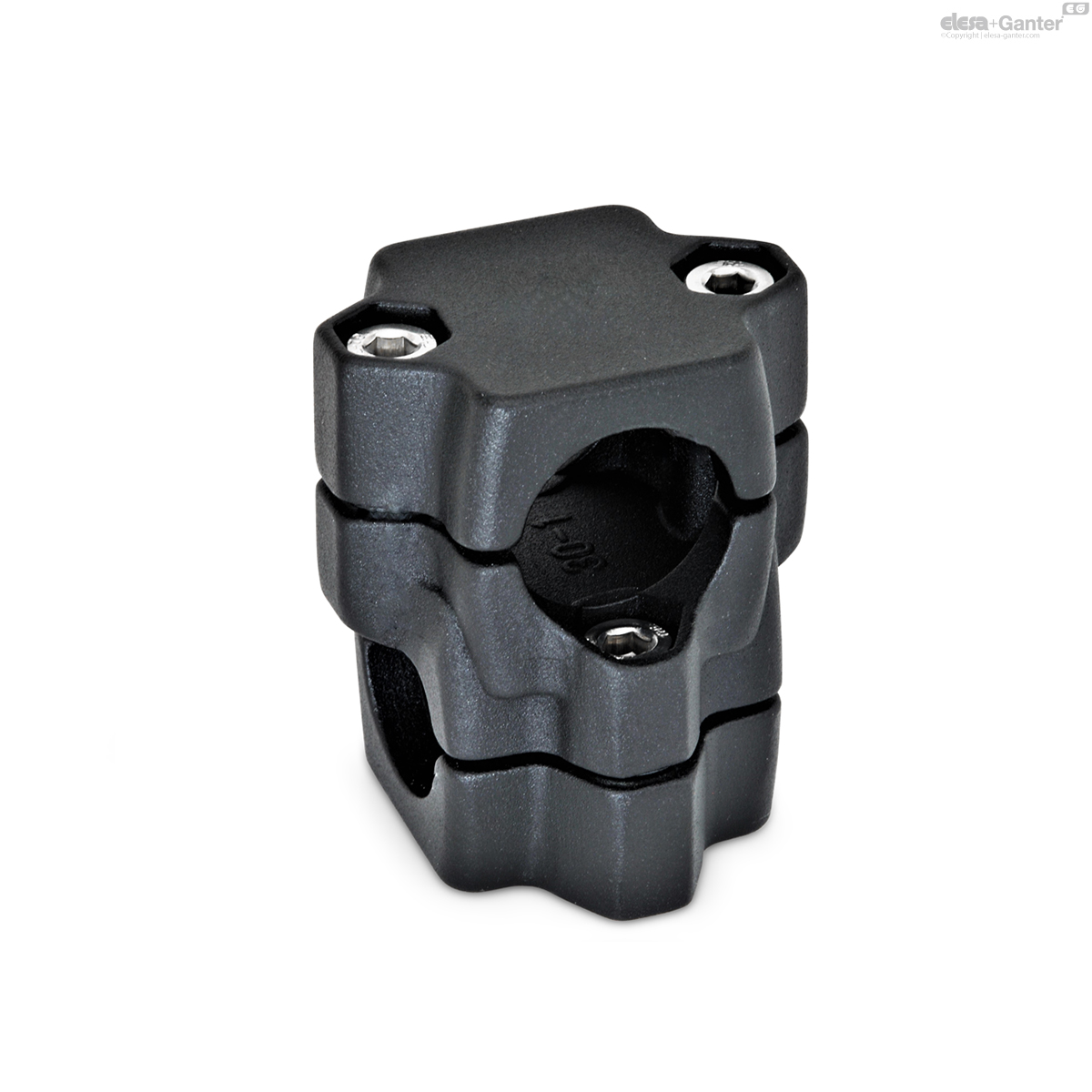

Black, RAL 9005, textured finish SW

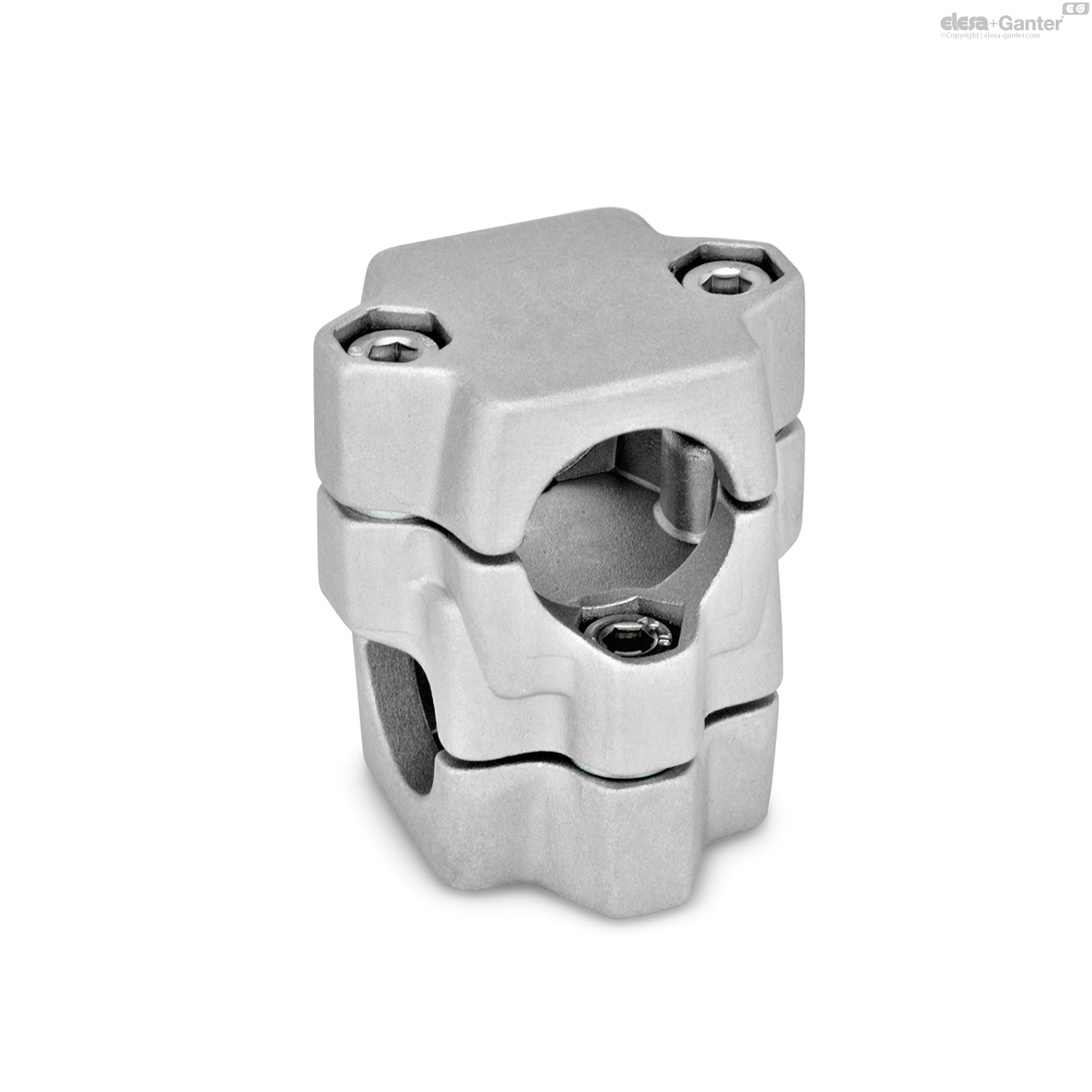

Plain, matte shot-blasted BL

Socket cap screws DIN 912

Stainless Steel AISI 304

Hex nuts DIN 985

Stainless Steel AISI 304

Self-locking via polyamide ring

Information

The clamping bores of two-way connector clamps GN 134 are not machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

The versions with square bores are also suitable for use with profile systems.

At the screw locations z, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.

Accessory

Adjustable Hand Levers GN 911

Technical information

Stainless Steel Characteristics

GN 134-B-B

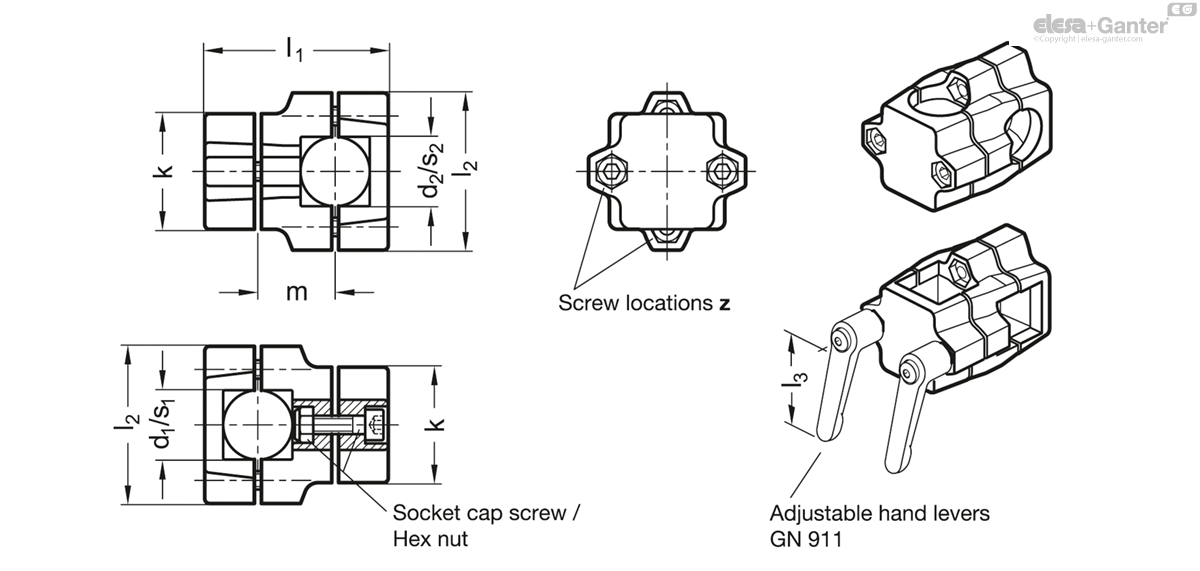

	Color	d₁	k Clamping length	l₁	l₂	m	z Screw locations	Accessory Recom. hand lever GN 911 for z l₃
Code										Actions
GN 134-B20-B20-50-2-BL	BL - Plain finish	B20-B20	50	79.5	68	33.5	M8-30	63 \| 78	352
GN 134-B20-B20-50-2-SW	SW - RAL 9005	B20-B20	50	79.5	68	33.5	M8-30	63 \| 78	357
GN 134-B25-B25-50-2-BL	BL - Plain finish	B25-B25	50	79.5	68	33.5	M8-30	63 \| 78	300
GN 134-B25-B25-50-2-SW	SW - RAL 9005	B25-B25	50	79.5	68	33.5	M8-30	63 \| 78	310
GN 134-B30-B30-50-2-BL	BL - Plain finish	B30-B30	50	79.5	68	33.5	M8-30	63 \| 78	326
GN 134-B30-B30-50-2-SW	SW - RAL 9005	B30-B30	50	79.5	68	33.5	M8-30	63 \| 78	326
GN 134-B30-B30-60-2-BL	BL - Plain finish	B30-B30	60	109	79	50	M8-50	63 \| 78	698
GN 134-B30-B30-60-2-SW	SW - RAL 9005	B30-B30	60	109	79	50	M8-50	63 \| 78	698
GN 134-B32-B32-60-2-BL	BL - Plain finish	B32-B32	60	109	79	50	M8-50	63 \| 78	686
GN 134-B32-B32-60-2-SW	SW - RAL 9005	B32-B32	60	109	79	50	M8-50	63 \| 78	686
GN 134-B35-B35-60-2-BL	BL - Plain finish	B35-B35	60	109	79	50	M8-50	63 \| 78	666
GN 134-B35-B35-60-2-SW	SW - RAL 9005	B35-B35	60	109	79	50	M8-50	63 \| 78	666
GN 134-B40-B40-60-2-BL	BL - Plain finish	B40-B40	60	109	79	50	M8-50	63 \| 78	614
GN 134-B40-B40-60-2-SW	SW - RAL 9005	B40-B40	60	109	79	50	M8-50	63 \| 78	614
GN 134-B40-B40-76-2-BL	BL - Plain finish	B40-B40	76	125	98	55	M10-50	78 \| 92	975
GN 134-B40-B40-76-2-SW	SW - RAL 9005	B40-B40	76	125	98	55	M10-50	78 \| 92	975
GN 134-B42-B42-76-2-BL	BL - Plain finish	B42-B42	76	125	98	55	M10-50	78 \| 92	947
GN 134-B42-B42-76-2-SW	SW - RAL 9005	B42-B42	76	125	98	55	M10-50	78 \| 92	947
GN 134-B45-B45-76-2-BL	BL - Plain finish	B45-B45	76	125	98	55	M10-50	78 \| 92	930
GN 134-B45-B45-76-2-SW	SW - RAL 9005	B45-B45	76	125	98	55	M10-50	78 \| 92	930
GN 134-B48-B48-76-2-BL	BL - Plain finish	B48-B48	76	125	98	55	M10-50	78 \| 92	914
GN 134-B48-B48-76-2-SW	SW - RAL 9005	B48-B48	76	125	98	55	M10-50	78 \| 92	914
GN 134-B50-B50-76-2-BL	BL - Plain finish	B50-B50	76	125	98	55	M10-50	78 \| 92	885
GN 134-B50-B50-76-2-SW	SW - RAL 9005	B50-B50	76	125	98	55	M10-50	78 \| 92	885
