GN 134.7

Two-Way Locking Slide Units

Aluminum

Enquire Now

GN 134.7-G

Two-Way Locking Slide Units

with thread

GN 134.7-R

Two-Way Locking Slide Units

with indexing plunger

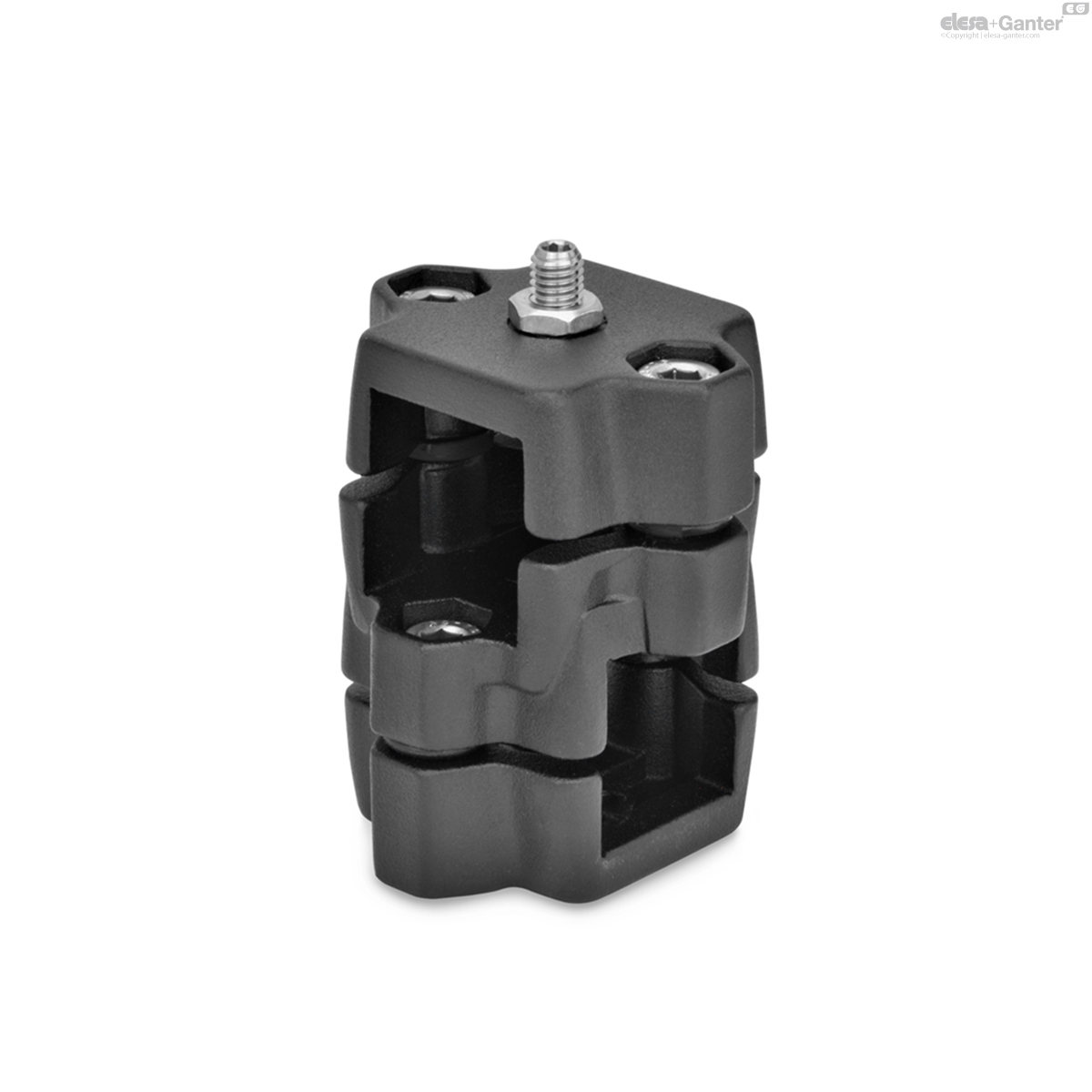

GN 134.7-D

Two-Way Locking Slide Units

with spring plunger

Description

Specification

Types

Type G: With thread

Type R: With indexing plunger

Type D: With spring plunger

Aluminum

Powder coated

Black, RAL 9005, textured finish SW

Fastening elements / transfer elements

Socket cap screws DIN 912

Hex nuts DIN 985

Centering bushings

Stainless steel AISI 304

Indexing plunger GN 717, type CK

Plunger pin

Stainless steel AISI 303

Knob

Plastic (Polyamide PA)

Black, matte finish

Spring plunger GN 615.9, type KN

Stainless steel AISI 303

Ball with friction bearing

With internal hex

Stainless steel lock nut ISO 4035

Information

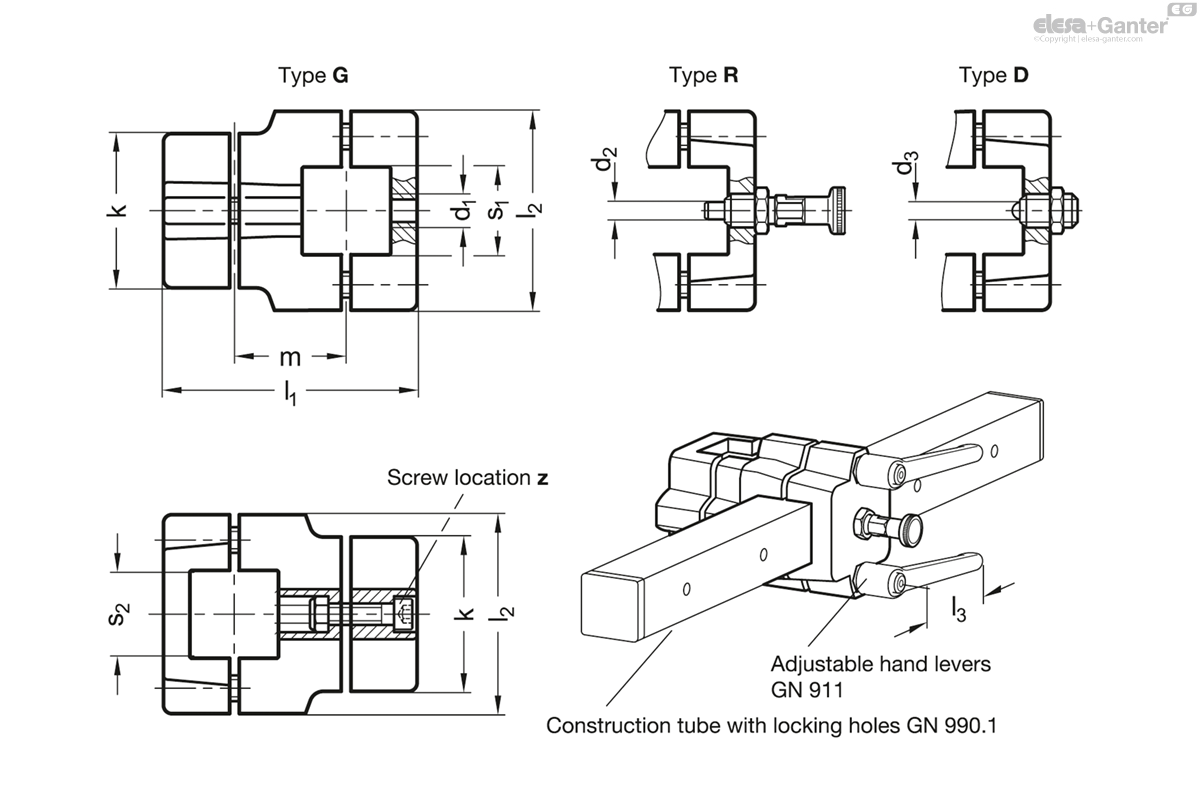

With two-way locking slide units GN 134.7, recurring positions along a square construction tube can be moved to easily and quickly. The required holes for type R or countersinks for type D can be created by the user according to the design instructions or ordered as completely finished construction tubes with locking holes GN 990.1

For quick clamping without tools, the socket cap screws at the locations z, can be replaced with adjustable hand levers GN 911 listed in the table as accessories. Centering bushings in the pass-through holes eliminate the axial play between the top and bottom parts of the locking slide units.

Two-way locking slide units GN 134.7 are delivered with unmounted indexing plunger (Type R) or spring plunger (Type D). Type G with thread is universally suitable for specific applications.

Accessory

Adjustable Hand Levers GN 911

Technical information

Stainless Steel Characteristics

Construction information

The square dimensions of the locking slide units are designed for construction tubes GN 990. These can be fitted with locking holes (B or S) by the user according to the dimensions specified in the table.

Construction tubes with locking holes can be ordered as standard part GN 990.1 cut to length and completely ready for installation.

S Square V	d₆ + 0.3 Bore B (for type R)	d₇ +0.3 Countersink S (for type D)	For locking slides
V 25	B 5	S 2.5	V 25
V 30	B 5	S 2.5	V 30
V 40	B 8	S 4.5	V 40
V 50	B 8	S 4.5	V 50

Application examples

GN 134.7-G

	s₁ Square	s₂ Square	d₁	d₂ Pin -0.05 Bore +0.03/+0.08	k Clamping length	l₁	l₂	m	z Screw locations	Accessory Recom. hand lever GN 911 for z l₃
Code												Actions
GN 134.7-V25-V25-G-SW	V 25	V 25	M 8	5	50	79.5	68	33.5	M8-30	63 \| 78	317
GN 134.7-V30-V30-G-SW	V 30	V 30	M 8	5	50	79.5	68	33.5	M8-30	63 \| 78	289
GN 134.7-V40-V40-G-SW	V 40	V 40	M 12	8	76	125	98	55	M10-50	78 \| 92	1034
GN 134.7-V50-V50-G-SW	V 50	V 50	M 12	8	76	125	98	55	M10-50	78 \| 92	888
