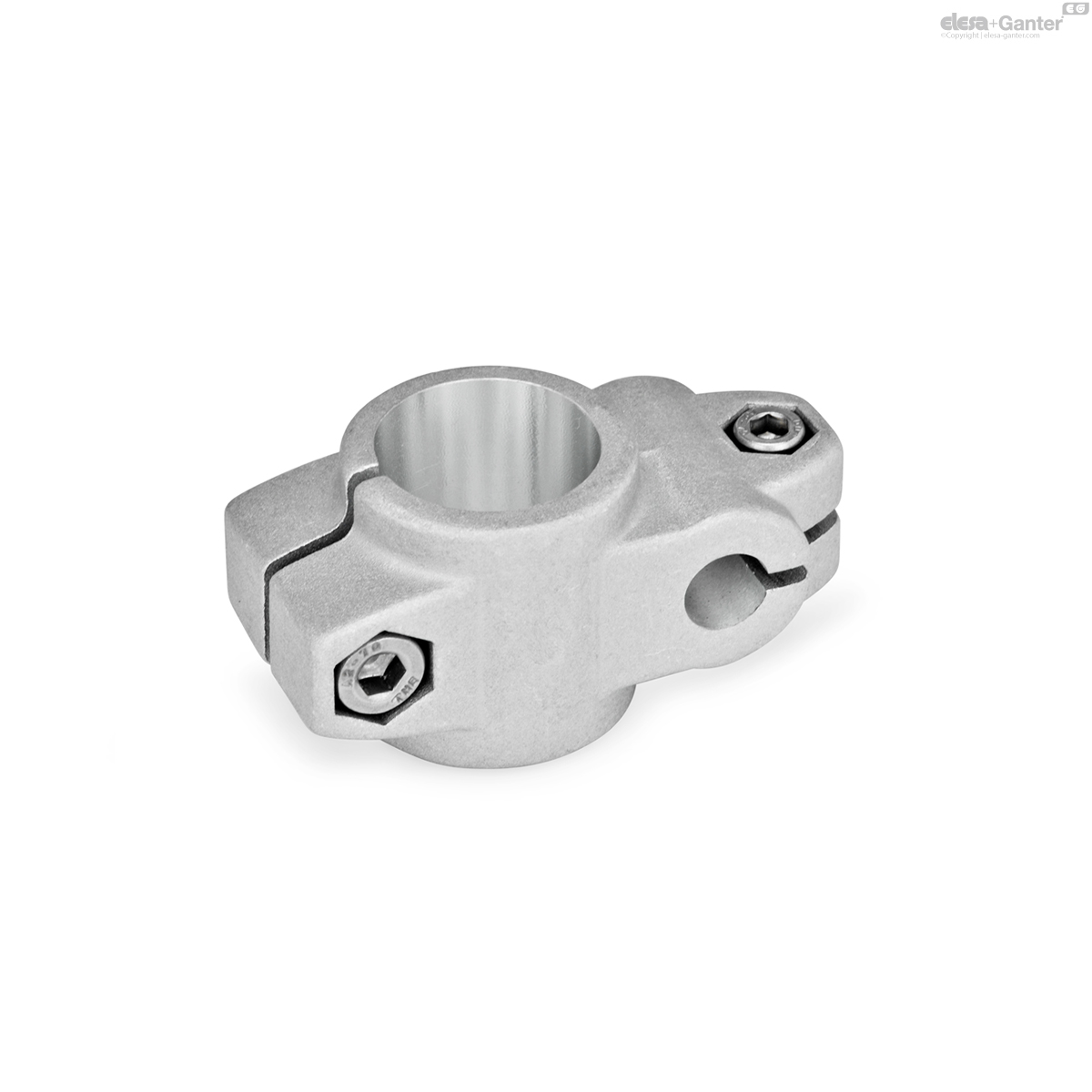

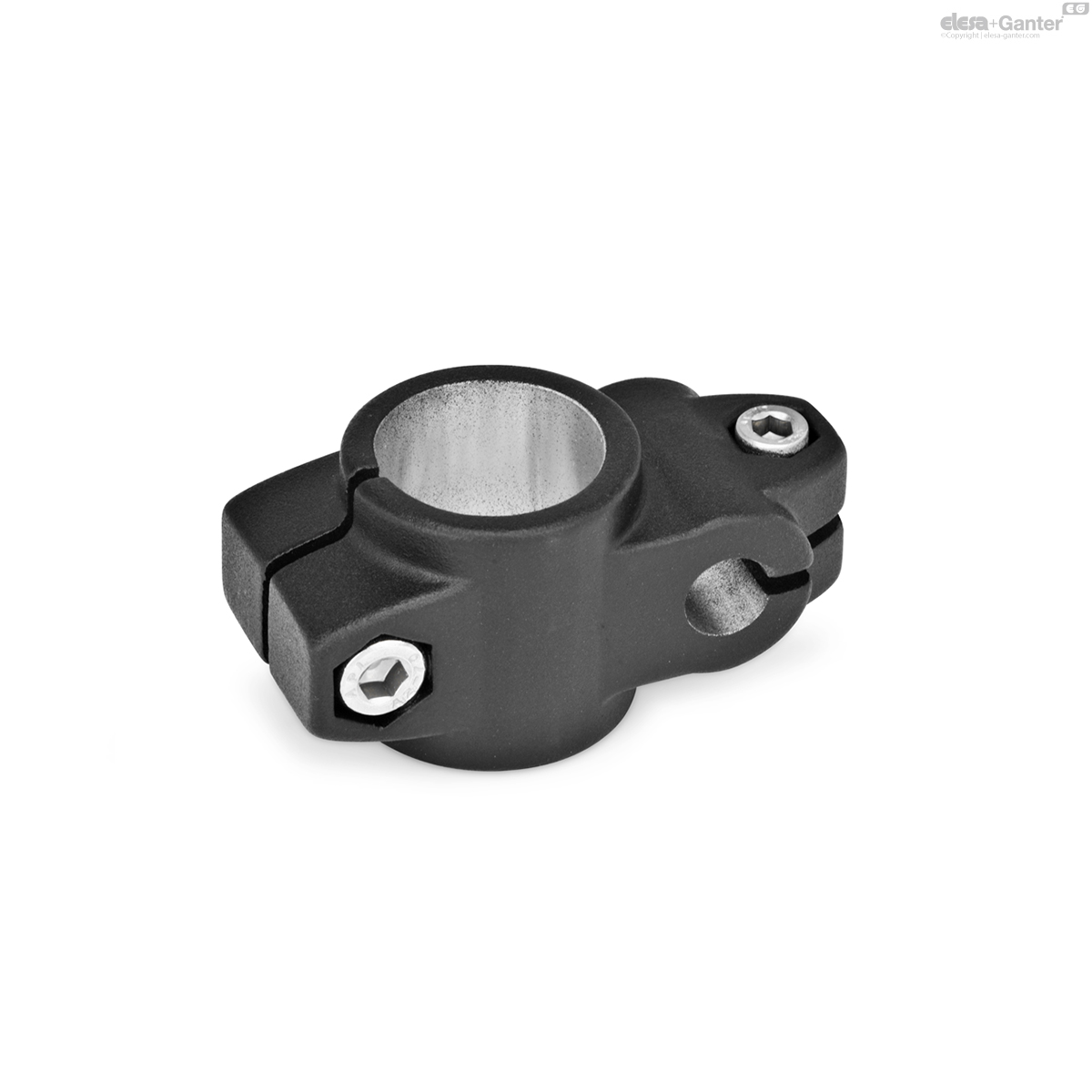

Two-Way Connector Clamps

Aluminum, Unequal Bore Dimensions d₁ / d₂

Enquire Now

Description

Specification

Identification No.

No. 2: With 2 stainless steel socket cap screws DIN 912

Aluminum

Powder coated

Black, RAL 9005, textured finish SW

Plain, matte shot-blasted BL

Socket cap screws DIN 912

Stainless steel AISI 304

Hex nuts DIN 985

Stainless steel AISI 304

Self-locking via polyamide ring

Information

The clamping bores of two-way connector clamps GN 133 are mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

At the screw locations z₁ / z₂, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.

Accessory

Adjustable Hand Levers GN 911

Technical information

Stainless Steel Characteristics

GN 133

	Color	d₁ Bore	d₂ Bore	k₁ Clamping length	k₂ Clamping length	l₁	l₂	l₃	m	z₁ Screw location	z₂ Screw location	Accessory Recom. hand lever GN 911 for z1 l₄	Accessory Recom. hand lever GN 911 for z2 l₄
Code															Actions
GN 133-B20-B10-2-BL	BL - Plain finish	B 20	B 10	40	36	81.5	40	26	27	M8-25	M6-20	-	63	177
GN 133-B20-B10-2-SW	SW - RAL 9005	B 20	B 10	40	36	81.5	40	26	27	M8-25	M6-20	-	63	177
GN 133-B20-B12-2-BL	BL - Plain finish	B 20	B 12	40	36	81.5	40	26	27	M8-25	M6-20	-	63	175
GN 133-B20-B12-2-SW	SW - RAL 9005	B 20	B 12	40	36	81.5	40	26	27	M8-25	M6-20	-	63	175
GN 133-B20-B14-2-BL	BL - Plain finish	B 20	B 14	40	36	81.5	40	26	27	M8-25	M6-20	-	63	174
GN 133-B20-B14-2-SW	SW - RAL 9005	B 20	B 14	40	36	81.5	40	26	27	M8-25	M6-20	-	63	174
GN 133-B20-B15-2-BL	BL - Plain finish	B 20	B 15	40	36	81.5	40	26	27	M8-25	M6-20	-	63	153
GN 133-B20-B15-2-SW	SW - RAL 9005	B 20	B 15	40	36	81.5	40	26	27	M8-25	M6-20	-	63	153
GN 133-B20-B16-2-BL	BL - Plain finish	B 20	B 16	40	36	81.5	40	26	27	M8-25	M6-20	-	63	120
GN 133-B20-B16-2-SW	SW - RAL 9005	B 20	B 16	40	36	81.5	40	26	27	M8-25	M6-20	-	63	120
GN 133-B20-B18-2-BL	BL - Plain finish	B 20	B 18	40	36	81.5	40	26	27	M8-25	M6-20	-	63	168
GN 133-B20-B18-2-SW	SW - RAL 9005	B 20	B 18	40	36	81.5	40	26	27	M8-25	M6-20	-	63	168
GN 133-B25-B10-2-BL	BL - Plain finish	B 25	B 10	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	177
GN 133-B25-B10-2-SW	SW - RAL 9005	B 25	B 10	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	177
GN 133-B25-B12-2-BL	BL - Plain finish	B 25	B 12	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	160
GN 133-B25-B12-2-SW	SW - RAL 9005	B 25	B 12	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	160
GN 133-B25-B14-2-BL	BL - Plain finish	B 25	B 14	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	155
GN 133-B25-B14-2-SW	SW - RAL 9005	B 25	B 14	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	155
GN 133-B25-B15-2-BL	BL - Plain finish	B 25	B 15	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	132
GN 133-B25-B15-2-SW	SW - RAL 9005	B 25	B 15	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	132
GN 133-B25-B16-2-BL	BL - Plain finish	B 25	B 16	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	156
GN 133-B25-B16-2-SW	SW - RAL 9005	B 25	B 16	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	156
GN 133-B25-B18-2-BL	BL - Plain finish	B 25	B 18	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	152
GN 133-B25-B18-2-SW	SW - RAL 9005	B 25	B 18	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	152
GN 133-B30-B10-2-BL	BL - Plain finish	B 30	B 10	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	177
GN 133-B30-B10-2-SW	SW - RAL 9005	B 30	B 10	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	177
GN 133-B30-B12-2-BL	BL - Plain finish	B 30	B 12	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	135
GN 133-B30-B12-2-SW	SW - RAL 9005	B 30	B 12	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	135
GN 133-B30-B14-2-BL	BL - Plain finish	B 30	B 14	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	128
GN 133-B30-B14-2-SW	SW - RAL 9005	B 30	B 14	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	128
GN 133-B30-B15-2-BL	BL - Plain finish	B 30	B 15	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	106
GN 133-B30-B15-2-SW	SW - RAL 9005	B 30	B 15	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	106
GN 133-B30-B16-2-BL	BL - Plain finish	B 30	B 16	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	128
GN 133-B30-B16-2-SW	SW - RAL 9005	B 30	B 16	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	128
GN 133-B30-B18-2-BL	BL - Plain finish	B 30	B 18	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	124
GN 133-B30-B18-2-SW	SW - RAL 9005	B 30	B 18	40	36	81.5	40	26	27	M8-25	M6-20	63 \| 78	63	124
GN 133-B40-B20-2-BL	BL - Plain finish	B 40	B 20	65	59	122	65	40	45	M10-50	M8-25	92 \| -	78	600
GN 133-B40-B20-2-SW	SW - RAL 9005	B 40	B 20	65	59	122	65	40	45	M10-50	M8-25	92 \| -	78	600
GN 133-B40-B25-2-BL	BL - Plain finish	B 40	B 25	65	59	122	65	40	45	M10-50	M8-25	92 \| -	78	589
GN 133-B40-B25-2-SW	SW - RAL 9005	B 40	B 25	65	59	122	65	40	45	M10-50	M8-25	92 \| -	78	589
GN 133-B40-B30-2-BL	BL - Plain finish	B 40	B 30	65	59	122	65	40	45	M10-50	M8-25	92 \| -	78	570
GN 133-B40-B30-2-SW	SW - RAL 9005	B 40	B 30	65	59	122	65	40	45	M10-50	M8-25	92 \| -	78	570
GN 133-B42-B20-2-BL	BL - Plain finish	B 42	B 20	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	550
GN 133-B42-B20-2-SW	SW - RAL 9005	B 42	B 20	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	550
GN 133-B42-B25-2-BL	BL - Plain finish	B 42	B 25	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	583
GN 133-B42-B25-2-SW	SW - RAL 9005	B 42	B 25	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	583
GN 133-B42-B30-2-BL	BL - Plain finish	B 42	B 30	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	568
GN 133-B42-B30-2-SW	SW - RAL 9005	B 42	B 30	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	568
GN 133-B45-B20-2-BL	BL - Plain finish	B 45	B 20	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	510
GN 133-B45-B20-2-SW	SW - RAL 9005	B 45	B 20	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	510
GN 133-B45-B25-2-BL	BL - Plain finish	B 45	B 25	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	559
GN 133-B45-B25-2-SW	SW - RAL 9005	B 45	B 25	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	559
GN 133-B45-B30-2-BL	BL - Plain finish	B 45	B 30	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	526
GN 133-B45-B30-2-SW	SW - RAL 9005	B 45	B 30	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	526
GN 133-B48-B20-2-BL	BL - Plain finish	B 48	B 20	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	530
GN 133-B48-B20-2-SW	SW - RAL 9005	B 48	B 20	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	530
GN 133-B48-B25-2-BL	BL - Plain finish	B 48	B 25	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	475
GN 133-B48-B25-2-SW	SW - RAL 9005	B 48	B 25	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	475
GN 133-B48-B30-2-BL	BL - Plain finish	B 48	B 30	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	477
GN 133-B48-B30-2-SW	SW - RAL 9005	B 48	B 30	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	477
GN 133-B50-B20-2-BL	BL - Plain finish	B 50	B 20	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	505
GN 133-B50-B20-2-SW	SW - RAL 9005	B 50	B 20	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	505
GN 133-B50-B25-2-BL	BL - Plain finish	B 50	B 25	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	480
GN 133-B50-B25-2-SW	SW - RAL 9005	B 50	B 25	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	480
GN 133-B50-B30-2-BL	BL - Plain finish	B 50	B 30	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	460
GN 133-B50-B30-2-SW	SW - RAL 9005	B 50	B 30	65	59	122	65	40	45	M10-50	M8-25	78 \| 92	78	460
