Home Linear motion components Linear actuators and linear actuators connectors GN 131.1

GN 131.1

Two-Way Linear Actuator Connectors

Aluminum / Stainless Steel, for One-Axis System

Enquire Now

GN 131.1-AL

Two-Way Linear Actuator Connectors

Aluminum

GN 131.1-NI

Two-Way Linear Actuator Connectors

Stainless Steel

Description

Specification

Identification no.

No. 2: With 2 stainless steel socket cap screws DIN 912

Aluminum

Powder coated

Black, RAL 9005, textured finish SW

Stainless Steel AISI CF-8 NI

Matte shot-blasted

Only with sleeve bearing

Sleeve bearing

Plastic (PTFE)

Socket cap screws DIN 912

Stainless steel AISI 304

Hex nuts DIN 985

Stainless steel AISI 304

Self-locking via polyamide ring

Information

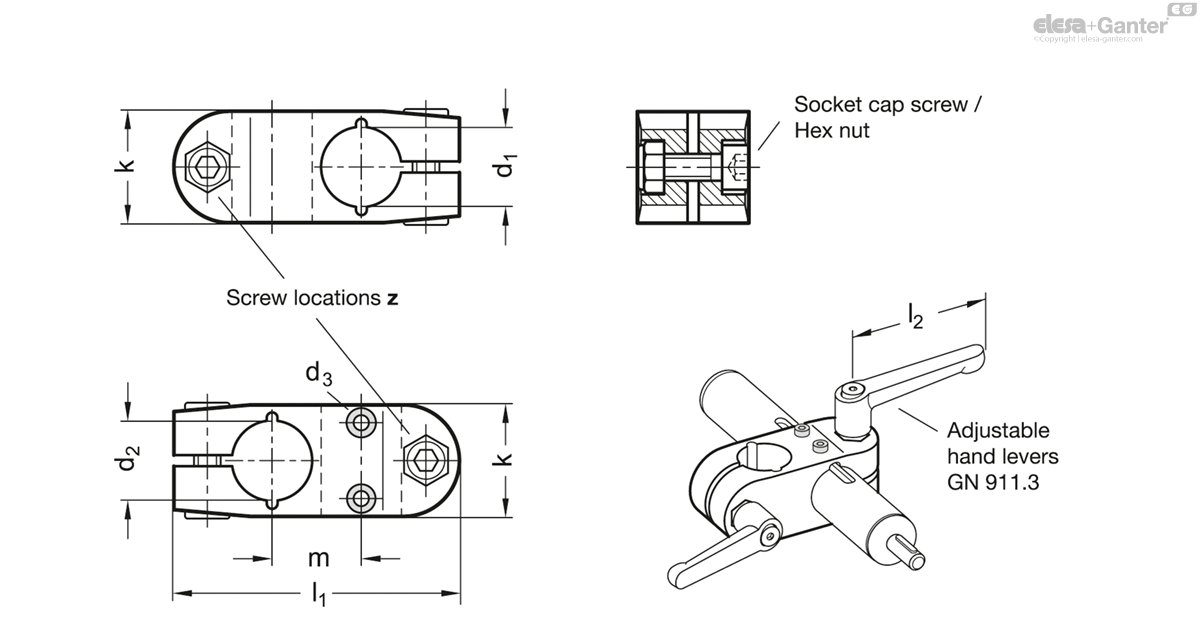

Two-way linear actuator connectors GN 131.1 are based on two-way connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator. Bores with the designation „G“ are equipped with sleeve bearings.

With the screw locations z, the play of the guide bores d₁ / d₂ can be adjusted or the linear actuator connectors can be clamped after adjustment.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 /GN 911.3 listed in the table as accessories.

Accessory

Adjustable Hand Levers GN 911 /GN 911.3

Technical information

Plastic Characteristics

Stainless Steel Characteristics

GN 131.1-NI

	d₁ - d₂ with sleeve bearing	d₃ Mounting screws on the drive key	k Clamping length	l₁	m	z Screw locations	Accessory Recom. hand lever GN 911.3 for z l₂
Code									Actions
GN 131.1-G18-B18-2-NI	G 18 - B 18	M 3	25	64	20	M6-20	45 \| 63	142
