GN 129.5
Stainless Steel-Hinges
consisting of three parts
GN 129.5-NI
Stainless Steel-Hinges
Stainless Steel
GN 129.5-A4
Stainless Steel-Hinges
Stainless Steel
Description
Specification
Type
Type D: consisting of three parts
Hinge body, pin, washer
- Stainless Steel AISI 303 NI
- Stainless Steel AISI 316L A4
Hexagon nut ISO 4032
Stainless Steel AISI 304
Serrated washer DIN 6797 for securing screws
Stainless Steel AISI 304
Information

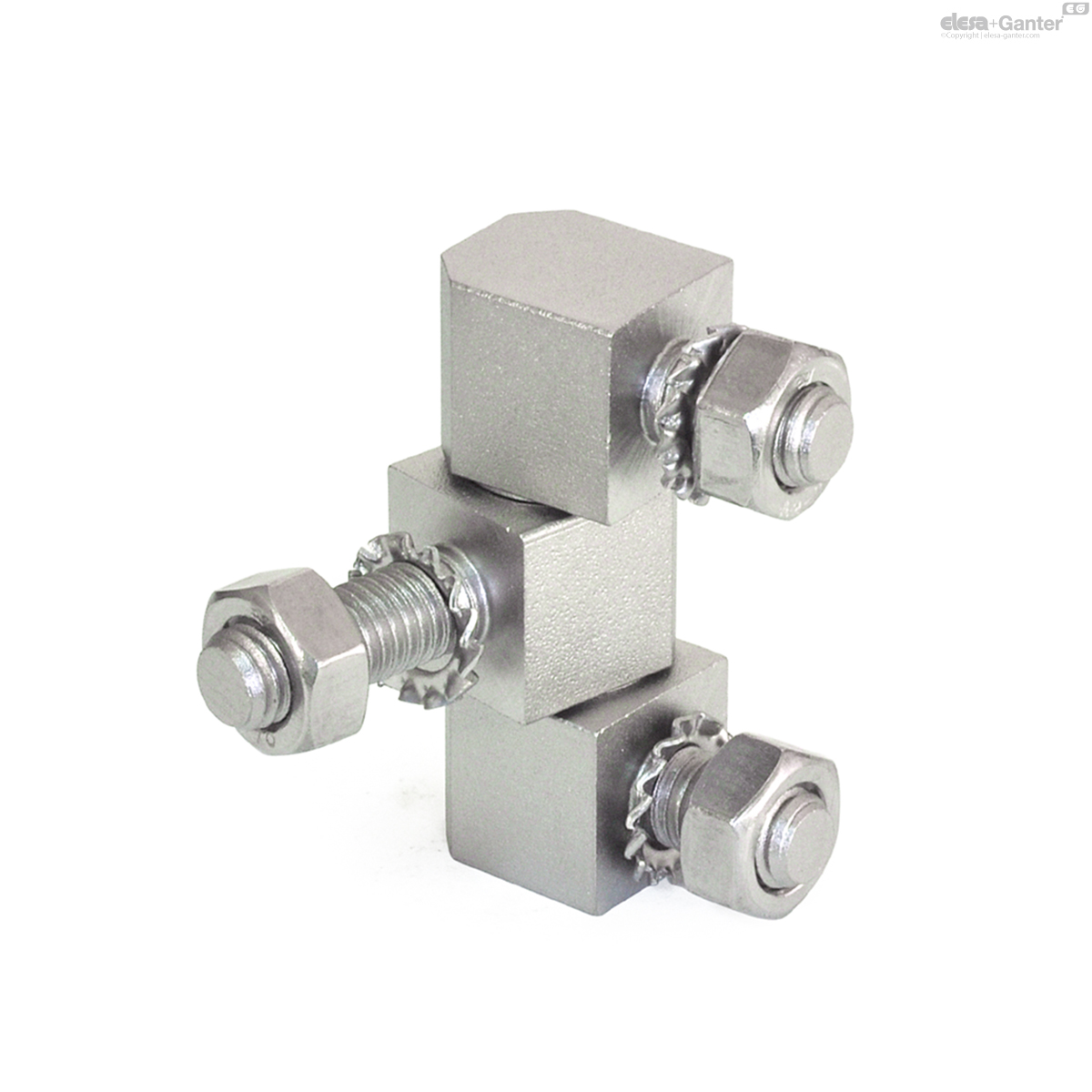

Stainless Steel-Hinges GN 129.5 are used for doors which are flush with the frame on the outside. Once assembled, they cannot be unhinged.
With the fixing from the inside, they are especially suitable for doors and trap doors which must not be detachable from the outside as an anti-tamper device.
- Assembly instruction GN 129Â
Technical information
- Stainless Steel characteristicsÂ
- List of hinges typesÂ
GN 129.5-NI

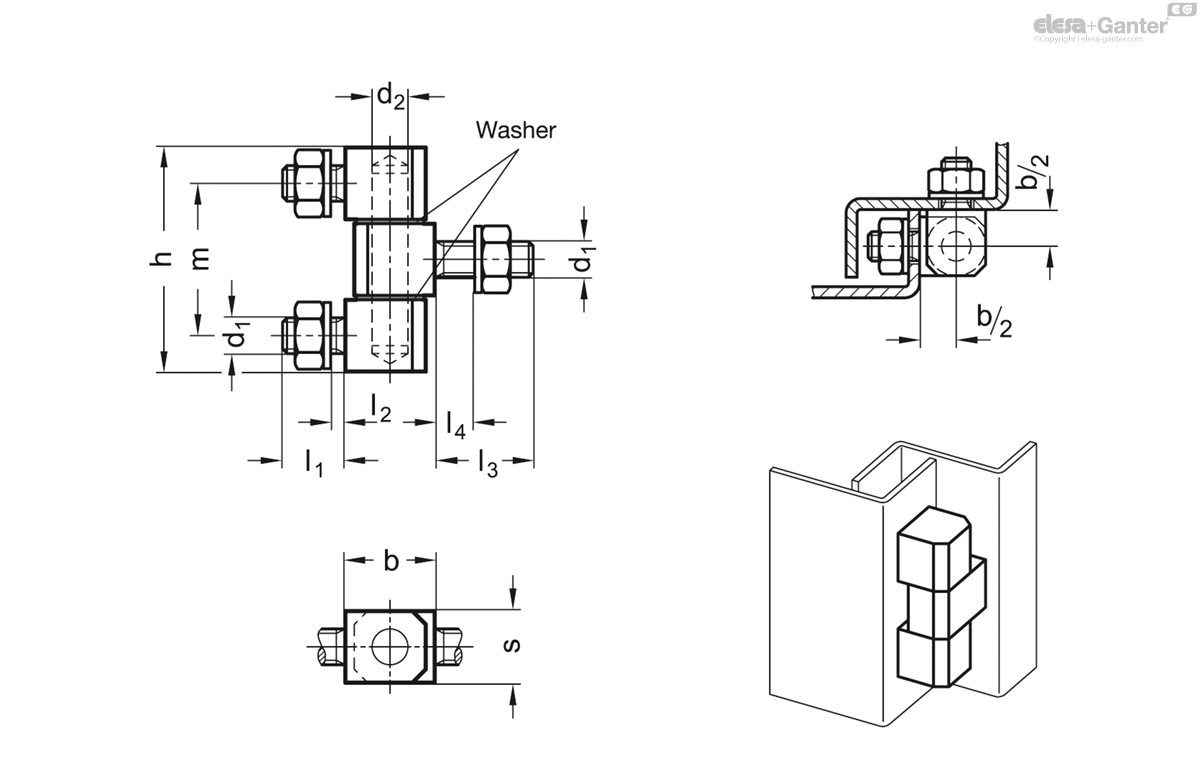

| s | b | d1 | d2 | h | l1 | l2 | l3 | l4 max. | m |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| GN 129.5-12-D-NI | 12 | 15 | M 6 | 6 | 39.2 | 10 | 5 | 14 | 9 | 27.2 | 57 |
|
| GN 129.5-16-D-NI | 16 | 20 | M 8 | 8 | 49 | 14 | 8 | 22 | 16 | 33 | 133 |
|
Enquiry Now
