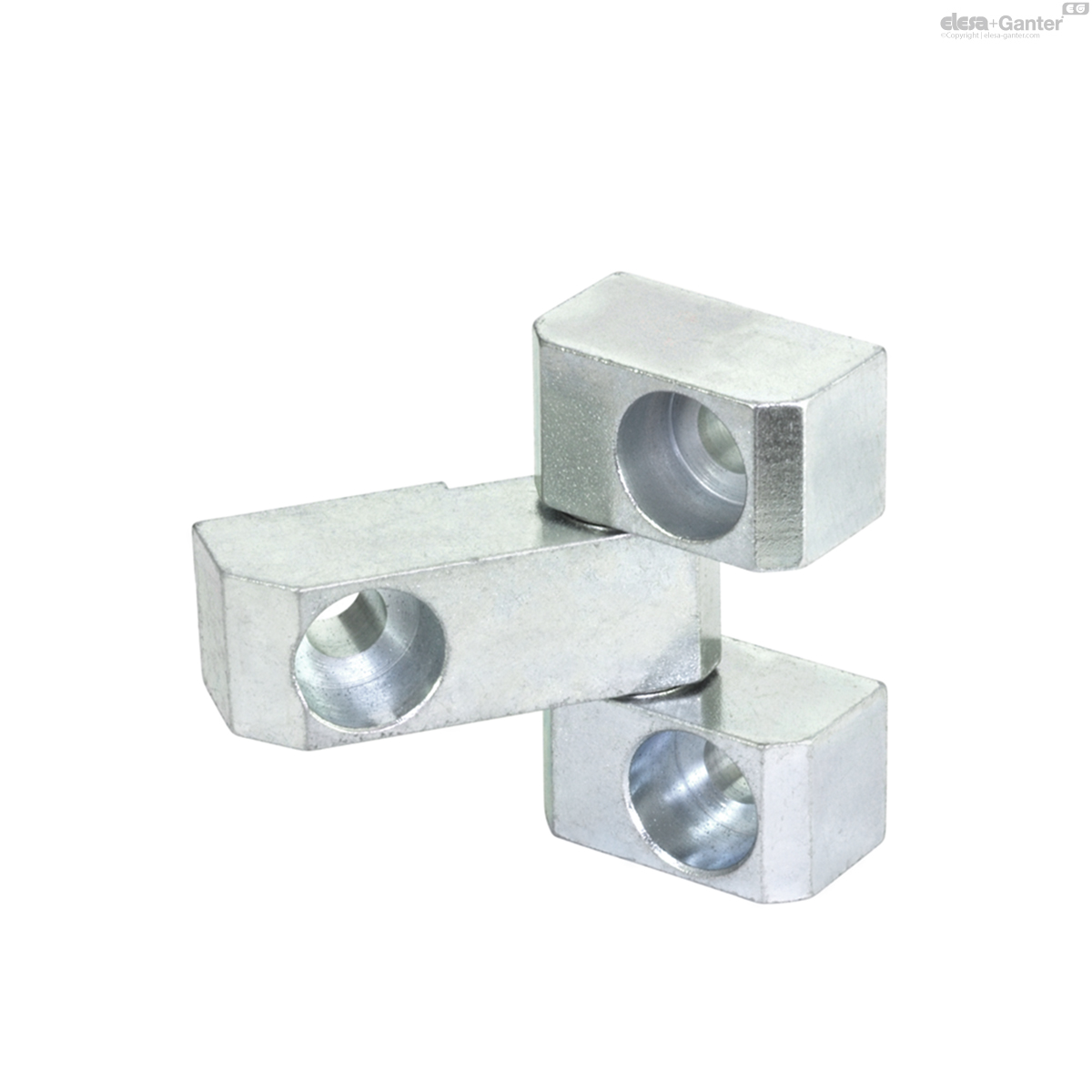

GN 129.3
Hinges
consisting of three parts / Steel
Description
Specification
Type
Type A: Fixing from the front side
Steel zinc plated, blue passivated ST
Pin
Brass, nickel plated
Washer
Brass, nickel plated
Information
Hinges GN 129.3 are used for doors which are flush with the frame on the outside. Once assembled, they cannot be unhinged.
The hinges are fastened with socket cap screws DIN 912. This allows arbitrary wall thicknesses on the housing or door to be realized with the existing thread or using through-holes.
- Assembly instruction GN 129Â
Technical information
- List of hinges typesÂ
GN 129.3

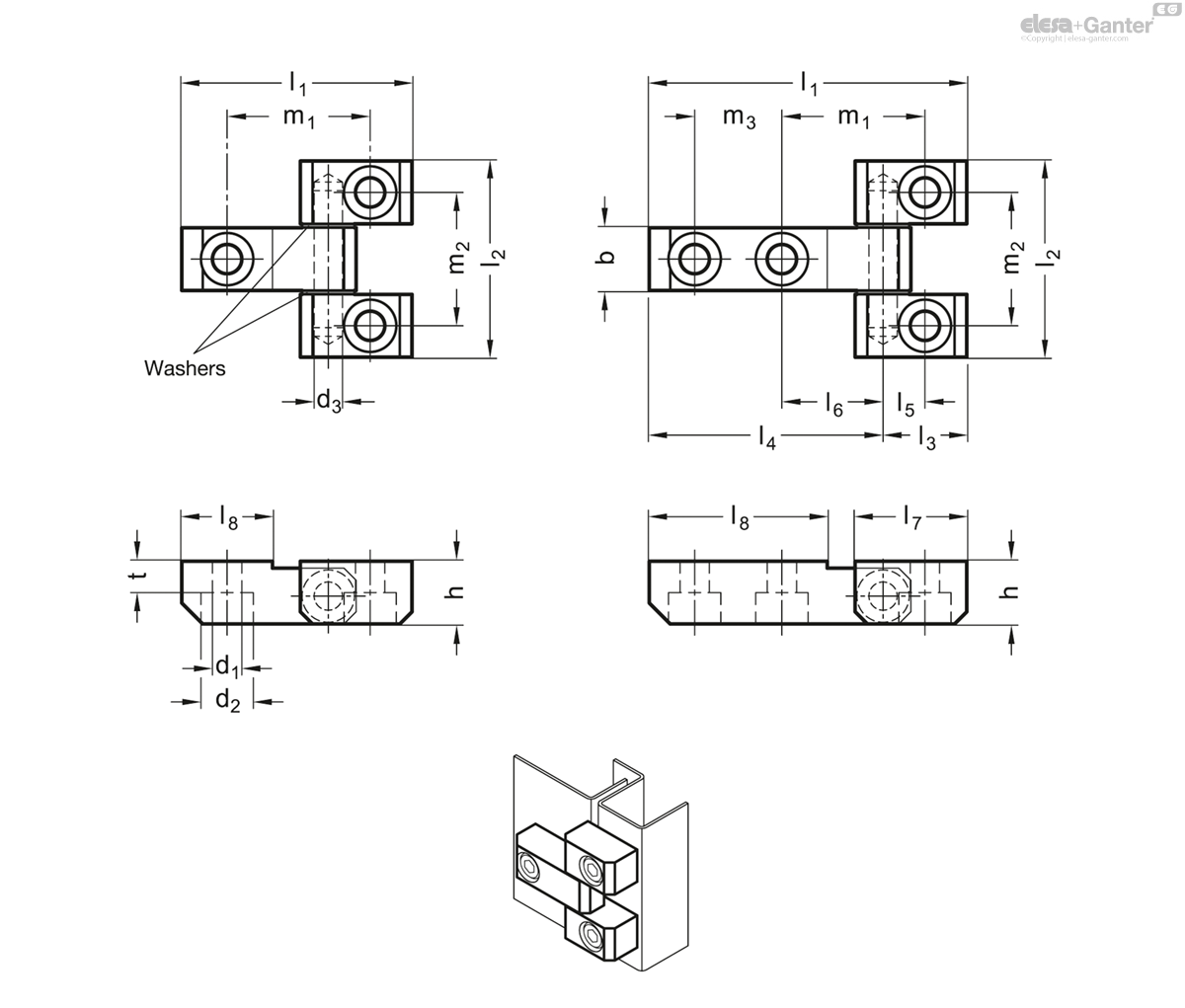

| l1 | l2 | b | d1 | d2 | d3 | h | l3 | l4 max. | l5 | l6 max. | l7 | l8 | m1 | m2 | m3 | t |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||||||||
| GN 129.3-66-55-A-ST | 66 | 55 | 18 | 8.4 | 15 | 8 | 18 | 24 | 42 | 12 | 29 | 32 | 26 | 41 | 37 | - | 9 | 228 |
|
| GN 129.3-91-55-A-ST | 91 | 55 | 18 | 8.4 | 15 | 8 | 18 | 24 | 67 | 12 | 29 | 32 | 51 | 41 | 37 | 25 | 9 | 272 |
|
