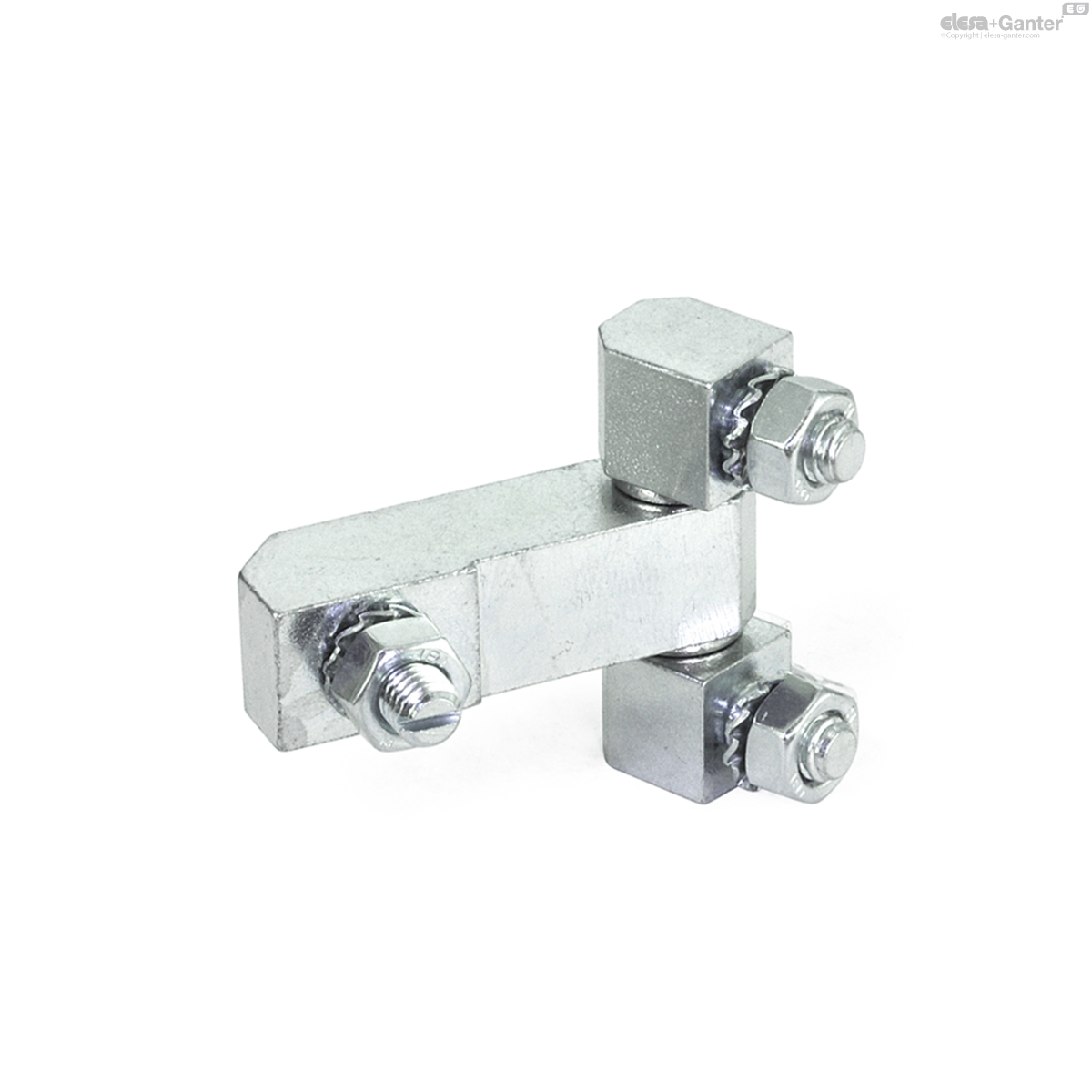

Version in Steel

Hinge

Steel zinc plated, blue passivated ST

Brass, nickel plated

Washer

Brass, nickel plated

Hexagon nut ISO 4032

Steel zinc plated, blue passivated

Serrated washer DIN 6797 for securing screws

Steel zinc plated, blue passivated

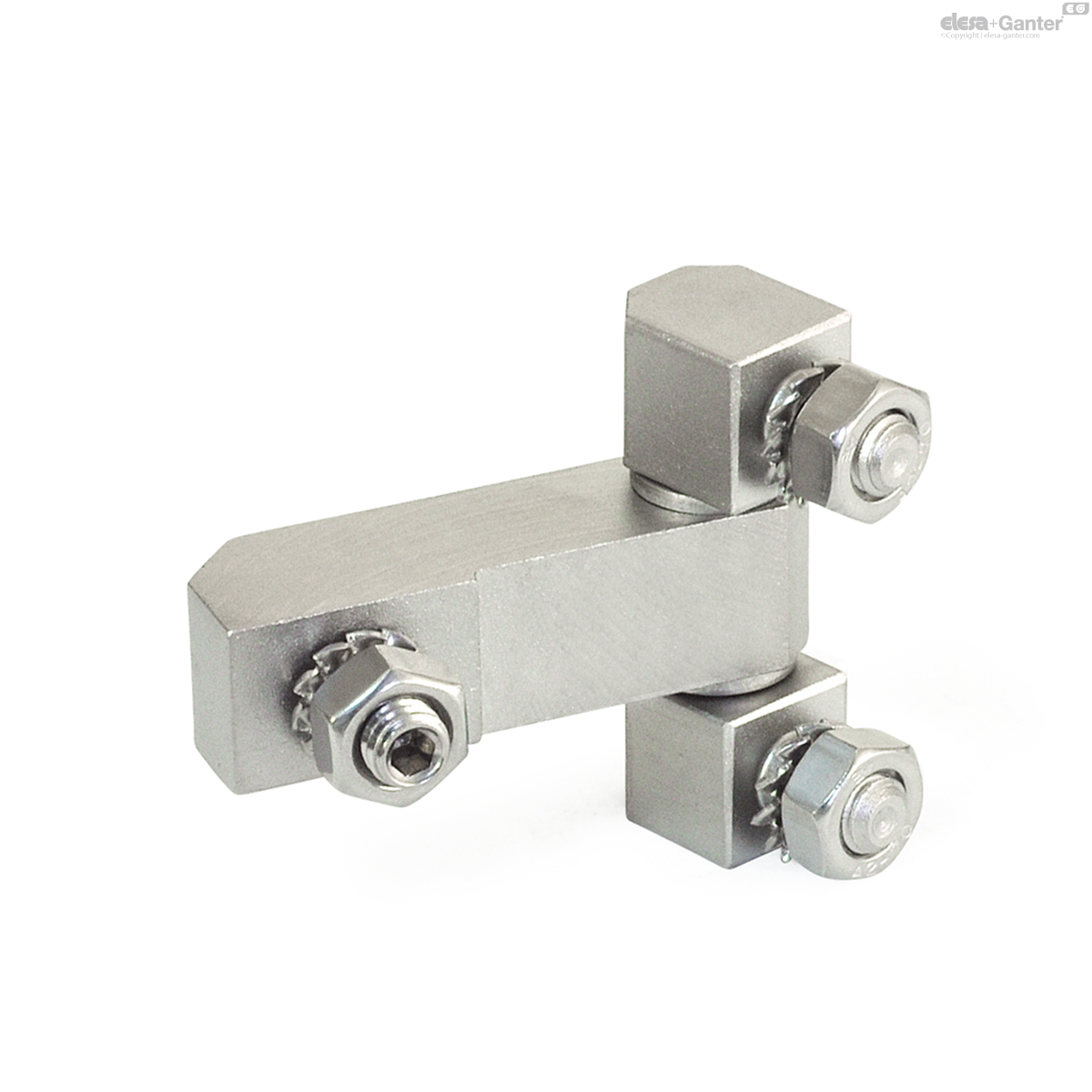

Version in Stainless Steel

Hinge body, pin, washer

Stainless Steel AISI 303 NI

Stainless Steel AISI 316L A4

Hexagon nut ISO 4032

Stainless Steel AISI 304

Serrated washer DIN 6797 for securing screws

Stainless Steel AISI 304

Information

Hinges GN 129.2 are used for doors which are flush with the frame on the outside. Once assembled, they cannot be unhinged.

With the fixing from the inside, they are especially suitable for doors and trap doors which must not be detachable from the outside as an anti-tamper device.

Assembly instruction GN 129

Technical information

Stainless Steel characteristics

List of hinges types

GN 129.2

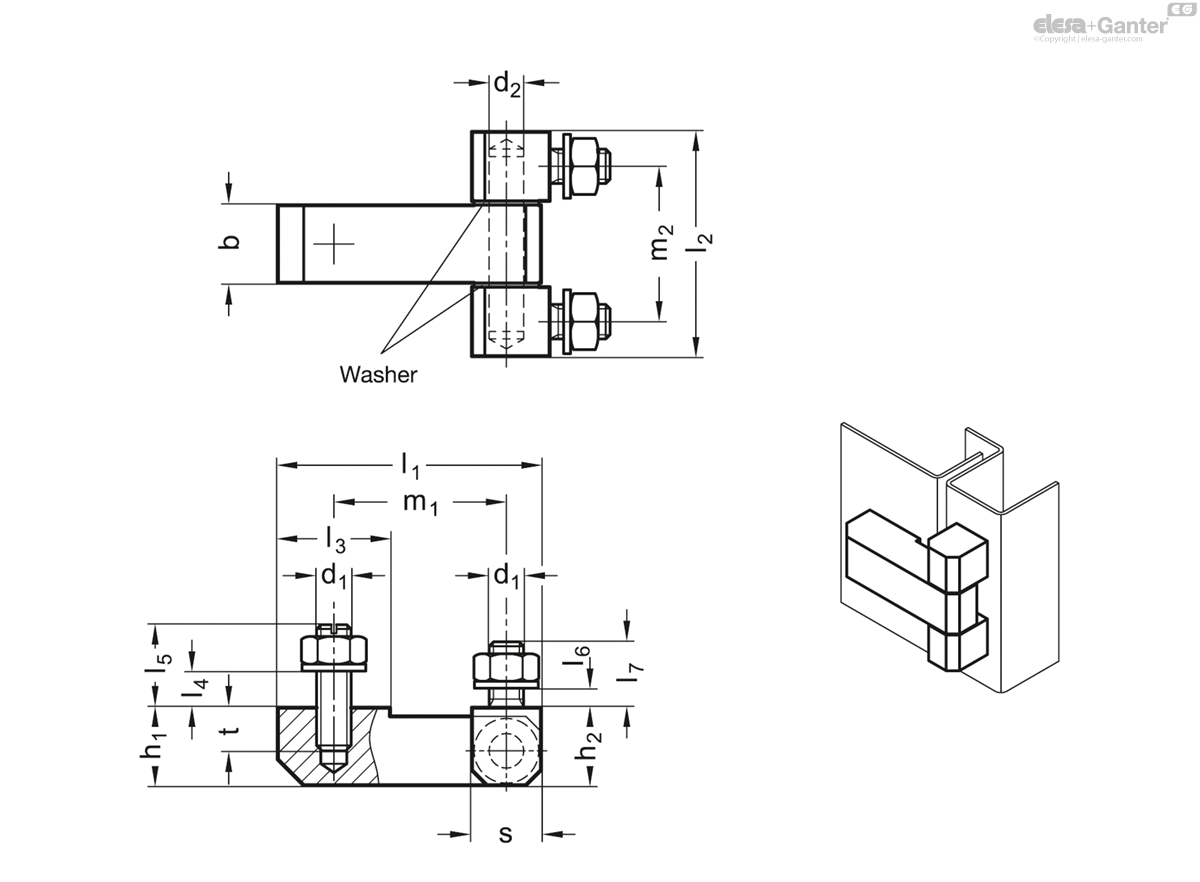

	l₁	l₂	b	d₁	d₂	h₁	h₂	l₃	l₄ max.	l₅	l₆ max.	l₇	m₁	m₂	s	t
Code																		Actions
GN 129.2-45-40-C-ST	45	40	13	M6	6	13	13.5	18	6	11	5	10	30	28.2	12	9	101
GN 129.2-50-51-C-ST	50	51	18	M8	8	18	18	26	8	14	8	14	29	35	16	11	210
GN 129.2-53-40-C-ST	53	40	13	M6	6	13	13.5	26	6	11	5	10	38	28.2	12	9	109
GN 129.2-61-51-C-ST	61	51	18	M8	8	18	18	26	8	14	8	14	40	35	16	11	240
