GN 127
Hinges
Zinc die casting / Stainless Steel, adjustable
Description
Specification
Types
- Type H: vertically adjustable
- Type B: horizontally adjustable
- Type HB: vertically and horizontally adjustable
Zinc die casting
plastic coated

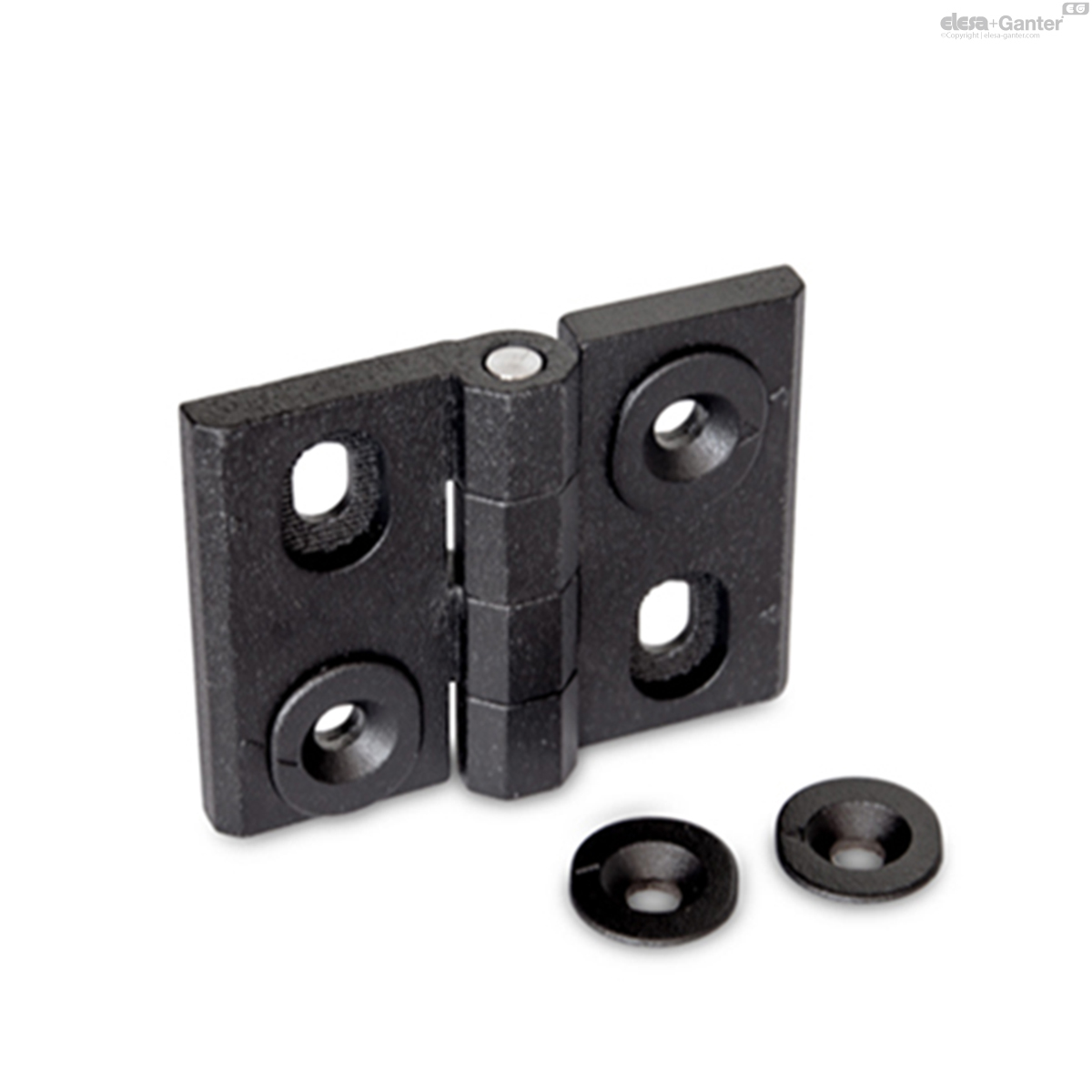

black, RAL 9005, textured finish SW

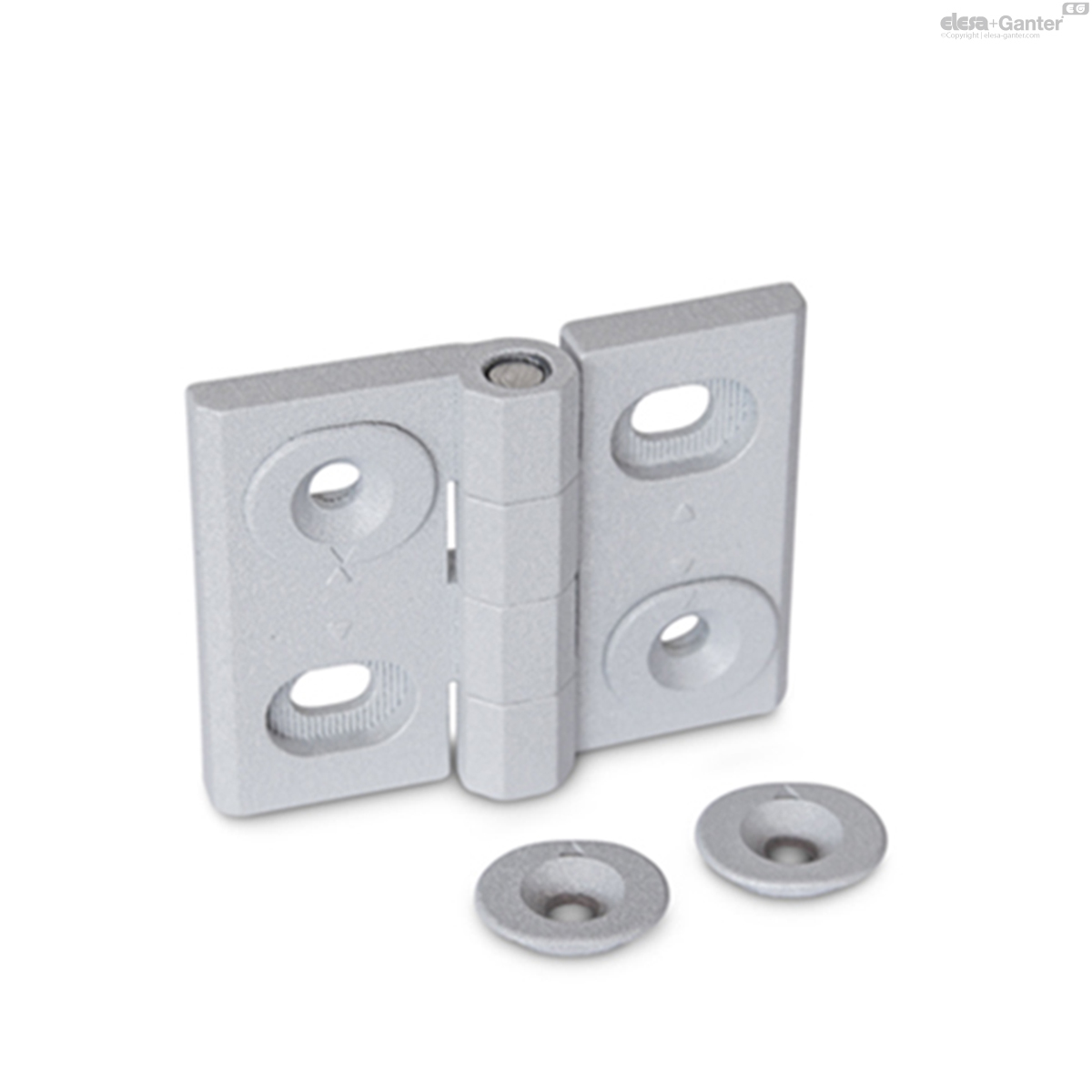

silver, RAL 9006, textured finish SR

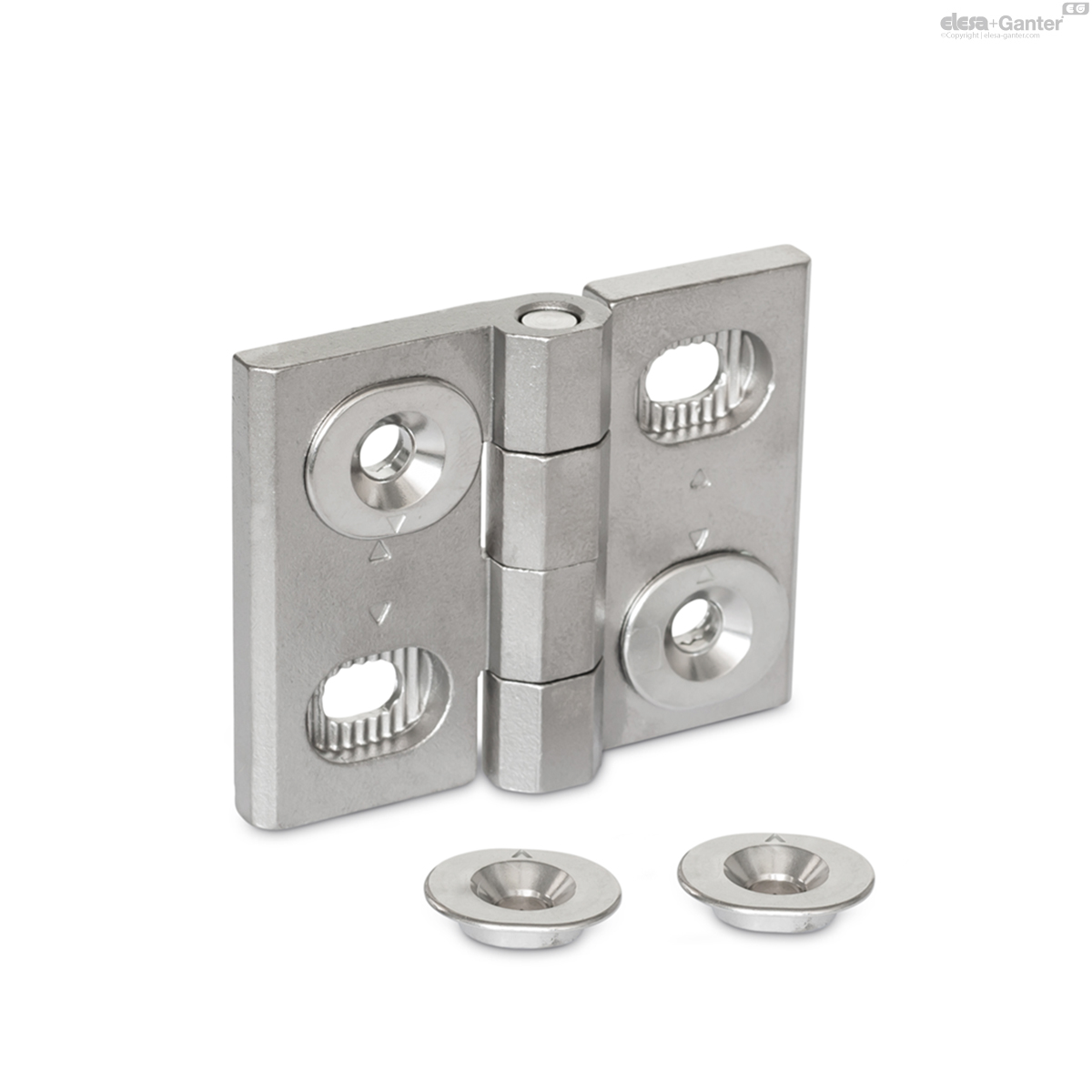

Stainless Steel A4
German Material No. 1.4408
matte shot-blasted GS
Pin
Stainless Steel AISI 316Ti
Information
With hinges GN 127 doors and covers can be positioned snugly and in a finely adjusted manner by moving the adjusting bushings. In this way, door gaps can be readjusted and manufacturing tolerances can be compensated. The arrowheads mark the middle of the adjustable range w.
The Stainless Steel variants are also generally suited for applications under especially aggressive conditions.
Technical information
- Stainless Steel characteristicsÂ
- Load rating information of hingesÂ
- List of hinges typesÂ
GN 127
| Color | l1 | l2 | d1 | d2 | h1 | h2 | h3 | l3 | m1 | m2 | w | x |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||||
| GN 127-ZD-52-40-B-SR | SR - RAL 9006 | 52 | 40 | 4.5 | 4 | 9.5 | 6.5 | 5.5 | 22 | 30 | 22 | 2 | 0.5 | 64 |
|
| GN 127-ZD-52-40-B-SW | SW - RAL 9004 | 52 | 40 | 4.5 | 4 | 9.5 | 6.5 | 5.5 | 22 | 30 | 22 | 2 | 0.5 | 64 |
|
| GN 127-ZD-52-40-H-SR | SR - RAL 9006 | 52 | 40 | 4.5 | 4 | 9.5 | 6 | 5.5 | 22 | 30 | 22 | 2 | 0.5 | 64 |
|
| GN 127-ZD-52-40-H-SW | SW - RAL 9004 | 52 | 40 | 4.5 | 4 | 9.5 | 6 | 5.5 | 22 | 30 | 22 | 2 | 0.5 | 64 |
|
| GN 127-ZD-52-40-HB-SR | SR - RAL 9006 | 52 | 40 | 4.5 | 4 | 9.5 | 6.5 | 5.5 | 22 | 30 | 22 | 2 | 0.5 | 64 |
|
| GN 127-ZD-52-40-HB-SW | SW - RAL 9004 | 52 | 40 | 4.5 | 4 | 9.5 | 6.5 | 5.5 | 22 | 30 | 22 | 2 | 0.5 | 64 |
|
| GN 127-ZD-64-50-B-SR | SR - RAL 9006 | 64 | 50 | 5.5 | 6 | 11.5 | 7 | 7.5 | 28 | 37 | 27 | 3 | 0.75 | 127 |
|
| GN 127-ZD-64-50-B-SW | SW - RAL 9004 | 64 | 50 | 5.5 | 6 | 11.5 | 7 | 7.5 | 28 | 37 | 27 | 3 | 0.75 | 127 |
|
| GN 127-ZD-64-50-H-SR | SR - RAL 9006 | 64 | 50 | 5.5 | 6 | 11.5 | 6.5 | 7.5 | 28 | 37 | 27 | 3 | 0.75 | 127 |
|
| GN 127-ZD-64-50-H-SW | SW - RAL 9004 | 64 | 50 | 5.5 | 6 | 11.5 | 6.5 | 7.5 | 28 | 37 | 27 | 3 | 0.75 | 127 |
|
| GN 127-ZD-64-50-HB-SR | SR - RAL 9006 | 64 | 50 | 5.5 | 6 | 11.5 | 7 | 7.5 | 28 | 37 | 27 | 3 | 0.75 | 127 |
|
| GN 127-ZD-64-50-HB-SW | SW - RAL 9004 | 64 | 50 | 5.5 | 6 | 11.5 | 7 | 7.5 | 28 | 37 | 27 | 3 | 0.75 | 127 |
|
| GN 127-ZD-76-60-B-SR | SR - RAL 9006 | 76 | 60 | 6.5 | 8 | 15 | 9 | 8.5 | 33.5 | 42 | 34 | 4 | 1 | 204 |
|
| GN 127-ZD-76-60-B-SW | SW - RAL 9004 | 76 | 60 | 6.5 | 8 | 15 | 9 | 8.5 | 33.5 | 42 | 34 | 4 | 1 | 204 |
|
| GN 127-ZD-76-60-H-SR | SR - RAL 9006 | 76 | 60 | 6.5 | 8 | 15 | 9 | 8.5 | 33.5 | 42 | 34 | 4 | 1 | 204 |
|
| GN 127-ZD-76-60-H-SW | SW - RAL 9004 | 76 | 60 | 6.5 | 8 | 15 | 9 | 8.5 | 33.5 | 42 | 34 | 4 | 1 | 204 |
|
| GN 127-ZD-76-60-HB-SR | SR - RAL 9006 | 76 | 60 | 6.5 | 8 | 15 | 9 | 8.5 | 33.5 | 42 | 34 | 4 | 1 | 204 |
|
| GN 127-ZD-76-60-HB-SW | SW - RAL 9004 | 76 | 60 | 6.5 | 8 | 15 | 9 | 8.5 | 33.5 | 42 | 34 | 4 | 1 | 204 |
|
