Adjustable Stainless Steel-Flat tension levers

Enquire Now

GN 125.5

Adjustable Stainless Steel-Flat tension levers

with threaded insert

GN-125.5

Adjustable Stainless Steel-Flat tension levers

with threaded stud

Description

Specification

Types

Type D: straight lever

Type E: angled lever

Stainless Steel AISI 303

matt shot-blasted

Cover

Plastic, light grey

Ball knobs DIN 319

Plastic, Duroplast

black, shiny finish

Safety circlip

Plastic (Polyacetal)

Information

The overall height of Stainless Steel-tension levers GN 125.5 is reduced to a minimum.

As all other adjustable levers, they are ideal whenever parts have to be clamped in a confined space, or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged.

Pulling the lever, disengages the serrations and the lever can be swivelled to the ideal clamping position. On releasing the lever it will automatically re-engage.

On request

with threaded through hole

Technical information

Stainless Steel Characteristics -

Plastic characteristics

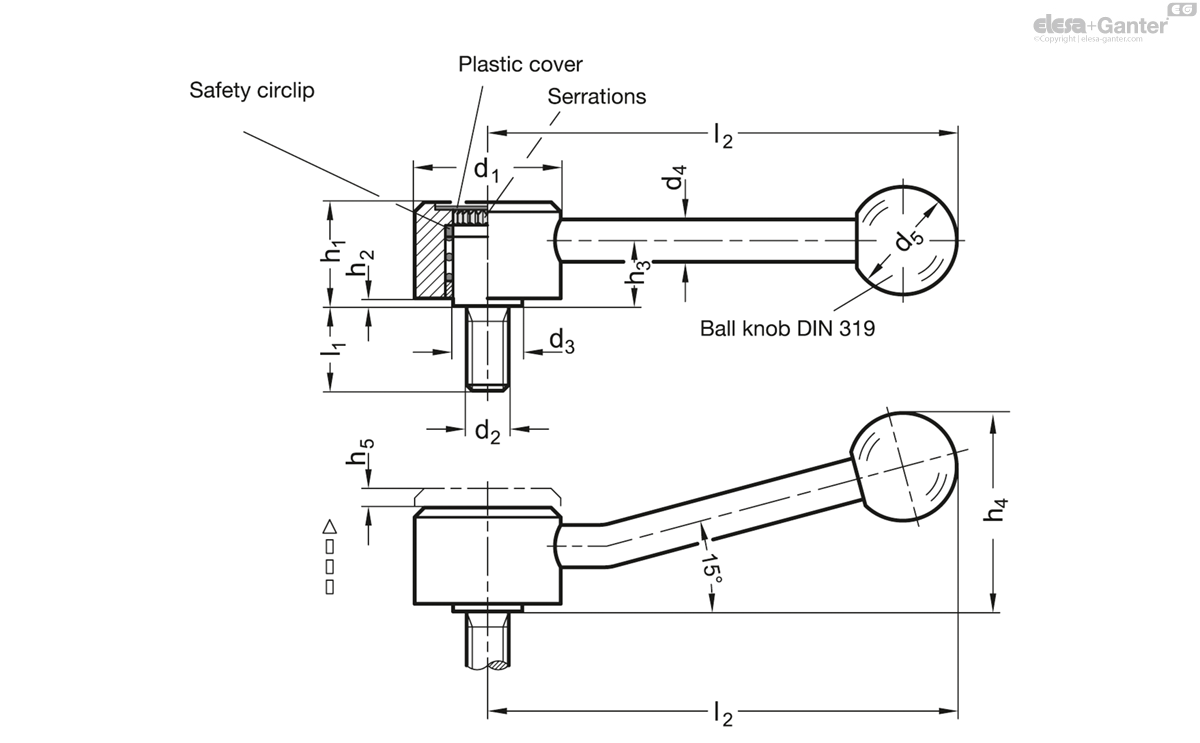

GN-125.5

	d₁	d₂	l₁	d₃	d₄	d₅	h₁	h₂	h₃	h₄ ≈	h₅	l₂
Code														Actions
GN 125.5-32-M8-12-D	32	M 8	12	13.5	8	20	20.5	1.5	12.5	-	4	100	151
GN 125.5-32-M8-12-E	32	M 8	12	13.5	8	20	20.5	1.5	12.5	36	4	100	151
GN 125.5-32-M8-16-D	32	M 8	16	13.5	8	20	20.5	1.5	12.5	-	4	100	152
GN 125.5-32-M8-16-E	32	M 8	16	13.5	8	20	20.5	1.5	12.5	36	4	100	152
GN 125.5-32-M8-20-D	32	M 8	20	13.5	8	20	20.5	1.5	12.5	-	4	100	153
GN 125.5-32-M8-20-E	32	M 8	20	13.5	8	20	20.5	1.5	12.5	36	4	100	153
GN 125.5-32-M8-25-D	32	M 8	25	13.5	8	20	20.5	1.5	12.5	-	4	100	155
GN 125.5-32-M8-25-E	32	M 8	25	13.5	8	20	20.5	1.5	12.5	36	4	100	155
GN 125.5-32-M8-32-D	32	M 8	32	13.5	8	20	20.5	1.5	12.5	-	4	100	157
GN 125.5-32-M8-32-E	32	M 8	32	13.5	8	20	20.5	1.5	12.5	36	4	100	157
GN 125.5-32-M8-40-D	32	M 8	40	13.5	8	20	20.5	1.5	12.5	-	4	100	159
GN 125.5-32-M8-40-E	32	M 8	40	13.5	8	20	20.5	1.5	12.5	36	4	100	159
GN 125.5-32-M8-50-D	32	M 8	50	13.5	8	20	20.5	1.5	12.5	-	4	100	163
GN 125.5-32-M8-50-E	32	M 8	50	13.5	8	20	20.5	1.5	12.5	36	4	100	163
GN 125.5-36-M10-16-D	36	M 10	16	16	10	25	24.5	2	15	-	4.5	120	239
GN 125.5-36-M10-16-E	36	M 10	16	16	10	25	24.5	2	15	45	4.5	120	239
GN 125.5-36-M10-20-D	36	M 10	20	16	10	25	24.5	2	15	-	4.5	120	241
GN 125.5-36-M10-20-E	36	M 10	20	16	10	25	24.5	2	15	45	4.5	120	241
GN 125.5-36-M10-25-D	36	M 10	25	16	10	25	24.5	2	15	-	4.5	120	243
GN 125.5-36-M10-25-E	36	M 10	25	16	10	25	24.5	2	15	45	4.5	120	243
GN 125.5-36-M10-32-D	36	M 10	32	16	10	25	24.5	2	15	-	4.5	120	246
GN 125.5-36-M10-32-E	36	M 10	32	16	10	25	24.5	2	15	45	4.5	120	246
GN 125.5-36-M10-40-D	36	M 10	40	16	10	25	24.5	2	15	-	4.5	120	251
GN 125.5-36-M10-40-E	36	M 10	40	16	10	25	24.5	2	15	45	4.5	120	251
GN 125.5-36-M10-50-D	36	M 10	50	16	10	25	24.5	2	15	-	4.5	120	256
GN 125.5-36-M10-50-E	36	M 10	50	16	10	25	24.5	2	15	45	4.5	120	256
GN 125.5-36-M10-63-D	36	M 10	63	16	10	25	24.5	2	15	-	4.5	120	263
GN 125.5-36-M10-63-E	36	M 10	63	16	10	25	24.5	2	15	45	4.5	120	263
GN 125.5-36-M10-80-D	36	M 10	80	16	10	25	24.5	2	15	-	4.5	120	270
GN 125.5-36-M10-80-E	36	M 10	80	16	10	25	24.5	2	15	45	4.5	120	270
GN 125.5-40-M12-25-D	40	M 12	25	19	12	30	30	4	19	-	4.5	130	358
GN 125.5-40-M12-25-E	40	M 12	25	19	12	30	30	4	19	53	4.5	130	358
GN 125.5-40-M12-32-D	40	M 12	32	19	12	30	30	4	19	-	4.5	130	363
GN 125.5-40-M12-32-E	40	M 12	32	19	12	30	30	4	19	53	4.5	130	363
GN 125.5-40-M12-40-D	40	M 12	40	19	12	30	30	4	19	-	4.5	130	368
GN 125.5-40-M12-40-E	40	M 12	40	19	12	30	30	4	19	53	4.5	130	368
GN 125.5-40-M12-50-D	40	M 12	50	19	12	30	30	4	19	-	4.5	130	374
GN 125.5-40-M12-50-E	40	M 12	50	19	12	30	30	4	19	53	4.5	130	374
GN 125.5-40-M12-63-D	40	M 12	63	19	12	30	30	4	19	-	4.5	130	385
GN 125.5-40-M12-63-E	40	M 12	63	19	12	30	30	4	19	53	4.5	130	385
GN 125.5-40-M12-80-D	40	M 12	80	19	12	30	30	4	19	-	4.5	130	396
GN 125.5-40-M12-80-E	40	M 12	80	19	12	30	30	4	19	53	4.5	130	396
GN 125.5-45-M16-32-D	45	M 16	32	23	12	32	35.5	4	24	-	5	145	635
GN 125.5-45-M16-32-E	45	M 16	32	23	12	32	35.5	4	24	64	5	145	635
GN 125.5-45-M16-40-D	45	M 16	40	23	12	32	35.5	4	24	-	5	145	646
GN 125.5-45-M16-40-E	45	M 16	40	23	12	32	35.5	4	24	64	5	145	646
GN 125.5-45-M16-50-D	45	M 16	50	23	12	32	35.5	4	24	-	5	145	662
GN 125.5-45-M16-50-E	45	M 16	50	23	12	32	35.5	4	24	64	5	145	662
GN 125.5-45-M16-63-D	45	M 16	63	23	12	32	35.5	4	24	-	5	145	677
GN 125.5-45-M16-63-E	45	M 16	63	23	12	32	35.5	4	24	64	5	145	677
GN 125.5-45-M16-80-D	45	M 16	80	23	12	32	35.5	4	24	-	5	145	699
GN 125.5-45-M16-80-E	45	M 16	80	23	12	32	35.5	4	24	64	5	145	699
