GN 125.5

Adjustable Stainless Steel-Flat tension levers

Enquire Now

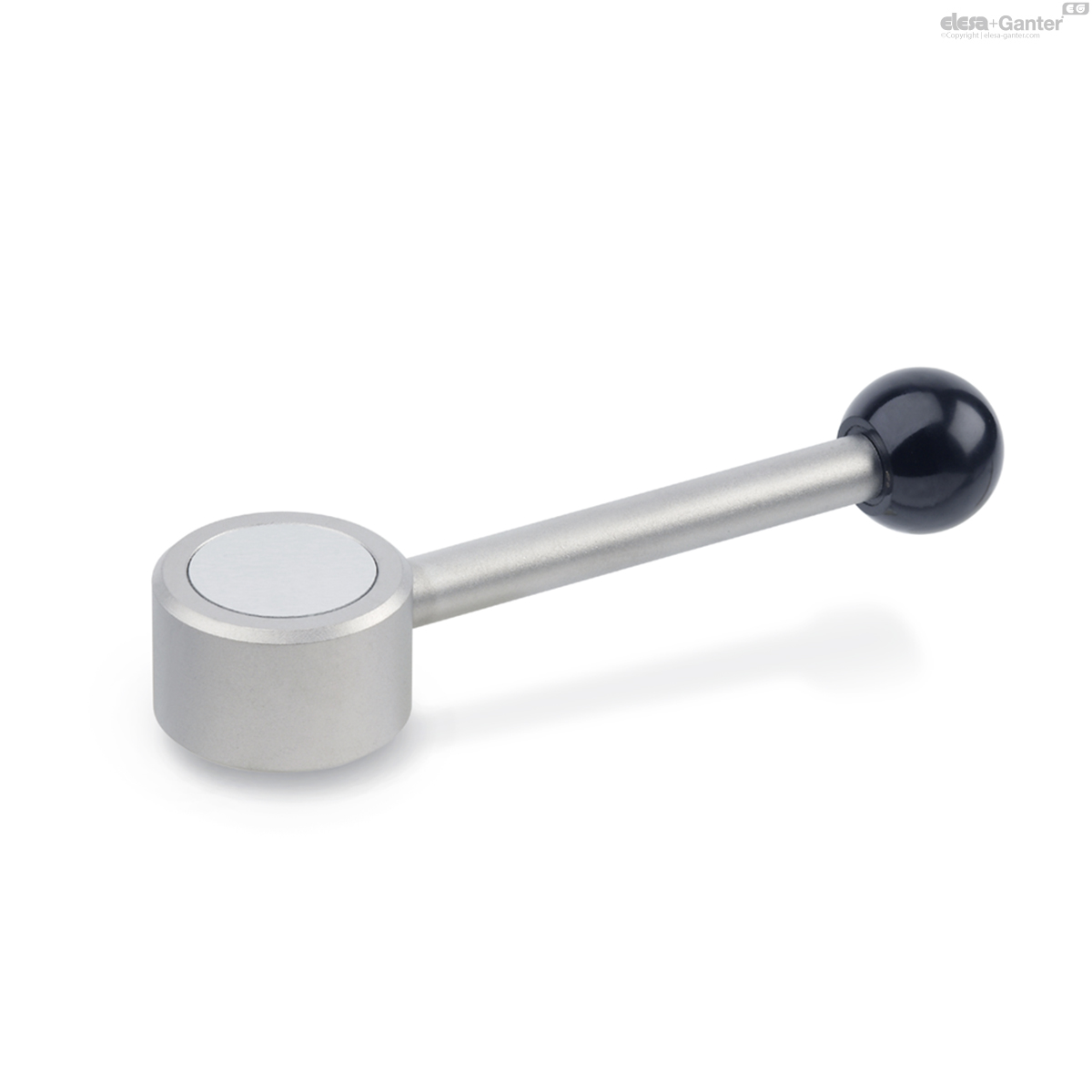

GN 125.5

Adjustable Stainless Steel-Flat tension levers

with threaded insert

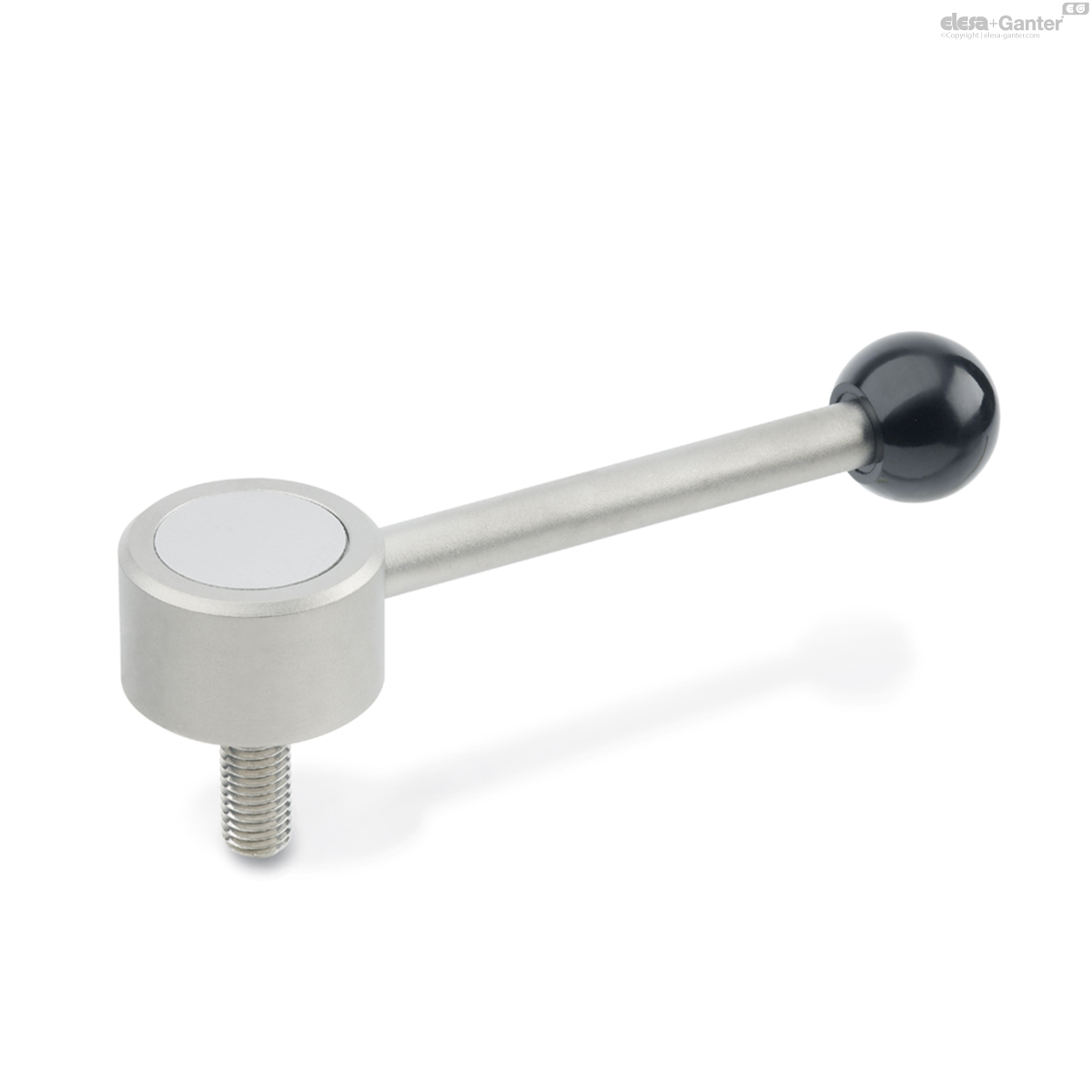

GN-125.5

Adjustable Stainless Steel-Flat tension levers

with threaded stud

Description

Specification

Types

Type D: straight lever

Type E: angled lever

Stainless Steel AISI 303

matt shot-blasted

Cover

Plastic, light grey

Ball knobs DIN 319

Plastic, Duroplast

black, shiny finish

Safety circlip

Plastic (Polyacetal)

Information

The overall height of Stainless Steel-tension levers GN 125.5 is reduced to a minimum.

As all other adjustable levers, they are ideal whenever parts have to be clamped in a confined space, or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged.

Pulling the lever, disengages the serrations and the lever can be swivelled to the ideal clamping position. On releasing the lever it will automatically re-engage.

On request

with threaded through hole

Technical information

Stainless Steel Characteristics -

Plastic characteristics

GN 125.5

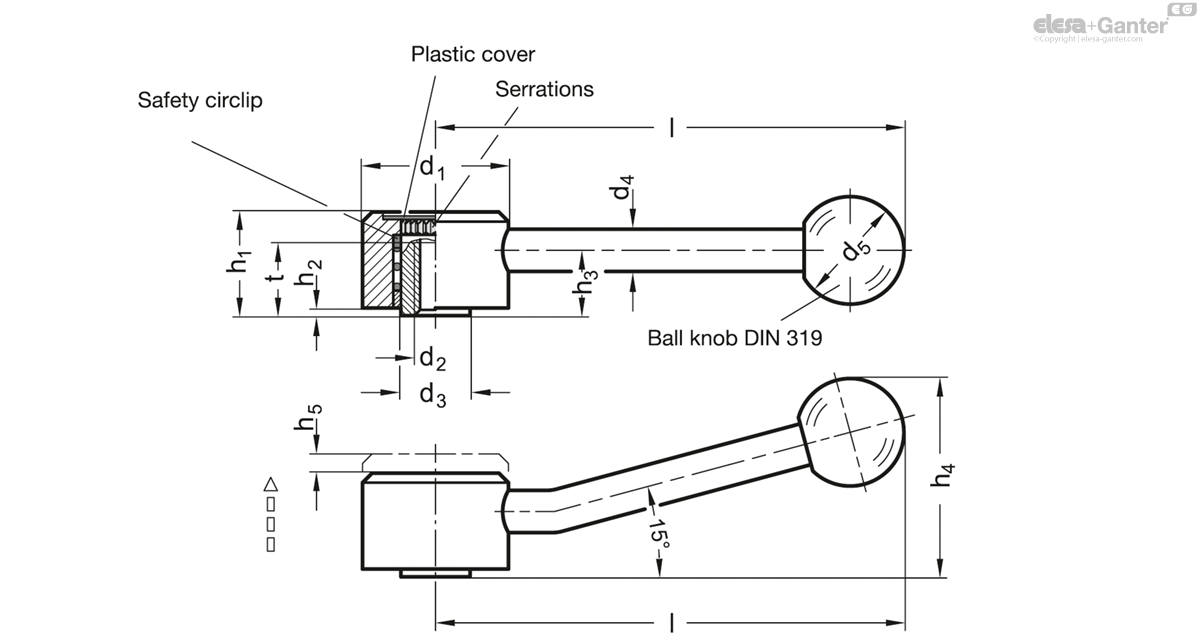

	d₁	d₂	d₃	d₄	d₅	h₁	h₂	h₃	h₄ ≈	h₅	l	t min.
Code														Actions
GN 125.5-32-M6-D	32	M 6	13.5	8	20	20.5	1.5	12.5	-	4	100	11	145
GN 125.5-32-M6-E	32	M 6	13.5	8	20	20.5	1.5	12.5	36	4	100	11	145
GN 125.5-32-M8-D	32	M 8	13.5	8	20	20.5	1.5	12.5	-	4	100	11	129
GN 125.5-32-M8-E	32	M 8	13.5	8	20	20.5	1.5	12.5	36	4	100	11	129
GN 125.5-36-M8-D	36	M 8	16	10	25	24.5	2	15	-	4.5	120	14	226
GN 125.5-36-M8-E	36	M 8	16	10	25	24.5	2	15	45	4.5	120	14	226
GN 125.5-36-M10-D	36	M 10	16	10	25	24.5	2	15	-	4.5	120	14	226
GN 125.5-36-M10-E	36	M 10	16	10	25	24.5	2	15	45	4.5	120	14	226
GN 125.5-40-M10-D	40	M 10	19	12	30	30	4	19	-	4.5	130	17	330
GN 125.5-40-M10-E	40	M 10	19	12	30	30	4	19	53	4.5	130	17	330
GN 125.5-40-M12-D	40	M 12	19	12	30	30	4	19	-	4.5	130	17	324
GN 125.5-40-M12-E	40	M 12	19	12	30	30	4	19	53	4.5	130	17	324
GN 125.5-45-M12-D	45	M 12	23	12	32	35.5	4	24	-	5	145	23	576
GN 125.5-45-M12-E	45	M 12	23	12	32	35.5	4	24	64	5	145	23	447
GN 125.5-45-M16-D	45	M 16	23	12	32	35.5	4	24	-	5	145	23	559
GN 125.5-45-M16-E	45	M 16	23	12	32	35.5	4	24	64	5	145	23	559
