GN 125

Adjustable Flat tension levers

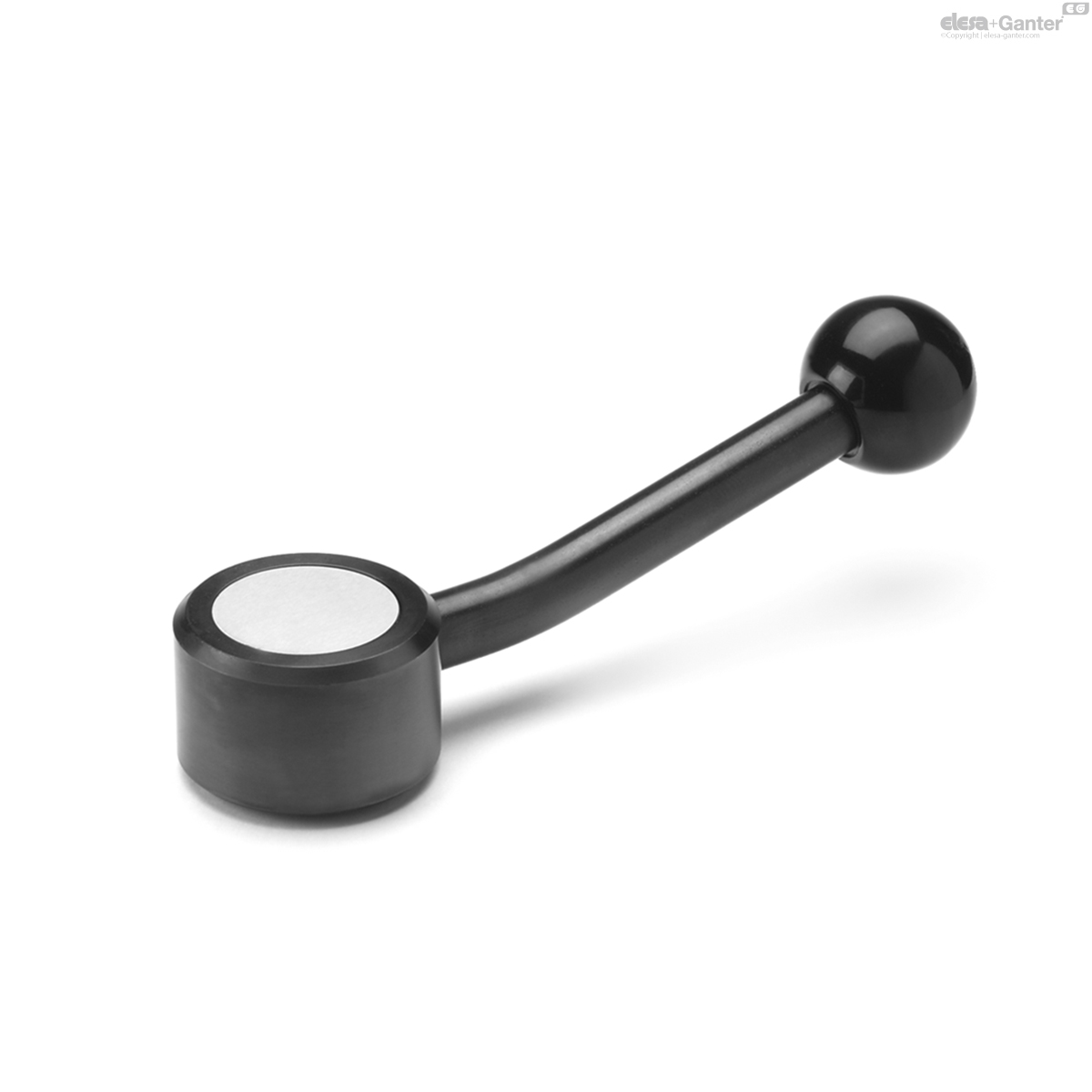

Adjustable flat tension levers with threaded insert

GN-125

Adjustable Flat tension levers

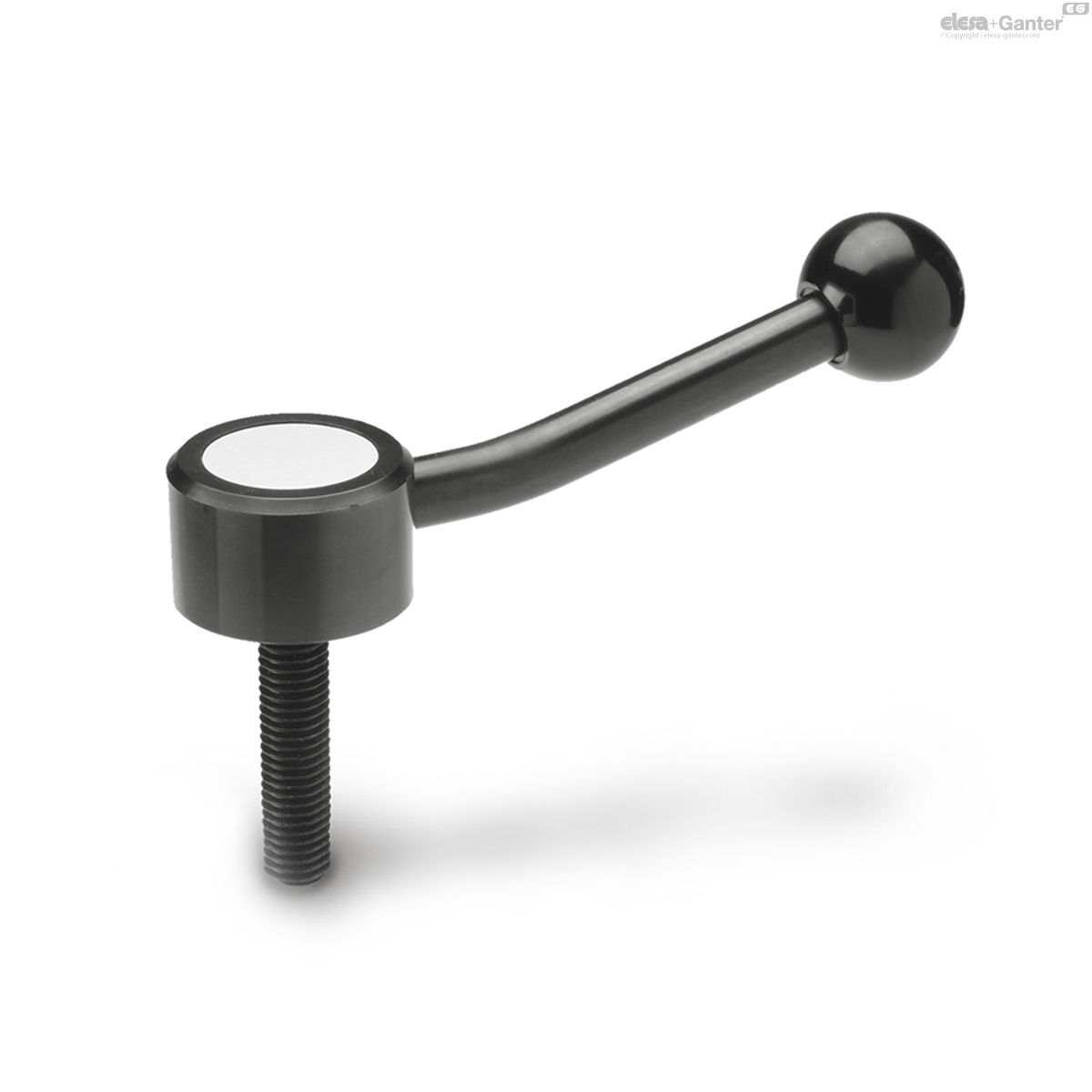

Adjustable flat tension levers with threaded stud

Description

Specification

Types

Type D: straight lever

Type E: angled lever

Steel

blackened

Tensile strength class 5.8

Cover

Plastic, light grey

Ball knobs DIN 319 -

Plastic, Duroplast

black, shiny finish

Safety circlip

Plastic (Polyacetal)

Information

The overall height of tension levers GN 125 is reduced to a minimum.

As all other adjustable levers, they are ideal whenever parts have to be clamped in a confined space, or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged.

Pulling the lever, disengages the serrations and the lever can be swivelled to the ideal clamping position. On releasing the lever it will automatically re-engage.

On request

with threaded through hole

Technical information

Plastic characteristics

Strength values of screws

GN 125

	d₁	d₂	d₃	d₄	d₅	h₁	h₂	h₃	h₄ ≈	h₅	l	t min.
Code														Actions
GN 125-32-M6-D	32	M 6	13.5	8	20	20.5	1.5	12.5	-	4	100	11	141
GN 125-32-M6-E	32	M 6	13.5	8	20	20.5	1.5	12.5	36	4	100	11	141
GN 125-32-M8-D	32	M 8	13.5	8	20	20.5	1.5	12.5	-	4	100	11	140
GN 125-32-M8-E	32	M 8	13.5	8	20	20.5	1.5	12.5	36	4	100	11	140
GN 125-36-M8-D	36	M 8	16	10	25	24.5	2	15	-	4.5	120	14	223
GN 125-36-M8-E	36	M 8	16	10	25	24.5	2	15	45	4.5	120	14	223
GN 125-36-M10-D	36	M 10	16	10	25	24.5	2	15	-	4.5	120	14	190
GN 125-36-M10-E	36	M 10	16	10	25	24.5	2	15	45	4.5	120	14	190
GN 125-36-M12-D	36	M 12	16	10	25	24.5	2	15	-	4.5	120	14	220
GN 125-36-M12-E	36	M 12	16	10	25	24.5	2	15	45	4.5	120	14	220
GN 125-40-M10-D	40	M 10	19	12	30	26.5	2	16	-	4.5	130	17	307
GN 125-40-M10-E	40	M 10	19	12	30	26.5	2	16	50	4.5	130	17	307
GN 125-40-M12-D	40	M 12	19	12	30	26.5	2	16	-	4.5	130	17	301
GN 125-40-M12-E	40	M 12	19	12	30	26.5	2	16	50	4.5	130	17	301
GN 125-45-M12-D	45	M 12	23	12	32	31.5	2	20	-	5	145	23	420
GN 125-45-M12-E	45	M 12	23	12	32	31.5	2	20	60	5	145	23	420
GN 125-45-M14-D	45	M 14	23	12	32	31.5	2	20	-	5	145	23	430
GN 125-45-M14-E	45	M 14	23	12	32	31.5	2	20	60	5	145	23	430
GN 125-45-M16-D	45	M 16	23	12	32	31.5	2	20	-	5	145	23	406
GN 125-45-M16-E	45	M 16	23	12	32	31.5	2	20	60	5	145	23	406
