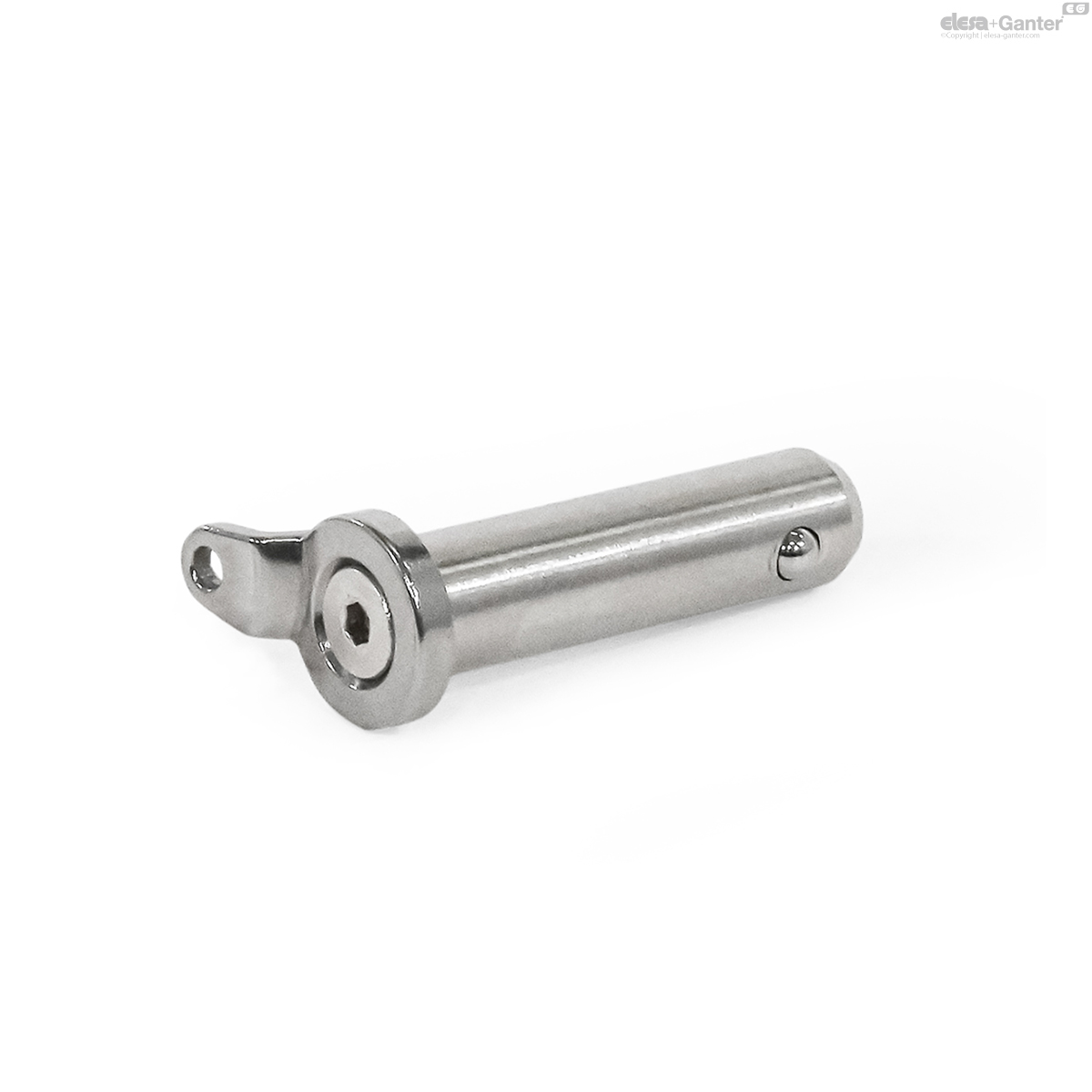

GN 124.3
Stainless Steel Locking Pins
with Axial Lock (Ball Retainer)
Description
Specification
Type
- Type E: With eyelet washer
Pin
Stainless steel AISI 303
Washer
Stainless steel AISI 316LHC
Metal injection molded
Ball
Stainless steel AISI 420C
Compression spring
Stainless steel AISI 631
Information
Stainless steel locking pins GN 124.3 are used for quick fixing, connecting and locking of various jig and fixture systems.
The locking balls are held in position by a compression spring and are therefore not rigidly locked. The pins can be quickly and easily inserted and removed from the locating hole.
The technical annex contains the load ratings for the double shear strength (breaking strength).
Accessory
- Ball Chains GN 111 / GN 111.5
- Stainless Steel Retaining Cables GN 111.2
- Spiral Retaining Cables GN 111.4
Technical information
- List of Lock Pin TypesÂ
- Load CapacityÂ
- Stainless Steel characteristicsÂ

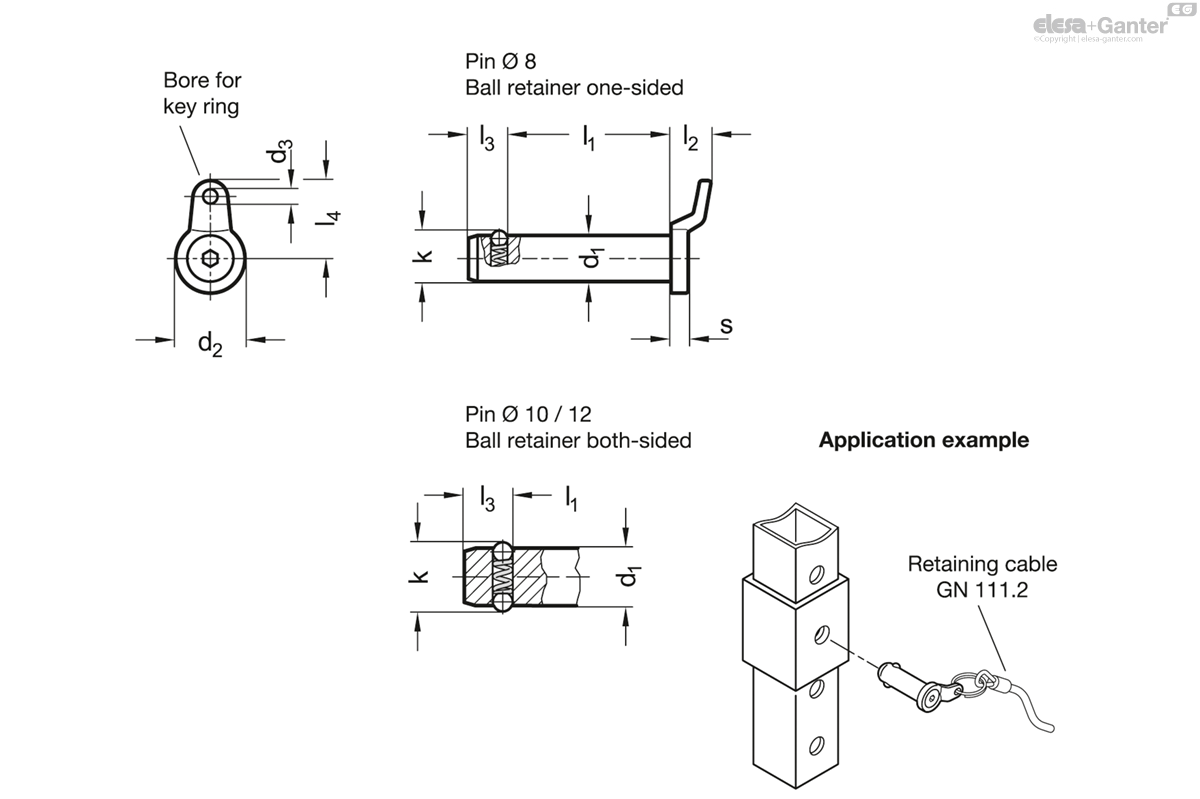

GN 124.3
| d1 -0.04/-0.08 | l1 | d2 | d3 | k | l2 | l3 | l4 | s | Location bore | Axial holding force in N≈ |
Load capacity F in kN≈ double sided shearing resistance acc. DIN 50141 (breaking strength) |
 |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| GN 124.3-8-15-E | 8 | 15 | 12 | 2.5 | 8.7 | 7 | 6.3 | 13.5 | 3 | 8 | 15 | 40 | 12 |
|
| GN 124.3-8-20-E | 8 | 20 | 12 | 2.5 | 8.7 | 7 | 6.3 | 13.5 | 3 | 8 | 15 | 40 | 14 |
|
| GN 124.3-8-25-E | 8 | 25 | 12 | 2.5 | 8.7 | 7 | 6.3 | 13.5 | 3 | 8 | 15 | 40 | 16 |
|
| GN 124.3-8-30-E | 8 | 30 | 12 | 2.5 | 8.7 | 7 | 6.3 | 13.5 | 3 | 8 | 15 | 40 | 18 |
|
| GN 124.3-8-50-E | 8 | 50 | 12 | 2.5 | 8.7 | 7 | 6.3 | 13.5 | 3 | 8 | 15 | 40 | 25 |
|
| GN 124.3-10-15-E | 10 | 15 | 15 | 2.5 | 12 | 7 | 8.7 | 15 | 3 | 10 | 30 | 62 | 22 |
|
| GN 124.3-10-20-E | 10 | 20 | 15 | 2.5 | 12 | 7 | 8.7 | 15 | 3 | 10 | 30 | 62 | 25 |
|
| GN 124.3-10-25-E | 10 | 25 | 15 | 2.5 | 12 | 7 | 8.7 | 15 | 3 | 10 | 30 | 62 | 28 |
|
| GN 124.3-10-30-E | 10 | 30 | 15 | 2.5 | 12 | 7 | 8.7 | 15 | 3 | 10 | 30 | 62 | 31 |
|
| GN 124.3-10-50-E | 10 | 50 | 15 | 2.5 | 12 | 7 | 8.7 | 15 | 3 | 10 | 30 | 62 | 41 |
|
| GN 124.3-12-20-E | 12 | 20 | 17 | 3 | 14.5 | 9 | 9.5 | 18.5 | 4 | 12 | 32 | 90 | 34 |
|
| GN 124.3-12-30-E | 12 | 30 | 17 | 3 | 14.5 | 9 | 9.5 | 18.5 | 4 | 12 | 32 | 90 | 43 |
|
| GN 124.3-12-40-E | 12 | 40 | 17 | 3 | 14.5 | 9 | 9.5 | 18.5 | 4 | 12 | 32 | 90 | 52 |
|
| GN 124.3-12-50-E | 12 | 50 | 17 | 3 | 14.5 | 9 | 9.5 | 18.5 | 4 | 12 | 32 | 90 | 61 |
|
