Home Indexing and Positioning Elements Lock pins GN 124.1

GN 124.1

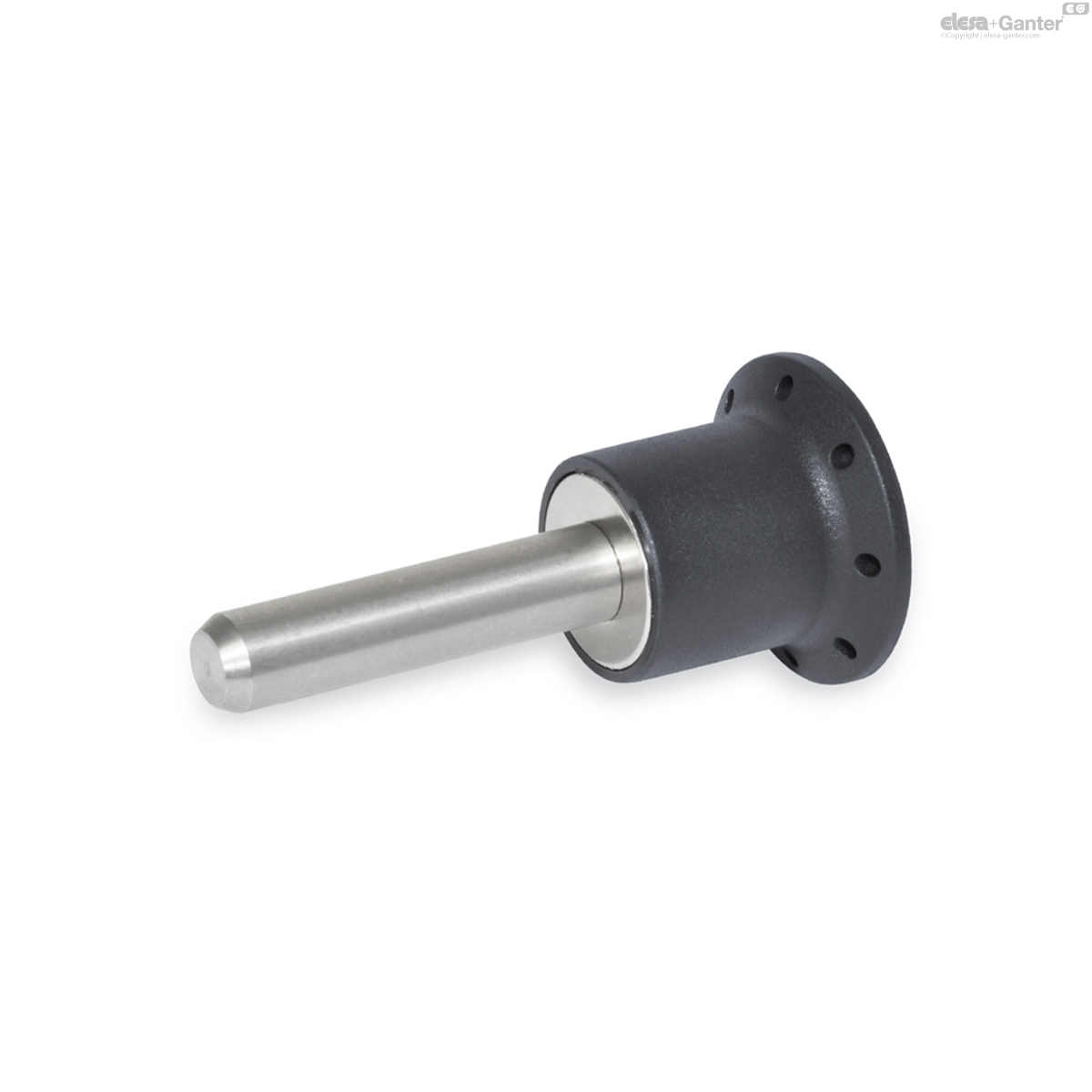

Stainless Steel-Locking pins

with axial lock (magnetic)

Enquire Now

Description

Specification

Stainless Steel AISI 303

Knob

Plastic Technopolymer (Polyamid PA)

black-grey

temperature resistant up to 80 °C

Retaining magnet

Neodymium, iron, boron

Information

GN 124.1 Stainless Steel-Locking pins are used for quickly fixing, connecting and locking various parts and workpieces made of magnetic materials.

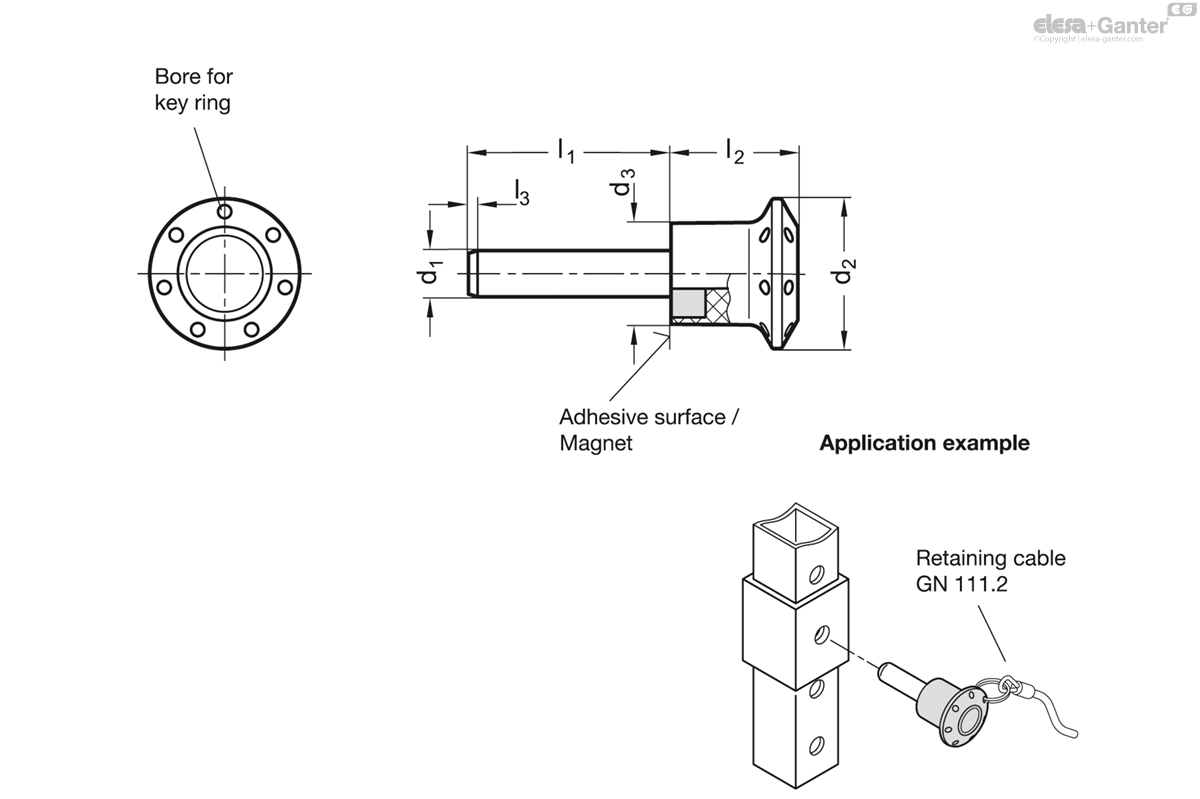

A neodymium magnet is recessed into the underside of the bolt and axially retains the bolt in its inserted procession. High-quality surfaces with perpendicular locating holes promote magnetic flux to produce excellent axial retention.

The rated shear stresses of the bolt cross-section are theoretical guide values only and do not constitute any warranty. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.

Accessory

Ball chains GN 111

Stainless Steel-Ball chains GN 111.5

Retaining cables GN 111.2

Spiral retaining cables GN 111.4

Technical information

List of Lock Pin Types
Load Capacity
Plastic Characteristics
Stainless Steel Characteristics

GN 124.1

	esec-dp1pp_-0.04/-0.08	esec-lp1pp	esec-dp2pp	esec-bp1pp	esec-dp3pp	esec-bp2pp	esec-lp2pp	esec-k	esec-lp2pp_±0.2	esec-lp3pp	esec-Locating_bore	esec-sp2pp	esec-Axial_holding_force_in_N	esec-Load_in_kN1	esec-Locating_bore_H11	esec-logoweight	esec-Load_in_N_Mounting
Code																		Actions
GN 124.1-6-12	6	12	26	-	17.5	-	22	22	-	1.3	6	-	65	22	-	14	-
GN 124.1-6-17	6	17	26	-	17.5	-	22	-	-	1.3	6	-	65	22	-	19	-
GN 124.1-6-22	6	22	26	-	17.5	-	22	-	-	1.3	6	-	65	22	-	20	-
GN 124.1-6-27	6	27	26	-	17.5	-	22	-	-	1.3	6	-	65	22	-	21	-
GN 124.1-6-32	6	32	26	-	17.5	-	22	-	-	1.3	6	-	65	22	-	22	-
GN 124.1-6-42	6	42	26	-	17.5	-	22	-	-	1.3	6	-	65	22	-	25	-
GN 124.1-6-52	6	52	26	-	17.5	-	22	-	-	1.3	6	-	65	22	-	27	-
GN 124.1-8-17	8	17	26	-	17.5	-	22	-	-	1.3	8	-	45	40	-	24	-
GN 124.1-8-22	8	22	26	-	17.5	-	22	-	-	1.3	8	-	45	40	-	24	-
GN 124.1-8-27	8	27	26	-	17.5	-	22	-	-	1.3	8	-	45	40	-	23	-
GN 124.1-8-32	8	32	26	-	17.5	-	22	-	-	1.3	8	-	45	40	-	27	-
GN 124.1-8-42	8	42	26	-	17.5	-	22	-	-	1.3	8	-	45	40	-	31	-
GN 124.1-8-52	8	52	26	26	17.5	17.5	22	22	1.3	1.3	8	8	45	40	40	36	35
GN 124.1-8-62	8	62	26	26	17.5	17.5	22	22	1.3	1.3	8	8	45	40	40	38	38
GN 124.1-10-18	10	18	34	34	23	23	28.5	28.5	2.2	2.2	10	10	95	62	62	44	43
GN 124.1-10-23	10	23	34	34	23	23	28.5	28.5	2.2	2.2	10	10	95	62	62	47	46
GN 124.1-10-28	10	28	34	34	23	23	28.5	28.5	2.2	2.2	10	10	95	62	62	49	49
GN 124.1-10-33	10	33	34	34	23	23	28.5	28.5	2.2	2.2	10	10	95	62	62	52	52
GN 124.1-10-43	10	43	34	34	23	23	28.5	28.5	2.2	2.2	10	10	95	62	62	59	58
GN 124.1-10-53	10	53	34	34	23	23	28.5	28.5	2.2	2.2	10	10	95	62	62	65	64
GN 124.1-10-63	10	63	34	34	23	23	28.5	28.5	2.2	2.2	10	10	95	62	62	71	71
GN 124.1-12-23	12	23	34	34	23	23	28.5	28.5	2.2	2.2	12	12	75	90	90	53	52
GN 124.1-12-33	12	33	34	34	23	23	28.5	28.5	2.2	2.2	12	12	75	90	90	62	61
GN 124.1-12-43	12	43	34	34	23	23	28.5	28.5	2.2	2.2	12	12	75	90	90	70	70
GN 124.1-12-53	12	53	34	34	23	23	28.5	28.5	2.2	2.2	12	12	75	90	90	79	78
GN 124.1-12-63	12	63	34	34	23	23	28.5	28.5	2.2	2.2	12	12	75	90	90	88	87
GN 124.1-12-83	12	83	34	34	23	23	28.5	28.5	2.2	2.2	12	12	75	90	90	104	104
