GN 120.3

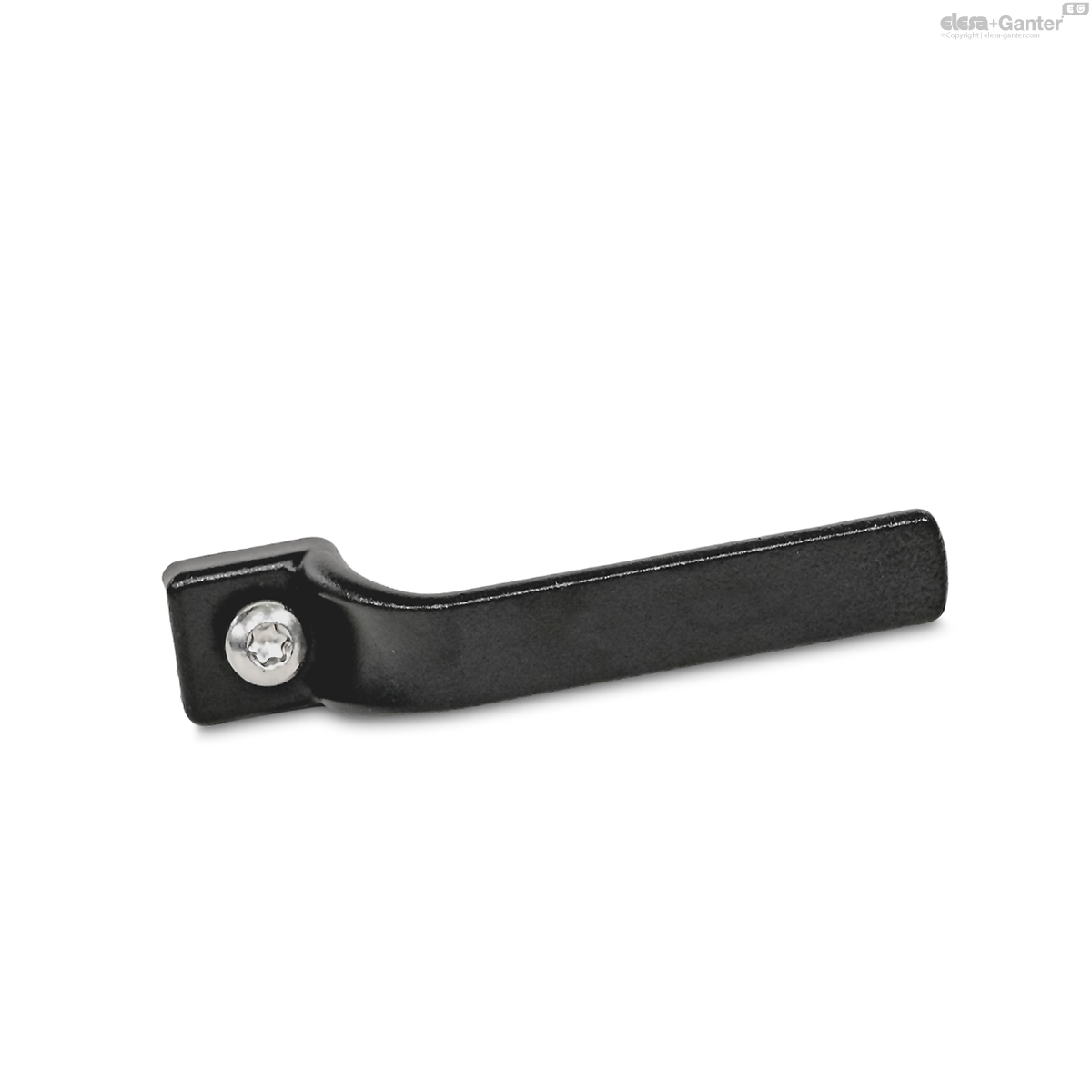

Internal Cabinet Handles

Zinc Die Casting, for Latches

Enquire Now

Description

Specification

Zinc die casting ZD

Powder coated

Black, RAL 9005, textured finish SW

Red, RAL 3000, textured finish RS

Pan head screw and serrated washer

Stainless steel AISI 304

Information

Internal cabinet handles GN 120.3 allow non-lockable latches to be opened from the back side as well. This is necessary, for example, for machine enclosures or maintenance openings.

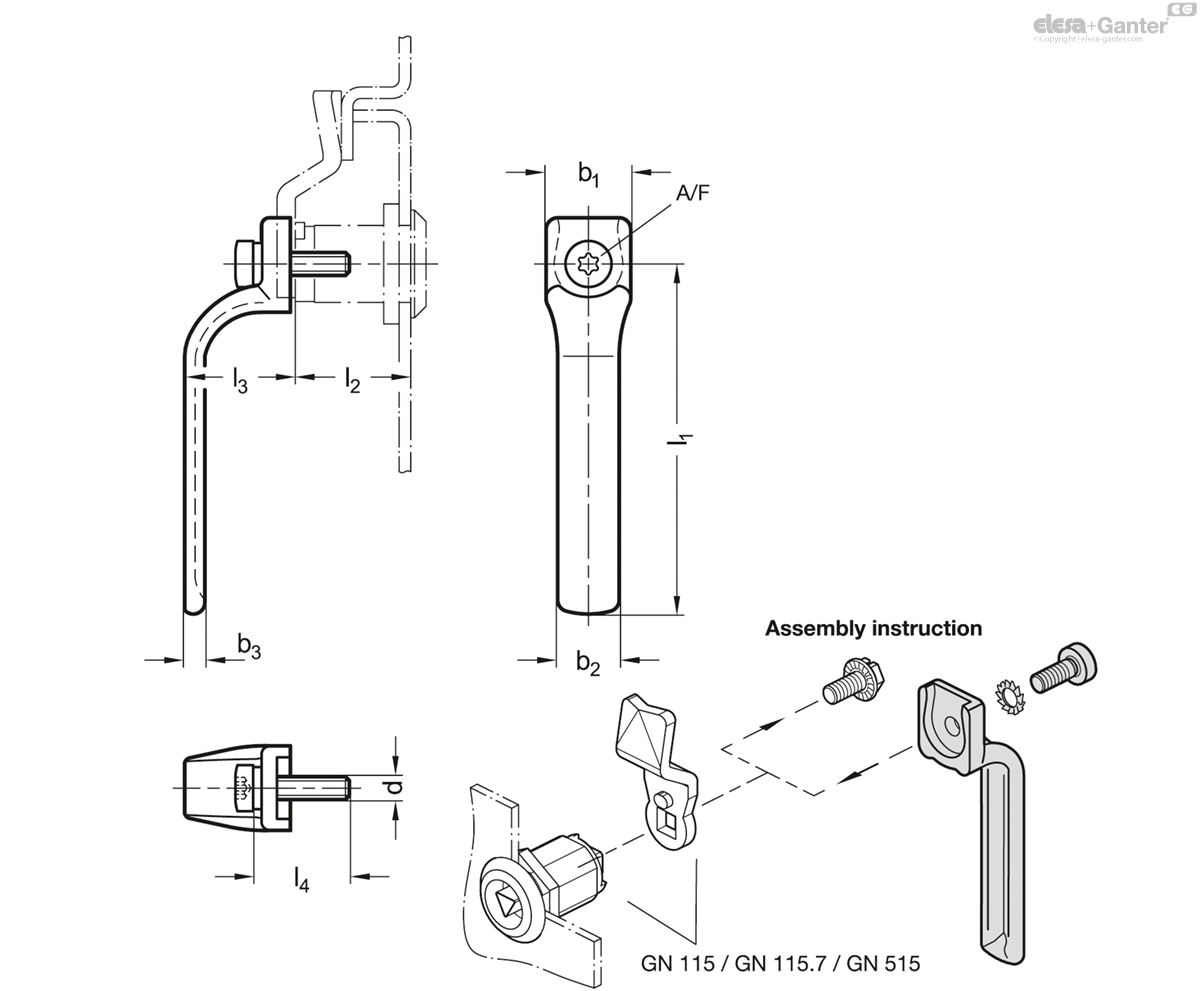

The internal cabinet handle is fastened to the back side of the latch using the supplied screw and serrated washer. For this purpose, the existing screw on the latch must be removed.

All compatible latches are listed in the table. For latches GN 115-IP and GN 115.7 the housing length is always 18 mm.

Technical Information

List of latch types

Stainless Steel Characteristics

GN 120.3

	Color	l₁	l₂	b₁	b₂	b₃	d	l₃	l₄	A/F Torx	Suitable for (except for lockable types)
Code													Actions
GN 120.3-ZD-90-18-RS	RS - RAL 3000	90	18	22	16	5	M 6	28	12	T30	GN 115 / GN 115.7	67
GN 120.3-ZD-90-18-SW	SW - RAL 9005	90	18	22	16	5	M 6	28	12	T30	GN 115 / GN 115.7	67
GN 120.3-ZD-90-30-RS	RS - RAL 3000	90	30	22	16	5	M 6	28	25	T30	GN 515	70
GN 120.3-ZD-90-30-SW	SW - RAL 9005	90	30	22	16	5	M 6	28	25	T30	GN 515	70
GN 120.3-ZD-90-40-RS	RS - RAL 3000	90	40	22	16	5	M 6	28	35	T30	GN 515	72
GN 120.3-ZD-90-40-SW	SW - RAL 9005	90	40	22	16	5	M 6	28	35	T30	GN 515	72
GN 120.3-ZD-90-50-RS	RS - RAL 3000	90	50	22	16	5	M 6	28	45	T30	GN 515	74
GN 120.3-ZD-90-50-SW	SW - RAL 9005	90	50	22	16	5	M 6	28	45	T30	GN 515	74
GN 120.3-ZD-90-60-RS	RS - RAL 3000	90	60	22	16	5	M 6	28	55	T30	GN 515	76
GN 120.3-ZD-90-60-SW	SW - RAL 9005	90	60	22	16	5	M 6	28	55	T30	GN 515	76
