GN 120.2

Protective guide plates

for latches GN 115, GN 115.7, GN 115.10

Enquire Now

Description

Specification

Types

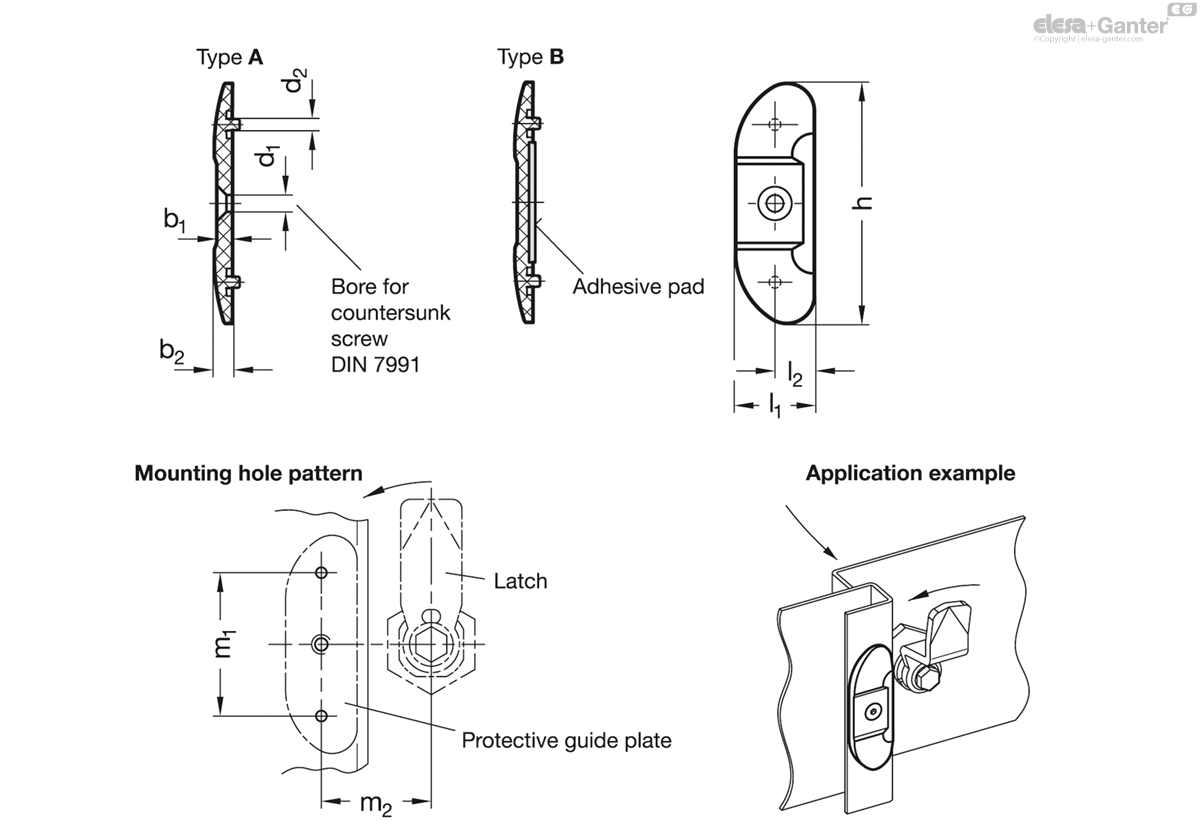

Type A: Mounting with countersunk screw

Type B: Mounting with adhesive pad

Plastic (Polyamide PA)

black, matt SW

Adhesive pad (only type B)

Scotch-Mount ™ 4026

double-sided,

with polyurethane foam backing

Information

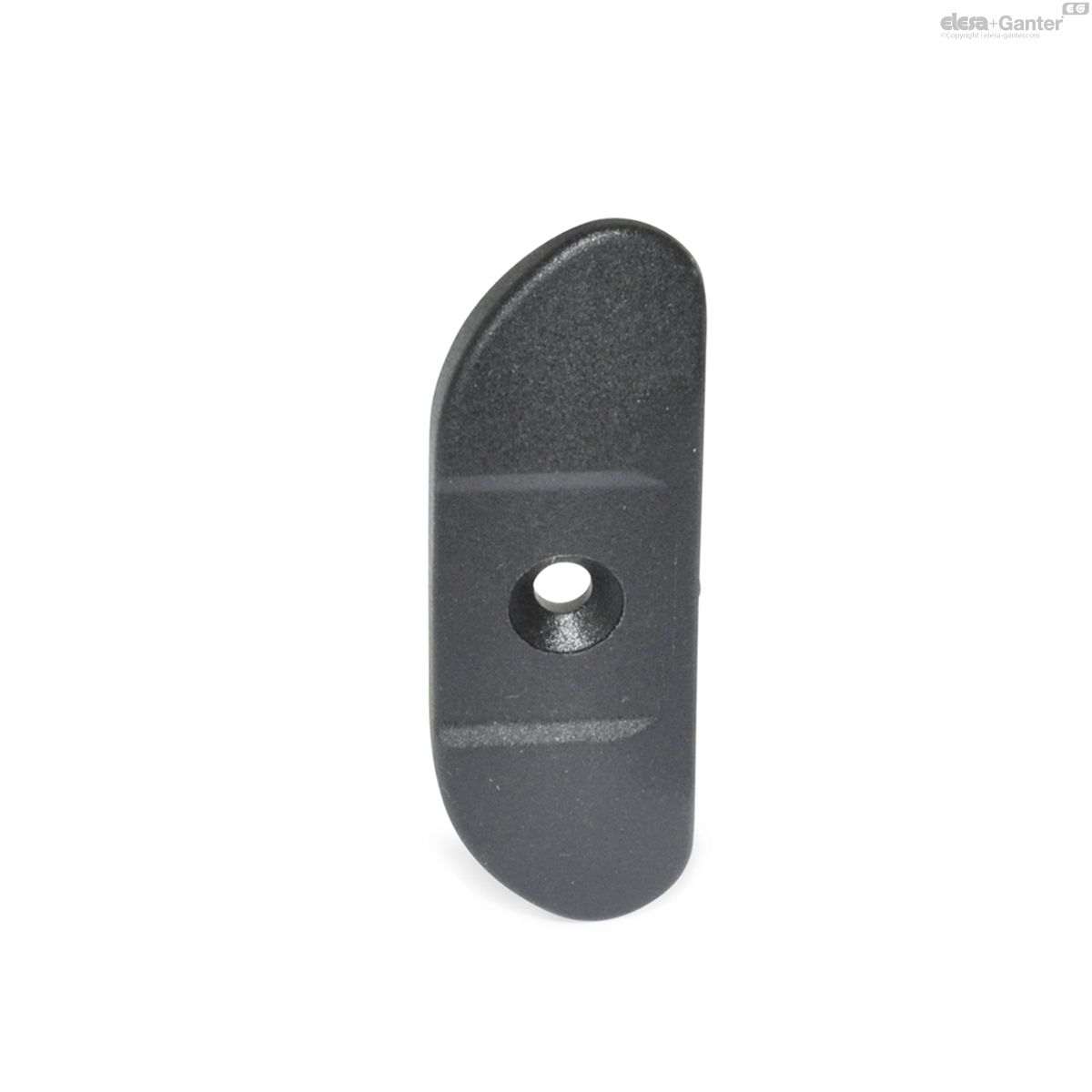

Protective guide plates GN 120.2 are used in connection with door latches, using the principle of friction. They prevent the latch from causing abrasion, for example to corrosion protection layers on a door frame. They additionally prevent unintended opening, as the latches lock into a small recess in their closed position.

If the d₂ positioning tabs are not required they can easily be removed with side cutting pliers, for example.

Latches that can be used together with GN 120.2 protective guide plates:

Latches, lockable GN 115-L

Latches, not lockable GN 115-NL

Latches with key GN 115-NL with key

Stainless Steel-Hygienic latches GN 115-VH8

Latches with cabinet 'U' handle GN 115.7

Latches with gripping tray GN 115.10

Technical Information

Plastic characteristics

GN 120.2

	h	b₁	b₂	d₁	d₂	l₁	l₂	m₁	m₂ ±2
Code											Actions
GN 120.2-60-4-A-SW	60	4	4.6	M 4	3	20	10	40	35	7
GN 120.2-60-4-B-SW	60	4	4.6	M 4	3	20	10	40	35	6
