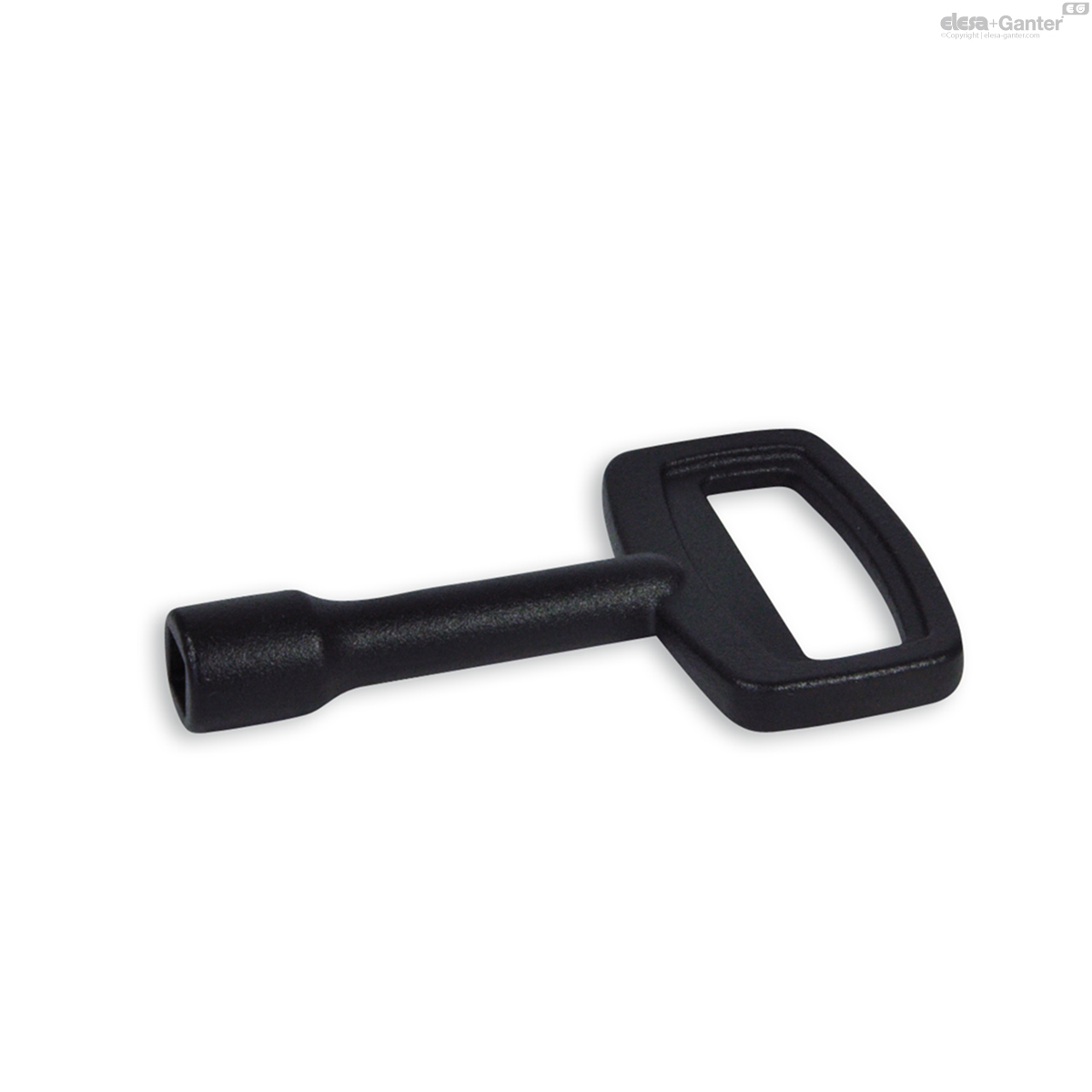

GN 119.2
Socket keys
for latches
Description
Specification
Types
- Type DK6,5: Operation with triangle h = 6.5
- Type DK7: Operation with triangle h = 7
- Type VK6: Operation with square A/F6
- Type VK7: Operation with square A/F7
- Type VK8: Operation with square A/F8
- Type VDE5: Operation with double bit d2 = 5.6
- Type SCH: Operation with blade / slot
Zinc die casting
plastic coated
black, textured finish SW
Information
Socket keys GN 119.2 are suitable for the following latches:
- Mini-Latches GN 115.1
- Stainless Steel-Mini-Latches GN 115.6
- Latches, lockable GN 115
- Latches, not lockable GN 115
- Latches with key GN 115
- Stainless Steel-Hygienic latches  GN 115
- Latches with cabinet 'U' handle GN 115.7
- Hook-type latches GN 115.8
- Latches with gripping tray GN 115.10
- Rotary clamping latches GN 116.1
- Latches GN 119
- Latches with cabinet 'U' handle GN 119.3
- Rotary clamping latches GN 516
- Rotary clamping latches GN 516.1
- Stainless Steel-Rotary clamping latches GN 516.5
GN 119.2
| l1 | l2 | b | d1 | d2 | h | s | A/F | For latches |  |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||
| GN 119.2-55-DK6,5-SW | 55 | 34 | 32 | 11.4 | - | 6.5 | 1.3 | 6 | GN 115.1 / GN 115.6 | 23 |
|
| GN 119.2-55-SCH-SW | 55 | 34 | 32 | 11.4 | - | 6.5 | 1.3 | 6 | GN 115.1 / GN 115.6 | 23 |
|
| GN 119.2-55-VK6-SW | 55 | 34 | 32 | 11.4 | - | 6.5 | 1.3 | 6 | GN 115.1 / GN 115.6 | 23 |
|
| GN 119.2-86-DK7-SW | 86 | 53 | 50 | 14 | 5.6 | 7 | 1.8 | 7 | GN 115 / GN 115.7 / GN 115.8 / GN 115.10 / GN 116.1 / GN 119 / GN 119.3 / GN 516 / GN 516.1 / GN 516.5 | 60 |
|
| GN 119.2-86-SCH-SW | 86 | 53 | 50 | 14 | 5.6 | 7 | 1.8 | 7 | GN 115 / GN 115.7 / GN 115.8 / GN 115.10 / GN 116.1 / GN 119 / GN 119.3 / GN 516 / GN 516.1 / GN 516.5 | 60 |
|
| GN 119.2-86-VDE5-SW | 86 | 53 | 50 | 14 | 5.6 | 7 | 1.8 | 7 | GN 115 / GN 115.7 / GN 115.8 / GN 115.10 / GN 116.1 / GN 119 / GN 119.3 / GN 516 / GN 516.1 / GN 516.5 | 60 |
|
| GN 119.2-86-VK7-SW | 86 | 53 | 50 | 14 | 5.6 | 7 | 1.8 | 7 | GN 115 / GN 115.7 / GN 115.8 / GN 115.10 / GN 116.1 / GN 119 / GN 119.3 / GN 516 / GN 516.1 / GN 516.5 | 60 |
|
| GN 119.2-86-VK8-SW | 86 | 53 | 50 | 14 | - | - | - | 8 | GN 115 / GN 115.7 / GN 115.8 / GN 115.10 / GN 116.1 / GN 119 / GN 119.3 / GN 516 / GN 516.1 / GN 516.5 | 60 |
|
