GN 115-WSK-ZD

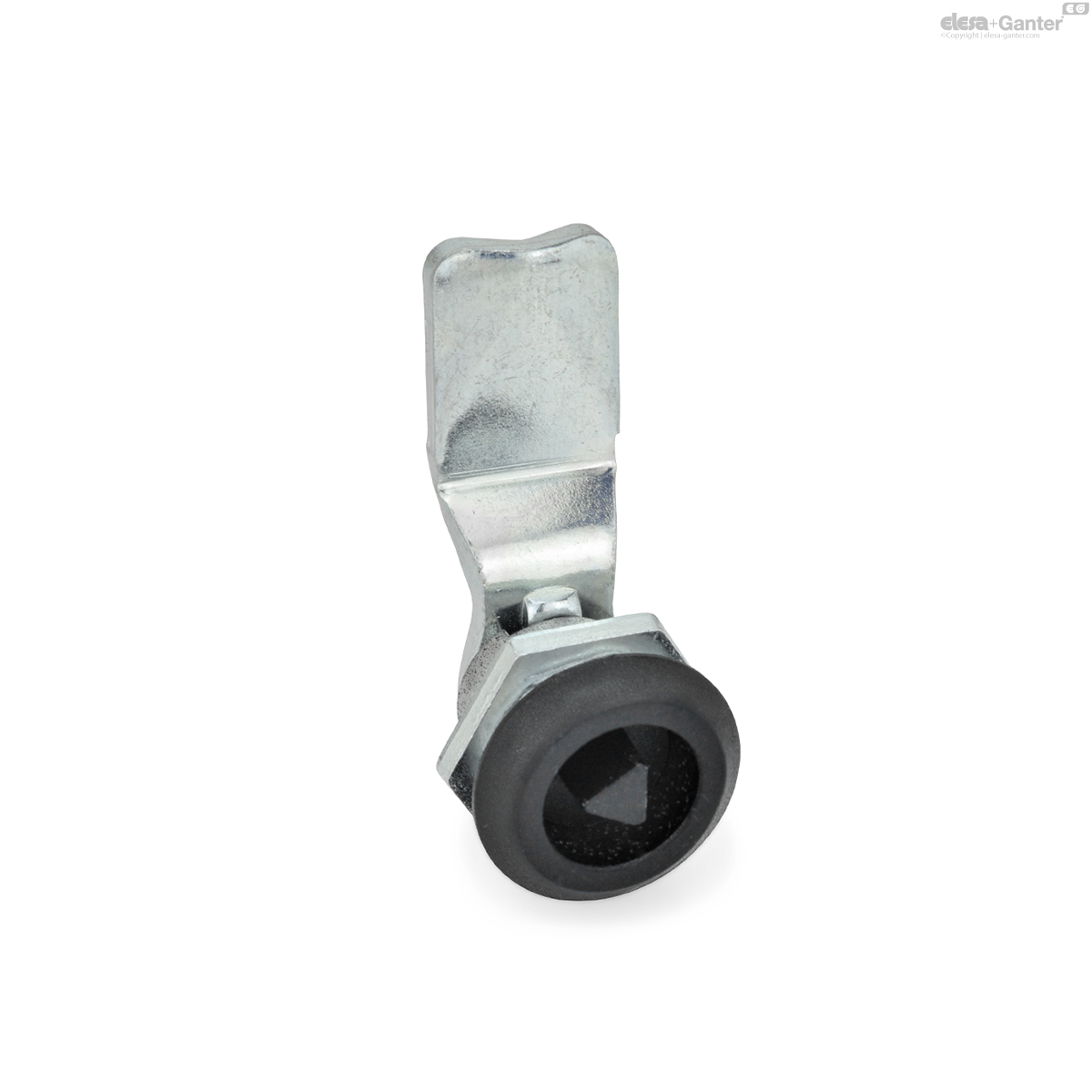

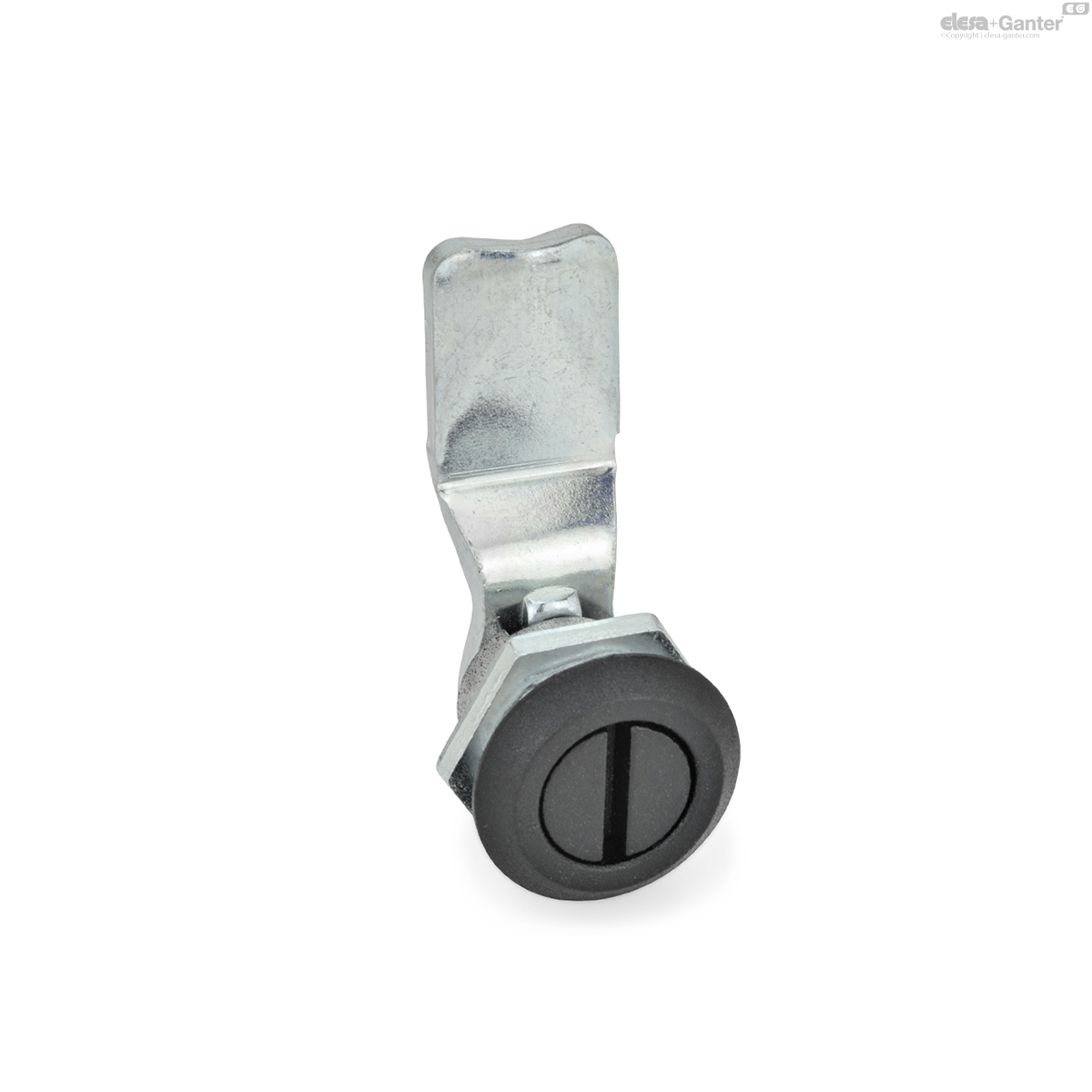

Latches GN 115-WSK-ZD lock by a turning operation limited to 90° which moves the latch arm in the locked position behind the door frame. The bevels of the latch arm ease the closing of the door.

Latch arms are available with different bend angles to cover a latch arm distance A from 4 to 50 mm.

Latches GN 115-WSK-ZD are supplied with loosely enclosed latch arm.

• Socket Keys GN 119.2

• Protective Caps GN 120

• Opening Handles GN 120.1

• Protective Guide Plates GN 120.2

• Internal Cabinet Handles GN 120.3

• Sheet Metal Punches GN 123

• Other operations

• List of latch types

• IP Protection Classes

For installation, set a hole in the door, cover or hatch as shown in the outline drawing.

Once assembled, the latch is pushed through the bore diameter from the front. The hex nut can then be pushed over the latch from the back and bolted in place.

The required installation bore in the door leaf, is usually generated by punching or laser machining in series production.

The installation bore diameter can also be created by drilling or milling as shown in the outline drawings.

For small series and steel sheets below 2 mm thickness, the sheet metal punches GN 123 are the tool of choice.
