GN 115.10

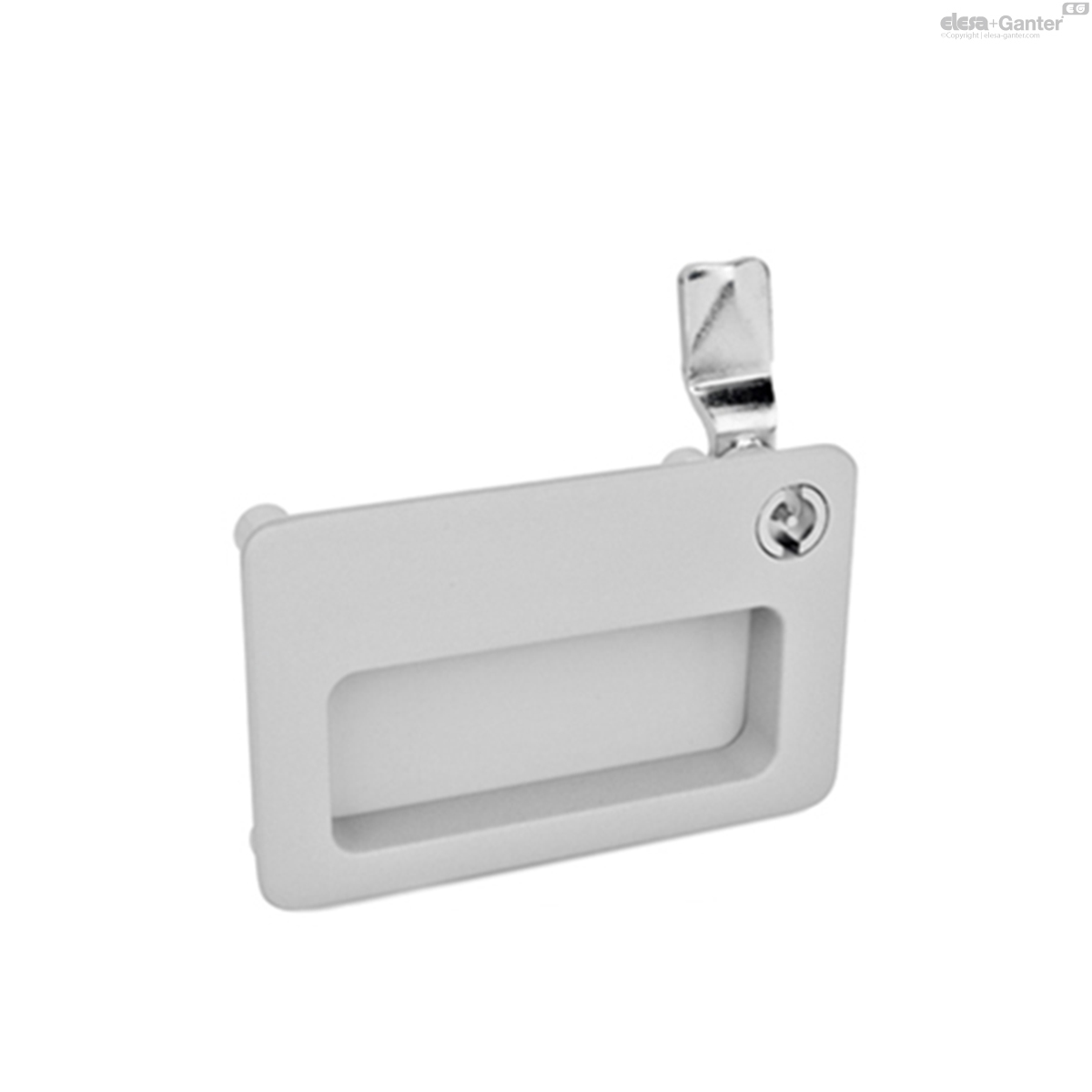

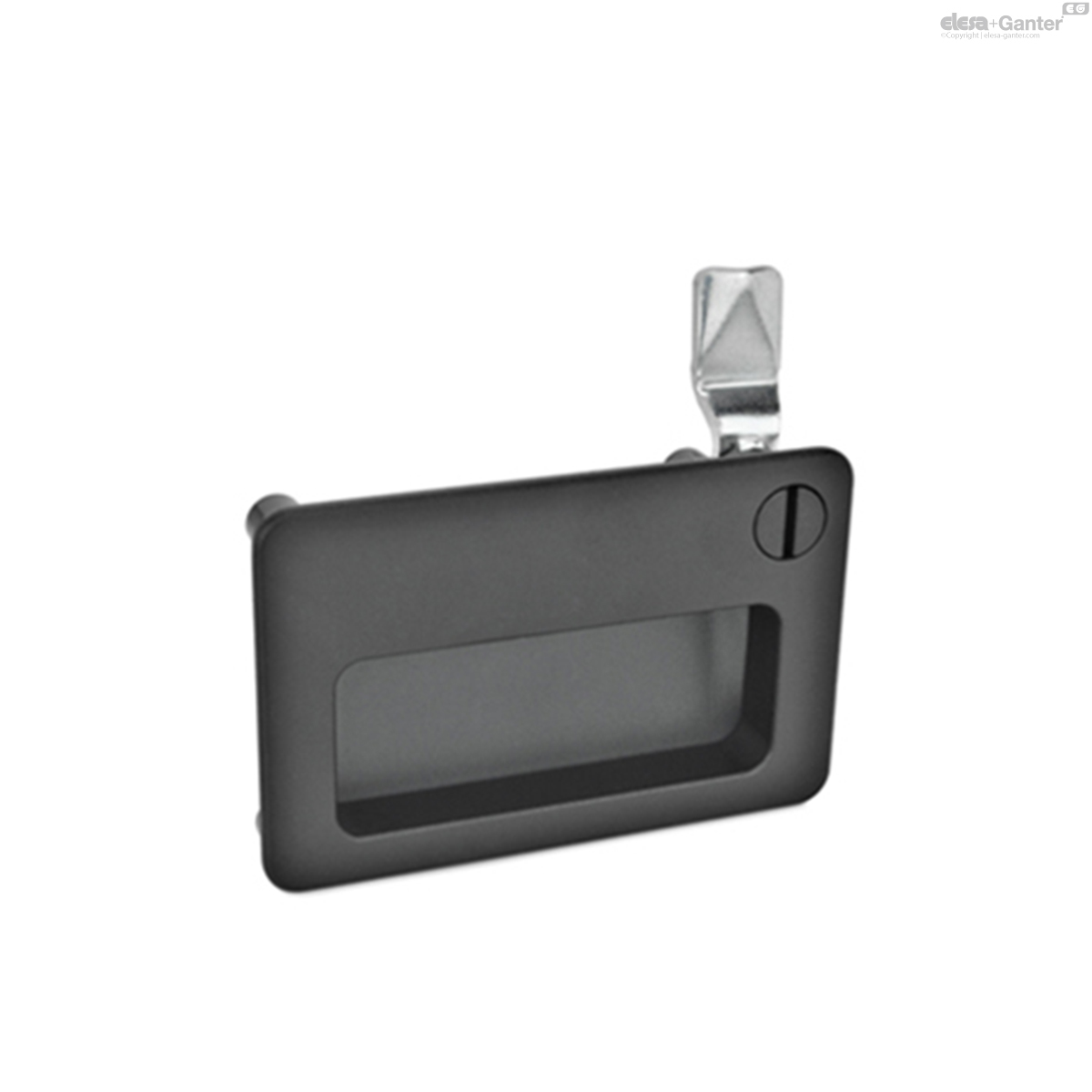

Latches with gripping tray GN 115.10 are used in applications which require a moulded recess in addition to the latching mechanism, e.g. if operating elements are not allowed to protrude for reasons of space.

A rotary movement limited to 90° moves the latch behind the frame, with the run-up bevels at the latch making it easier to close the door.

Latches with different cranks cover a latch distance A from 4 to 50 mm.

The types with a different lock are available in more than 200 variants, whose key is marked by numbers.

The scope of delivery includes a separately enclosed latch as well as two keys removable in both end positions.

• List of latch types

• Socket keys GN 119.2

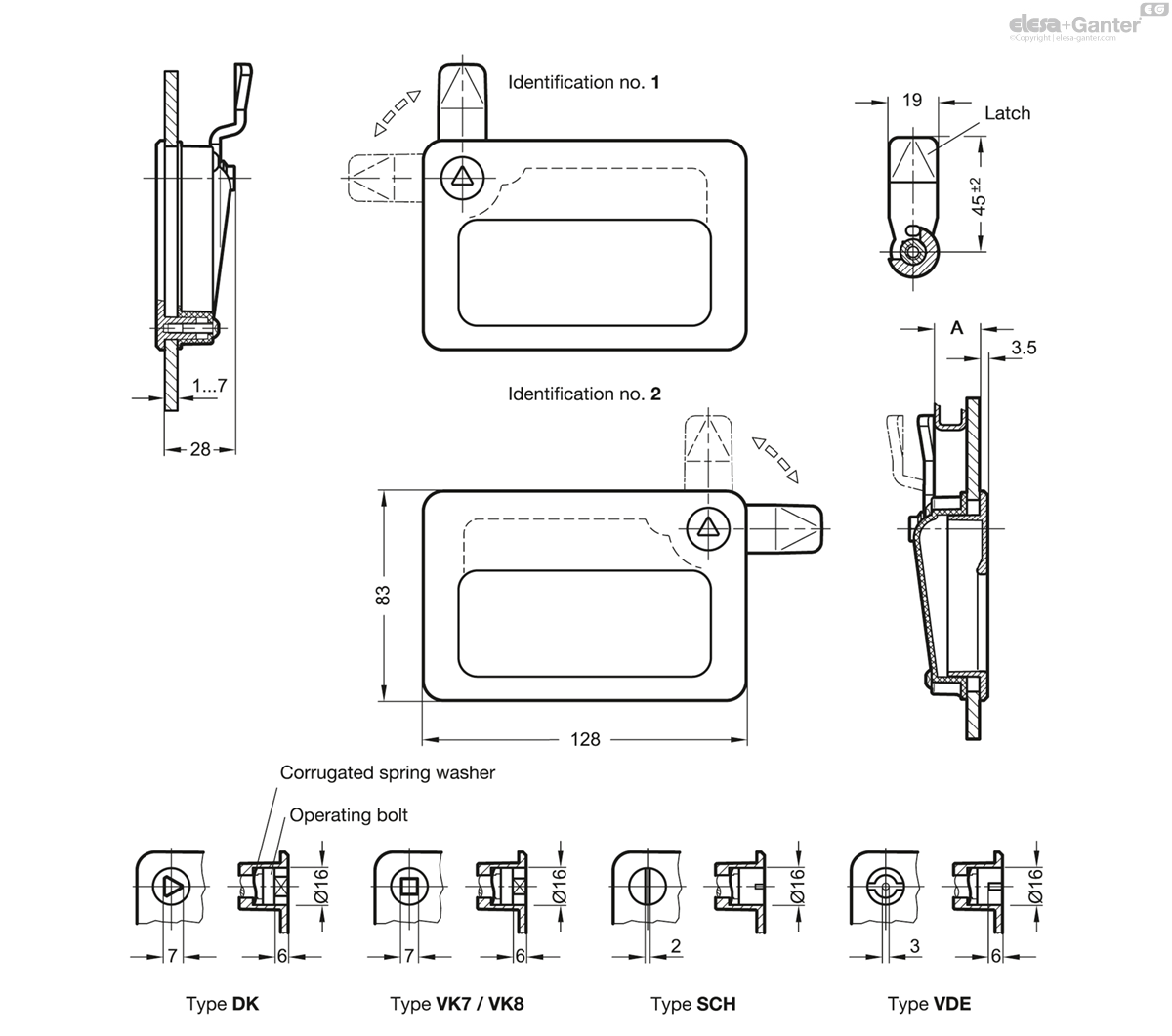

Before assembly, a nick must be made in the door as shown in the drawing.

Depending on position of the latch, the 16.5 mm edge spacing between frame and nick must be ensured sideways and/or top and bottom to make sure that the latch is positioned behind the frame.



For the assembly, insert the front frame together with the pre-assembled latch from the front through the nick of the door by tilting.

Place the plastic tray from the back onto the bore pegs of the front frame.

The M4x12 fillister-head screws included are then screwed in from the rear and tightened to fix and wedge the whole unit in place. The minimum screw-in depth of the screw is guaranteed with a maximum door wall thickness of 7 mm.
