GN 1140

Holding Bushings

Stainless Steel, for Ball Lock Pins / Locking Pins

Enquire Now

With countersunk head

Description

Specification

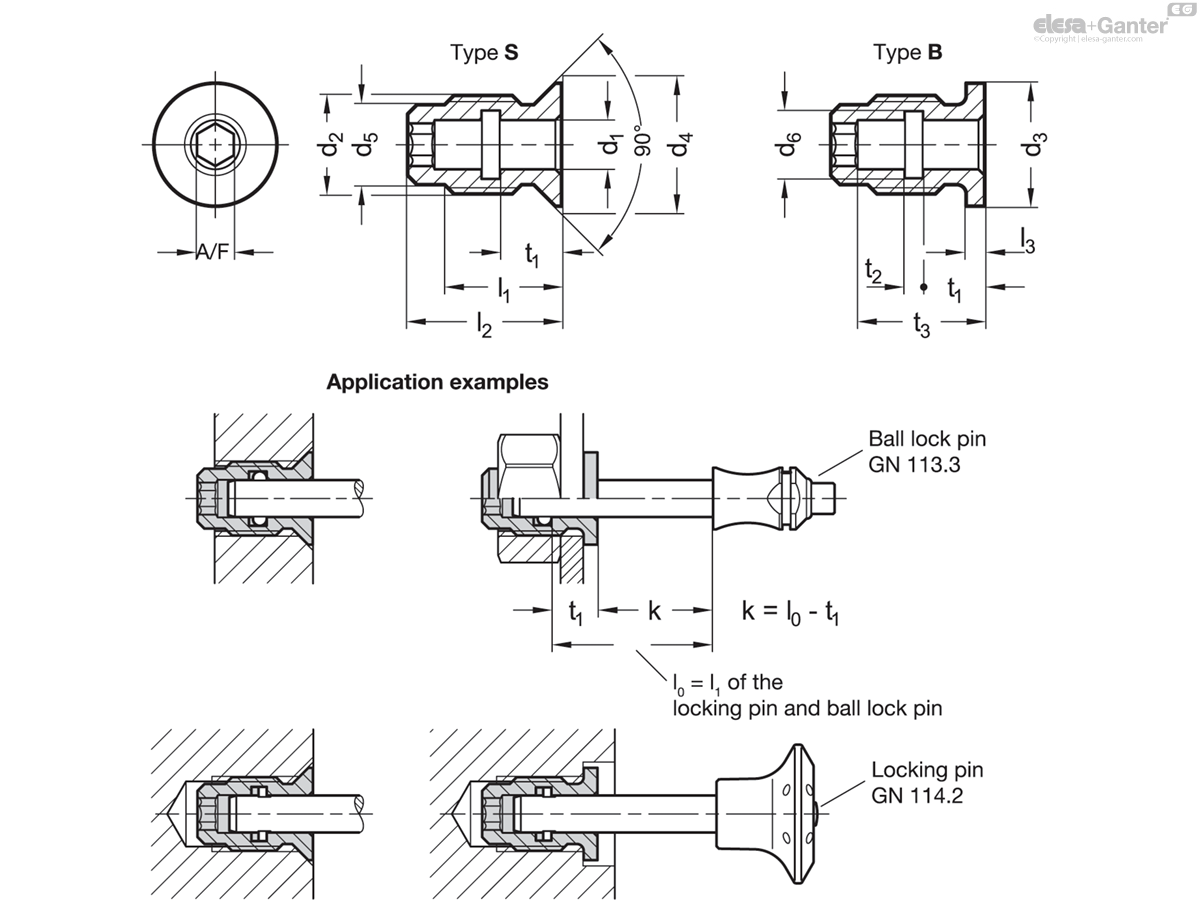

Types

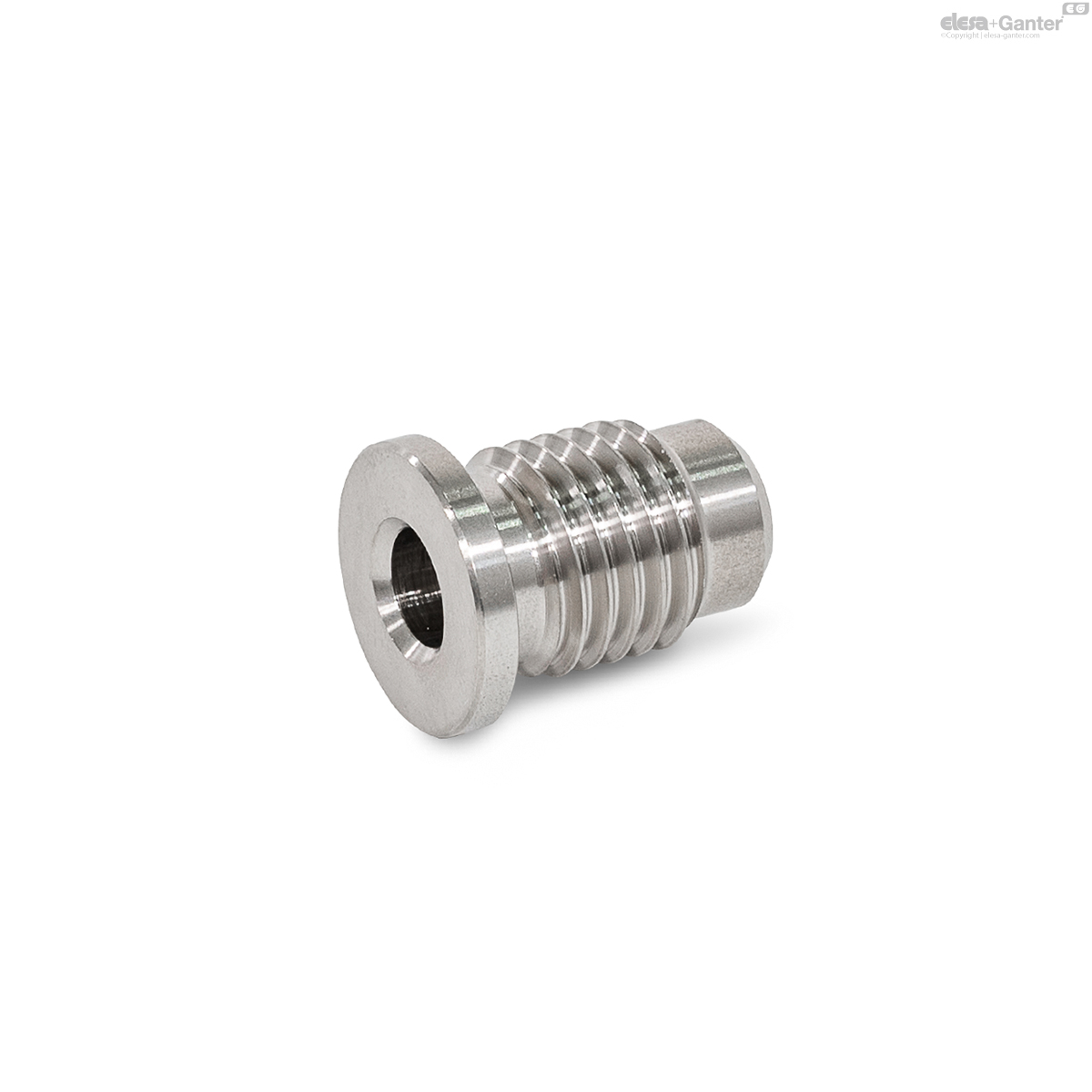

Type B: With collar

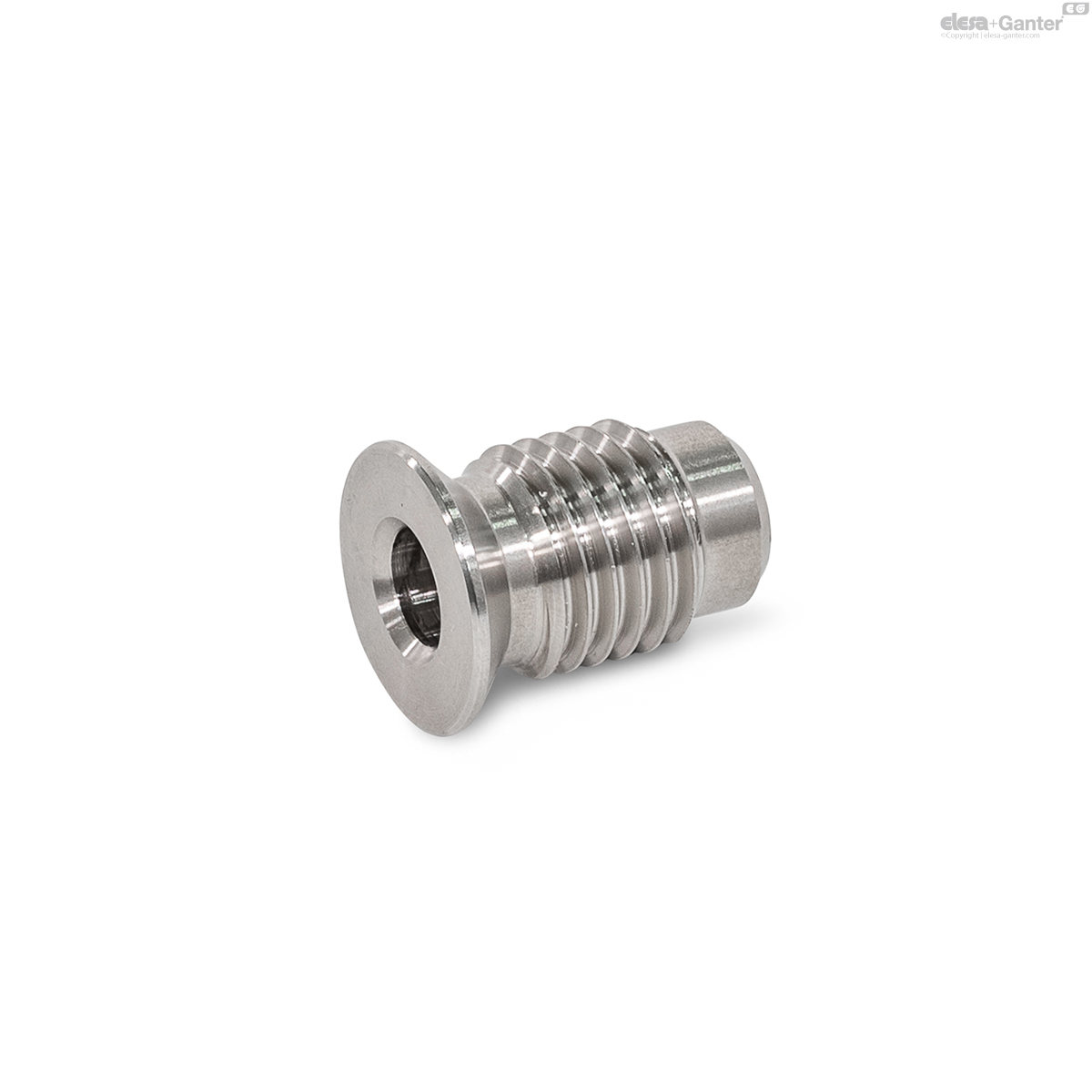

Type S: With countersunk head

Stainless steel AISI 303 NI

Information

Holding bushings GN 1140 are designed for ball lock pins, such as GN 113.3, or locking pins GN 114.2 . They are used when the existing wall thickness is thin or for installation in a blind hole. They also provide reinforcement when the locking pin or ball lock pin is used with soft, sensitive materials.

Type B establishes a defined screw-in depth due to the collar. Type S with countersunk head allows for centered, flush installation in an easily created hole.

The holding bushings fit the following locking pins and ball lock pins: GN 113.3, GN 113.4, GN 113.5, GN 113.6, GN 113.7, GN 113.8, GN 113.9, GN 113.10, GN 113.11, GN 113.12, GN 113.30, GN 114.2, GN 114.3, GN 114.6, GN 124.2, GN 124.3, GN 214.2, GN 214.3, GN 214.6.

Technical information

Range of lock pins
Stainless Steel Characteristics

GN 1140-B

	d₁	d₂	d₃	d₅	d₆	l₁ ≈	l₂	l₃	A/F	t₁	t₂	t₃
Code														Actions
GN 1140-5-M12-B-NI	5 +0.10/+0.02	M 12	16	9.4	6.5	16.5	21	2	4	10	1.5	17.5	14
GN 1140-6-M14-B-NI	6 +0.10/+0.02	M 14	18	11.4	8.2	17.5	23	2	5	10	2.5	18.5	20
GN 1140-8-M16-B-NI	8 +0.10/+0.02	M 16	20	13	11.1	19.5	25	3	6	10	3	20.5	26
GN 1140-10-M20-B-NI	10 +0.15/+0.05	M 20	25	16.4	13.4	21.5	28	3	8	10	4	22	44
GN 1140-12-M24-B-NI	12 +0.15/+0.05	M 24	30	19.6	15.4	29.5	39	4	10	20	5	33.5	91
GN 1140-16-M30-B-NI	16 +0.15/+0.05	M 30	36	25	20.3	33.5	43	4	10	20	7	36.5	149
