GN 1132

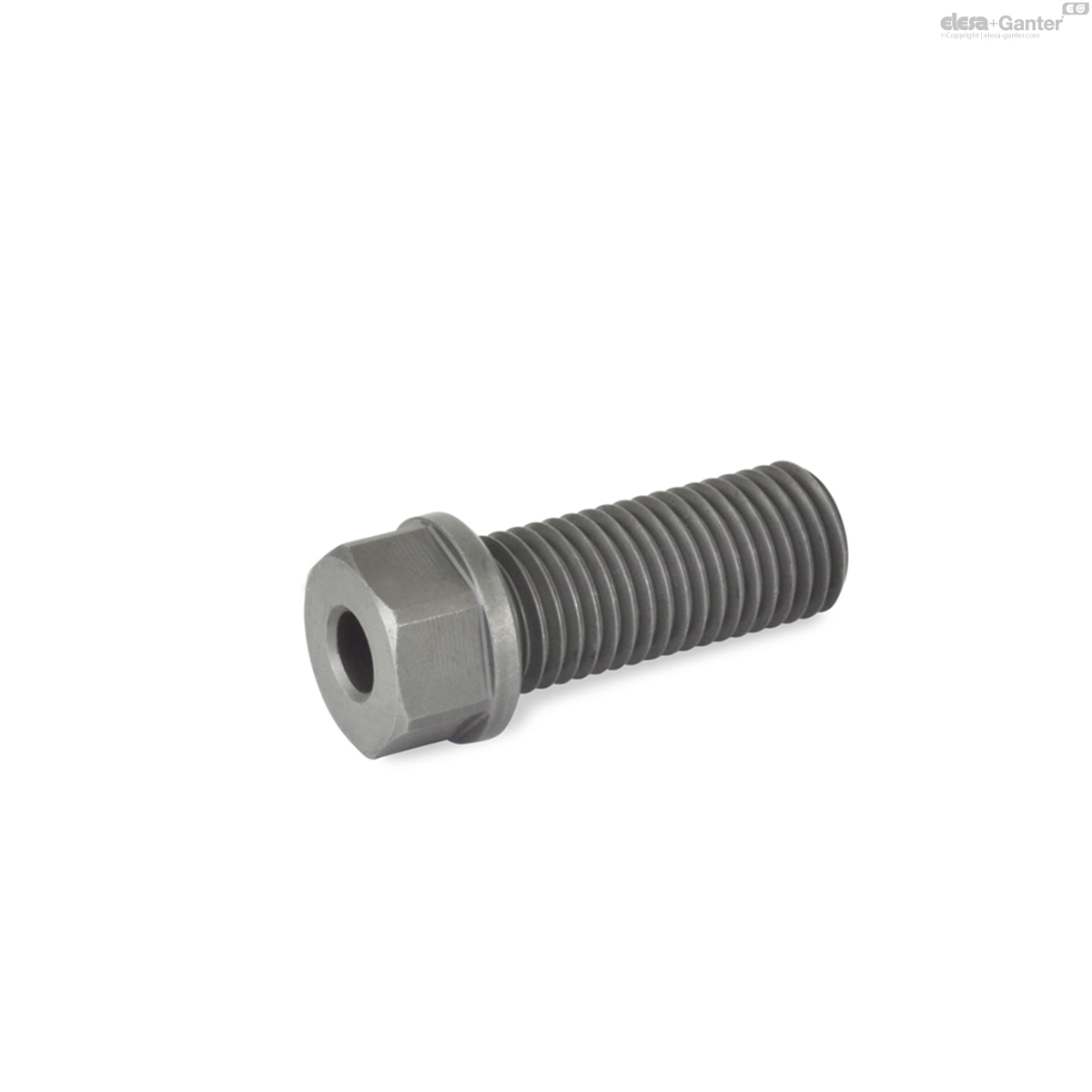

Holding bushings

for lifting pins GN 1130

Enquire Now

Description

Specification

Type

Type A: with external hexagon

Bushing

Stainless Steel

AISI 630

precipitation hardened

Information

Holding bushings GN 1132 are used in connection with lifting pins GN 1130 .

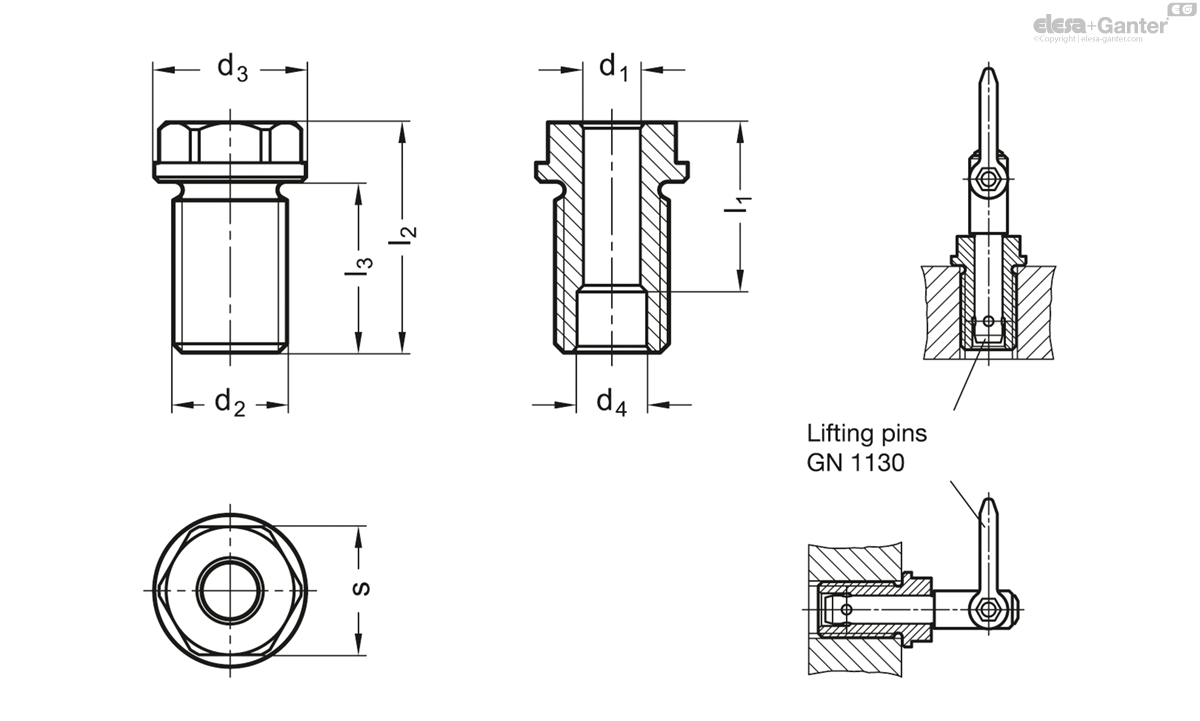

The length l₁ of the holding bushing should be equal to length l₁ of the lifting pin in order to recht the load specification given in the table for GN 1130 at plug-in length x.

Holding bushingsintended to remain permanently at the workpiece, creating a place-saving alternative to load rings or similar.

On request

other threads d₂

Technical information

Stainless Steel characteristics

GN 1132

	d₄ +0.3	d₁	l₁	d₂	d₃	l₂	l₃	s	Tightening torque in Nm
Code											Actions
GN 1132-8-10-M16x1,5-A	9.8	8	10	M 16 x 1.5	24	27.5	20	19	90	33
GN 1132-8-25-M16-A	9.8	8	25	M 16	24	37.5	25	19	75	47
GN 1132-10-15-M20x1,5-A	12.2	10	15	M 20 x 1.5	28	35.5	24	24	145	70
GN 1132-10-35-M20-A	12.2	10	35	M 20	28	46	29	24	130	93
GN 1132-12-15-M24x1,5-A	14.7	12	15	M 24 x 1.5	32	35.5	24	27	220	95
GN 1132-12-35-M24-A	14.7	12	35	M 24	32	48.5	36	27	200	119
GN 1132-16-25-M30x2-A	19.2	16	25	M 30 x 2	39	44	29	30	440	164
GN 1132-16-50-M30-A	19.2	16	50	M 30	39	66	44	30	400	236
GN 1132-20-50-M36x2-A	26	20	50	M 36 x 2	43	70	55	36	440	236
